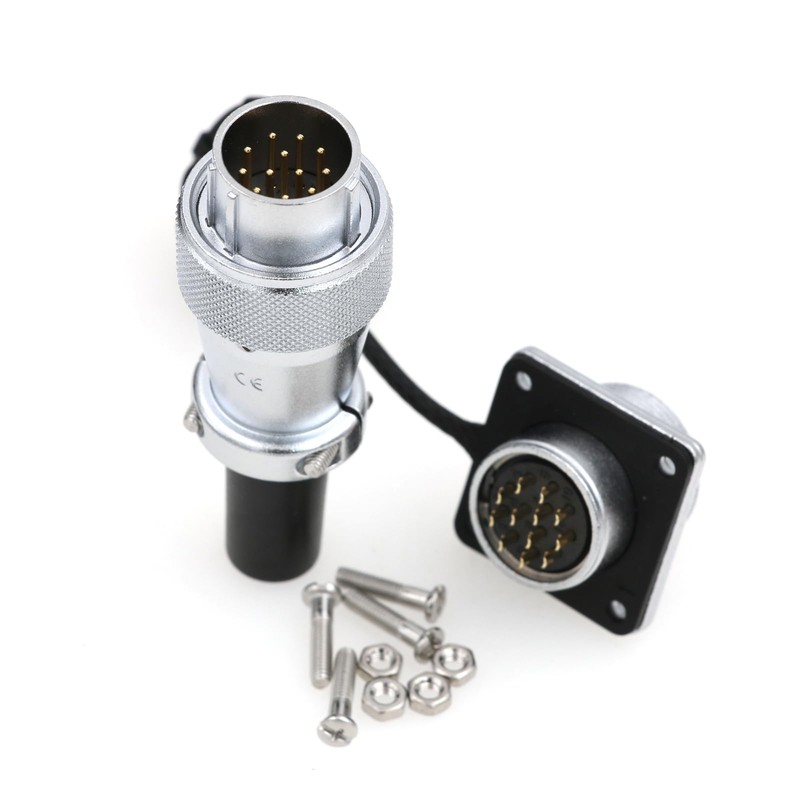

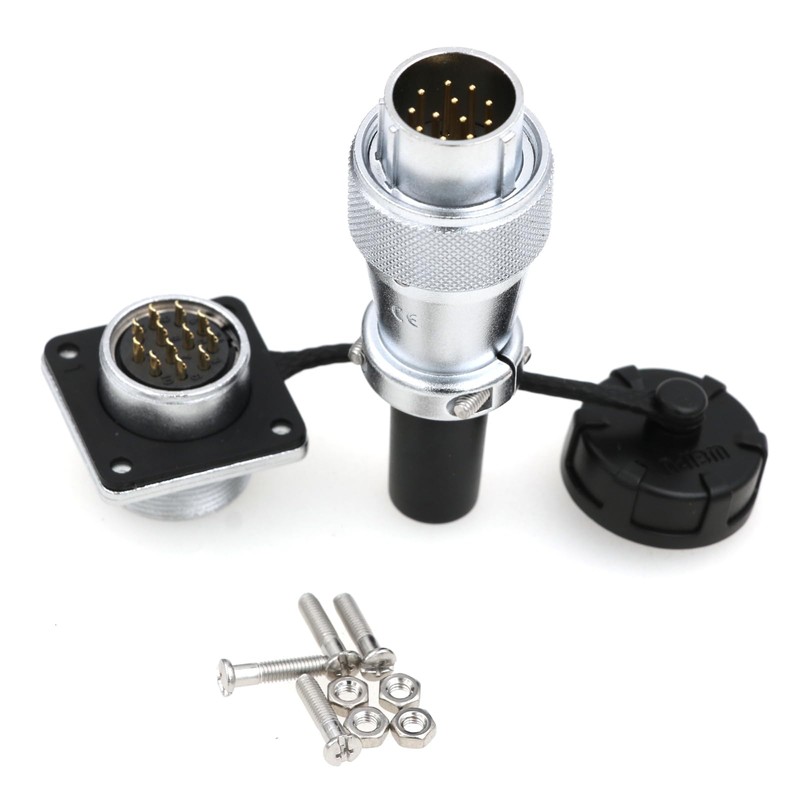

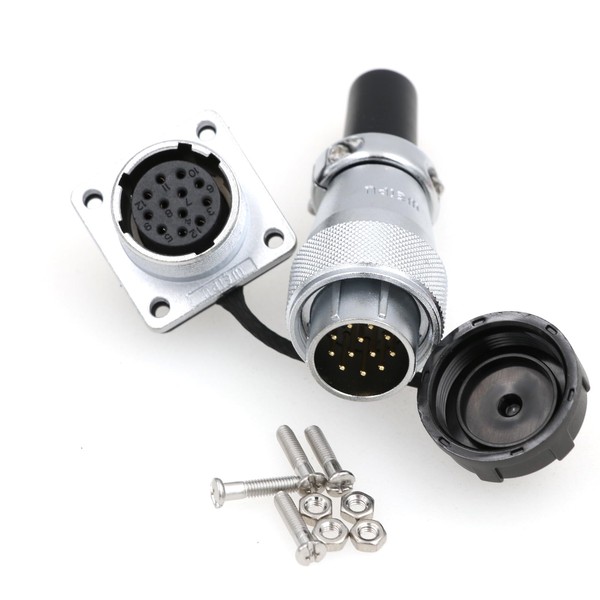

ZBLZGP WS20 Waterproof IP67 Aviation WEIPU Plug Socket M20 Square Panel Mount Electrical Power Metal Thread Plug for Industrial Signal LED AC DC Equipment (12Pin 5A)
ZBLZGP WS20 Waterproof IP67 Aviation WEIPU Plug Socket M20 Square Panel Mount Electrical Power Metal Thread Plug for Industrial Signal LED AC DC Equipment (12Pin 5A)
ZBLZGP WS20 Waterproof IP67 Aviation WEIPU Plug Socket M20 Square Panel Mount Electrical Power Metal Thread Plug for Industrial Signal LED AC DC Equipment (12Pin 5A)
- Weipu WS20 Square Waterproof IP67 Aviation Electrical Cable Connector
- WS20 pins: 2 pins; Contact diameter: Φ2.5 x 2, Contact resistance: 1mΩ; Wire size: ≤4mm²/11AWG; Rated current/voltage: 25A/AC 500V; Voltage resistance: AC 1500V
- Connection method: threaded connection Case Material: Zinc Alloy (Chrome Plated) Contact Material : Copper (Gold Plated)
- WS20 series metal panel mounting connector, mainly used in industrial automation power connectors, automotive, marine, high voltage, waterproof, anti-vibration.
- Plug and socket for outdoor use, waterproof to IP67. Widely used in various machine tools, locomotives, electricity, post and telecommunications, communication, navigation, instrumentation, lighting systems, medical and oil research and other fields.
| Brand: | ZBLZGP |
|---|---|
| Size: | 12Pin 5A |
| Color: | Male and Female |
| Manufacturer: | ZBLZGP |
| Part Number: | BK2JD1L |
| Material Type: | Metal, gold, copper, zinc |
| Isin: | IBPWNSMU7D9L |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

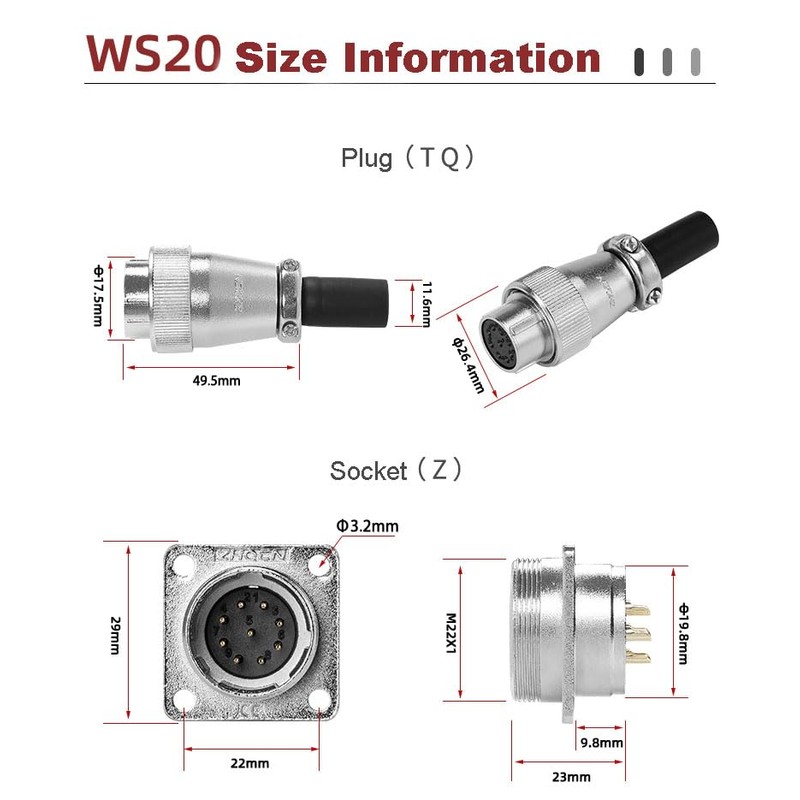

The WEIPU WS20 series is part of the wider WS series of unsealed threaded connections. These connectors are designed for in-line cable to cable connections or cable-to-panel mounting connections, with both male and female ends available. The series features a panel cutout of 20.5mm suitable for a variety of installation scenarios. It contains different styles such as round or square flange connectors and straight or angled cable connectors that provide flexibility to adapt to different installation needs. The WS20 series has been specially designed to meet the requirements of indoor power and data applications, such as In office automation systems, data centers and small industrial control facilities, providing reliable connectivity solutions for these environments.

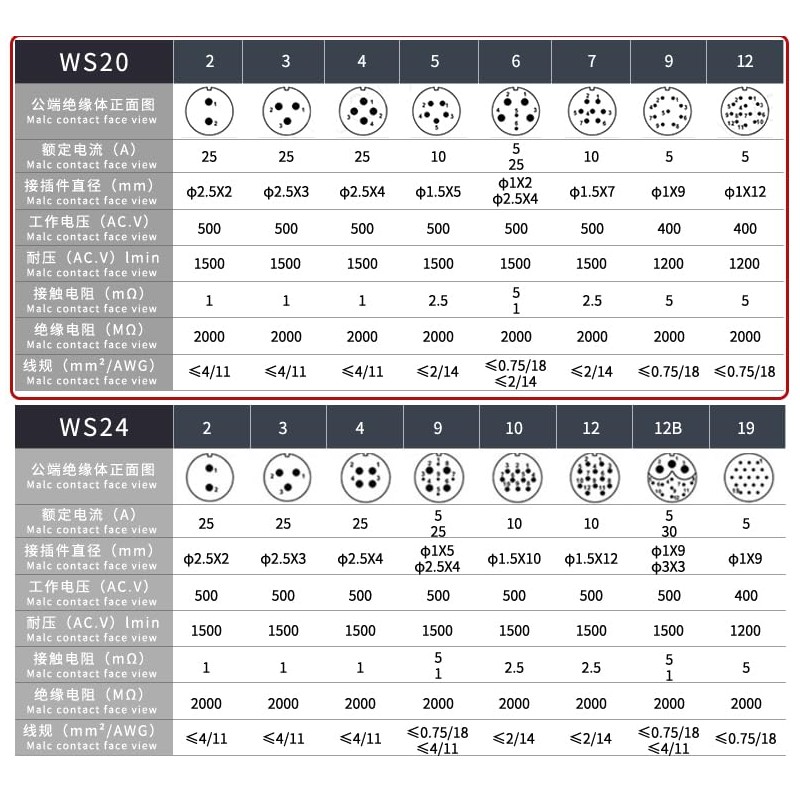

Electrical specifications:
- Rated current: 2 pin, 3 pin, 4 pin versions: 25 A.
5 Pin 6 Pin (5A/25A) 7 Pin Versions 10A
9-pin, 12-pin versions: 5A
- Rated voltage: 500V (AC) for all pin configurations
- Dielectric strength: 1500V AC for 1 minute across all pin configurations.
Contact resistance:
2-pin, 3-pin, 4-pin versions: 1mΩ
5-pin, 6-pin (5 mΩ / 1 mΩ), 7-pin versions: 2.5 mΩ
9-pin, 12-pin versions: 5mΩ
Mechanical Specifications:
- Coupling: threaded coupling for a secure connection
- Case material: zinc alloy, provides high strength and corrosion resistance.
- Insert material: PPS, with a maximum temperature resistance of 260 °C.
- Contact material: brass (gold plated) for improved conductivity.
- Connection: solder, screw or crimp connection available.
- Cable outer diameter range: generally suitable for cables with an outer diameter of 6-10mm.
- Durability: can withstand ≥500 times of connection and disconnection.
Environmental specifications:
- Working Temperature: Operating in a temperature range from -40°C to +85°C.
- Protection level: not suitable for outdoor use as it lacks waterproof and dustproof properties; primarily designed for indoor applications
