ZBLZGP M12 Connector - The Premier Choice for Industrial Connectivity

Product Overview

In the industrial realm, a reliable connection is of utmost importance. The ZBLZGP M12 Connector is meticulously engineered to meet the stringent demands of industrial environments. As a circular connector, it stands out with its 12mm threaded interface, serving as the ideal solution for connecting a wide array of devices and cables.

Product Features

Diverse Type Options

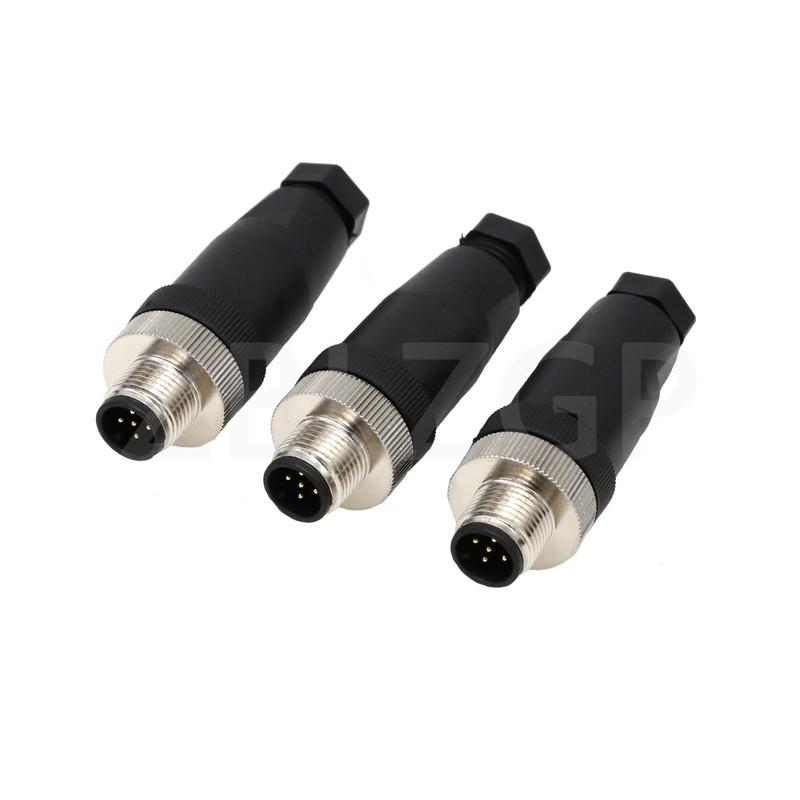

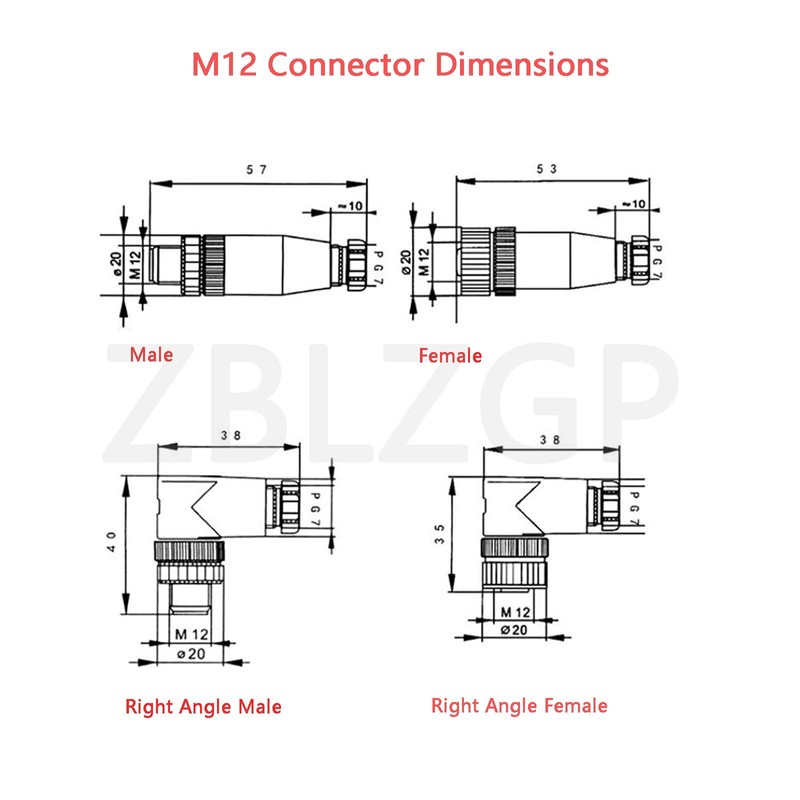

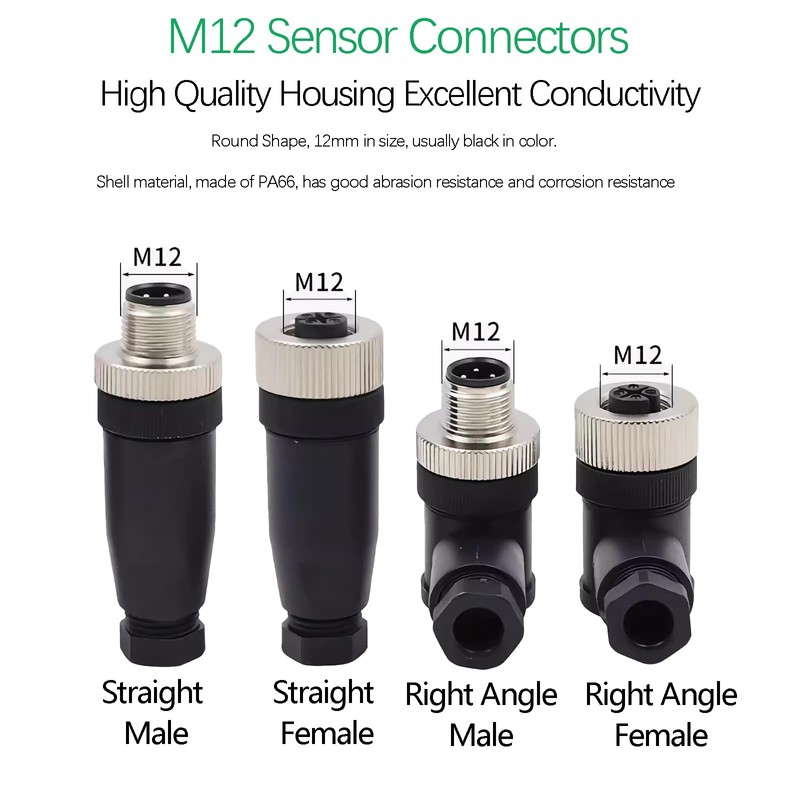

• Connector Styles: We offer a comprehensive selection including straight male, angled male, straight female, and angled female connectors. This variety allows for seamless adaptation to different spatial arrangements and installation angles. Whether dealing with the compact confines of internal device spaces or requiring flexible cabling solutions, there's a perfect style for every scenario.

• Tail Wiring Methods: Choose between soldering type for traditional and secure wire connections, ensuring a firm bond, and PCB soldering type. The latter is designed for easy integration with printed circuit boards, streamlining the assembly process in electronic devices and enhancing their compactness.

• Installation Approaches: Our M12 connectors support both front - locking panel - mount and rear locking panel mount installation methods. The front locking option is convenient for accessible device panel operations and maintenance, while the rear locking method is a boon when internal device space is limited, enabling hassle free installation from the rear. Both methods guarantee a stable and secure connection to the device panel.

• Multiple Pin Configurations: With pin counts ranging from 2 to 17, and common configurations such as 4 pin, 5 pin, 8 pin, and 12 pin, our M12 connectors can be tailored to diverse application requirements. For instance, 4 pin connectors are suitable for basic signal or power transmission; 8 pin connectors are well - equipped to handle more complex data and signal transfer needs; and 12 pin connectors are designed for systems that demand high - volume data interaction and multifunctional integration.

• Anti Misalignment Coding: We provide commonly used A-coding (ideal for power signal connections, ensuring stable power transmission), B-coding (suited for analog signal transmission, maintaining signal accuracy), D-coding (primarily for digital signal transmission, enabling high speed and stable digital data transfer), and a special X-coding. The X-coding is engineered to handle bandwidth requirements of up to 10Gb/s, making it an excellent choice for applications with extremely high speed data transfer needs, such as high speed industrial Ethernet communication.

• Rated Voltage and Current: Our connectors support rated voltages of 250V/60V/30V and rated currents of 4A/2A/1.5A. This flexibility allows for easy adaptation to different device voltage and current demands, providing a reliable power supply for stable device operation.

Exceptional Performance Assurance

• International Standard Compliance: Our M12 connectors strictly adhere to the IEC 61076-2-101 standard. This compliance ensures broad interoperability and backward compatibility on a global scale. Devices and connectors from different manufacturers that conform to this standard can be easily interconnected and work in harmony. Moreover, it eliminates compatibility concerns during equipment upgrades or component replacements.

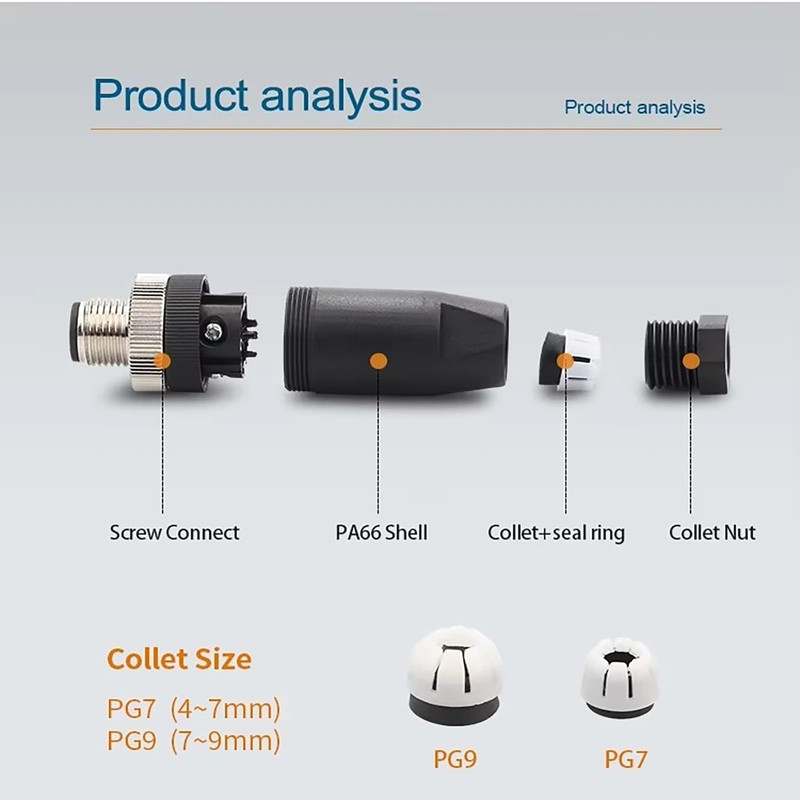

• Robust and Durable Materials: The connector housing is crafted from brass/zinc alloy with nickel plating or PA + GF materials, and the screws are made of brass with nickel plating. These materials offer outstanding corrosion resistance and mechanical strength, enabling long term use in harsh industrial environments without damage. The threaded locking mechanism comes with an anti vibration and anti loosening design. The 12mm threaded joint remains secure even when the device is subject to vibrations or external impacts, ensuring stable signal and power transmission. We also offer a variety of opening sizes, including PG7, PG9, M12, M16, etc., to facilitate seamless connection with different sized cables and devices.

• Wide Temperature Adaptability: Our M12 connectors can operate within a temperature range of - 25℃ to + 85℃. Whether in cold outdoor settings or high temperature industrial production workshops, they can function flawlessly, guaranteeing connection stability under diverse temperature conditions.

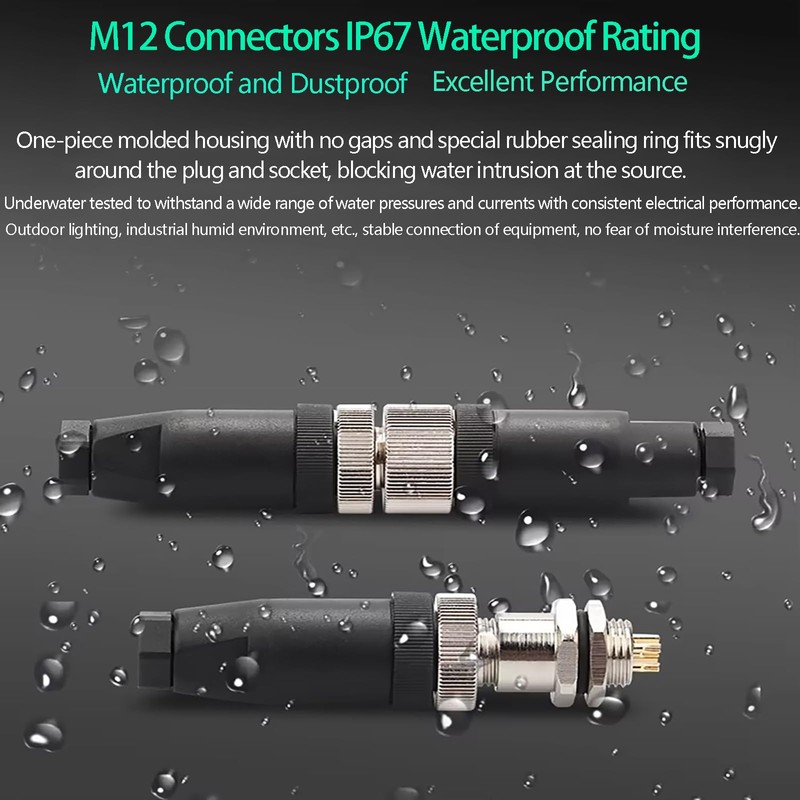

• High Level Protection Rating: These connectors achieve an IP67/IP68 protection rating, providing excellent waterproof and dust proof capabilities. An IP67 rating means the connector can withstand immersion in water up to 1 meter deep for 30 minutes, making it suitable for use in humid and dusty environments. The IP68 rating, on the other hand, can endure even more severe underwater conditions, catering to special applications such as underwater equipment connections or outdoor use in extreme weather like heavy rain.

• Environmental and Quality Certifications: Our products are ISO certified, and their quality meets RoHS and REACH standards. This ensures that during the production process, we strictly follow international quality management systems and avoid the use of harmful substances. As a result, our products are not only environmentally friendly but also highly reliable in terms of quality.

Application Fields

• Industrial Automation: In automated production lines, robots, and industrial control systems, our M12 connectors are used to connect sensors (such as proximity sensors and photoelectric sensors, which accurately detect object positions and states and transmit signals to the control system), actuators (like motors and cylinders, which receive commands from the control system and execute corresponding actions), and controllers (such as PLCs, which perform logical control and data processing for the entire system). Their robust construction and high - level protection features enable them to withstand the vibrations, dust, and oil pollution commonly found in industrial settings, ensuring reliable signal and power transmission and the stable operation of industrial equipment. They are an essential component in industrial automation.

• Rail Transportation: In automotive electronics systems (such as the connection of on - board sensors, cameras, and on - board computers to collect, transmit, and process vehicle information) and the signal and control systems of rail transportation, our M12 connectors are widely used. Thanks to their excellent anti - vibration and temperature - resistance properties, they can ensure stable communication and power transmission between various components of transportation equipment under complex vibration and temperature - change conditions, guaranteeing the safe operation and efficient control of trains.

• Communication Equipment: In communication base stations, network switches, routers, and other devices, our M12 connectors are utilized for internal circuit - board connections as well as connections between the device and external cables. They can achieve high speed data transfer and reliable electrical connections, meeting the high demand for data transfer speed and stability in communication systems. This ensures the efficient operation of communication systems and the rapid and accurate transmission of information.

• Aerospace: Due to their high reliability and anti - interference capabilities, our M12 connectors are applied in aircraft and spacecraft control systems. In the aerospace field, the stable transmission of signals and data is of critical importance, as any connection failure can lead to serious consequences. ZBLZGP M12 connectors can meet the stringent requirements of this field, ensuring the accurate and error free transmission of various signals and data in complex electromagnetic environments and extreme working conditions, providing a strong guarantee for the safe execution of aerospace missions.

• Outdoor Lighting: With their outstanding IP67 and IP68 waterproof and dust proof performance, in urban landscape lighting and outdoor billboard applications, our M12 connectors ensure a stable connection between lamps and power sources and control systems. Whether in rainy days, dusty weather, or under intense sunlight in outdoor environments, they can ensure the normal operation of lighting equipment, providing reliable power and signal connections for urban nightscapes and outdoor advertising displays.

• New Energy: They are suitable for new energy projects such as wind and solar energy, especially for the connection of key devices like inverters and controllers. In the new energy industry, equipment often needs to operate in harsh natural environments for extended periods, placing high demands on the reliability and stability of connectors. ZBLZGP M12 connectors can adapt to complex environmental conditions, providing reliable connections for new energy equipment and facilitating the sustainable development of the new energy industry.

Product Specifications

• Rated Voltage: 250V/60V/30V

• Rated Current: 4A/2A/1.5A

• Insulation Resistance: ≥100MΩ

• Contact Resistance: ＜10mΩ

• Mechanical Operation Life: ＞500 mating cycles

• Protection Rating: IP67/IP68

• Operating Temperature Range: - 25℃ ~ + 85℃

Choose ZBLZGP M12 Connectors for reliable, stable, and efficient industrial connectivity. Our products provide a solid connection foundation for all your industrial projects.
