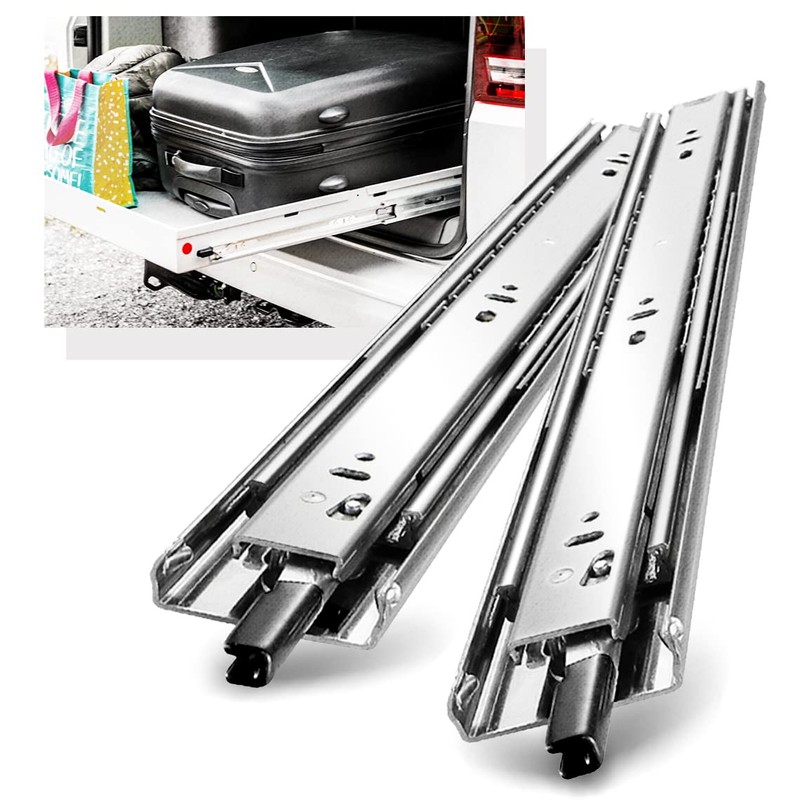

YENUO Heavy Duty Drawer Slides Full Extension with Lock Side Mount 14 16 18 20 22 24 26 28 30 32 34 36 40 Inch Metal Ball Bearing Rails Track Guide Glides Runners 80 Lbs 1 Pair (with Lock, 30 inch)
YENUO Heavy Duty Drawer Slides Full Extension with Lock Side Mount 14 16 18 20 22 24 26 28 30 32 34 36 40 Inch Metal Ball Bearing Rails Track Guide Glides Runners 80 Lbs 1 Pair (with Lock, 30 inch)
YENUO Heavy Duty Drawer Slides Full Extension with Lock Side Mount 14 16 18 20 22 24 26 28 30 32 34 36 40 Inch Metal Ball Bearing Rails Track Guide Glides Runners 80 Lbs 1 Pair (with Lock, 30 inch)

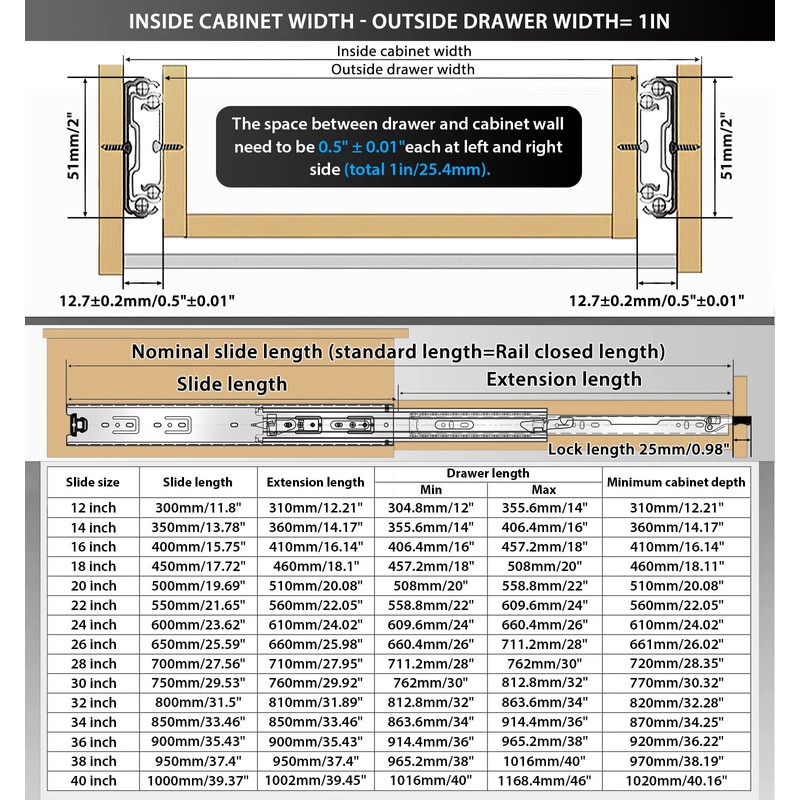

- 【Installation note】Suitable for 30-32 inch drawers.The space between drawer and cabinet wall need to be 0.5in each at left and right side,total 1in ( inside cabinet width - outside drawer width= 1in )一 Note:For installation,make sure the two slide rails parallel to each other,and make sure the drawer portion slides parallel to the cabinet portion slides and in the same level. without mounting screws included,you can purchase different M4 screws according to your specific installation scene.

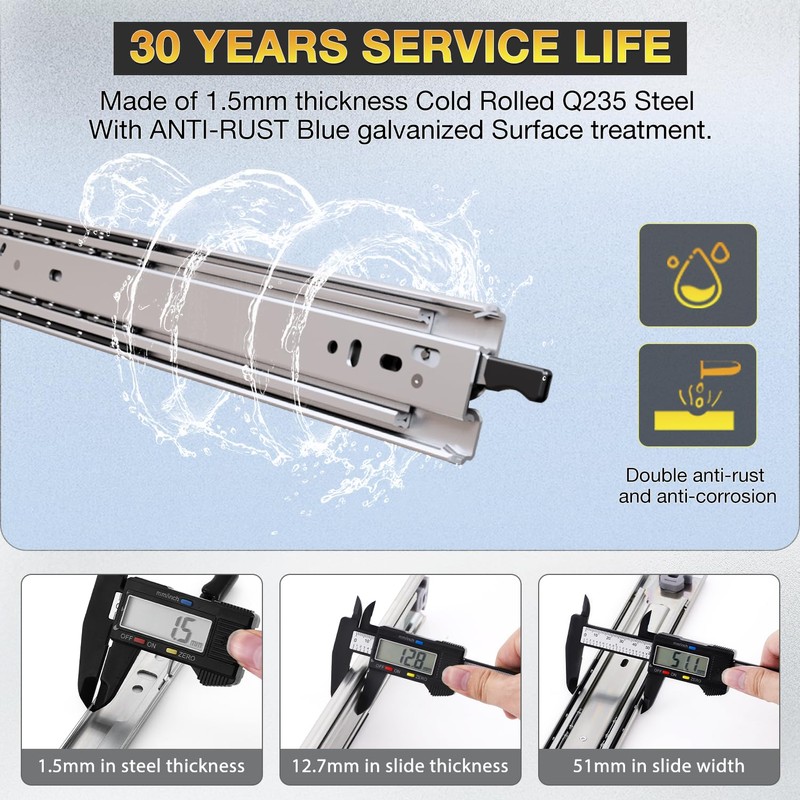

- 【MAXIMUM LOAD CAPACITY: 80 lb 】The slides is made of 1.5mm High - tension cold-rolled steel plates,it will keep your drawers stable and safe even carrying up to 80 lb heavy weight items,which take 100,000 times of push-pull tests full loaded without damage. The shorter the slide,the heavier the weight load.Without mounting screws included,you can purchase different M4 screws according to your specific installation scene.
- 【Anti-rust & Smooth work 】The anti-rust ability and oxidation resistance of our slides is superior to the others because of the special galvanized blue sealing surface treatment; With dual industrial grade bearing ball inside,the drawers slide smoothly even though carrying heavy items; With a rubber crash pad on,which is a wear-resisting and impact-resistant device,the drawers can slide quietly without collision noise.

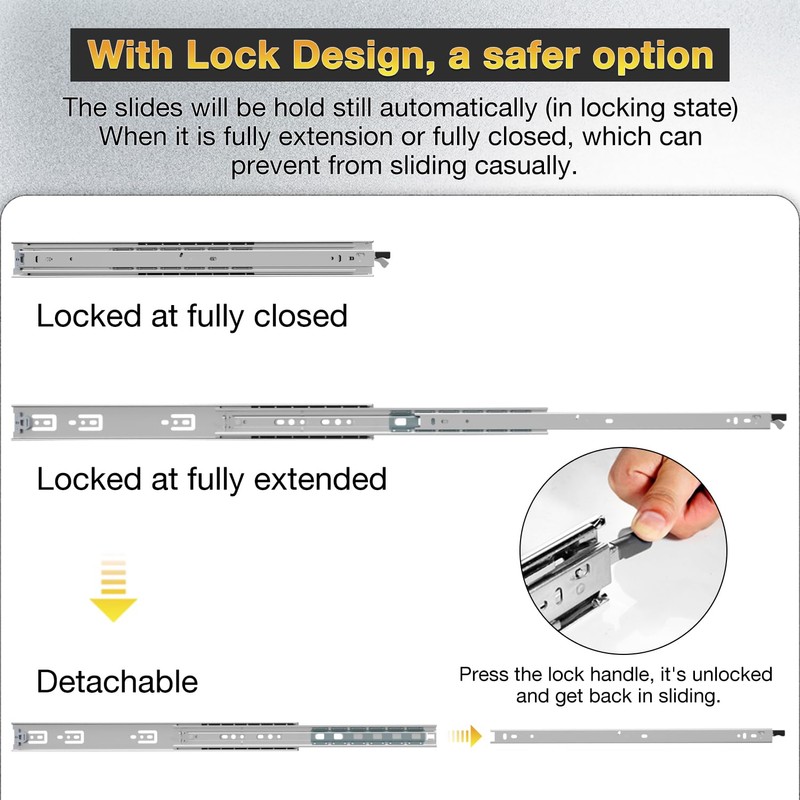

- 【With hold-still lock & Detachable】There is a black handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe.Press the lock handle gently,it's unlocked and get back in free sliding; Detachable: By press-and-hold the lock handle,and pull outward in the meantime ,the 3rd track(the narrowest section) can be separated ,easy to installl.
- 【3-fold full extension】 Slides width:2"(50mm)- length: 30" (750mm)--Fully extended length: 60"(1510mm), “The 3-fold full extension”enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer's storage to be accessed easily; Application range:Goods shelf, Cabinets, Industry-used drawer, RV, Truck, Vending machine, etc.
| Brand: | YENUO |
|---|---|
| Size: | 30 Inch |
| Color: | Silver |
| Manufacturer: | Foshan yenuo Hardware Co., Ltd |
| Part Number: | PF4KDRB |
| Material Type: | Metal |
| Isin: | IZPWZXTO6KEJ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
YENUO heavy drawer slide.
Technical details:
1. Very sturdy version-each pair can hold up to 150 pounds
2. Material: high gloss galvanized metal
3. Drawer slide rails with balls can realize smooth and silent opening and closing
4. High quality-three-section fully extended heavy drawer slides, such as slides used for heavy drawers in the machinery industry
Specification:
Color: white
Material: Cold rolled steel
Material thickness: 1.5*1.5*1.5 mm
Height: 50.5mm
Width: 12.7 mm
The length shown refers to the closed state of the drawer slide.
The extended length is twice the closed length.
Scope of supply:
1 pair (2) drawer slides
Side mounted. Note: Mounting brackets and screws are not included.
Technical details:
1. Very sturdy version-each pair can hold up to 150 pounds
2. Material: high gloss galvanized metal
3. Drawer slide rails with balls can realize smooth and silent opening and closing
4. High quality-three-section fully extended heavy drawer slides, such as slides used for heavy drawers in the machinery industry
Specification:
Color: white
Material: Cold rolled steel
Material thickness: 1.5*1.5*1.5 mm
Height: 50.5mm
Width: 12.7 mm
The length shown refers to the closed state of the drawer slide.
The extended length is twice the closed length.
Scope of supply:
1 pair (2) drawer slides
Side mounted. Note: Mounting brackets and screws are not included.
