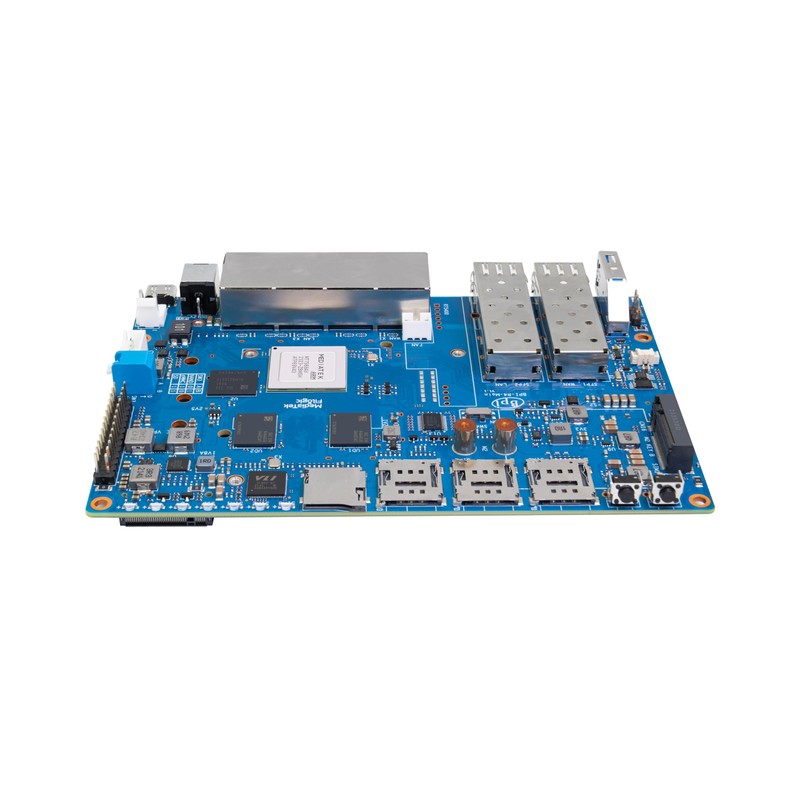

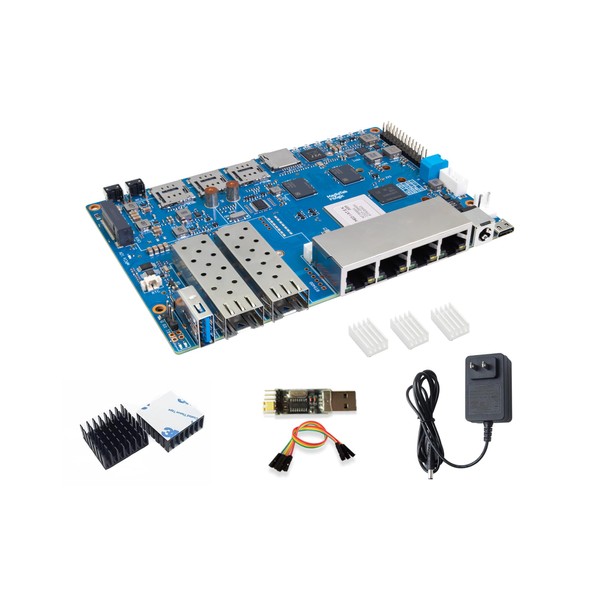

WayPonDEV Banana Pi BPI-R4 Wi-Fi 7 Wireless Dual-Band WiFi OpenWRT Router Board for MediaTek MT7988A (Filogic 880) SoC, 2 x 10 GbE SFP and 4x GbE Gigabit Ethernet, NAS Smart Home Network Gateway

Brand: WayPonDEV
  • [MediaTek MT7988A CPU] Banana Pi BPI-R4 Router Card, MediaTek MT7988A (Filogic 880) Quad Core ARM Corex-A73 CPU, 4GB DDR4 RAM 8GB eMMC and 128MB SPI-NAND flash onboard, works as an access/router. Wi-Fi gateway Wi-Fi gateway 7 x 36 Gbps. Road Also a high performance open source router development board.
  • [High performance chip] MediaTek MT7988A SoC is a worldwide network processing platform offering a high performance and reliable network experience for wireless and wireless applications. The MT7988A is also equipped with MediaTek's Tunnel Offload Processor System (TOPS) and easily manages a wide range of tunnel protocols.
  • [Supports WiFi7 iPA NIC modules] Banana Pi BPI-R4 wireless three-band router built-in board, 2 miniPCIe slots with 2lane PCIe3.0 interface for Wi-Fi 7 NIC (Network Interface Card). The MediaTek MT7988A supports 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC Wi-Fi 7 Comanion chip with 7 tri-band Wi-Fi, 2.4 GHz, 5 GHz and 6 GHz connection.
  • [2 x 10Gbe SFP / 4 x Gbe] Banana Pi supports BPI-R4 Wireless Dual-Band Wifi Router Board with 2 x 10 Gbe SFP and 4 x Gbe Ethernet, 4 x 10 10 x 1000 Mbps Gigabit Ethernet, USB 3.2 ports and M.2 interface. Episode of signal eption 4G/5G and NVME SSD. Provide the fastest and most reliable network connection.

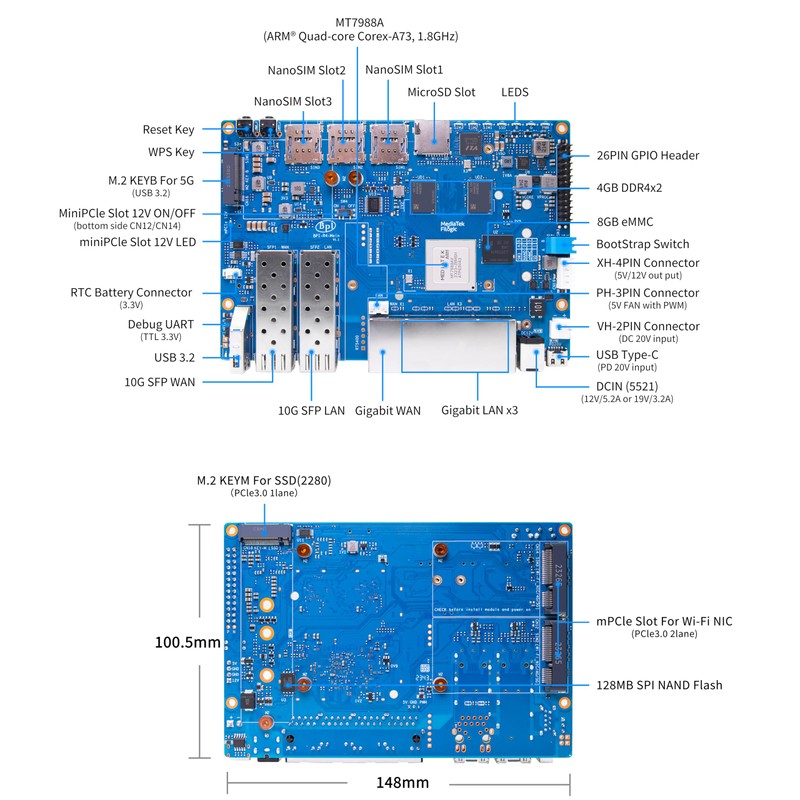

  • [Rich peripheral interfaces] Banana Pi BPI-R4 wireless router installed, 2 x 10 Gbe SFP optical ports, 4 Gigabit LAN ports, 1 x USB3.2 port, 3 nano SIM slots, 1 x M.2 KEY-B connector for 5G, 1 x M.2 KEY-M connector for SSD 2280. mPC; slots for Wi-Fi NI. C, 1 x MicroSD (TF) slot, 1 x UART debug port, 1 x 26-pin GPIO, supports UART, I2C, SPI, PWM, I2S.
  • [Application scenarios] Banana Pi BPI-R4 router board Internet service router, Wifi 7 wireless router, 4G/5G wireless repeater, home security gateway, home automation, Nas device, gaming WiFi routers, network and communication applications. 36 Gbps Wi-Fi 7 access point can be used as a router gateway.
  • [Wiki] SDK Document: "wiki.banana-pi.org/Banana_Pi_BPI-R4"; if you have any after-sales questions, please click on the store "WayPonDEV" and ask the question. Please send your message to "wpd#youyeetoo&com (#--->@,&--->. )».
Brand: WayPonDEV
Size: RockChip RK3588
Color: 4gb Ddr4 Ram 8gb Emmc
Manufacturer: WayPonDEV
Part Number: PFJQCG2
Isin: I3VBHSFGR7Q0

$358.57

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
WayPonDEV Banana Pi BPI-R4 Wi-Fi 7 Wireless Dual-Band WiFi OpenWRT Router Board for MediaTek MT7988A (Filogic 880) SoC, 2 x 10 GbE SFP and 4x GbE Gigabit Ethernet, NAS Smart Home Network Gateway

WayPonDEV Banana Pi BPI-R4 Wi-Fi 7 Wireless Dual-Band WiFi OpenWRT Router Boa...

$358.57

- Specs: Processor: MediaTek MT7988A (Filogic 880) Quad Core Arm Corex-A73,1.8GHz Processor SDRAM memory: 4GB DDR4 memory. Internal memory: Supports 8GB eMMC, MicroSD (TF). GPIO: Supports 26 Pin GPIO, 26 Pin GPIO, UART, I2C, SPI, PWM, I2S. Network Interface: 4-port Gigabit Ethernet port, 10/100/1000 Mbps SFP optical port: 2 x 10G SFP optical ports or 1 10G SFP optical ports plus 1 2.5 GbE port Mini PCIe: 2 x mini PCIe PCIe PCIe3.0 interfaces Wi-Fi 7 NIC (network interface card). M.2 interface. 1M.2 KEY-B interface using USB 3.2, supports 5G, 1 M.2 KEY-M interface adopts PCIe3.0 interface, supports NVME SSD hard drives. USB 1 x USB 3.2 interface. Buttons: reset button, WPS button, switch button start. LED: Power status LED and RJ45 LED. DC power: 12V/5.2A or 19V 3.2A. Dimensions: 100.5 x 148 x 20 mm. Weight: 250g. - Box contents: 1 Banana Pi R4 router card, 1 x 12 V, 2 A power supply. 1 x serial debug port. 1 x cooler. - Technical support. Wiki: "wiki.banana-pi.org/Banana_Pi_BPI-R4". Started with BPI-R4: "wiki.banana-pi.org/Getting_Started_with_BPI-R4". Please click "WayPonDEV" and ask a question. Please "wpd#youyeetoo&com (#--->@,&--->.)" or Skype: Monica_9122.
