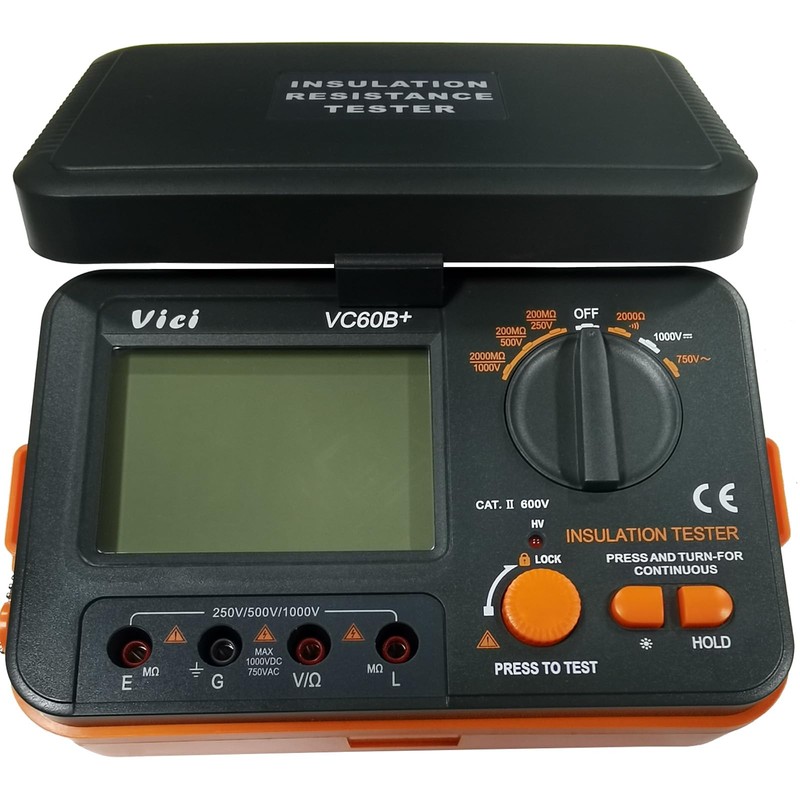

VC60B+ Digital Insulation Resistance Tester, DC250/500/1000V AC750V Megohm Meter Double Alarm Backlight LCD Display & Data Hold OHM Meter DCV ACV Megohmmeter
VC60B+ Digital Insulation Resistance Tester, DC250/500/1000V AC750V Megohm Meter Double Alarm Backlight LCD Display & Data Hold OHM Meter DCV ACV Megohmmeter
VC60B+ Digital Insulation Resistance Tester, DC250/500/1000V AC750V Megohm Meter Double Alarm Backlight LCD Display & Data Hold OHM Meter DCV ACV Megohmmeter
- 【Multi-functional】The VC60B+ Insulation Resistance Tester in addition to measuring insulation resistance,it also features a continuity test function that can check for open circuits and short circuits,and has the ability to measure AC voltage up to 750V and DC voltage up to 1000V.with backlight HD LCD screen and data hold button,make it easy to read and record the electric measurements.
- 【Features】An accurate,reliable and easy-to-use insulation tester.It provides accurate insulation resistance readings up to 2000MΩ,ensuring reliable and precise results.Strong anti-magnetic and anti-jamming function,full function protection,anti high voltage circuit design.Sound and light double alarm,display returns to zero when high voltage and a short-cut resistance occured.1.5V AA battery x6pcs or external DC 9V double power source(both not included),low battery indication.
- 【Humanized design】The Megohmmeter with a protective cover design to protect the tester from drops,scratches and bumps.Feature with 72cm adjustable shoulder strap design,make you can operate both by two hands,easy to carry and prevent the device from accidentally falling.Featuring with 3.5" backlight HD LCD screen and data hold button,make it easy to read and record the electric measurements even in low-light conditions.
- 【Easy to use】Extra large and clear 3.5 inch LCD display and LCD backlight ON/OFF key,easy to read,unit symbol display,easy to use.With automatic range selection function allows the user to obtain accurate readings more quickly and easily,making testing simpler and more efficient.Compact and exquisite,easy to carry and store,it is a convenient tool for professionals and hobbyists who need to perform insulation resistance tests in different locations.
- 【Widely application】This multimeter suitable for testing a variety of electrical systems and equipment,insulation resistance measurement,resistance and continuity measurement,DVC measurement,AVC measurement.offer a more wider range of test voltages from 250V to 1000V,resistance up to 2000MΩ,DC voltage range from 0~1000V,and AC voltage range from 0~750V.widely used in electric machines,cables,electronic equipment,electric facilities,etc.
- 【Package Contents】1 * VC60B+ Insulation Resistance Tester + 1 * Pair Test Lead + 2 * Crocodile Clips + 1 * Operation Manual + 1 * Shoulder Strap + 1 * Color Box.
- ❤ 【WARM PROMPT】This OHM Meter is a precision instrument, in order to avoid damage and injury caused by incorrect operation, please read the operation manual carefully before operation.And pay attention to safety and take safety precautions.
| Brand: | JUNLIXN |
|---|---|
| Color: | Orange & Dark gray |
| Manufacturer: | JUNLIXN |
| Part Number: | WPBZM9K |
| Isin: | ID1LSYW0ZYYC |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Package List:
1 * VC60B+ Insulation Resistance Tester
1 * Pair Test Lead
2 * Crocodile Clips
1 * Operation Manual
1 * Shoulder Strap
1 * Color Box
VC60B+ is a reliable and efficient tool for testing insulation resistance in a wide range of applications. It is suitable for use by electricians, engineers, technicians, and hobbyists who need to test the safety and reliability of electrical systems and equipment.
General Characteristic:
Power source: 6 * 1.5V AA battery or external DC 9V power source(Both Not Included In Package)
LCD size: 75×52mm
Weight: 580g (Not Include Battery)
Meter size: 176 (L) x116 (W) x63 (D) mm
Insulation resistance: 250V/500V/1000V
250V 0 ~ 200MΩ ±(4.0%+2)
500V 0 ~ 200MΩ ±(4.0%+2)
1000V 0 ~ 2GΩ ±(4.0%+2)
Resistance: 2000Ω ±(1.0%+5)
DCV: 0-1000V (1.0%+5)
ACV: 0-750V (1.5%+5)
Special Function:
Max.display: 1999
Continuity alarm: Less than 30Ω±10Ω
Low battery indication
Data hold
LCD backlight
Function protection
Input impedance: 1MΩ
Sampling rate: 3 times/Sec.
Manual range
