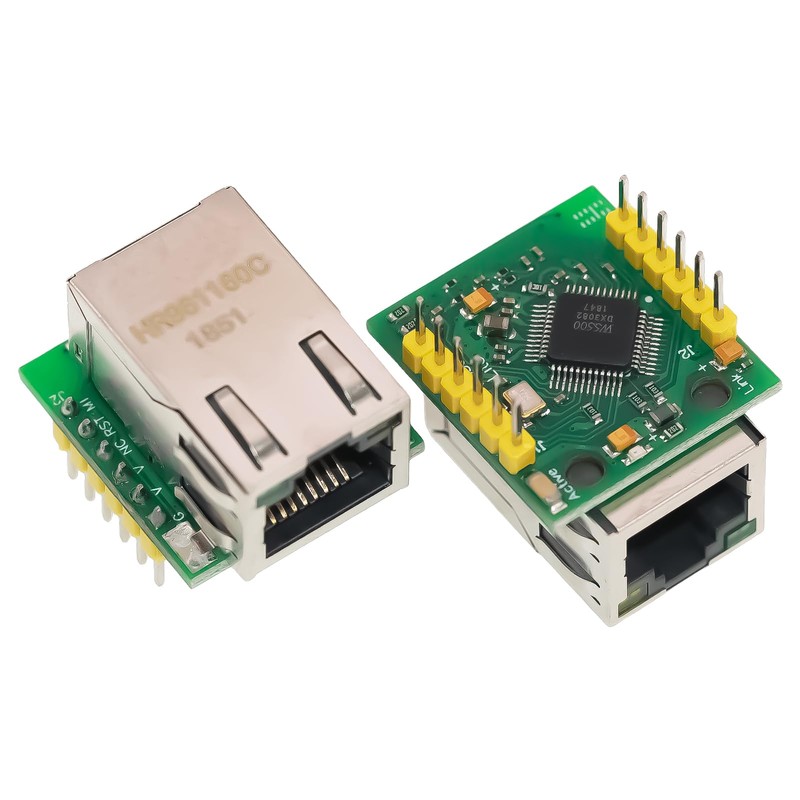

USR-ES1 W5500 Ethernet Network Module SPI to LAN TCP IP STM32 Interface, Ethernet Converter TCP/IP Mod Compatible WIZ820Io Interface 3.3V 5V Pack of 2
USR-ES1 W5500 Ethernet Network Module SPI to LAN TCP IP STM32 Interface, Ethernet Converter TCP/IP Mod Compatible WIZ820Io Interface 3.3V 5V Pack of 2
USR-ES1 W5500 Ethernet Network Module SPI to LAN TCP IP STM32 Interface, Ethernet Converter TCP/IP Mod Compatible WIZ820Io Interface 3.3V 5V Pack of 2
- USRES1: USR-ES1 is the Ethernet module of an SPI interface, the interface has a TTL level of 3.3V, a supply voltage of +3.3V. Please make sure the current is not less than 200mA and the voltage is constant and stable +3.3V.
- 【Compatible】USR-ES1 W5500 Ethernet Network Module: High speed SPI interface 80MHz; The user has integrated the hardware TCPIP protocol stack without understanding the complex network protocol knowledge; Supports up to 8 sockets.
- Compact design: USR-ES1 W5500 Ethernet network module supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol; integration of the data connection layer, physical layer; supports wake up; supports high-speed serial interface (SPI model 0, 3).
- Easy operation: internal 32 KByte reception buffer; the embedded physical 10BaseT / 100BaseTX Ethernet layer (PHY); supports automatic negotiation (10/100 full duplex or half duplex).
- 【Package Content】2 x USR-ES1 W5500 Ethernet Network Module If you have any questions, please feel free to contact us. We will give you a satisfactory answer within 24 hours.
| Brand: | Leikurvo |
|---|---|
| Manufacturer: | Leikurvo |
| Part Number: | Q8HGP8V |
| Material Type: | Aluminium |
| Isin: | IRHSEOKGK8VB |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

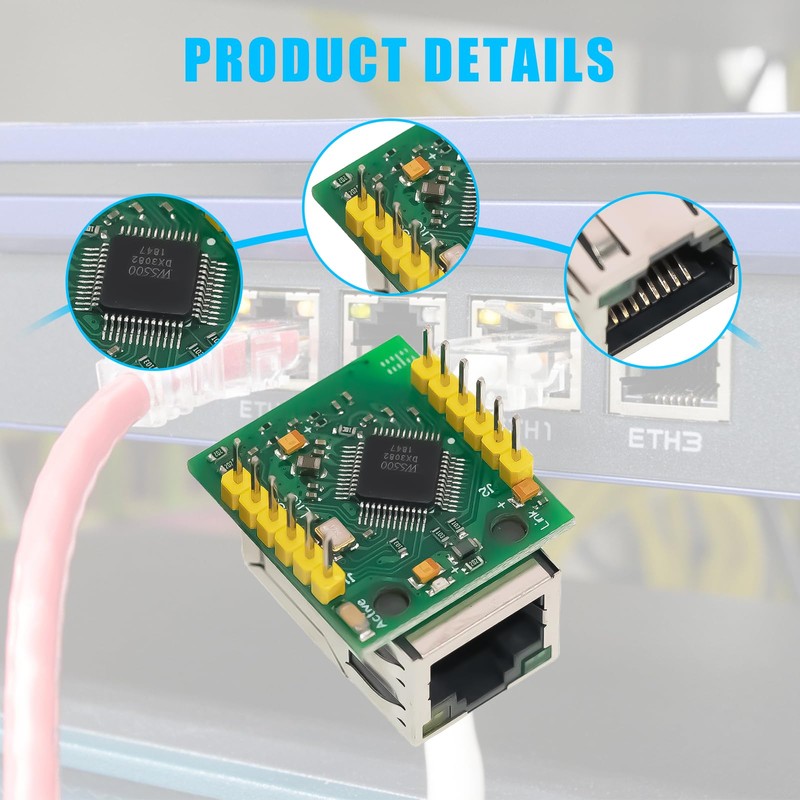

80MHz High Speed SPI Interface
The integrated hardware TCPIP protocol stack eliminates the need for users to master complex network protocol knowledge.
Supports up to 8 socket connections
Supports TCP, UDP, ICMP, IPv4, ARP, IGMP and PPPoE protocols
Integrated data connection layer, physical layer
Supports waking up when switched off.
Supports high-speed serial peripheral interface (SPI mode 0 ~ 3)
Internal 32KB transceiver buffer
Embedded 10BaseT/100BaseTX Ethernet Physical Layer (PHY)
Supports automatic negotiation (10/100 based full duplex/half duplex)
IP fragmentation is not supported
3.3V operating voltage, 5V I/O signal terminal dielectric strength
LED status indicator (full duplex/half duplex, network connection, network speed, activity status)
Ultra small pin housing for embedded applications
Provide C application routines
Product Features:
Power supply mode: 3.3V external power supply, current should be greater than 200mA
Control interface form: 3.3V TTL level, SPI interface; 2* single pin row
PCB Size (mm): 23 x 25mm
Mechanical dimensions (length x width x height): 28.5 x 23 x 24 mm.
Package includes:
2 x USR-ES1 W5500 Ethernet Network Module
