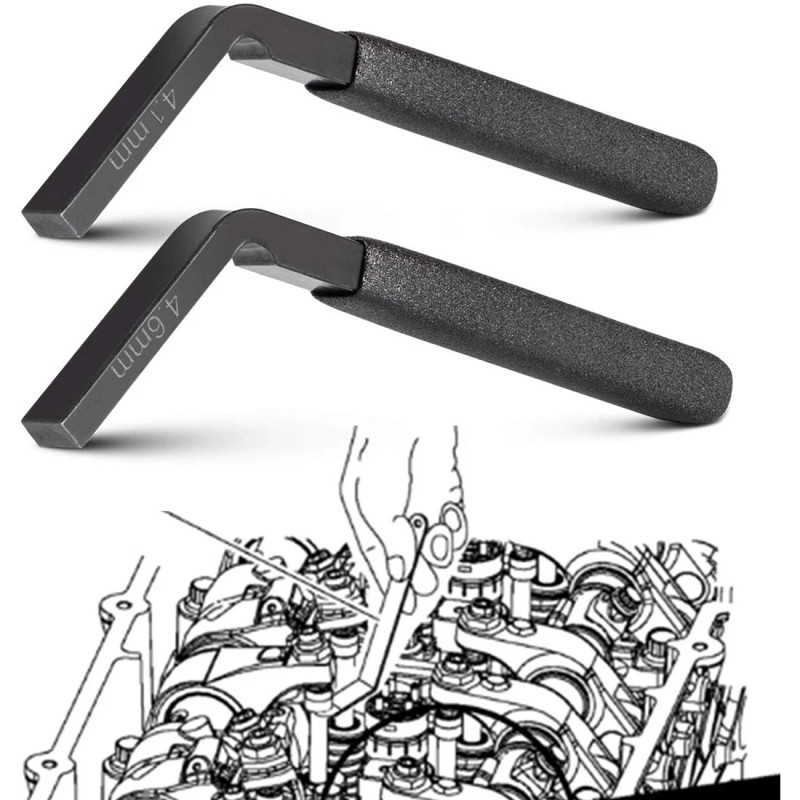

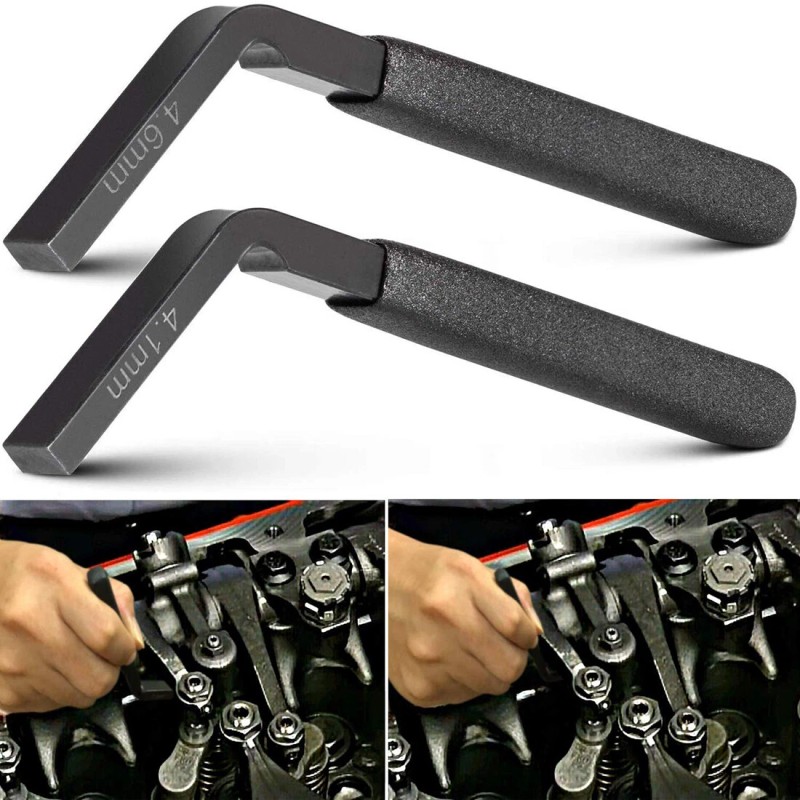

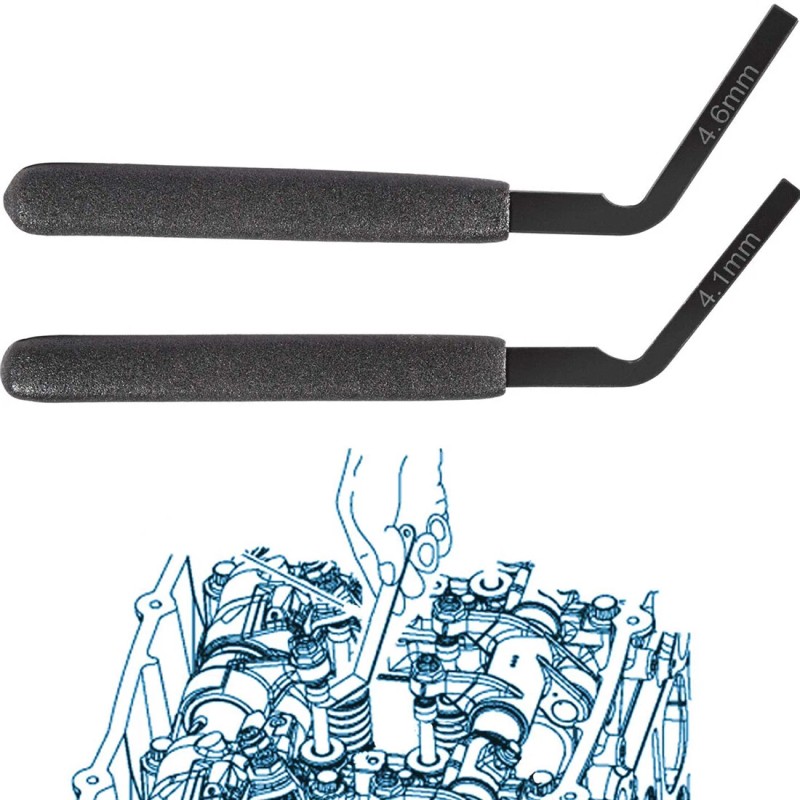

Unbranded Engine Jake Brake Feeler Gauge Adjustment Tool 4.6MM & 4.1MM for Detroit Diesel

Brand: Unbranded
Great Compatibility —

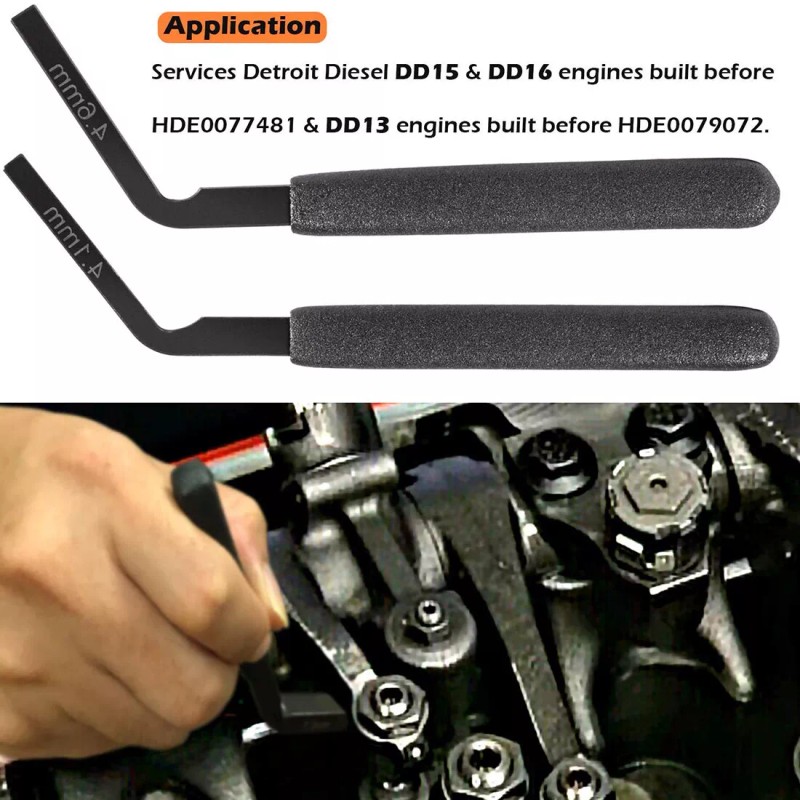

Works on Detroit Diesel DD15 & DD16 engines built before HDE0077481 & DD13 engines built before HDE0079072.

Superior Quality —

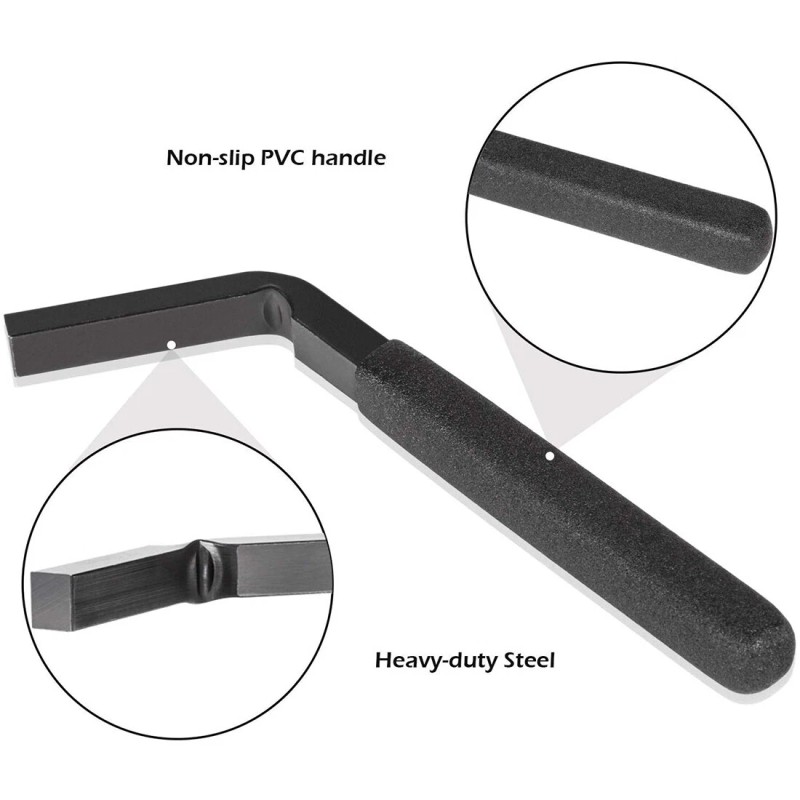

Advanced heavy duty steel process and black non-slip PVC coated handle, durability and anti-corrosion. Ultra-precise design meets the requirement of high precision and hardness and a much longer service life.

Includes —

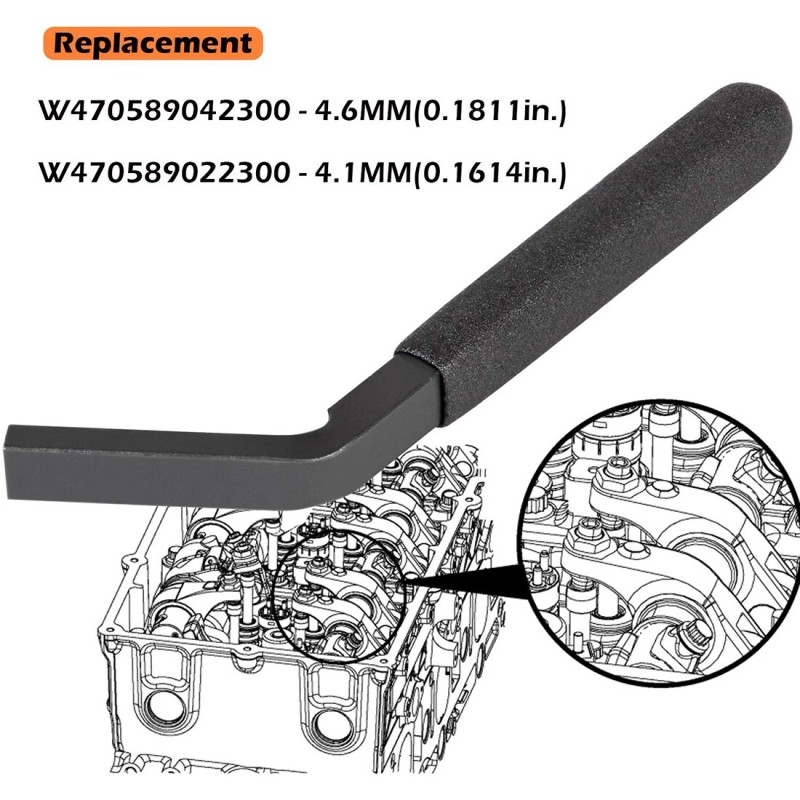

W470589042300 4.6mm - 0.1811 in and W470589022300 4.1mm - 0.1614 in.

Easier Work —
Replace ATCPRO2300 W470589042300 and work in a easier way to save your time and money.


DD13, DD15 & DD16 ENGINE BRAKE/ JAKE BRAKE LASH ADJUSTMENT STEPS

1. Set the lash on all the exhaust adjusting screws first (all the adjusting screws in direct contact with the exhaust valves)
.
2. Rotate the engine until a given cylinder is at maximum intake lift. When this is reached, the brake lash can be set on this cylinder.

3. When the engine brake rocker arm is in contact with the exhaust valve, set the lash between the engine brake rocker arm adjusting screw and the actuator piston stem.

a. DD15 & DD16 engines built before HDE0077481 use Engine Brake Adjustment tool W470589022300; set the lash to 4.1 mm (0.1614 in.).
b. DD 15 & DD16 engines built starting with HDE0077481 use Engine Brake Adjustment tool W470589042300; set the lash to 4.6 mm (0.1811 in.).
c. DD13 engines built before HDE0079072 use Engine Brake Adjustment Tool W470589022300; set the lash to 4.1 mm (0.1614 in.).
d. DD13 engines built starting with HDE0079072 use Engine Brake Adjustment tool W470589042300; set the lash to 4.6 mm (0.1811 in.).

4. Lash the engine brakes in the following firing order: 1, 5, 3, 6, 2, and 4.

5. Torque the locknut valve adjusting screw to 50 N·m (37 lb·ft).

6. Install the rocker cover.


Package includes:

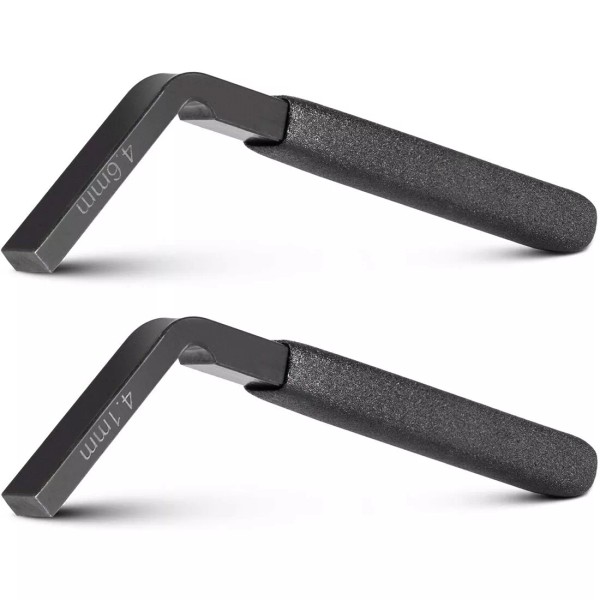

1x Engine Brake Adjustment Tool(4.6mm)

1x Engine Brake Adjustment Tool(4.1mm)
Brand: Unbranded
Isin: I3HPTBE8KVKY

$69.56

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Unbranded Engine Jake Brake Feeler Gauge Adjustment Tool 4.6MM & 4.1MM for Detroit Diesel

Unbranded Engine Jake Brake Feeler Gauge Adjustment Tool 4.6MM & 4.1MM for De...

$69.56

Great Compatibility —
Works on Detroit Diesel DD15 & DD16 engines built before HDE0077481 & DD13 engines built before HDE0079072.

Superior Quality —
Advanced heavy duty steel process and black non-slip PVC coated handle, durability and anti-corrosion. Ultra-precise design meets the requirement of high precision and hardness and a much longer service life.

Includes —
W470589042300 4.6mm - 0.1811 in and W470589022300 4.1mm - 0.1614 in.

Easier Work —
Replace ATCPRO2300 W470589042300 and work in a easier way to save your time and money.


DD13, DD15 & DD16 ENGINE BRAKE/ JAKE BRAKE LASH ADJUSTMENT STEPS

1. Set the lash on all the exhaust adjusting screws first (all the adjusting screws in direct contact with the exhaust valves)
.
2. Rotate the engine until a given cylinder is at maximum intake lift. When this is reached, the brake lash can be set on this cylinder.

3. When the engine brake rocker arm is in contact with the exhaust valve, set the lash between the engine brake rocker arm adjusting screw and the actuator piston stem.

a. DD15 & DD16 engines built before HDE0077481 use Engine Brake Adjustment tool W470589022300; set the lash to 4.1 mm (0.1614 in.).
b. DD 15 & DD16 engines built starting with HDE0077481 use Engine Brake Adjustment tool W470589042300; set the lash to 4.6 mm (0.1811 in.).
c. DD13 engines built before HDE0079072 use Engine Brake Adjustment Tool W470589022300; set the lash to 4.1 mm (0.1614 in.).
d. DD13 engines built starting with HDE0079072 use Engine Brake Adjustment tool W470589042300; set the lash to 4.6 mm (0.1811 in.).

4. Lash the engine brakes in the following firing order: 1, 5, 3, 6, 2, and 4.

5. Torque the locknut valve adjusting screw to 50 N·m (37 lb·ft).

6. Install the rocker cover.


Package includes:

1x Engine Brake Adjustment Tool(4.6mm)

1x Engine Brake Adjustment Tool(4.1mm)
PushAuction
  • Manufacturer Part Number: Does not apply
  • Brand: Unbranded
  • Warranty: 1 Year
  • Type: Engine Jake Brake Feeler Gauge Adjustment Tool
  • Fitment: for Detroit Diesel DD13 DD15 DD16
  • UPC: Does not apply
