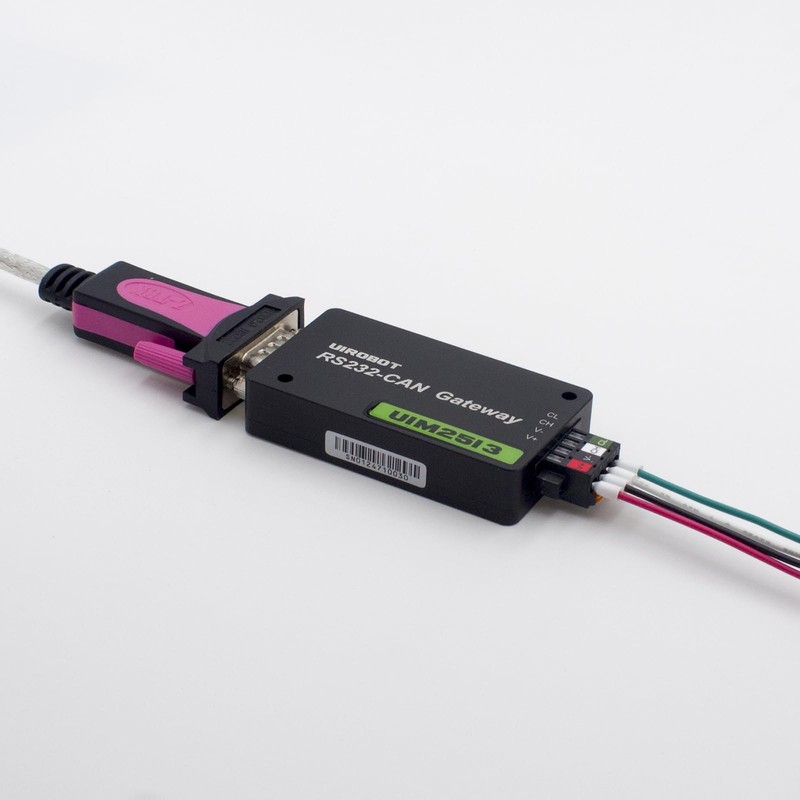

UIROBOT Serial Adapters RS232 and CAN Bus System Control Converter Gateway Hardware, Wide Voltage Input 12~48VDC, CAN Bus 3000V Isolation, Aluminum Alloy Case (UIM2513)

Brand: UIROBOT
  • [CONNECTING MODULE] Our gateway supports RS232 protocol and CAN bus connection, and is primarily used to connect the master controller (PC or MCU) with UIM series servo stepper motors, AC servo motion controllers, or DAQ I/O modules. Please note, the UIROBOT gateway series is only compatible with UIROBOT smart motor communication.
  • [STRONG CONTROL SYSTEM] They feature a robust DSP core and fault tolerance, along with a fail-safe user interface. Additionally, free debug/control software and complete SDKs, .dll, .lib, .so, and sample codes for C++, C#, etc., are provided for Linux and Win 32/64-bit platforms.
  • [SAFE AND DURABLE] The RS232-CAN Control Converter Gateway features a wide voltage input of 12~48VDC, a DB9 Female interface, and 1500V photoelectric isolation. It is housed in an aluminum alloy casing, providing sturdiness and durability for efficient heat dissipation.
  • [HIGH SPEED CAN] This active CAN 2.0 supports a maximum speed of 1 Mbps, with 3000V isolation. It also supports 3 kinds of CAN IDs: Node ID, Group ID, and Global ID, making it easy to group and manipulate.
  • [PORTABLE] This rs232 can bus adpater is suitable for any occasion, featuring a significantly reduced size of 73.7*38*14mm and a weight of 70g. It's a lightweight, handy, pocket-sized mini serial port adapter, perfect for industrial robots, automatic medical equipment, automated instrumentation.
Brand: UIROBOT
Color: Black
Manufacturer: UIROBOT
Part Number: NSMJHB1
Isin: IBIJJZC9JMBW

$225.39

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
UIROBOT Serial Adapters RS232 and CAN Bus System Control Converter Gateway Hardware, Wide Voltage Input 12~48VDC, CAN Bus 3000V Isolation, Aluminum Alloy Case (UIM2513)

UIROBOT Serial Adapters RS232 and CAN Bus System Control Converter Gateway Ha...

$225.39

UIM2513 is an industrial serial port (RS232 protocol) to CAN gateway. Please note, the UIROBOT gateway series is only compatible with UIROBOT smart motor communication. Users can send instructions and receive information through UIM2513 to control UIM series servo stepper, AC servo motion controller and I/O controller products.

Control System
- Robust DSP hardware
- Fault tolerance, fail safe user interface
- Provide complete SDK, lib and DLLs
- Provide C++, C# sample codes

RS232 Serial Communication
- RS232 protocol
- DB9 Female interface
- 1500V photoelectric isolation

CAN Networking
- Active CAN 2.0, 1 Mbps Max.
- 3000V photoelectric isolation
- Support 3 kinds of CAN IDs: Node ID, Group ID and Global ID

Other
- Wide voltage input 12~48VDC
- Aluminum alloy casing, sturdy and durable for easy heat dissipation
