Thermalright Assassin X 90 SE ARGB CPU Air Cooler, 92mm TL-P9-S PWM ARGB Fan, Computer Heatsink Cooler CPU, 118mm High,for AM4/AM5/Intel LGA 1150/1151/1200/1700/1851 (AX90 SE ARGB)
Thermalright Assassin X 90 SE ARGB CPU Air Cooler, 92mm TL-P9-S PWM ARGB Fan, Computer Heatsink Cooler CPU, 118mm High,for AM4/AM5/Intel LGA 1150/1151/1200/1700/1851 (AX90 SE ARGB)
Thermalright Assassin X 90 SE ARGB CPU Air Cooler, 92mm TL-P9-S PWM ARGB Fan, Computer Heatsink Cooler CPU, 118mm High,for AM4/AM5/Intel LGA 1150/1151/1200/1700/1851 (AX90 SE ARGB)

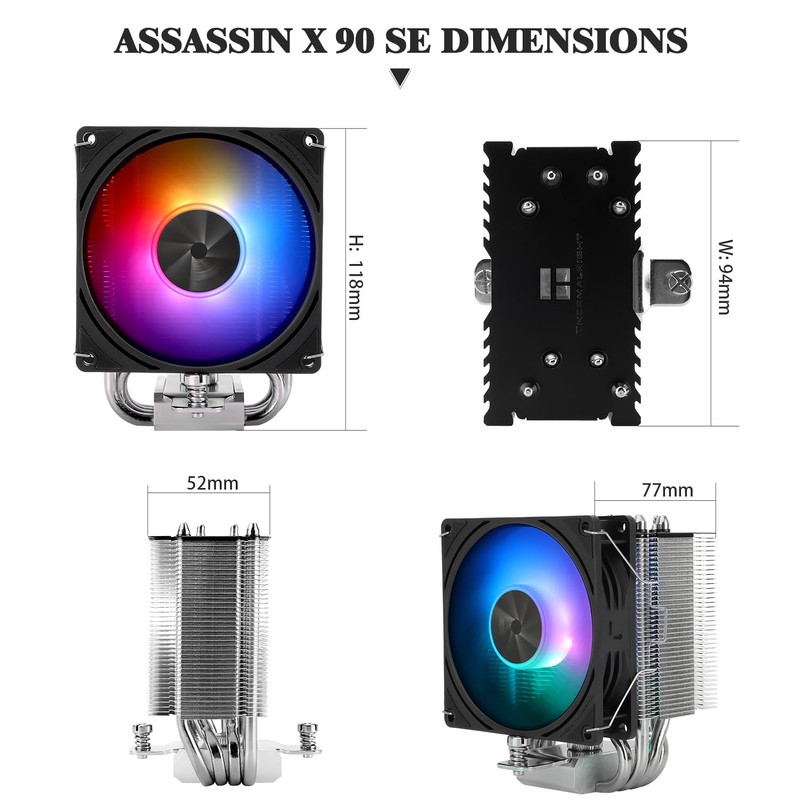

- 【Product specification】 AX90SE ARGB; CPU Cooler dimensions:94(L)x77(W)x118(H)mm (3.7x3.0x 4.65 inch); Heat sink material: aluminum, the main body adopts HDT direct touch process and fine pure copper surface treatment, the main body is fully aluminum fins to bring the maximum cooling area, combined with high speed fans, can perfectly play the cooler's most powerful cooling effect.
- 【PWM Fan】 TL-P9-S; Standard size industrial grade PWM performance PC fan: 92x92x25mm (3.6x3.6x0.98 inches); Fan speed (RPM): 2200rpm±10%; Power port: 4-pin; Voltage: 12V; Air flow: 32.77CFM (max); Noise level ≤23.85dB(A), high performance fan combined with efficient heat dissipation The heatsink cooling body of the unit gives you the best cooling effect.

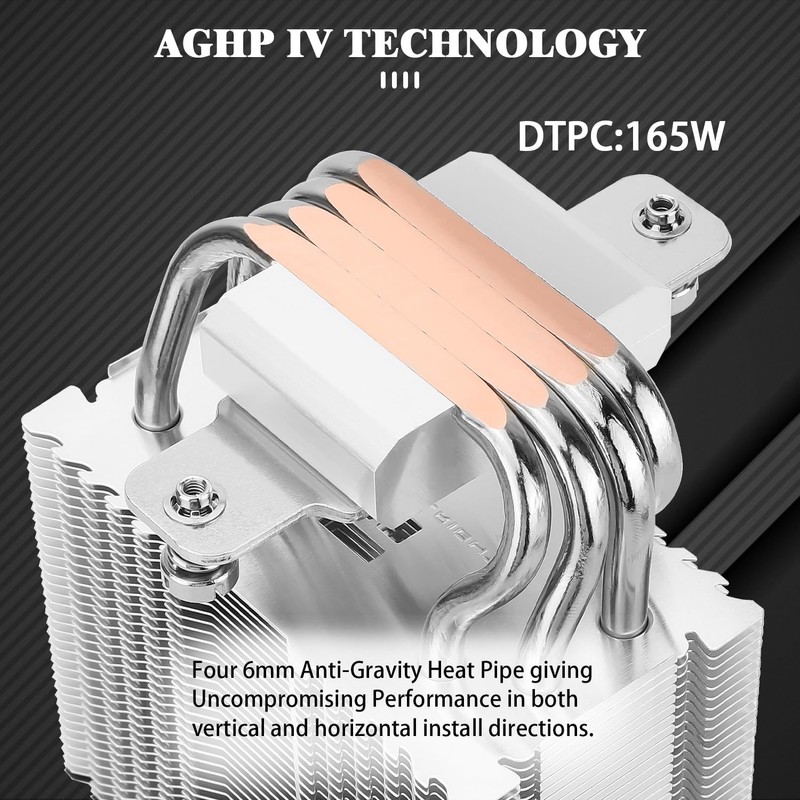

- 【AGHP technique】4x6mm heatpipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators. UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you. The height is 118mm, compatible with a wide range of chassis models.

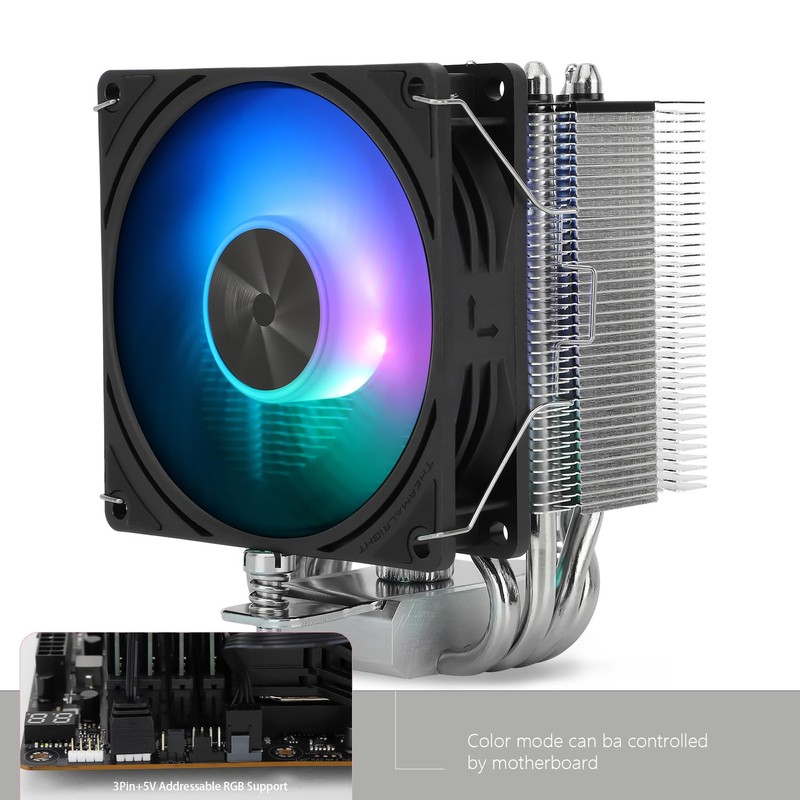

- [Detailed Optimisation] The logo of wind direction is printed on the side of the fan, so you can better understand the wind direction. There are two types of power supply connectors for the fan, a 4-pin power supply connector, and a 3-pin ARGB connector, which needs to be connected to the corresponding connector on the motherboard.The versatile Intel backplate can be selected according to the 17XX/115X platform.

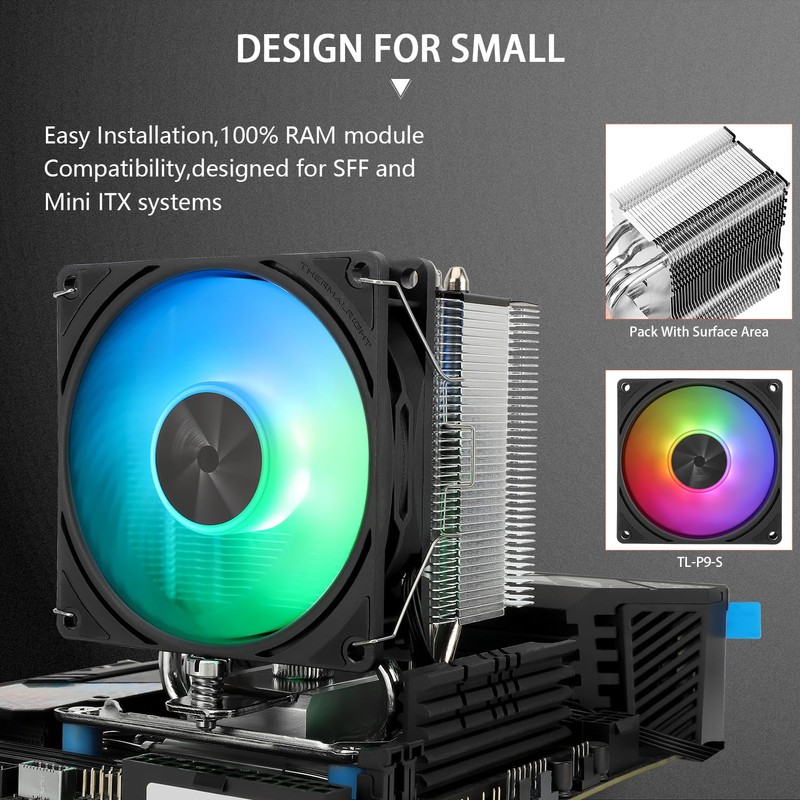

- [Ram Avoidance Design] The computer cpu cooling is designed with a skewed memory avoidance design, which will not be restricted from mounting due to the height of the memory, and the main body is made of nano fully sprayed black paint, which makes the radiator offset easy to mount.

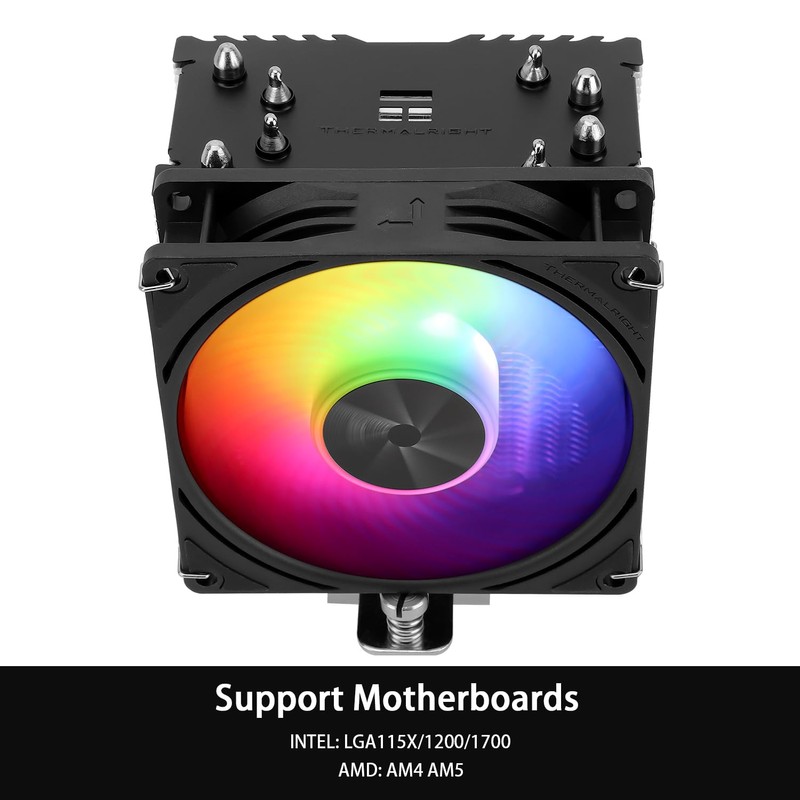

- 【Compatibility】The CPU cooling slot support: Intel: lga1150/1151/1155/1156/1200/1700/1851, AMD: AM4/AM5; for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine.(Note: Installation of AMD platform requires the use of the motherboard's original backplane installation, the product does not come with)
| Brand: | Thermalright |
|---|---|
| Manufacturer: | Thermalright |
| Part Number: | NNBX7NH |
| Material Type: | Aluminium |
| Isin: | IKLCAWIXBPMN |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Parameters
Model: AX90 SE ARGB
Heatsink size: 94*77*118mm
Fan size: 92*92*25mm
Rotational speed: 2200RPM±10%
Noise ≤23.85dBA
Airflow: 32.77 CFM(MAX)
Wind pressure: 1.98mm H2O(MAX)
Fan connection: 4PIN PWM
Voltage: 12V DC
Current: 0.1A
Bearing Type: S-FDB Bearing
Power supply interface: 4PIN PWM
Lighting Interface: 5V 3PIN ARGB
