TFmini-s Lidar Sensor 0.1-12m Measurement Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk,Arduino and Raspberry Pi for Drone/Robot Obstacle Avoidance

Brand: youyeetoo
  • [Upgraded TFmini Lidar Module] TFmini-s, based on TFmini, is a single-point short-range LiDAR sensor. Inherited characters of low cost, small size and low power consumption from TFmini,which greatly improved its performance
  • [High Performance] TFmini-s accuracy can reach up to ±1% at full range distance of 12m,increasing the measurement frequency to 1000Hz. The dead zone is shortened to 10 cm improving accuracy and stability. Ambient light immunity is 70Klux and central wavelength is 850nm,but it only keep 5.3g at weight
  • [Low Power Yet High Frame Rate] In low power consumption mode, the maximum power consumption can be lower than 100mW, reducing system power consumption and further prolonging LiDAR lifetime
  • [Optional Commutication Interfaces] To improve applicability, TFmini-s supports common communication interfaces — UART, IIC and IO.TFmini-s version is UART by default. If you need IIC, please switch by yourself. It also compliant with CE,RoHs,and FCC certification
  • [Wiki] You can find more docs by using the document code LD0024 via the link:https://youyeetoo.com/blog/tfmini-sld0024-56.Any technical issues after purchase please contact with our tech-support team: monica@smartfire.cn. Or click "SmartFly info" and ask a question
Brand: youyeetoo
Manufacturer: Smartfly Tech
Part Number: F54BDCF
Isin: I7TKTJFWSSHT

$273.30

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 15-20 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
TFmini-s Lidar Sensor 0.1-12m Measurement Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk,Arduino and Raspberry Pi for Drone/Robot Obstacle Avoidance

TFmini-s Lidar Sensor 0.1-12m Measurement Range Distance Single-Point Ranging...

$273.30

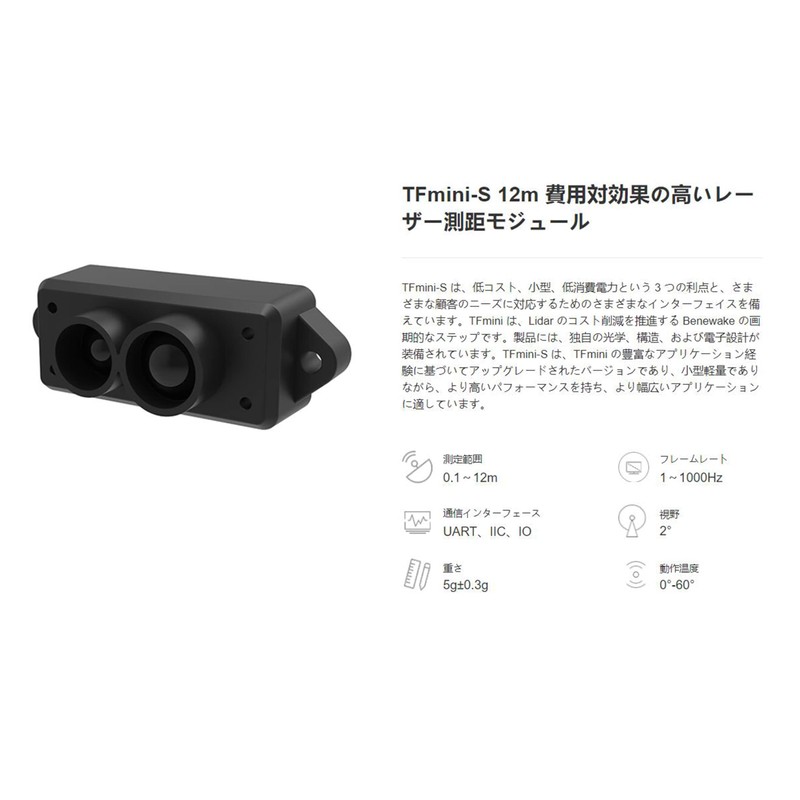

TFmini-s is a upgraded single-point micro ranging module based on TFmini. The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.

TFmini-s is compatible with both the UART and IIC interface. Different interfaces can be switched by commands.

Performance:

Operating Range : 0.1m~12m90%Reflectivity

Accuracy: ±6cm@(0.1-6m), ±1% @ (6m-12m)

Distance Resolution: 1cm

Frame Rate: up to1000Hz(default:100Hz)

Ambient Light Immunity: 70Klux

Operating Temperature: 0℃~60℃

FOV: 2°

Optical Parameters:

Light Source: VCSEL

Central Wavelength: 850nm

Photobiological Safety: Class1 (EN60825)

Electrical Parameters:

Supply Voltage: 5V±0.1V

Average Current: ≤140mA

Power Consumption: ≤0.7W

Peak Current: 200mA

Communication Level: LVTTL(3.3V)

Communication Interface: UART / IIC

Hardware Spec:

Size: 42mm*15mm*16mm(L*W*H)

Housing material: ABS+PC

Storage temperature: -20C~75C

Weight: 5g±0.3g

Cable length: 10cm

Main application scenario:

Pedestrian detection

Vehicle detection

Intelligent barrier gate and altimeter

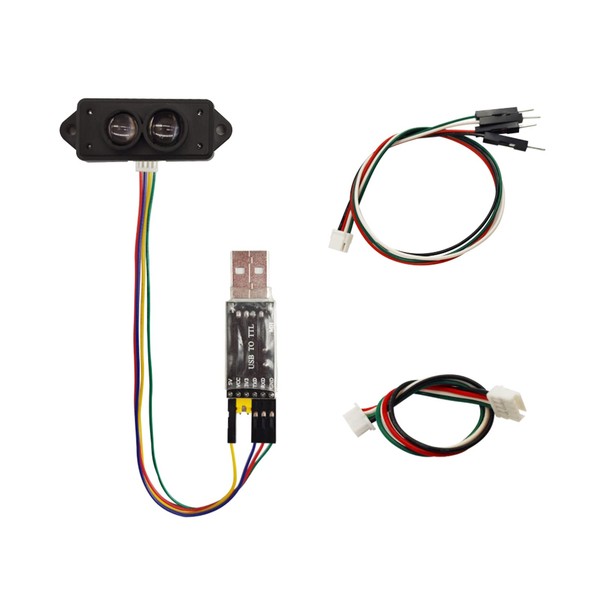

Package Including:

1 * TFmini-s UART / I2C Laser Range Finder Module

2 * Cable

-Technical Support-

monica@ smartfire.cn Skype: monica_9122

Product Customization: monica@ smartfire.cn

FQA

Q:How to know whether a Lidar can be used under sunlight or not?

A:With Ambient Light Immunity≤70Klux, lidar can only be used indoor and outdoor without sunlight like these short-range lidars TF-Luna, TFmini-s and TFmini Plus

With Ambient Light Immunity>70Klux,lidar can work normally under strong light environment like medium-range lidar TF02-Pro and long-range lidar TF
