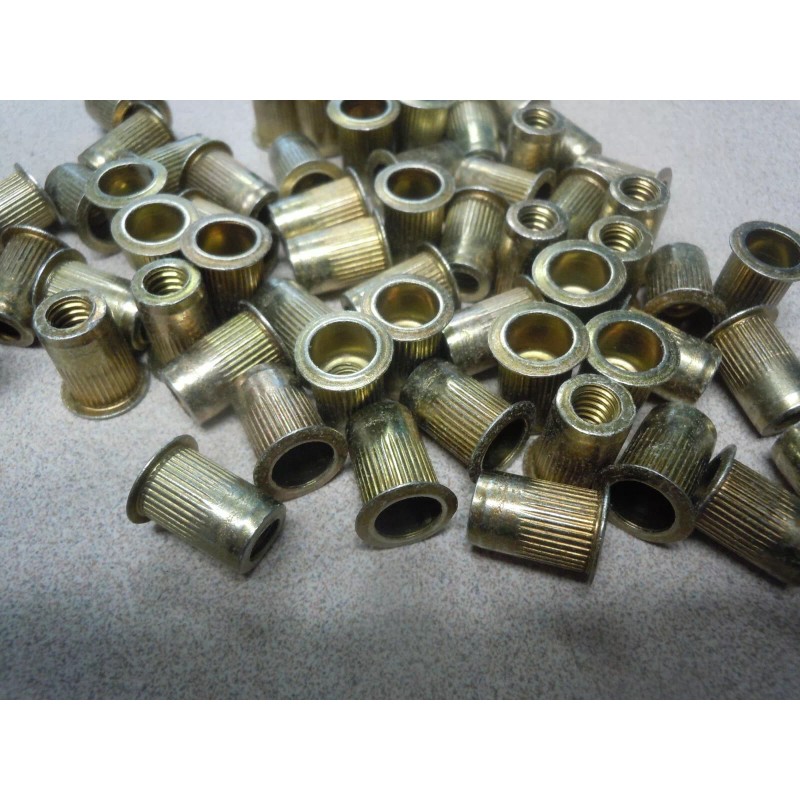

Textron 420-165 Avdel D-L Threaded Inserts 1/4-20 (50 pieces)
Textron 420-165 Avdel D-L Threaded Inserts 1/4-20 (50 pieces)
Textron 420-165 Avdel D-L Threaded Inserts 1/4-20 (50 pieces)
Product Overview

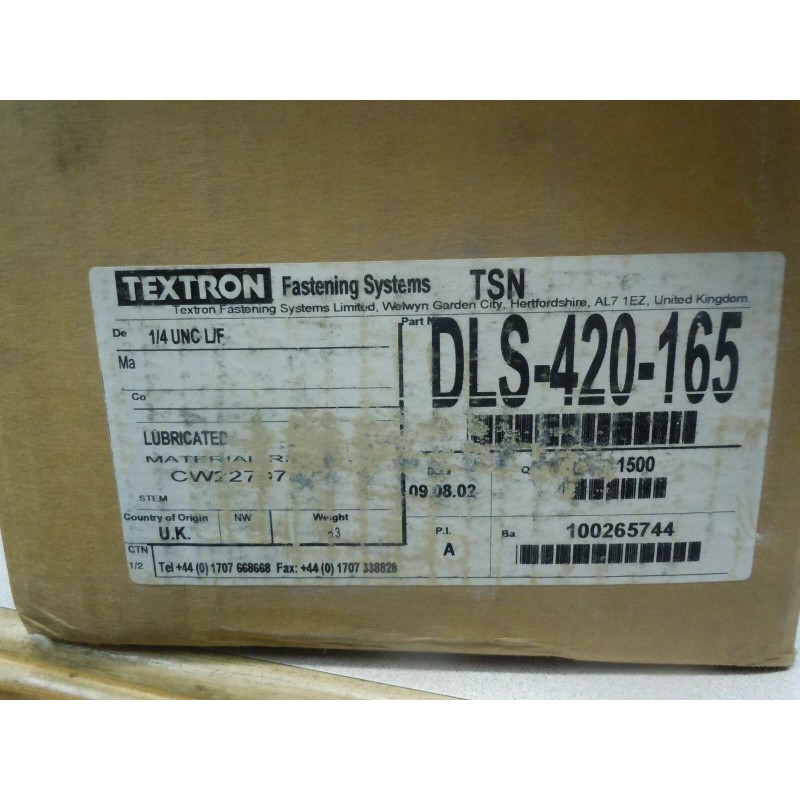

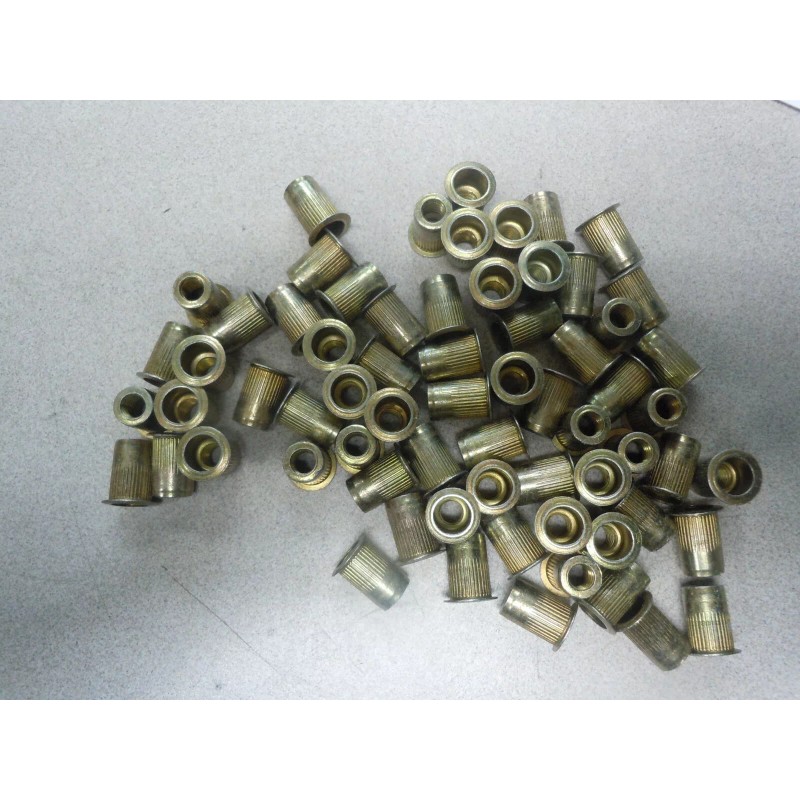

DLS-420-165 Avdel D-L Threaded Inserts -Lot of 50
Avdel® D-L Series DLS-420-165 "L" Style Round Body Splined Rivetnut Insert; 1/4-20 UNC-2B, (0.027 - 0.165 Inch Grip), Large Flange Head, Steel, Zinc Yellow Trivalent Chromate Finish
The DL insert is a large flange, splined, bubbling insert in aluminum or steel construction offered in a wide variety of standard and metric thread sizes. Bubbling means that during the installation process, the insert collapses into a bubble shape on the backside of the application material. The application material is clamped between the flange of the insert and the bubble shape resulting in high resistance to pull-out loads. Because the insert forms a bubble on the backside of the application, the DL insert cannot be used in blind hole applications.
| Thread Size | : | 1/4-20 UNC-2B |
| Installed Thread Depth | : | N/A |
| Type | : | "L" Style Round Body Splined |
| Body Material | : | Steel |
| Body End | : | Open End |
| RoHS Compliant | : | Yes |
| Body Finish | : | Zinc Yellow Trivalent Chromate |
| Material Detail | : | Steel 1008/1010 |
| Finish Detail | : | Zinc Yellow Trivalent Chromate per ASTM-B-633 Type II, Class 2 |
| Head Type | : | Large Flange |
| Minimum Grip | : | 0.027 Inch (0.69mm) |
| Maximum Grip | : | 0.165 Inch (4.19mm) |
| Unit of Measure | : | Inch |
| Head Height | : | 0.030 Inch (0.76mm) |
| Maximum Hole Size | : | 0.395 Inch (10.04mm) |
| Head Diameter | : | 0.500 Inch (12.70mm) |
| Item | : | Rivetnut Insert |
| Nominal Diameter [Metric] | : | 9.91mm |
| Body Length | : | 0.580 Inch (14.73mm) |
| Decimal Equivalent Diameter | : | 0.390 Inch |
| Grip Range | : | 0.027 - 0.165 Inch (0.69 - 4.19mm) |
| Minimum Hole Size | : | 0.391 Inch (9.93mm) |
| Set Body Length | : | 0.380 Inch (9.65mm) |
| Drill Size | : | 25/64 Inch |
| Brand: | Textron |
|---|---|
| Isin: | I929KK4WFPWV |
