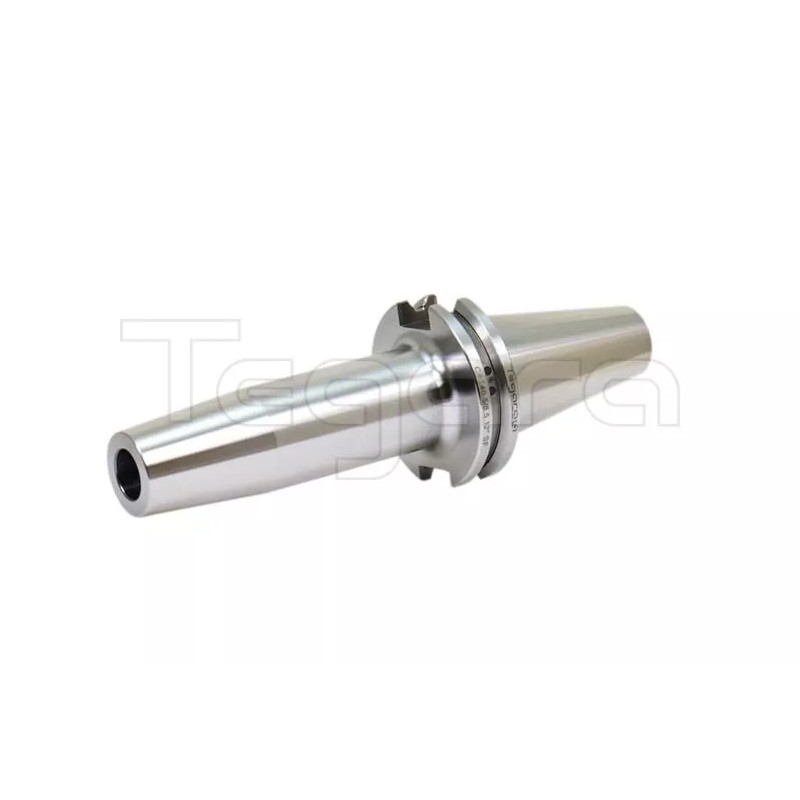

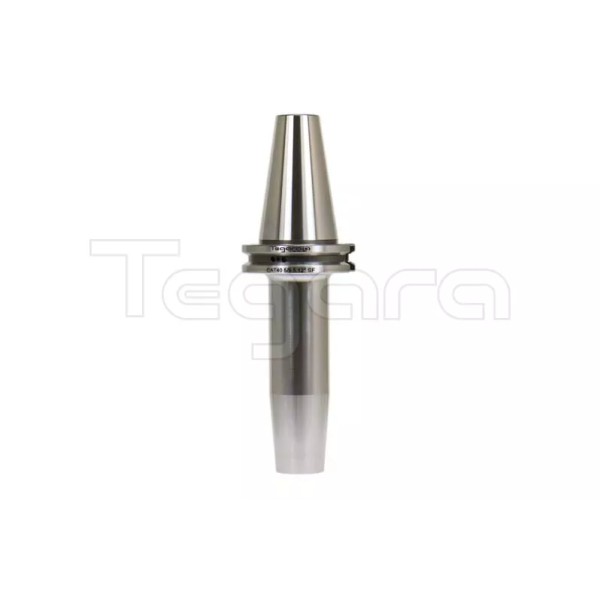

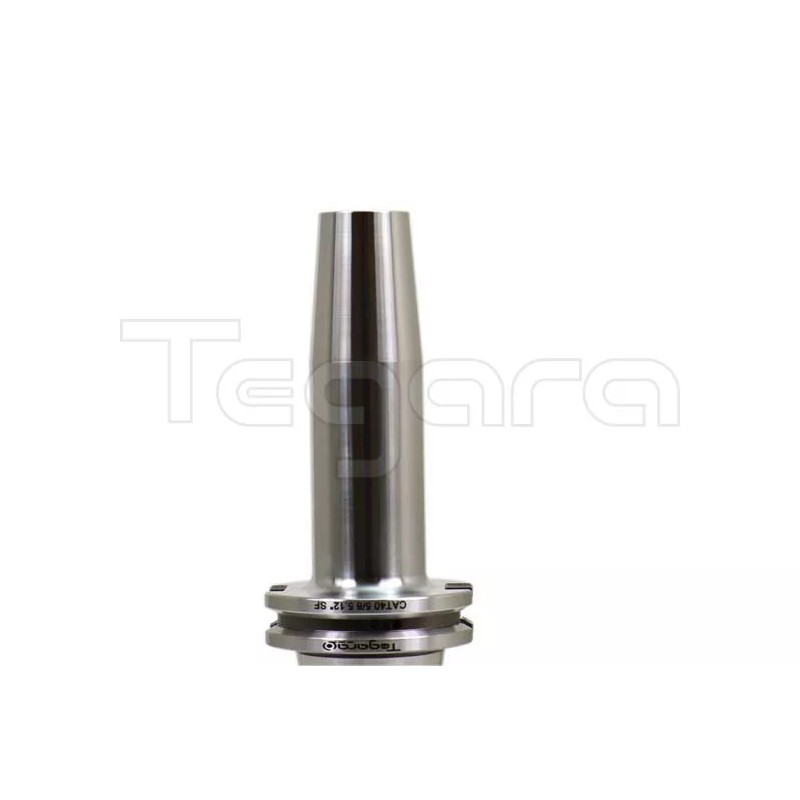

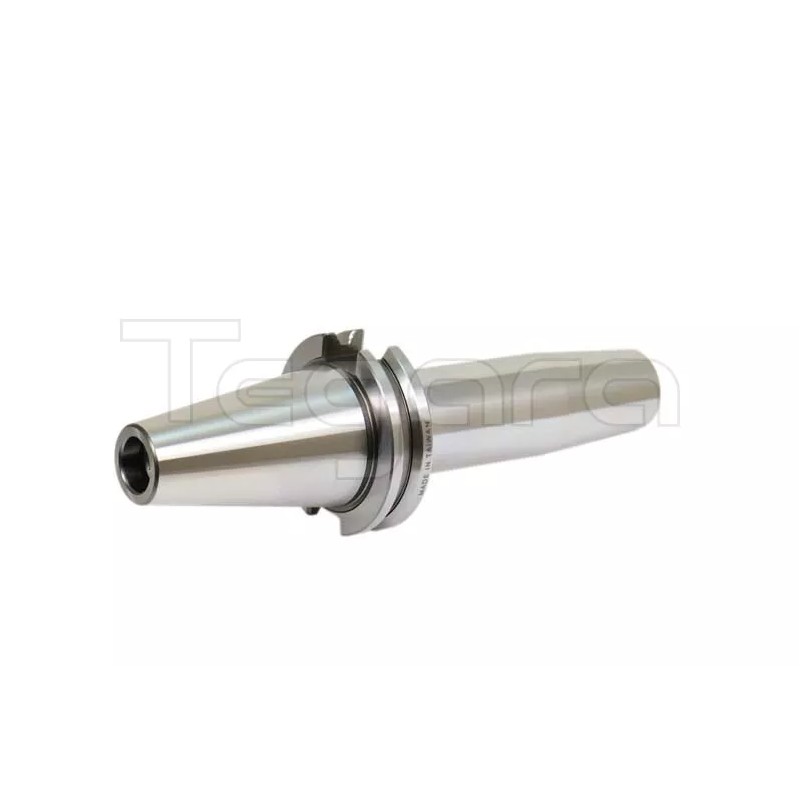

Tegara CAT40 5/8 x 5.12" Shrink Fit Tool Holder Balanced G2.5 30000 RPM NEW
Product Code
| SKU | 202-7815 |
|---|---|
| MFG SKU # | 202-7815 |
| TOOL HOLDER CATEGORY | Shrink Fit Holder |
| BRAND | Tegara |
| SHANK SIZE | CAT40 |
| BORE DIAMETER | 5/8 |
| PROJECTION LENGTH | 5.12 |
| END MILL HOLDER STYLE | Long Reach |
|---|---|
| MAX RPM BALANCED TO | G2.5 30000 |
| TIR (INCH) | 0.0001 |
| DRAWBAR THREAD SIZE | 5/8x11UNC |
| NOSE DIAMETER | 1.06 |
| BORE DEPTH | 1.97 |
| COOLANT THROUGH | No |
Product features
|
START TO FINISH We optimize our process for both efficiency and accuracy by utilizing Kawasaki robotic arms to load and unload bar stock into the Mazak multi-tasking machine centers. We use JIS# SKD61 (ANSI H13) alloy steel to lay the foundation and case harden to RC 57-59 with a core of RC 34-39 to provide good core strength and maximize wear life. The core creates a dampening effect which reduces vibration in high speed milling to improve surface finish. The AT3 or better taper accuracy ensures 80% or better taper contact with spindle and using Stotz Air/Electronic Gaging for inspection on the taper. We precision grind the internal bore surface to <.0002" TIR and all bores are ground on a CNC grinder to ensure close run-out tolerance and evenly contact between the collet and the bore pocket. We use Haimer laser balancing machines to deliver a tool that can operate flawlessly at 20000 RPM and Mitutoyo or Mahr indicators to check the run out. |
Mirror FinishedTaper ground to AT3 or better specification ensures 80% or more contact with spindle to reduce harmonics and improve runout tolerance |

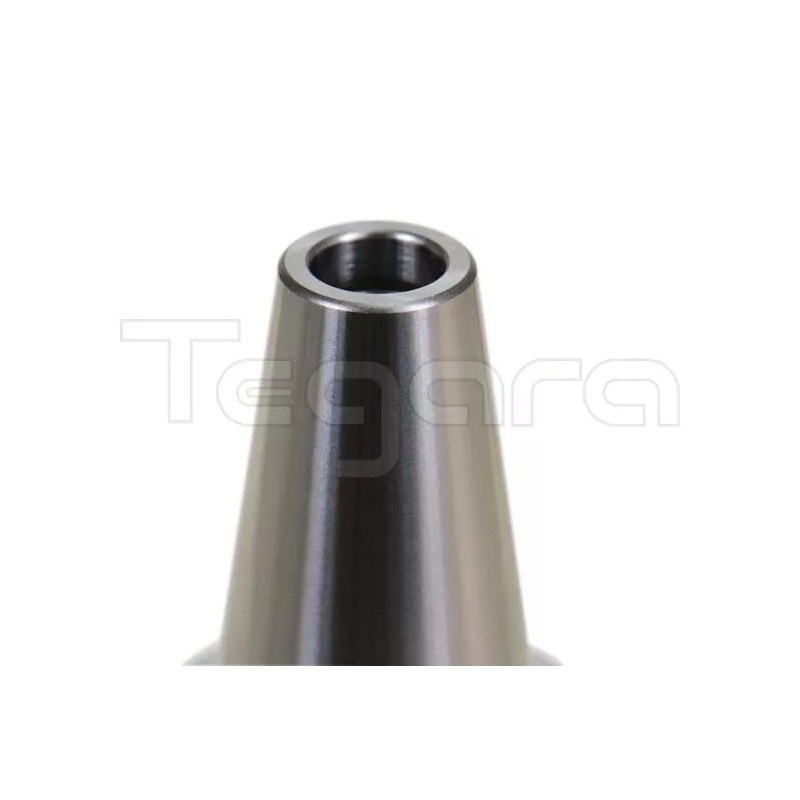

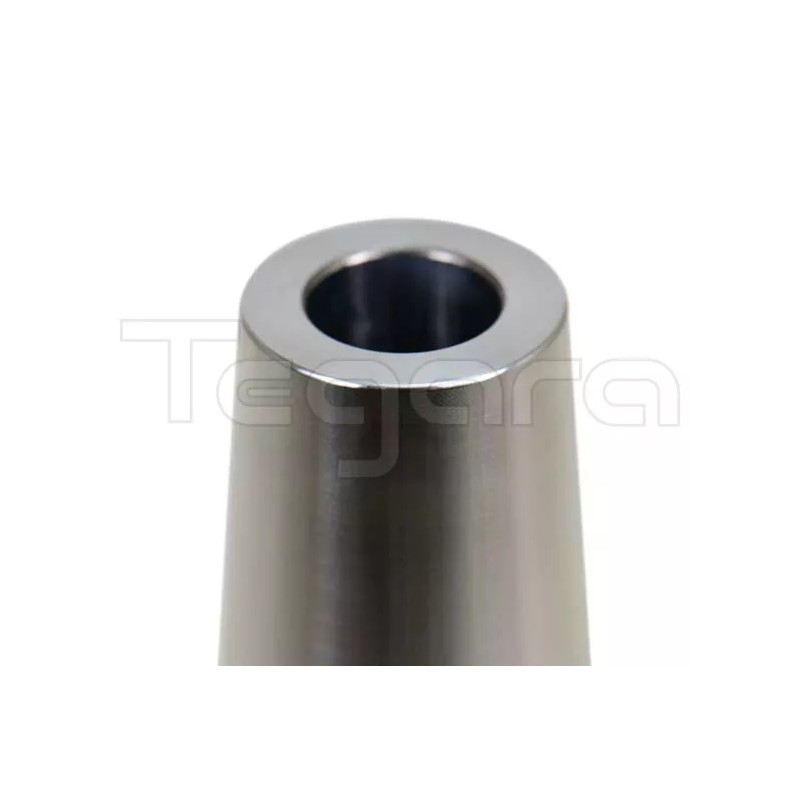

Pilot ContactInside bore are precision turned to engage a better contact with retention knob's pilot to increase rigidity |
Taper End FacePrecision turning surface finish provide perpendicular contact with the flange of retention knob to increase rigidity |
| Dynamic Balancing Tool holder is balanced to G2.5 30,000 RPM on a HAIMER Tool Dynamic Balancing System from Germany. Balanced tool holder minimizes the centrifugal forces which minimize the stress on spindle bearing, minimize vibration and maximize the cutting tool's life cycle and greatly improve surface finish. |
|
Pre-Balance DesignUnique design feature in the flange to minimize the off-balance nature of CAT 40 taper specification. On the shoulder under the flange, a side is mill flat to compensate the weight of the metal chips lost from forming the spherical hole in the flange. This design allows the left side and right side of the holder to achieve 50-50 perfect weight distribution in its upright position, like the position inside a machine spindle. Symmetrical design in evenly weight distribution will minimize centrifugal force in high speed spinning and thus maximize the holder's ability to hold the cutting tool concentric to spindle rotation. |
|
.0002" Runout at 4xD Length
|
