TEAMNIGT 4 Pcs DC 12V Infinite Cycle Delay Timing Timer Relay Module 0-15mins Adjustable Times Switch Delay On/Off Switch Loop Module
TEAMNIGT 4 Pcs DC 12V Infinite Cycle Delay Timing Timer Relay Module 0-15mins Adjustable Times Switch Delay On/Off Switch Loop Module
TEAMNIGT 4 Pcs DC 12V Infinite Cycle Delay Timing Timer Relay Module 0-15mins Adjustable Times Switch Delay On/Off Switch Loop Module
- This module uses MCU as the main chip,high timer precision.MCU watchdog circuit and special reset chip,stable and reliable work.

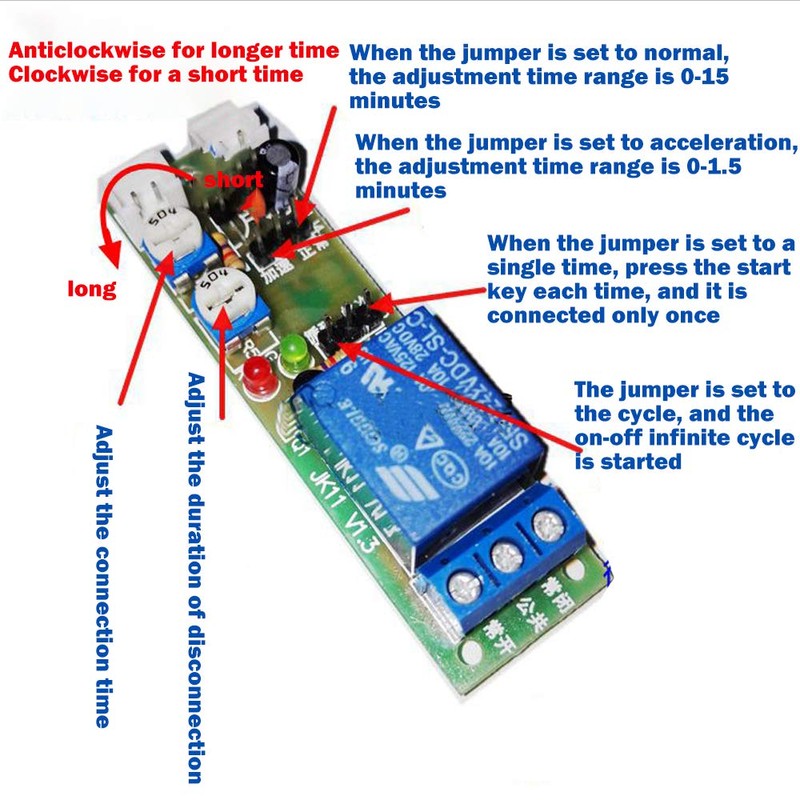

- Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper.
- Use 2 adjustable resistors (T1, T2) to adjust the time,T1(the relay turn on delay time), T2(the relay turn off delay time).
- It is great to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test.
- Typical application reference:timer operating equipment, such as each press key trigger, when reach 5 minutes the automatic power off;machine repeat test circuits, such as power 1 minutes on and then power off 1 minutes, such a cycle of testing;fish tank pump intermittent pumping oxygen;other timer control equipment.
| Brand: | TEAMNIGT |
|---|---|
| Size: | 4pcs |
| Manufacturer: | TEAMNIGT |
| Part Number: | DTPZGBV |
| Isin: | I2NLVCMUVTA5 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

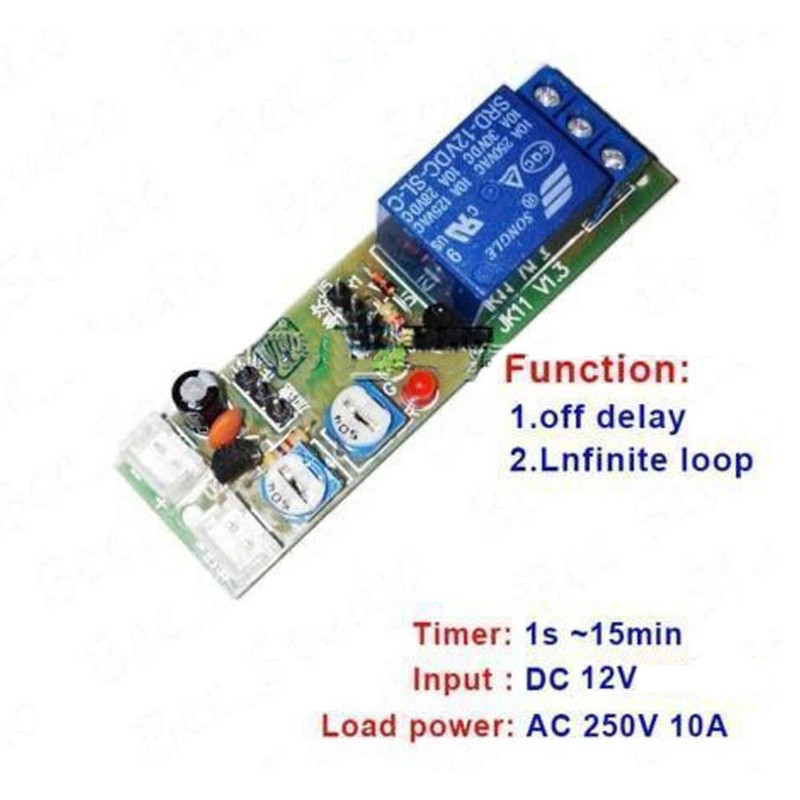

Once mode:
The module Power-on, When triggered the relay is switched on, timer delay off.
When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle mode:
The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. T1 and T2 are set by two adjustable resistors, respectively.
When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Performance:
Jumper OP1: 1 to 90 seconds, 0.1 seconds of regulation accuracy.
Jumper OP2: 1 seconds to 15 minutes, 1 seconds of regulation accuracy.
The time delay error of all kinds of temperature and humidity is not more than 2%.
Max. Load Capacity: 10A250VAC.
Basic working principle:
Taking the standard setting at the factory as an example, the red LED lights up when the power is turned on, and the relay is in the off state at this time; the short circuit at the trigger end, the green light of the module lights up, and it immediately enters the working state, when it is triggered again, it will stop jobs.
In the working state, T1/T2 will cycle infinitely in two states of on/off (T1/T2 is the length of time adjusted by the user through adjustable resistance)

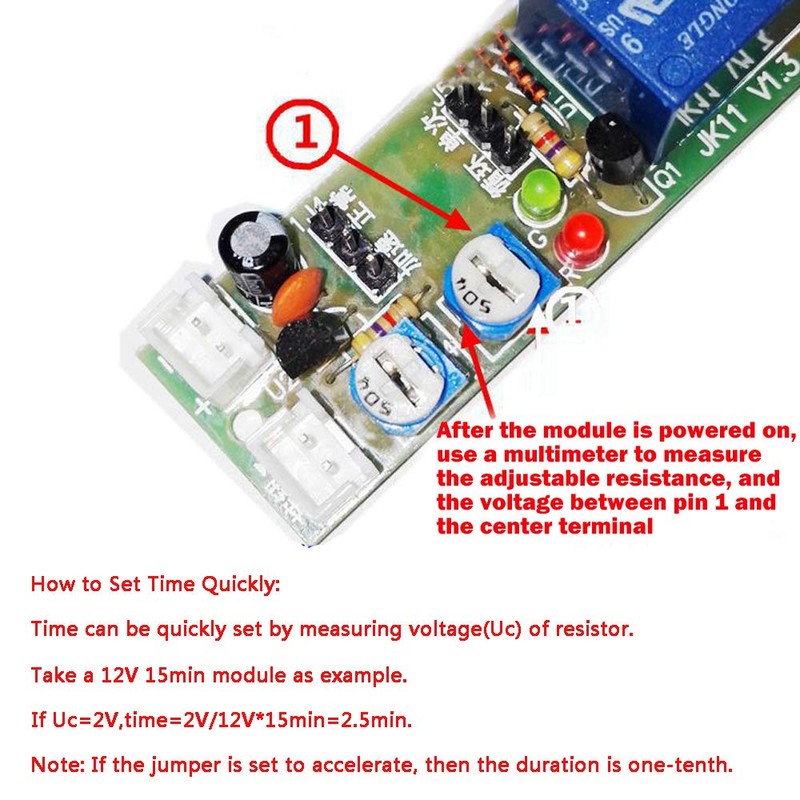

How to Set Time Quickly:
Time can be quickly set by measuring voltage(Uc) of resistor. Take a 12V 15min module as example. If Uc=2V, time=2V/12V*15min=2.5min.(Note: If the jumper is set to accelerate, then the duration is one-tenth)
Package Includes: 4Pcs
The module Power-on, When triggered the relay is switched on, timer delay off.
When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle mode:
The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. T1 and T2 are set by two adjustable resistors, respectively.
When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Performance:
Jumper OP1: 1 to 90 seconds, 0.1 seconds of regulation accuracy.
Jumper OP2: 1 seconds to 15 minutes, 1 seconds of regulation accuracy.
The time delay error of all kinds of temperature and humidity is not more than 2%.
Max. Load Capacity: 10A250VAC.
Basic working principle:
Taking the standard setting at the factory as an example, the red LED lights up when the power is turned on, and the relay is in the off state at this time; the short circuit at the trigger end, the green light of the module lights up, and it immediately enters the working state, when it is triggered again, it will stop jobs.
In the working state, T1/T2 will cycle infinitely in two states of on/off (T1/T2 is the length of time adjusted by the user through adjustable resistance)
How to Set Time Quickly:
Time can be quickly set by measuring voltage(Uc) of resistor. Take a 12V 15min module as example. If Uc=2V, time=2V/12V*15min=2.5min.(Note: If the jumper is set to accelerate, then the duration is one-tenth)
Package Includes: 4Pcs
