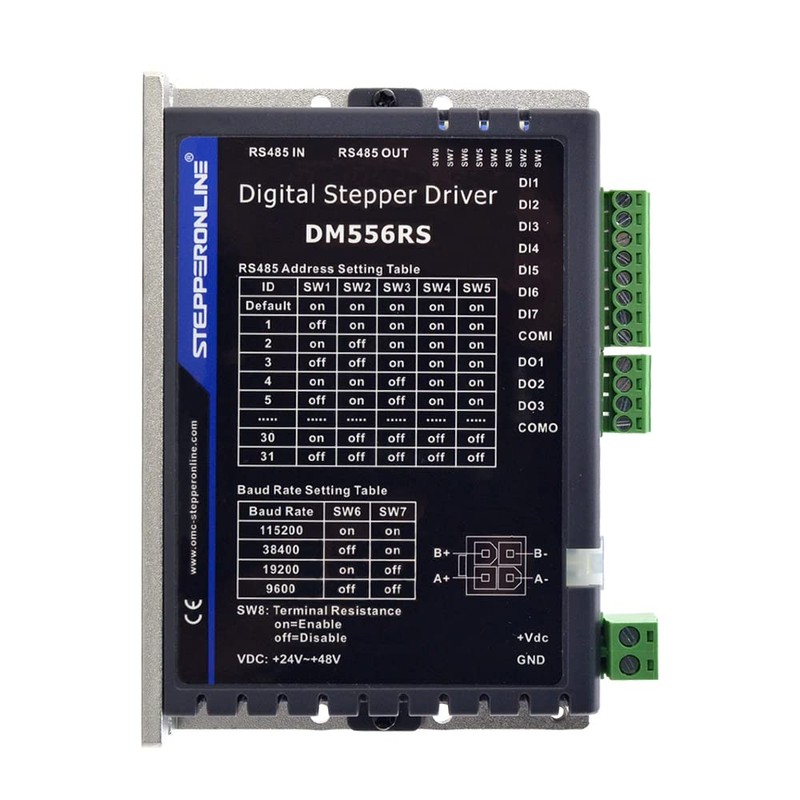

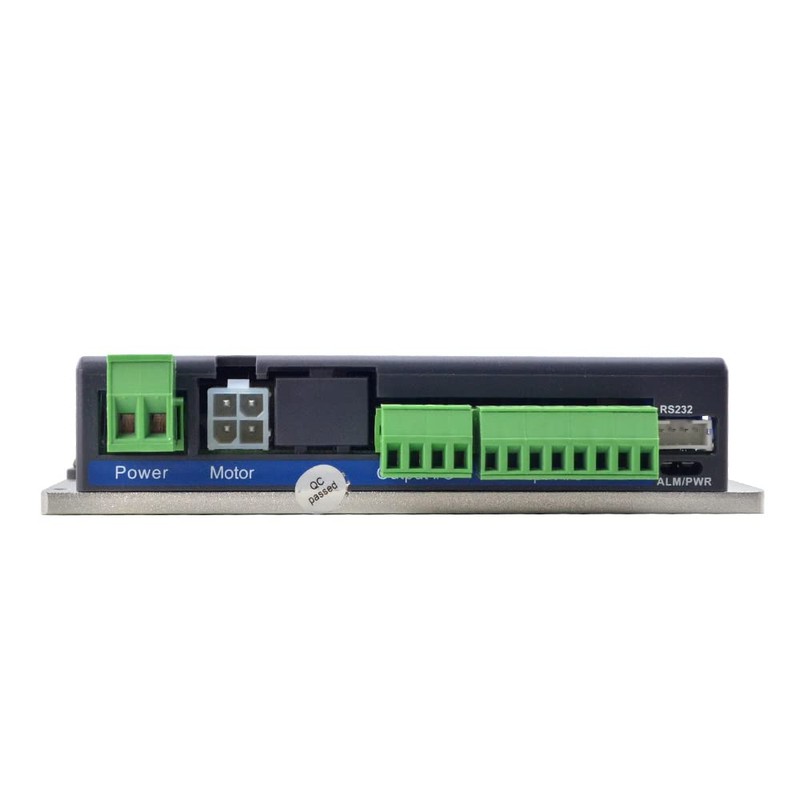

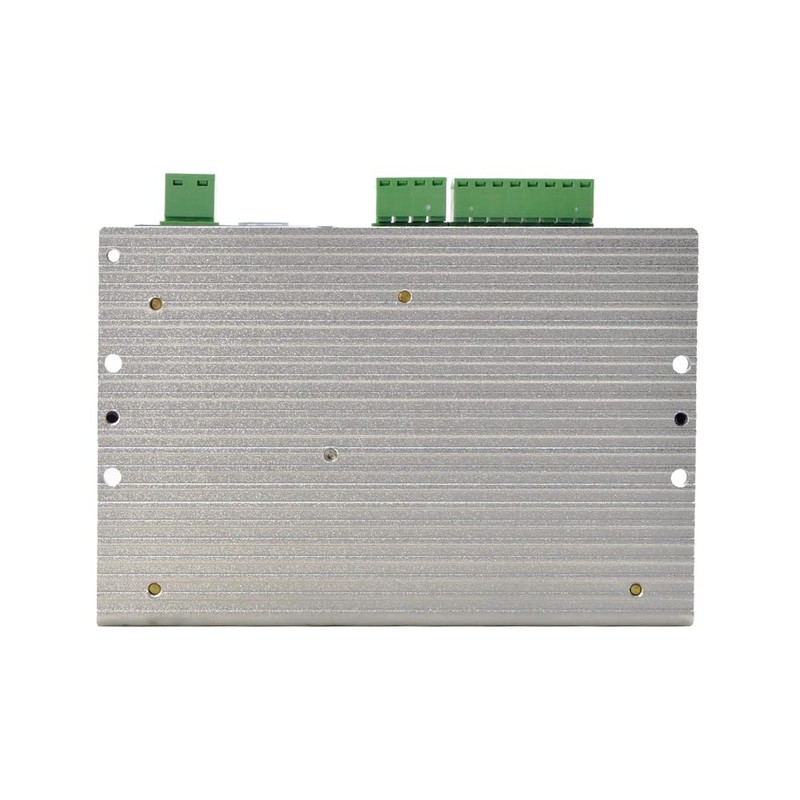

STEPPERONLINE Modbus RS485 Stepper Driver 0.1-5.6A 24-48VDC for Nema 17, 23, 24 Stepper Motor
STEPPERONLINE Modbus RS485 Stepper Driver 0.1-5.6A 24-48VDC for Nema 17, 23, 24 Stepper Motor
STEPPERONLINE Modbus RS485 Stepper Driver 0.1-5.6A 24-48VDC for Nema 17, 23, 24 Stepper Motor
- Specification：Number of Phases: 2, Output current: 0.1-5.6A, Supply voltage: 24-48VDC, Input signal: 7 digital inputs, Output signal: 3 digital output, Compatible motor: Nema 17/23/24, Dimensions: 118*79.5*25.5 mm
- Built-in single-axis controller (PR): PR (Position Register) supports single-axis motion control function, can be configured with 16-segment position table program, supports positioning, zero return, limit, emergency stop, JOG and other functions, which can save the upper controller The number of pulse output points simplifies the system design and greatly reduces the user's development cost.
- Isolated RS485 bus: dual-port RJ45 connector, based on the standard Modbus RTU protocol, can support up to 31 axes of RS485 motion control network.
- Smooth operation and anti-resonance: There are inherent resonance points in the stepping system. The DMRS series driver adopts an excellent anti-resonance algorithm to capture the characteristics of the resonance point, effectively avoid or suppress the resonance point, and improve the stability at low and medium speeds and high-speed torque output.
- Abundant input and output interfaces: 7-channel digital input, which can be connected to input signals such as zero return, limit, emergency stop, trigger, etc.; 3-channel digital output, which can be configured with output signals such as brake and alarm.
| Brand: | STEPPERONLINE |
|---|---|
| Manufacturer: | STEPPERONLINE |
| Part Number: | YCN9KJF |
| Isin: | I4PTSGWRXBCH |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
DMRS Series are stepper driver based on standard Modbus RTU protocol, using RS485 communication can network up to 31 axes. They built-in PR feature with 16-segment position table (PR Mode) can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. DMRS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing. They can power 2-phase NEMA 8, 11, 14, 17, 23 and 24 stepper motors. The DMRS series is highly reliable and affordable and performs excellently in many industrial applications such as solar equipment, textile, civil, robotics, power generation equipment, 3C, packaging...
Key Features
*Standard Isolated RS485 Modbus
*24-48VDC supply voltage, max 5.6A output current
*Support Modbus RTU protocol, Internal 16-segment position Commands
*Support operation modes: Profile Position, Profile Velocity, Homing
*Support Functions: Teaching, Interrupt, Skip, Suspend, Circulate motion
*HMI, PLC or External I/O start motion
*7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs
*3 Programmable Outputs: Alarm, Brake, Homing/Instruction/Path complete
*Modes of Operation: Velocity, Position, Homing
*RS232 communication for parameters configuration
*Protections for over voltage, over current, motor cable error, etc.
Compare with Step/Direction
*Built-in single-axis control can save the PLC in most of point-to-point applications to reduce cost
*Built-in rich diagnostic functions and input and output signals to setup easily
*Modbus brings more expansion possibility to add value
Key Features
*Standard Isolated RS485 Modbus
*24-48VDC supply voltage, max 5.6A output current
*Support Modbus RTU protocol, Internal 16-segment position Commands
*Support operation modes: Profile Position, Profile Velocity, Homing
*Support Functions: Teaching, Interrupt, Skip, Suspend, Circulate motion
*HMI, PLC or External I/O start motion
*7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs
*3 Programmable Outputs: Alarm, Brake, Homing/Instruction/Path complete
*Modes of Operation: Velocity, Position, Homing
*RS232 communication for parameters configuration
*Protections for over voltage, over current, motor cable error, etc.
Compare with Step/Direction
*Built-in single-axis control can save the PLC in most of point-to-point applications to reduce cost
*Built-in rich diagnostic functions and input and output signals to setup easily
*Modbus brings more expansion possibility to add value
