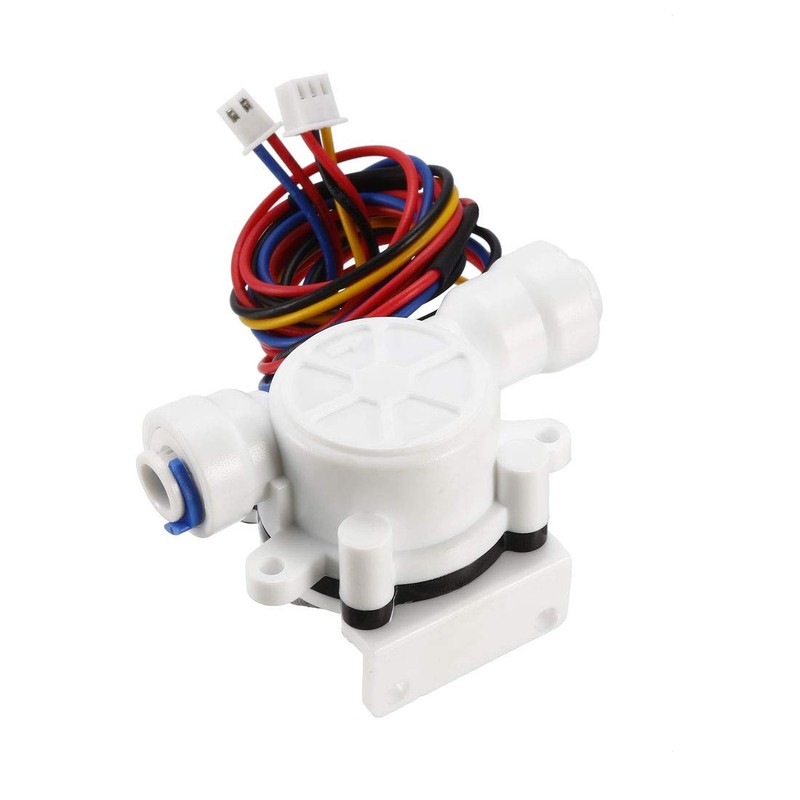

sourcing map 1/4in Quick Connect Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC5V 0.05-0.8L/min

Brand: sourcing map
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:0.35MPa, flow range: 0.05-0.8L/min
  • Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on.
Brand: sourcing map
Size: 1/4in 0.05-0.8L/min
Manufacturer: sourcing map
Part Number: W8XHVPN
Material Type: PE
Isin: INRO91PVRTWQ

$50.61

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
sourcing map 1/4in Quick Connect Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC5V 0.05-0.8L/min

sourcing map 1/4in Quick Connect Hall Effect Liquid Water Flow Sensor Switch ...

$50.61

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.
2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Wire connection: Red for positive, black for negative, yellow for pulse signal.

Specifications:
Product Name: Water Flow Sensor
Material: PE(Shell)
Size: 68mm x 38mm x 37mm / 2.68" x 1.5" x 1.46"(L*W*H)
Cable Length: 440mm / 17.32"
Liquid Temperature: Not More Than 60C
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum water pressure: 0.35MPa
Flow range: 0.05-0.8L/min
Connector: Male XH-3P; XH-2P
Connector Size: 1/4in Quick Connect
Ingress Protection Rating: IP65
Color: White
Net Weight: 50g

Package Included:
1 x Water Flow Sensor

Note:

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
