Parts Express C-Note Center Channel Speaker Kit
Parts Express C-Note Center Channel Speaker Kit
Designed to be teamed up with the popular C-note bookshelf speaker, the C-note MTM center channel speaker kit makes it simple to build your own high quality home theater system for an unbeatable value. Voiced to match the sound of the C-note bookshelf speaker, this center channel has improved output capability and dynamics that are necessary to meet the demands of today's movie soundtracks. In addition, special attention was taken with the crossover design to keep any sibilance under control, ensuring no listener fatigue after long sessions at high output. This easy to assemble center channel give you the opportunity to complete your own home theater system with a finish that matches your own personal tastes and décor. _x000D_
_x000D_

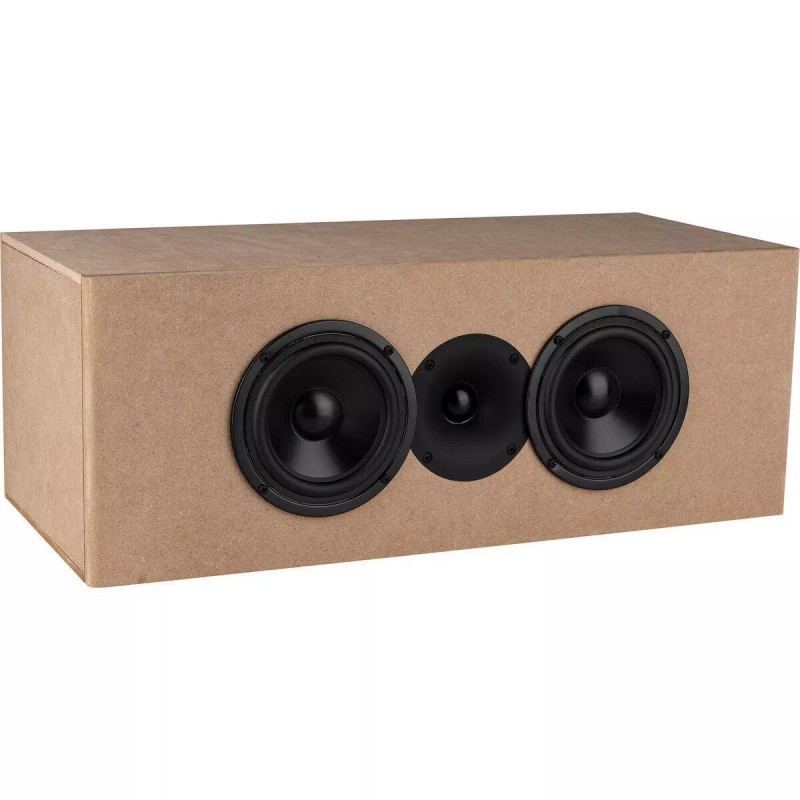

Two of Dayton Audio's DSA135-8 5" Designer Series woofers are used for the midrange and low frequencies. With aluminum cones and powerful motors designed for low distortion, these woofers produces bass with authority while remaining smooth through the midrange frequencies. The high frequencies are handled by the ND25FW-4 1" soft dome tweeter , also from Dayton Audio. This waveguide-loaded tweeter controls high frequency dispersion for smooth off axis response and natural sound. Another advantage of the waveguide design is that it allows the voice coil to set further back from the baffle for an almost perfect time alignment with the woofer. _x000D_
_x000D_

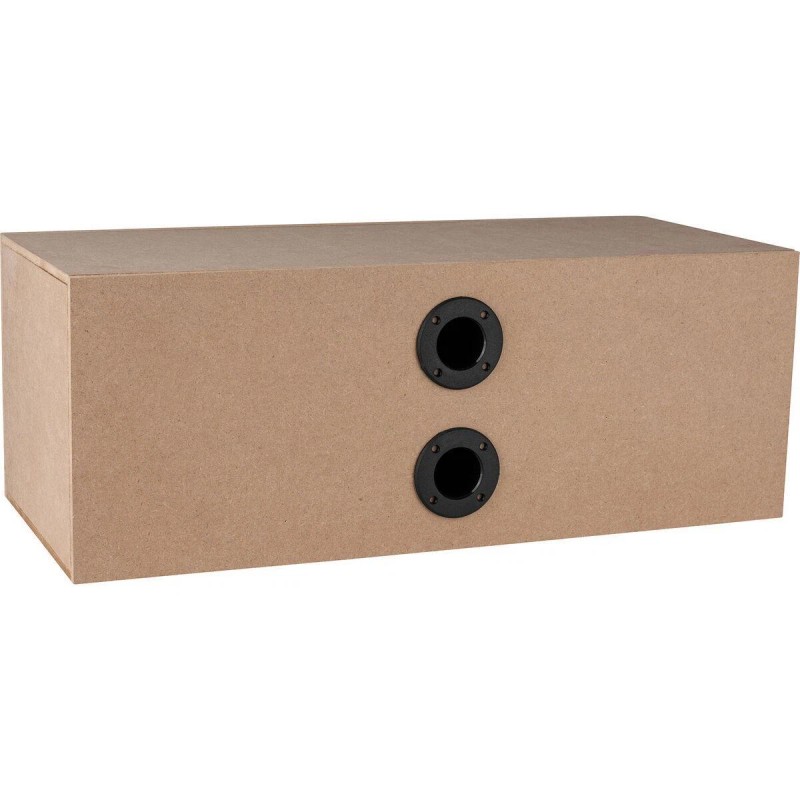

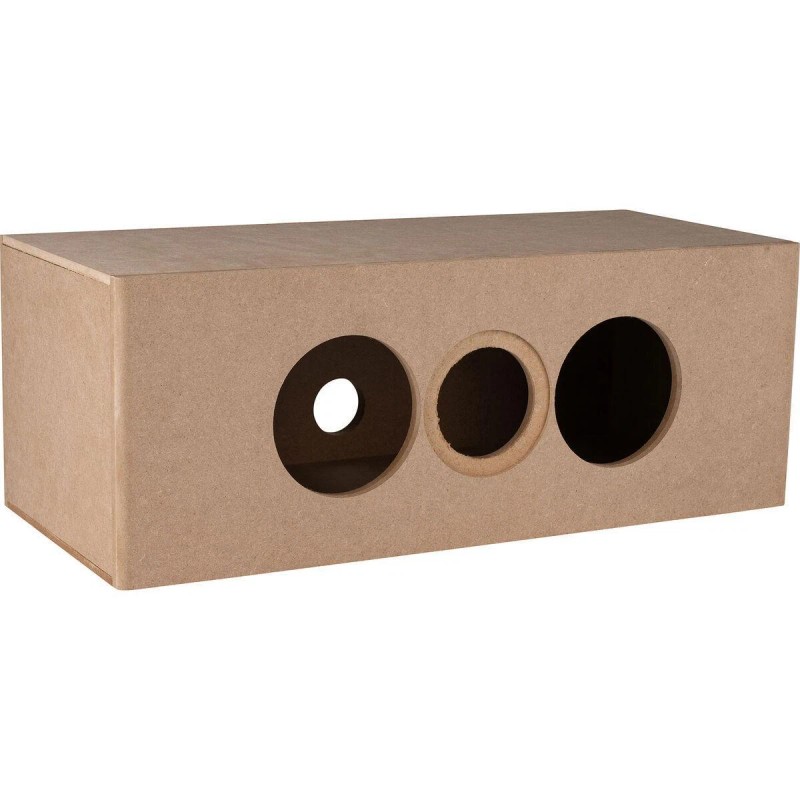

The solid MDF enclosure's 1/2" panels are all CNC milled to tight tolerances, ensuring easy assembly. The surface mounted woofer is easy to install, while the flush mounted tweeter provides a sleek appearance. _x000D_
_x000D_
This kit includes nearly everything you need to build a top-notch center channel speaker in no time flat, including: a knock-down enclosure, drivers, crossover components, binding posts, screws, and wire. _x000D_
_x000D_
This kit includes parts to build a single center channel speaker. _x000D_
_x000D_
Included Components: _x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
| Qty _x000D_ | Part Number _x000D_ | Description _x000D_ |
| 2 _x000D_ | 295-526 _x000D_ | Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer _x000D_ |
| 1 _x000D_ | 275-051 _x000D_ | Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm _x000D_ |
| 1 _x000D_ | 004-3 _x000D_ | Dayton Audio DNR-3.0 3 Ohm 10W Precision Audio Grade Resistor _x000D_ |
| 1 _x000D_ | 004-20 _x000D_ | Dayton Audio DNR-20 20 Ohm 10W Precision Audio Grade Resistor _x000D_ |
| 1 _x000D_ | 027-418 _x000D_ | Dayton Audio DMPC-3.0 3.0uF 250V Polypropylene Capacitor _x000D_ |
| 2 _x000D_ | 027-432 _x000D_ | Dayton Audio DMPC-15 15uF 250V Polypropylene Capacitor _x000D_ |
| 1 _x000D_ | 027-416 _x000D_ | Dayton Audio DMPC-2.7 2.7uF 250V Polypropylene Capacitor _x000D_ |
| 1 _x000D_ | 027-454 _x000D_ | Dayton Audio DFFC-0.22 0.22uF 400V By-Pass Capacitor _x000D_ |
| 1 _x000D_ | 257-020 _x000D_ | Dayton Audio 0.10mH 20 AWG Air Core Inductor Crossover Coil _x000D_ |
| 1 _x000D_ | 257-050 _x000D_ | Dayton Audio 1.2mH 20 AWG Air Core Inductor Crossover Coil _x000D_ |
| 2 _x000D_ | 260-388 _x000D_ | Speaker Cabinet Port Tube 1-3/8" ID Adjustable _x000D_ |
| 1 _x000D_ | 091-1245 _x000D_ | Dayton Audio BPA-38G HD Binding Post Pair Gold _x000D_ |
| 1 _x000D_ | 081-423 _x000D_ | 25-Pack #6 x 3/4" Pan Head Deep Thread Black Screws _x000D_ |
| 1 _x000D_ | Â _x000D_ | 16 AWG 2-conductor Power Speaker Wire 4 ft. (Red/Black) _x000D_ |
| 1 _x000D_ | Â _x000D_ | C-Note MTM Center Channel Kit Knock-Down Enclosure _x000D_ |
_x000D_
Note: Screws, binding posts, and speaker wire are now included. _x000D_
_x000D_
Specifications: _x000D_
⢠Power handling: 80 watts RMS/160 watts max _x000D_
⢠Frequency response: ±3 dB from 43-20,000 Hz _x000D_
⢠Impedance: 4 ohms _x000D_
⢠Sensitivity: 87 dB 1W/1m _x000D_
⢠Dimensions: 8" H x 21.5" W x 9.5" D _x000D_
_x000D_
Note: Crossover components may be substituted with parts of equal or higher quality depending on available inventory. Â
