Osciloscopio de Mano DSO TC3, Generador de Osciloscopio de Almacenamiento Digital, Multímetro para Pruebas de Capacitancia y Resistencia (Estándar)

Brand: Eujgoov
  • IDENTIFICAR EL TIPO DE DISPOSITIVO: el modo de osciloscopio puede probar la forma de onda de la señal del circuito, mientras que el modo de prueba Mos puede probar varios tipos de transistores, que pueden identificar el tipo de dispositivo, la polaridad del pin, el hFE, el voltaje de estado, la capacitancia de la unión, la resistencia, los componentes inductivos, etc. Modo de generador de señal, puede usar formas de onda sinusoidal, de pulso, triangular o de rampa
  • PANTALLA DE PANTALLA DE INTERFAZ MÚLTIPLE: El osciloscopio puede probar diferentes funciones y admitir la visualización de pantalla de interfaz múltiple. Con el diseño del teclado, es más conveniente operar y seleccionar diferentes modos de función de prueba
  • ARTÍCULOS APLICABLES: El osciloscopio es compatible con la operación en línea de la PC, que es especialmente adecuada para el emparejamiento rápido de transistores, la identificación de componentes mixtos de montaje frontal y sin palabras, y la detección inicial de componentes de lotes pequeños. Puede identificar y medir automáticamente varios transistores, incluidos transistores NPN y PNP, diodos, diodos dobles, etc.
  • PANTALLA TFT: El osciloscopio funciona con una batería integrada de 1500 mA, que se cargará por completo en 1‑2 horas a través de un adaptador de 5 V 2 A y puede funcionar durante 4 horas (indicador verde de finalización/indicador rojo de carga). El osciloscopio portátil de bolsillo y probador de transistores está diseñado con una pantalla TFT de alta resolución de 2,4 pulgadas con retroiluminación ajustable. Mejor experiencia de lectura y fácil de usar.
  • SALIDA DE FRECUENCIA DE FORMA DE ONDA SINusoidal: El generador de señal tiene 5 formas de onda básicas incorporadas, salida de frecuencia de forma de onda sinusoidal 1-10KHz 0-3.3V 50%, sensibilidad vertical de 10mV a 10V, rango de base de tiempo horizontal 1us-10s, se pueden obtener más datos de forma de onda por unidad de tiempo, lo que hace que la forma de onda sea más precisa
Brand: Eujgoov
Size: Estándar
Color: Azul
Manufacturer: Eujgoov
Part Number: YZHKT3F
Isin: ILDYUERXNQPA

$152.81

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Osciloscopio de Mano DSO TC3, Generador de Osciloscopio de Almacenamiento Digital, Multímetro para Pruebas de Capacitancia y Resistencia (Estándar)

Osciloscopio de Mano DSO TC3, Generador de Osciloscopio de Almacenamiento Dig...

$152.81

Especificación:
Tipo de artículo: Osciloscopio digital
Material: ABS
Parámetros principales de la máquina

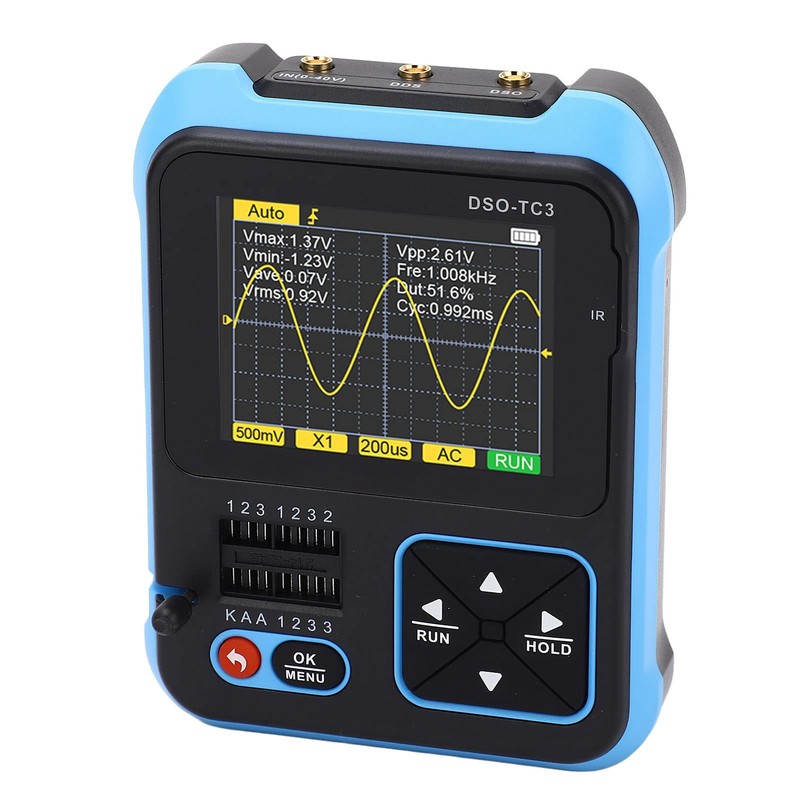

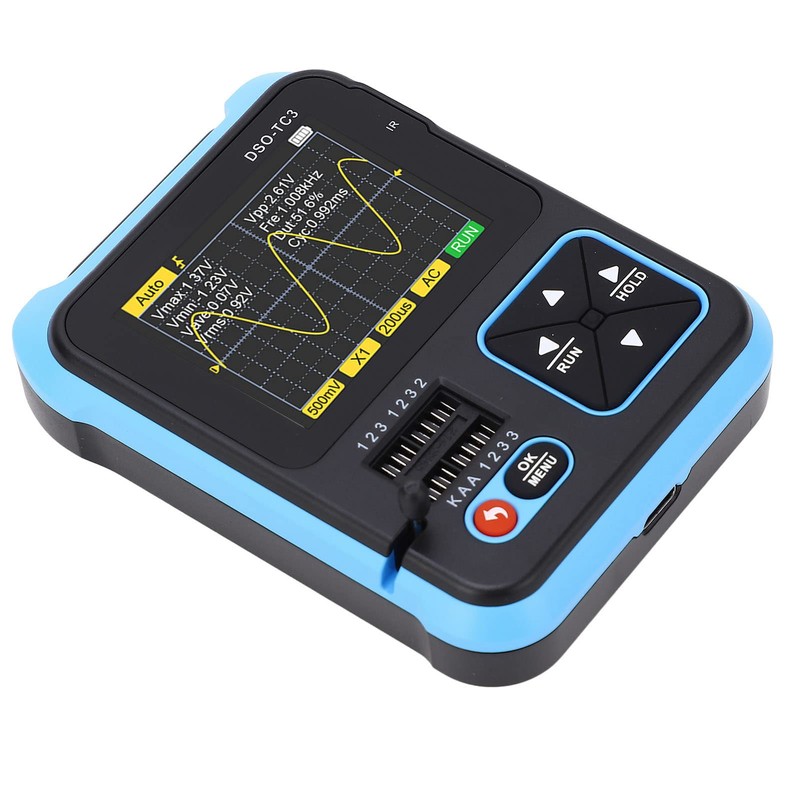

Modelo DSO TC3
Pantalla Pantalla a color TFT de 2,4 pulgadas, retroiluminación LED
Voltaje de la fuente de alimentación1 batería de polímeros de litio 803450 de 1500 mAh (se envía con la batería integrada)
Especificaciones de cargaUSB tipo C
Especificaciones del soporteSoporte plegable de una pieza
Parámetros del modo de osciloscopio digital
Tiempo real Tasa de muestreo 10MSa/s
Ancho de banda analógico 500Khz
Impedancia de entrada 1MO
Método de acoplamiento CA o CC
Rango de voltaje de prueba ±400V
Sensibilidad vertical 10mV-10V
Rango de base de tiempo horizontal 1us-10s
Modo de disparo Automático, Normal, Único
Tipo de disparo Flanco ascendente o flanco descendente
Congelación de forma de onda Sí
Medición automática Sí
Capacitancia 25pF- 100mF Valor de capacitancia, factor de pérdida Vloss
Resistencia 0.010-50MO Valor de resistencia
Inductancia 10uH-1000uH Valor de inductancia, Resistencia DC
Batería 0. 1-4.5V Valor de voltaje, polaridad positiva y negativa aridad
Voltaje de entrada 0-40V Valor de voltaje
DS 18B20 0-85°C Temperatura
DHT1 0-60°C/5-95% Humedad
Protocolo de decodificación de control remoto infrarrojo infrarrojo Codificación Muestra la codificación de usuario y la codificación de datos, muestra bien la forma de onda infrarroja correspondiente /50 %

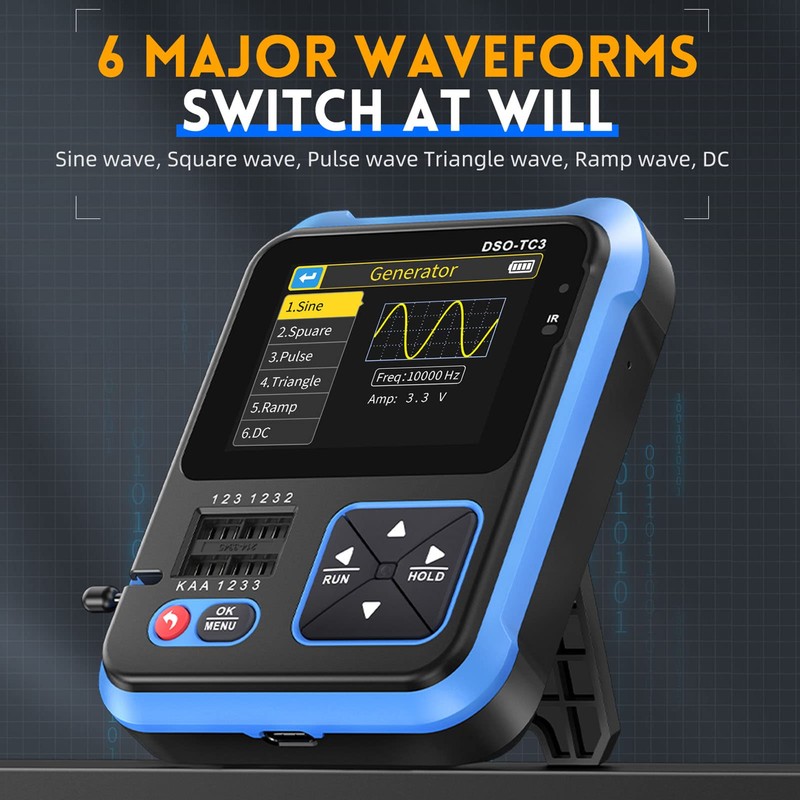

Onda de pulso 1-100 KHz/3,3 V/0-100 %
Onda triangular 1-10 KHz/0-3,3 V/50 %
Pendiente 1-10 KHz/0-3,3 V/ 0-100%
DC 0-3.3V

Lista de Empaque:
1 x osciloscopio
1 x cable USB
3 x cable de gancho de prueba
1 sonda normal
1 manual de instrucciones
o
1 osciloscopio
1 cable USB
3 cables de gancho de prueba
1 sonda normal
1 x adaptador
1 x sonda de alto voltaje P6100
1 x
