MZHOU DC 20V-60V to 12V 5A 60W Buck Converter, 24/36/48V to 12V DC/DC Buck with Terminal Block, Fuse, IP67 Waterproof, Short Circuit, Over Current, Over Temperature Protection for Instrumentation
MZHOU DC 20V-60V to 12V 5A 60W Buck Converter, 24/36/48V to 12V DC/DC Buck with Terminal Block, Fuse, IP67 Waterproof, Short Circuit, Over Current, Over Temperature Protection for Instrumentation
MZHOU DC 20V-60V to 12V 5A 60W Buck Converter, 24/36/48V to 12V DC/DC Buck with Terminal Block, Fuse, IP67 Waterproof, Short Circuit, Over Current, Over Temperature Protection for Instrumentation
- ✔12V DC buck converter: input voltage: DC 20-60V; output voltage: DC 12V (fixed output); output current: 5A; output power: 60W. Note: the load connected to the output of the converter should not exceed the specified maximum load. Any major load will damage the buck converter.

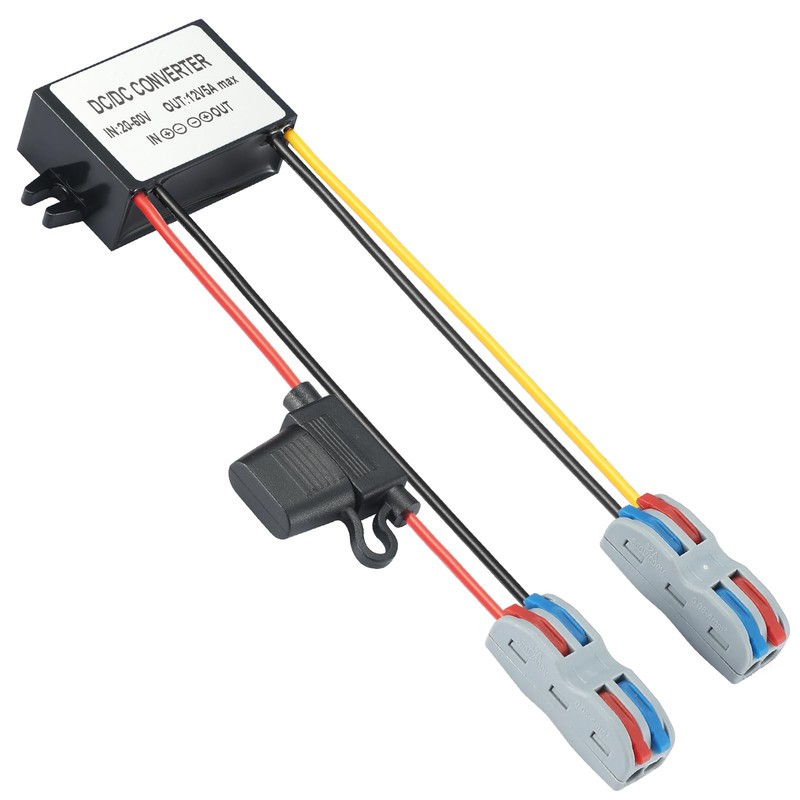

- ✔Easy installation: the 12 V voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, which reduces wiring time. Note: insulate the wires approx. 10 mm and plug the wires into the connectors.

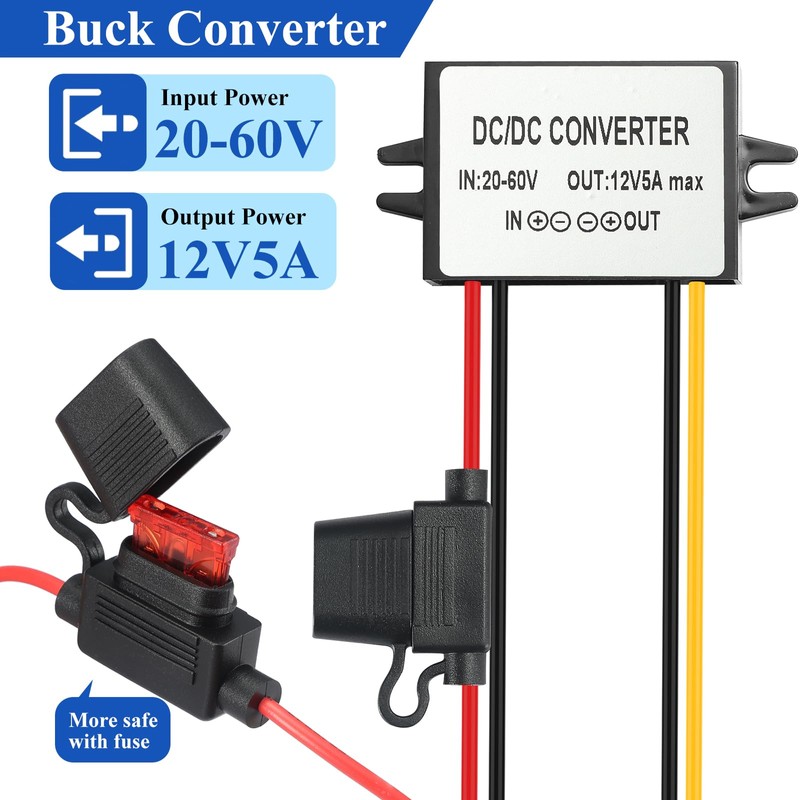

- ✔Fuse protection: the step-down converter is equipped with a fuse that provides overcurrent/short circuit/overheating/reverse polarity protection. In case of a problem, the fuse burns through and stops operation, so that the device cannot get on fire. But please note that the positive and negative poles of the product should not be interchanged, which will cause great damage to the product and even a permanent interruption of operation.

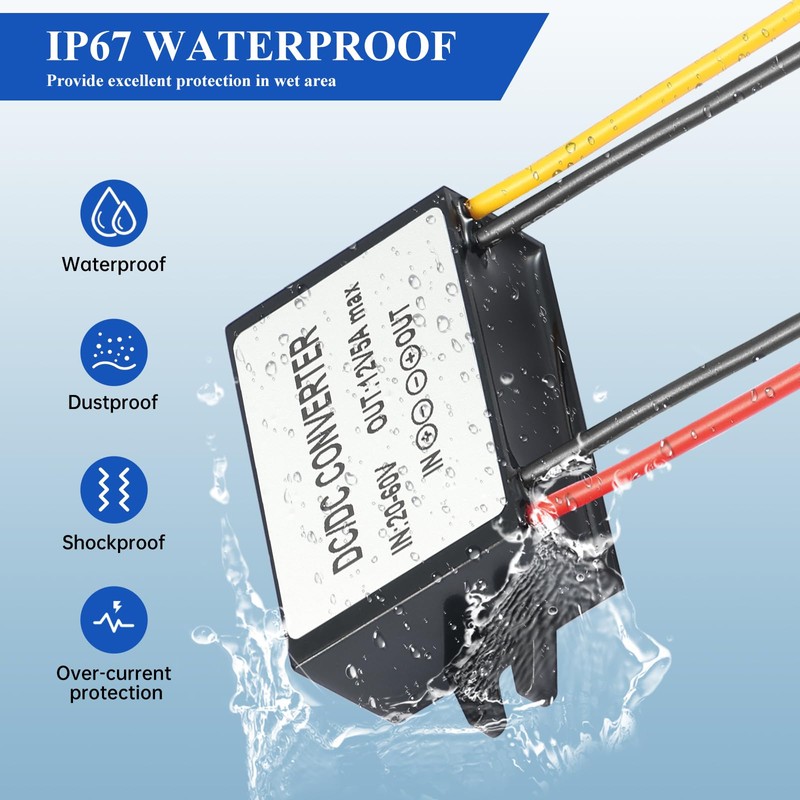

- ✔Waterproof protection: IP67 waterproof transformer adopts non-insulated synchronous step-down technology, working temperature: -20°-65° with ambient temperature change. The transformer is shaped, dustproof, waterproof and shockproof.
- ✔Wide application: it can be widely used in car audio, surveillance system, advertising screen, medical equipment, instrumentation, LED light bar, electric fan and DIY, etc.
| Brand: | MZHOU |
|---|---|
| Size: | 17-60V to12V5A 2S |
| Color: | DC 17-60V to 12V5A |
| Manufacturer: | MZHOU |
| Part Number: | 2XLN4GT |
| Isin: | I7OWZKNGRL0E |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
20-60V DC Step-Down Specification:
Input: DC 20-60 V.
Nominal input voltage: 24/36/48V.
Output: DC 12 V 5 A (max).
Waterproof rating: IP67.
Operating temperature: -20 °C to 65 °C.
Storage temperature: -40 °C to 85 °C.
Operating humidity: 10% to 90%RH
Residual ripple: 200mVP-P.
12 V 5 A. Voltage regulator connection:
Input: Red (+) Black (-)
Output: Yellow (+) Black (-)
Protection: short circuit protection, over-temperature protection, over-current protection, protection against reverse polarity.
▲(Please note that despite the reverse polarity protection, correct wiring is required, otherwise it may cause permanent damage to the product).
Instructions for connecting the product terminals:
Step 1: insulate the cable approx. 10 mm.
Step 2: Unplug the booster key and insert the wires.
Step 3: After inserting the wires, press the Boost button firmly.
DC Voltage Regulator Safety Manual
1. The load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will cause damage to the power regulator.
2. If the ambient temperature is too high, the power should be reduced accordingly. Low temperature operation guarantees that the power supply will work reliably for a long time.
3. Do not use the device near heat sources such as fire or heaters.
4. Do not connect the input cable to the 220V household network. 5.
5. Do not place the device near fire or heaters.
6. The device must not be disassembled and maintained by amateurs.
7. The input voltage should not exceed the fluctuation range of the converter. 8.
8. The output power of the converter must be greater than the power required by the connected devices.
9. Positive and negative lines must not be interchanged.
Package includes:
1 x 20V-60V to 12V 5A 60W step-down converter.
