Mini Actuator for Light Switch/Toggle Switch, 230 V - Phase Control | Zigbee Compatible (Switching Actuator)
Mini Actuator for Light Switch/Toggle Switch, 230 V - Phase Control | Zigbee Compatible (Switching Actuator)
Mini Actuator for Light Switch/Toggle Switch, 230 V - Phase Control | Zigbee Compatible (Switching Actuator)
- Zigbee & light switch: this version of the Zigbee actuator can be operated with a light switch or in a cross/double switch. So you can switch your 230 V lights easily and without the Zigbee network. Retrofitting with a normal electrical installation is therefore considerably easier and possible without switching to buttons. Switching also works without Zigbee network. Dimming is not possible with the dimming actuator, unlike buttons, with the switch.
- Compatible: works with the well-known Zigbee systems and voice controls. Important: the device is delivered without remote control/coordinator and requires additional components for operation. The Philips Hue Bridge also supports HomeKit, but not entertainment. See product description for further compatibility.
- Without N conductor: the actuator can be used with or without zero conductor. We recommend using with zero conductor if it is available at the connection location. Without a zero conductor, the actuator draws the required current for the Zigbee network from the current flowing through the lamps permanently. With an LED power below 20 W, the LED may glow slightly. In this case, use our bypass

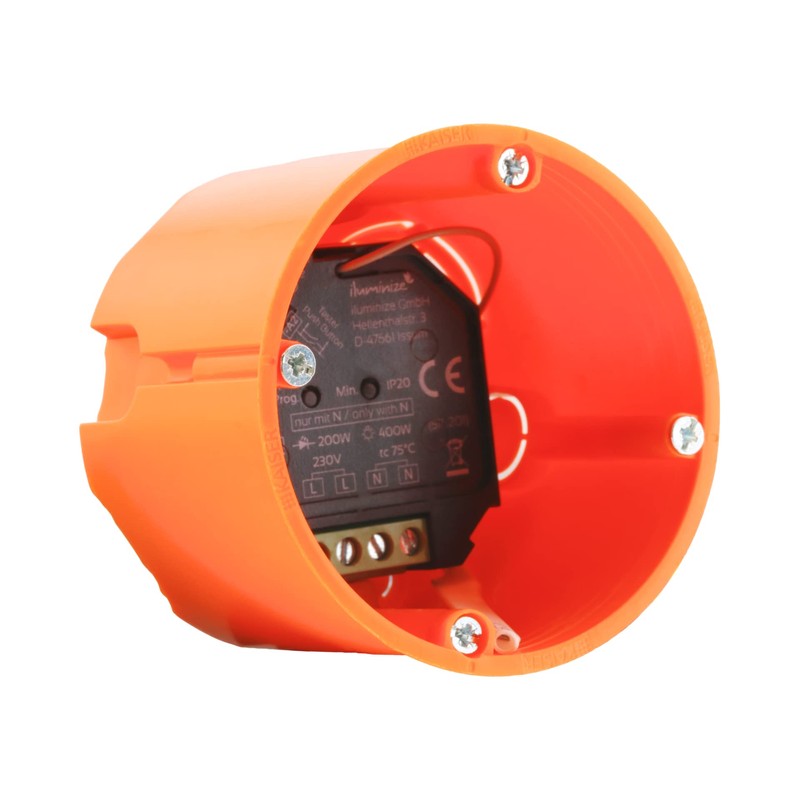

- Fits in the switch box: thanks to the dimensions of 45 mm x 45 x 23 mm, the Mini Zigbee 3.0 switch actuator fits behind the switch into a deep (60 mm, no other cables and clamps) switch box, but can also be mounted in the lamp or on the ceiling.
| Brand: | iluminize |
|---|---|
| Color: | black |
| Manufacturer: | iluminize |
| Part Number: | YV4M6QM |
| Material Type: | Acrylonitrile Butadiene Styrene |
| Isin: | IWUS9MPPWI06 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
The box contents include the actuator (switching or dimming actuator, depending on order) and a quick start guide.
Notes:
- The switching actuator officially supports the following Zigbee centers:
- Philips Hue Bridge (with HomeKit but without entertainment)
- Echo with Zigbee Hub
- IKEA Homesmart (without HomeKit)
- Google Assistant
Other Zigbee centres not listed here are likely to work, but we do not guarantee this. If in doubt, please check the questions & answers or reviews before purchasing. - For mounting behind a light switch or socket, a deep flush-mounted box with at least 60 mm depth is required. Except for the connections required for the actuator, no other cables and terminals must be laid in the box.
- Operation without zero conductor is optionally possible. The iluminize bypass is required for LED powers below 20 W.
- The actuator may only be used for lighting purposes. The following switching capacities must not be exceeded:
- 200 W for LED ballasts, electronic transformers for 12 V halogen lamps, switching power supplies and LED lamps with built-in drivers. A maximum of 2 such ballasts may be switched simultaneously.
- 400 W at 230 V incandescent and halogen lamps.
- Under no circumstances should toroidal transformers be controlled with the actuator.
- The installation of the device must be carried out in Germany by an electric master company.
Notes for dimming (only dimming model):
- Depending on the type, drivers and LED lamps can sometimes only be dimmed up to 50/60% flicker-free. This is due to technical restrictions on the respective driver and is not caused by this actuator.
- LED filament
