M5Stack Core2 IoT Development Kit

Brand: M5Stack

Product Overview

  • ESP32 Base, Built-in Bluetooth, WiFi 16M Flash, 8M PSRAM
  • M-Bath Socket & Pin
  • Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button TF card slot (up to 16G size), lithium battery, power management chip
  • 6-axis IMU, PDM microphone with built-in small board
  • Program Platform: UIFlow, MicroPython, Arduino
Brand: M5Stack
Manufacturer: M5Stack
Part Number: VGQK5K1
Isin: IOO9G2PTWGQ4

$151.22

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
M5Stack Core2 IoT Development Kit

M5Stack Core2 IoT Development Kit

$151.22

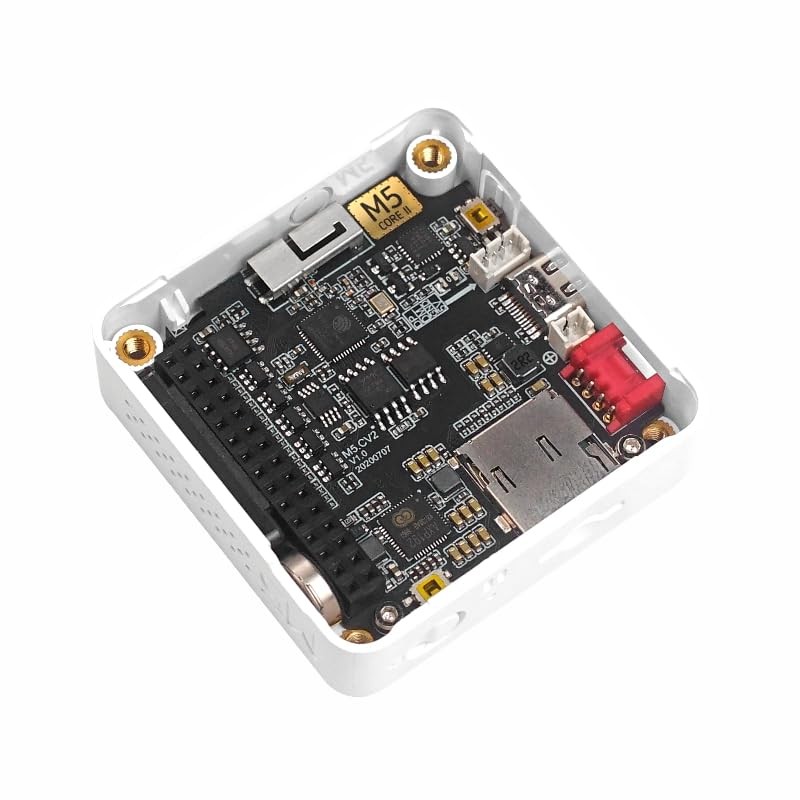

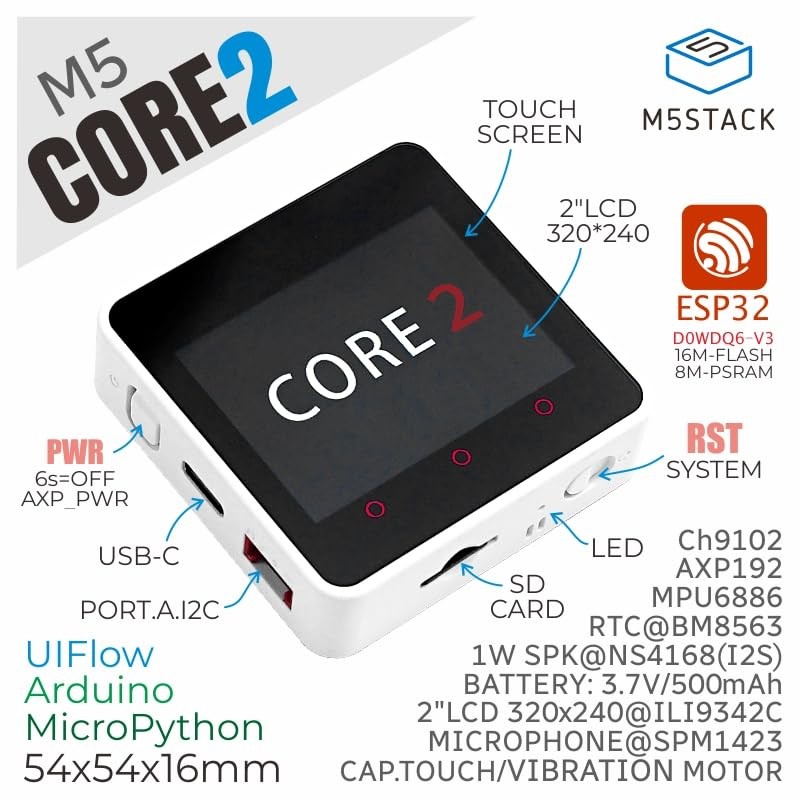

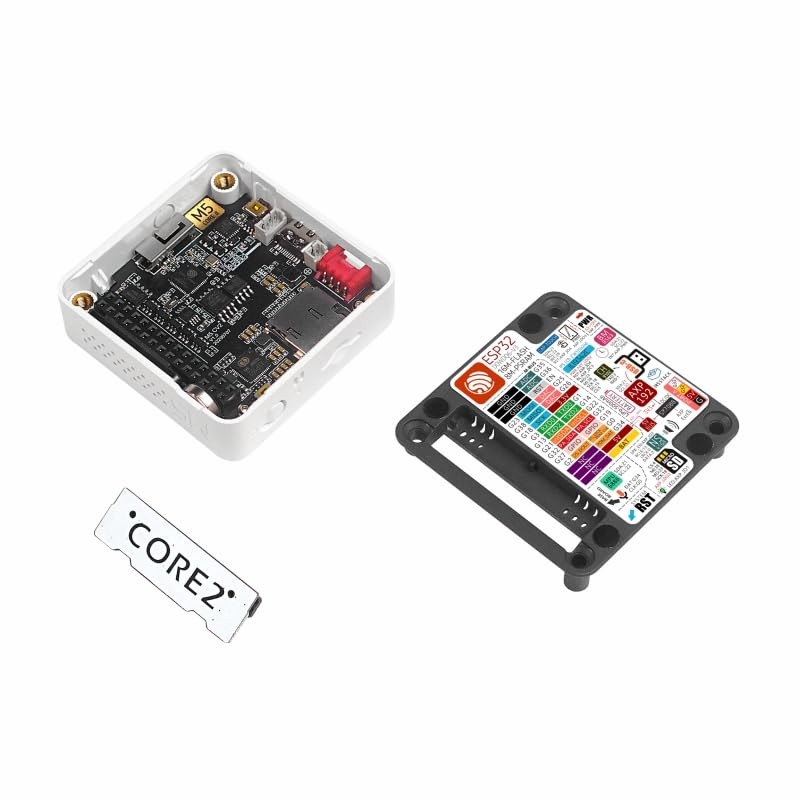

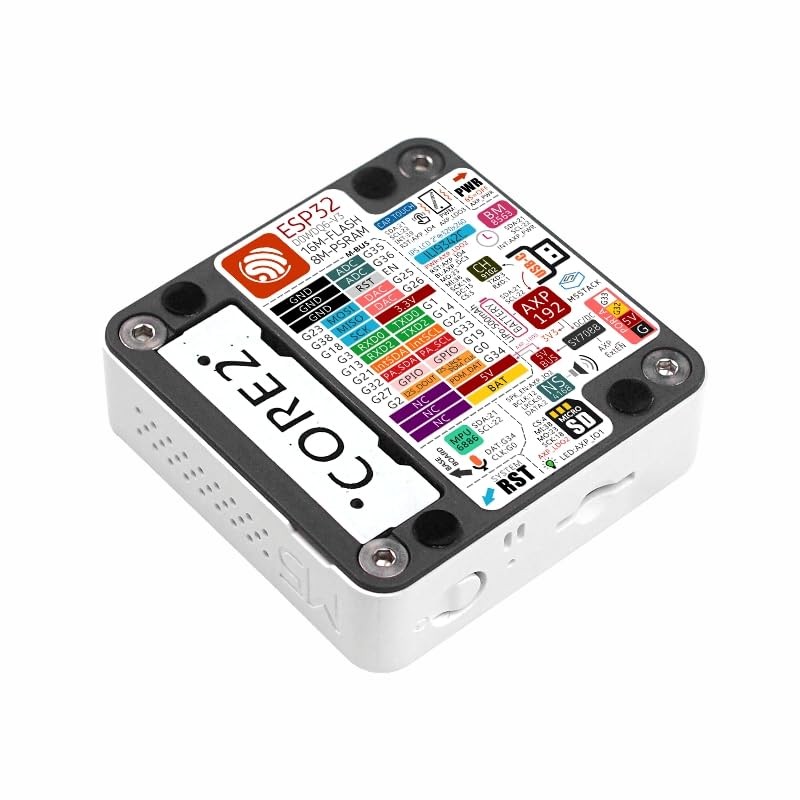

The M5Core2 is a second generation core device in the M5Stack development kit series that further enhances the functionality of the original generation.

The MCU is an ESP32 model D0WDQ6-V3 with a dual-core Xtensa 32-bit 240Mhz LX6 processor that can be controlled separately. WiFi and Bluetooth support as standard, including 16MB flash and 8MB PSRAM, charging, program and serial communication download, 2" integrated capacitive touch screen, built-in vibration motor.

The M5Core2 also features a built-in RTC module that provides precise timing. The power supply is managed by the AXP192 power management chip, which can effectively control the power consumption of the base, and the green LED power indicator will help users to notify the battery level. The battery capacity is upgraded to 390mAh to provide a much longer power to the core than the previous model.

M5Core2 holds TF card (microSD) slot and speaker. However, to ensure high quality sound output, I2S Digital Audio Interface Power Amplifier Chip can effectively prevent signal distortion. Independent power and reset buttons on left and bottom of base

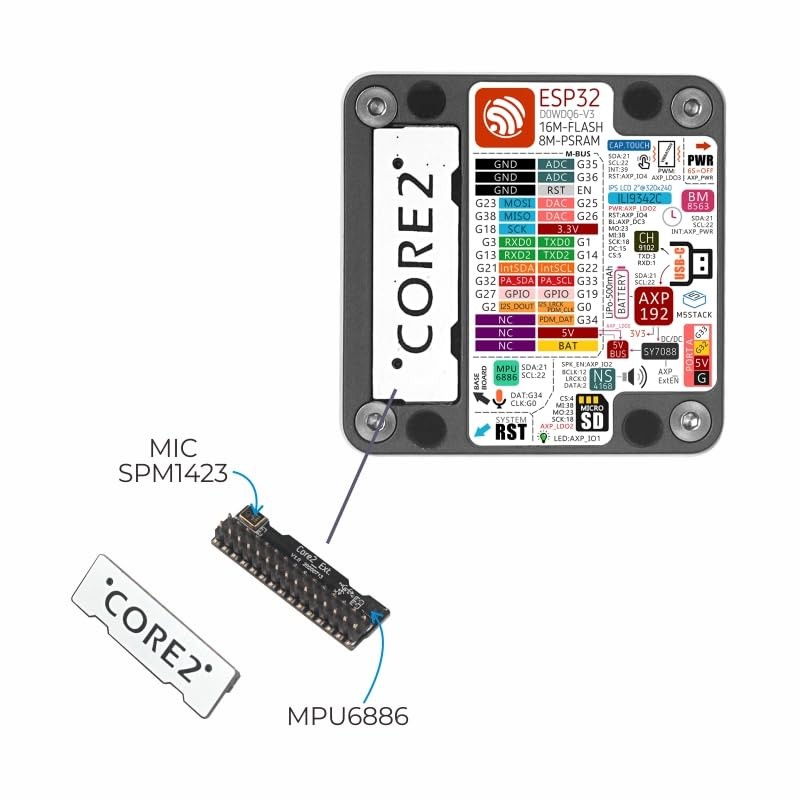

The three icons on the front of the screen are programmable capacitive buttons. There is a small expansion board with 6-axis IMU sensor and microphone on the back of the base.
Power On/Off:
Power On: Press the power button.
Power off: Press the power button for 6 seconds.
Restart: Click the RST button at the bottom.

Package Includes:
1 x M5Stack Core2
1 x Type-C USB (20cm)

Application
Internet Obthing Terminal Controller
STEM Education Products
Do-it-your-selfers
Smart Home Products
