Labloot LB1102 110MHZ Bandwidth Oscilloscope 2-Channel 1GS/s Digital Storage Oscilloscope 7" LCD Display

Brand: labloot
  • 【Professional Storage Oscilloscope】- Labloot LB1102 2 channel oscilloscope is a super-economical digital storage oscilloscope. The bandwidth is 110MHz. The highest real-time sampling rate is up to 1GS / s. 8-bit high resolution ADC fully recovers waveform details. Low background noise, vertical sensitivity of 2mV/div - 10V/div. It can also be used as oscilloscope, frequency meter and FFT spectrum analysis.

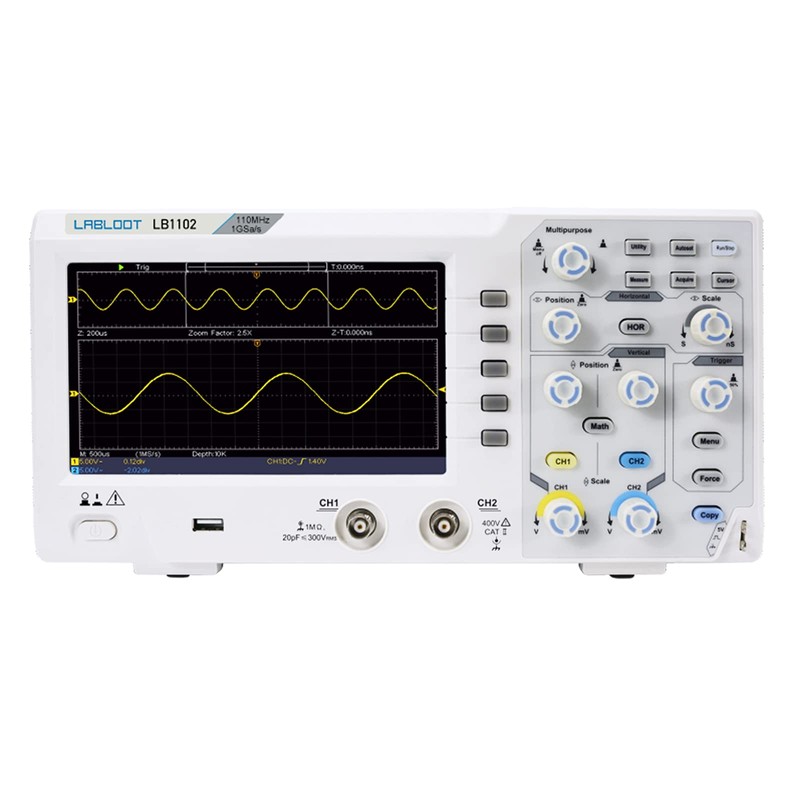

  • 【7" LCD Screen & Simple Operation】- This oscilloscope with 7-inch large LCD screen, 8*12 grid color display, 800 x 480 pixels, clear and realistic waveform display, ultra-thin body and handle design, lightweight and portable, pop-up menu, user-friendly operation interface, all knobs Clear and easy-to-understand partitions and interfaces, cooling holes on the back to ensure fast cooling during prolonged use.
  • 【Widely Application Oscilloscope】- This oscilloscope can support multiple SCPI remote commands and LabVIEW. U disk storage and firmware upgrade are supported. USB interface and power cord socket, complete hardware configuration. Supports optional RS232 port, HDMI port, WIFI communication, SD card storage, USB port for LAN, USB, etc. Applied to electronic circuit debugging, circuit testing, design and manufacturing, education and training, vehicle maintenance and testing.

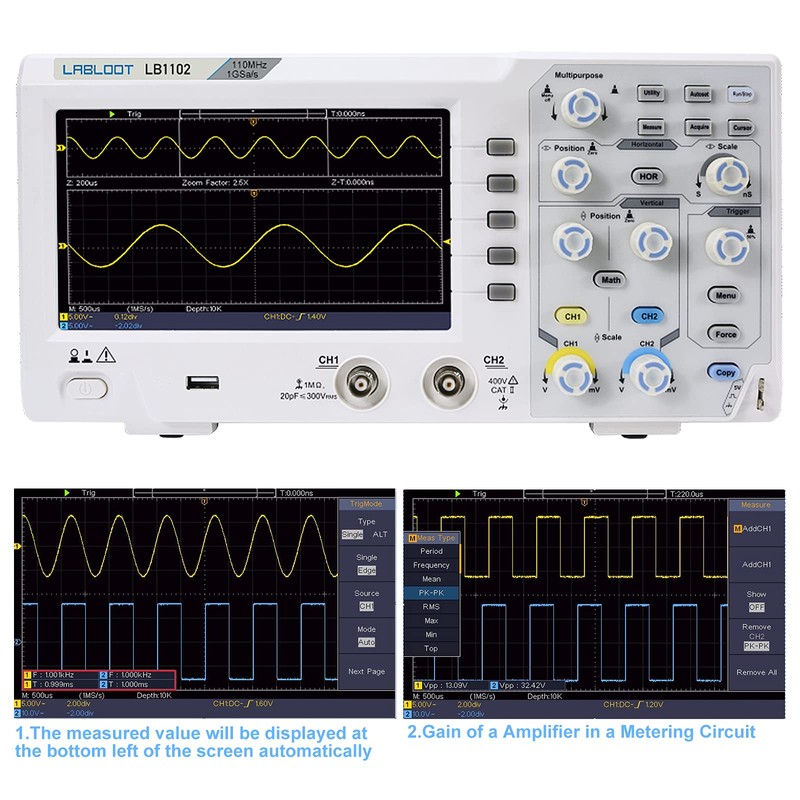

  • 【Multiple Automatic Measurements&Triggers】-Labloot LB1102 Digital storage oscilloscopes have multiple trigger functions and more than 20 kinds of automatic measurement functions:Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot,Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A--B , Delay A--B, area,cycle area, trigger types include edge, video; trigger mode is divided into automatic, normal, single.
  • 【UI interaction&Windows extension】 Friendly UI interaction:Easy-accessible operation menu gets you to the result conveniently. Windows extension:The function facilitates the observation of abnormal signal from full waveform. Snapshot:One click, all measurement value comes from 30 auto-measurement options.
Brand: labloot
Manufacturer: labloot
Part Number: FPLQSNX
Isin: ITBLJRBBRJP4

$378.15

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Labloot LB1102 110MHZ Bandwidth Oscilloscope 2-Channel 1GS/s Digital Storage Oscilloscope 7" LCD Display

Labloot LB1102 110MHZ Bandwidth Oscilloscope 2-Channel 1GS/s Digital Storage ...

$378.15

Specifications:
Bandwidth: 110MHz
Sample Rate: 1GS/s
Horizontal Scale (s/div): 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical): ≤3.5ns
Channel: 2
Display: 7" color LCD, 800 x 480 pixels
Input Impedance: 1MΩ± 2%, in parallel with 20pF±5pF
Channel Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage: 400V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy: ±3%
Record Length: 10K
DC Accuracy (average): Average≥16:±(3% reading + 0.05 div) for △V
Probe Attenuation Factor: 1X, 10X, 100X, 1000X
LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy: ±100ppm
Interpolation: sin (x) / x
Interval (△T) Accuracy (full bandwidth): Single : ±(1 interval time + 100ppm x reading + 0.6ns),
Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns)
Input Coupling: DC, AC , and GND
Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
Vertical Sensitivity: 5mV/div - 5V/div (at input)
Trigger Type: Edge, Video
Trigger Mode: Auto, Normal, and Single
Trigger Level: ±5 divisions from screen center
Line / Field Frequency (video): NTSC, PAL and SECAM standard
Cursor Measurement: △V, and △T between cursors
Automatic Measurement: Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot,
Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B , area, cycle area
Waveform Math: +, -, x, ÷, invert, FFT
Waveform Storage: 16 waveform
Lissajous Figure: Bandwidth: Full bandwidth ;Phase Difference: ±3 degrees
Communication Interface: USB host, USB device
Frequency Counter: available
Power Supply: 100V - 240V AC, 50/60Hz, CAT II
Power Consumption: <15W
Fuse : 2A, T class, 250V
