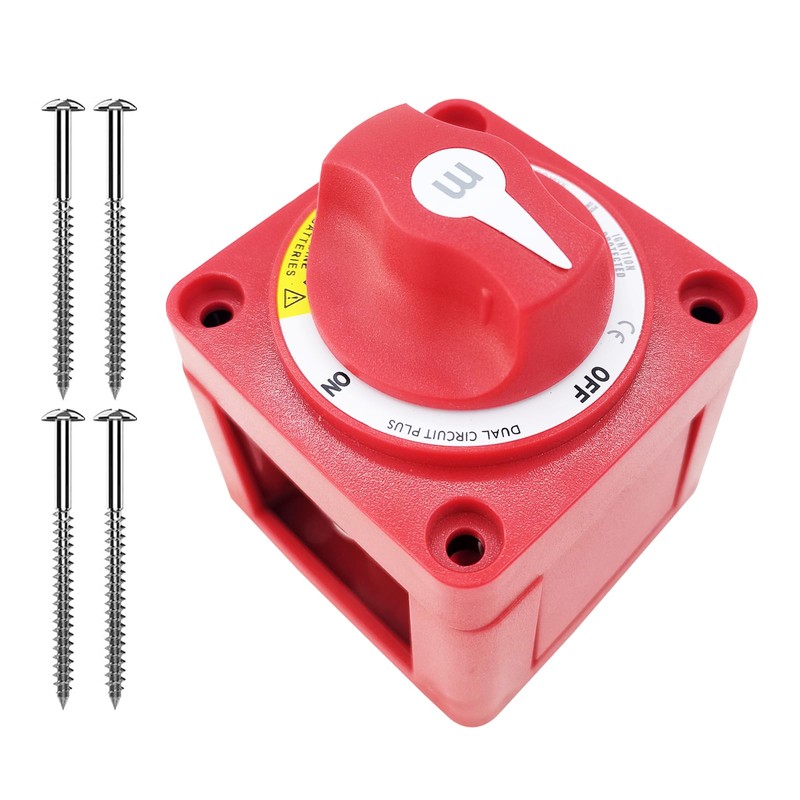

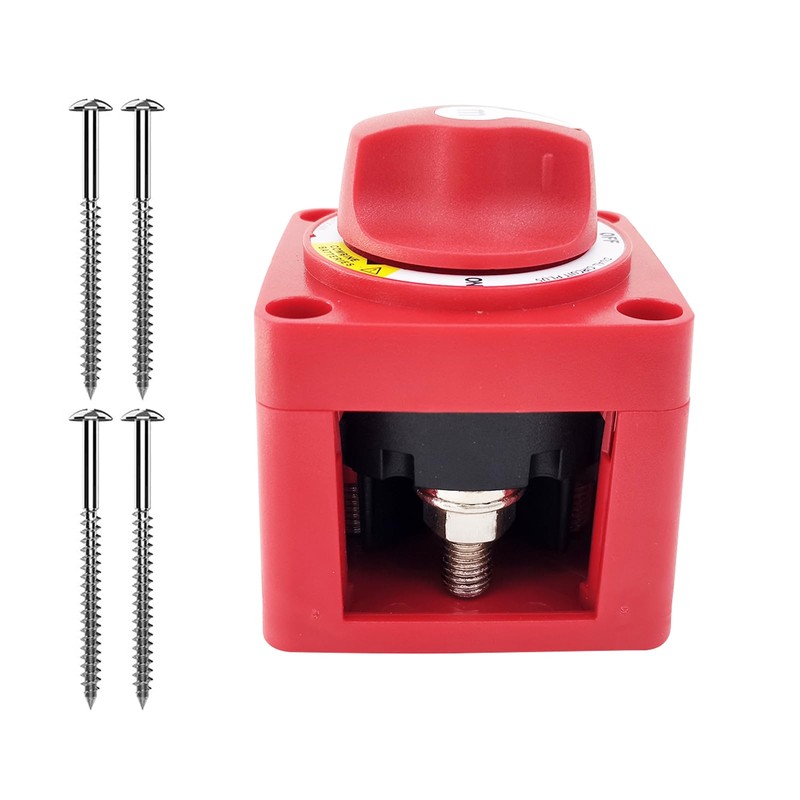

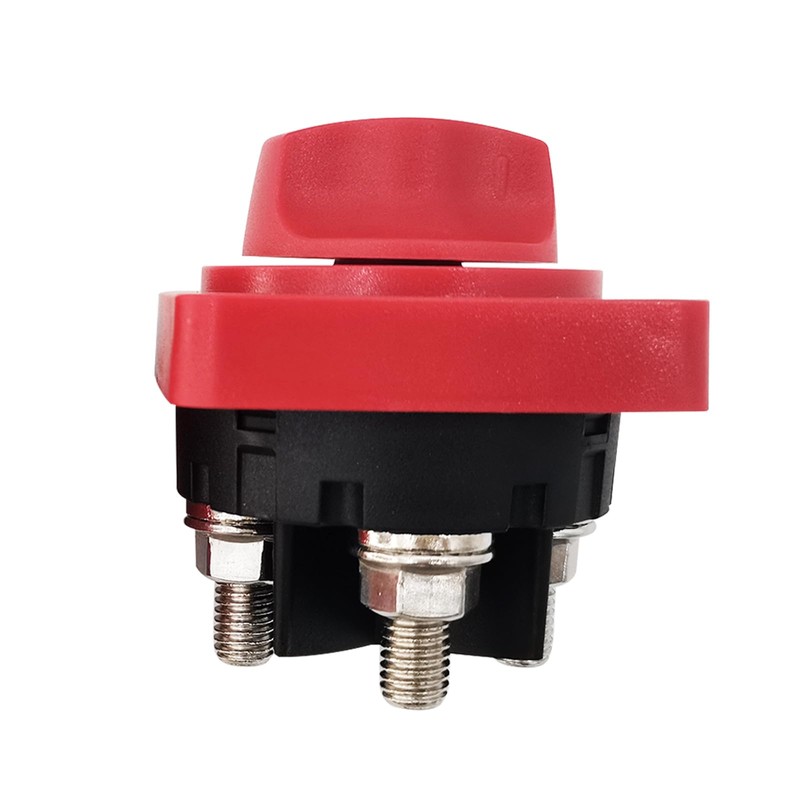

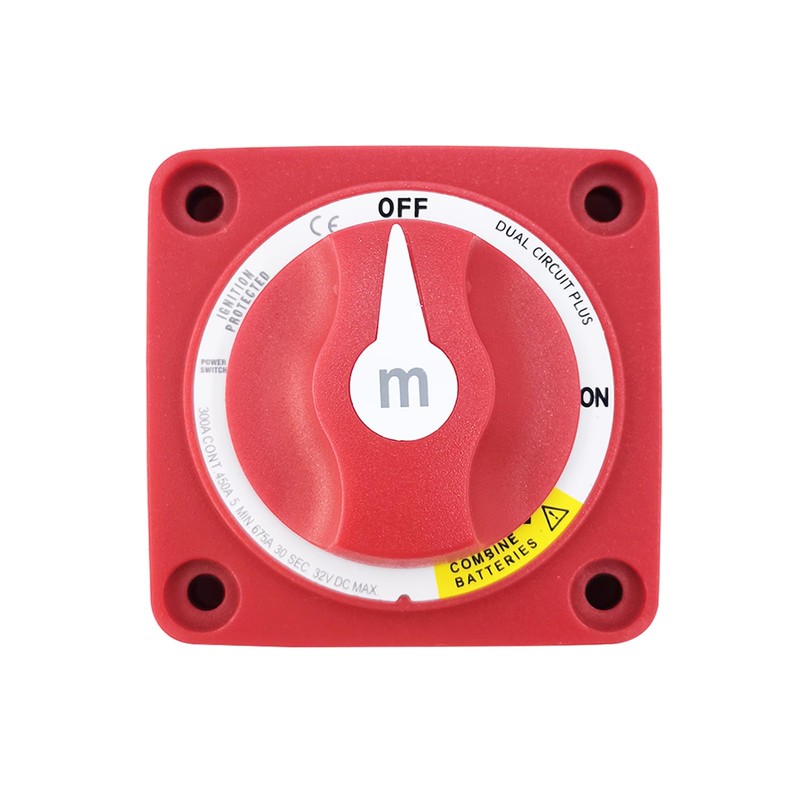

JT-HLM m-Series Battery Switch ON/Off with Knob, Red
JT-HLM m-Series Battery Switch ON/Off with Knob, Red
- ✔Our Battery switches feature durable heavy-duty housing constructed from high-quality ABS plastic housing and Tin-plated Copper studs, providing excellent weather resistance and an extended service lifespan. With a fully enclosed design, these switches safeguard internal components from harsh conditions, preventing dirt, corrosion, and rain damage.
- ✔Battery Switch m-Series ON/OFF with Knob, part number 6006, is a Single Circuit ON-OFF switch. Switches a single battery to a single load group
- ✔Make before break contact design allows switching between battery banks without power interruption. Continuous Rating: 300A, Maximum Voltage: 32V DC IP66 waterproof.
- ✔The safe switching between batteries, loads, and charge sources is achieved using products like the m-series battery switches.The contact design before the break point can switch between battery packs without interrupting the power supply.

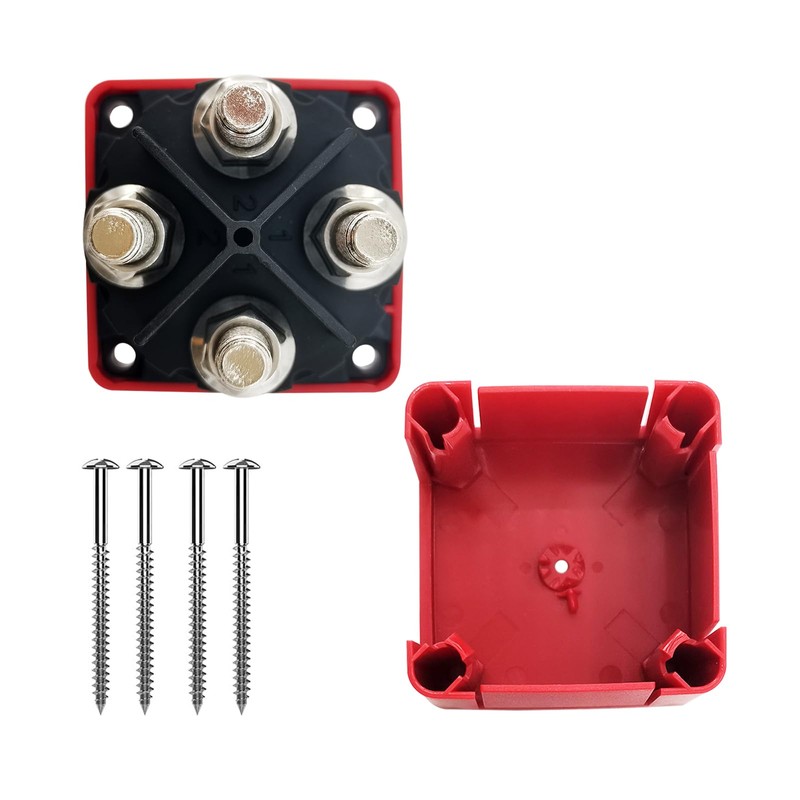

- ✔An innovative snap-together design increases reliability and longevity without the use of internal fasteners. The back cover is one-piece with break-out-sides, for easier installation. Every stud is pressed into a copper reinforced bus for added support.
| Brand: | JT-HLM |
|---|---|
| Manufacturer: | JT-HLM |
| Part Number: | 4Y76DY1 |
| Material Type: | Plastic+brass+iron |
| Isin: | IEGNQBCCDVQC |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specification :
Condition: 100% Brand New
Material : Plastic+brass+iron
Switch Type : Single Circuit ON-OFF, with Knob
Color :Red
Number of Positions : 2
Operation Mode : Off,On
Current Rating : 300 Amps
Intermittent Rating : 500A (5 min)
Maximum Operating Voltage: 32V

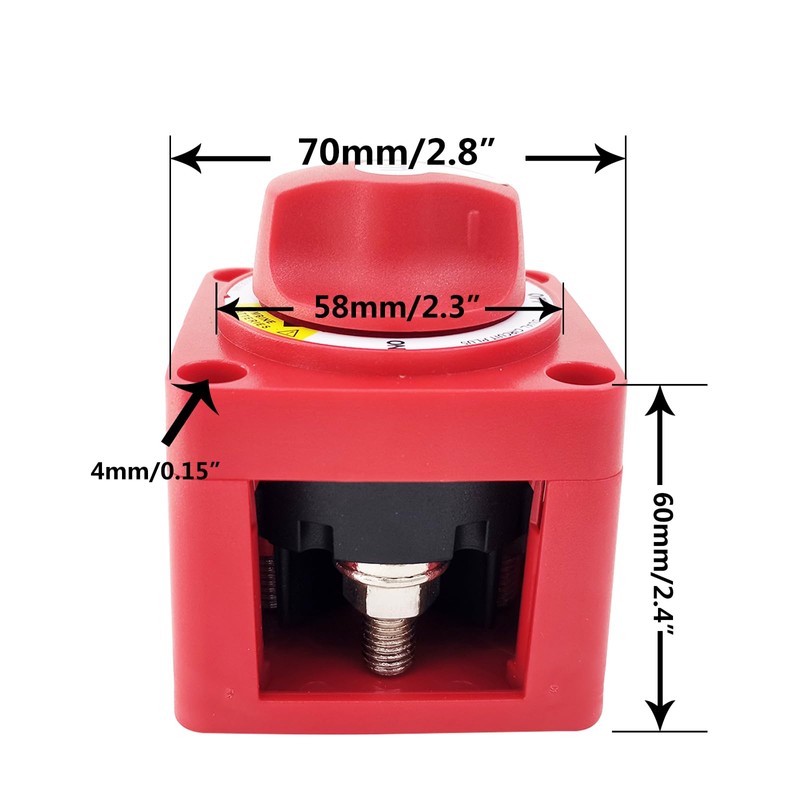

Item Dimensions L x W x H : 3 x 4 x 6 inches
Actuator Type : Rotary
International Protection Rating : IP66
Stud Size :3/8"
Terminal Stud Torque :120 in-lb (13.56 Nm)
Applicable scope: automobiles, RVs, yachts, trucks, trucks
Product function: Prevent leakage, protect the power supply, and safely disconnect the battery connection
Feature:
Accepts up to 4/0 AWG (120 mm²) battery cables
Tactile indicator conveys knob position by feel
one-piece terminal stud design never loosens over time
300 Amps continuous rating for outboards and small gasoline or diesel engines.
Tin-plated Copper studs for maximum conductivity and corrosion resistance
The battery disconnect switch has a crank rating of 900A for 30 seconds, 500A for 5 minutes, and a continuous rated current of 300A.
This Battery switch featuring an On/Off function, serves as a way to stop power flow, preventing any energy loss from the battery pack.
It allows for a safe disconnection of the batteries when the engines are not operating.
Battery disconnect switch with on/off position. When switched ON, power flows through the circuit; when switched OFF, the circuit is disconnected.
Scope of Application:
Our battery switch is used for 12 - 48VDC systems to isolate and secure the electrical system, and can stand alone or be locked together with other switches.
It is universally used for RV, Marine, Car, Boat, Camper, Travel Trailer, Truck, ATV, UTV battery, and other engine
Package list:
1 x Battery Switch
