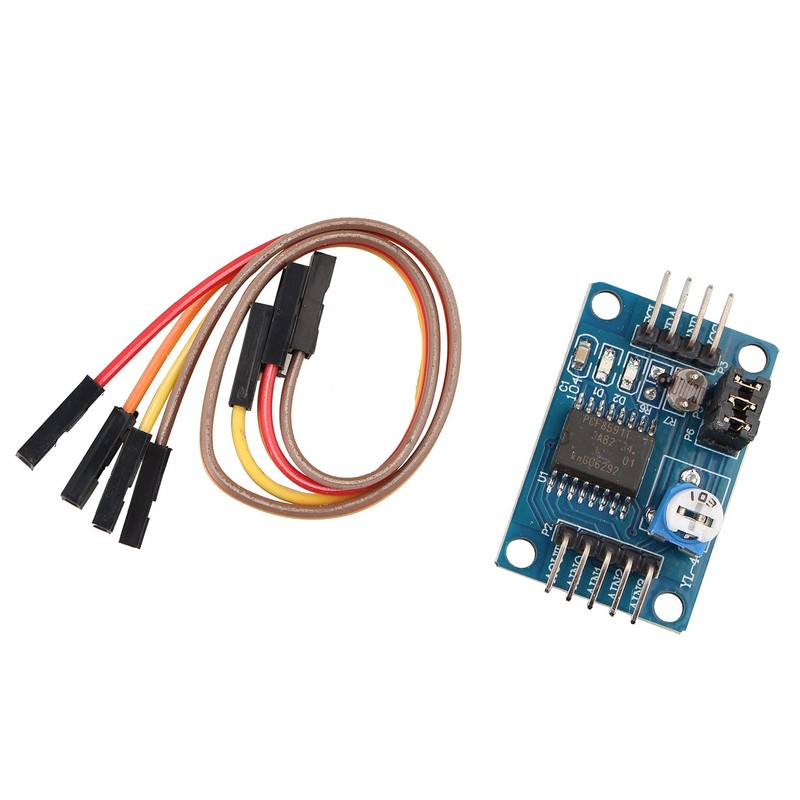

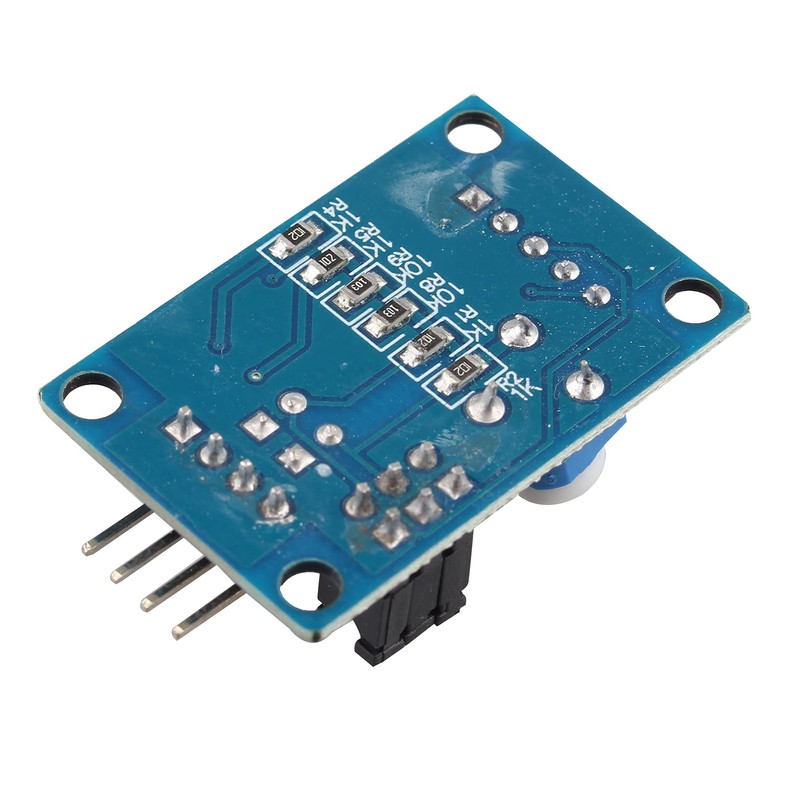

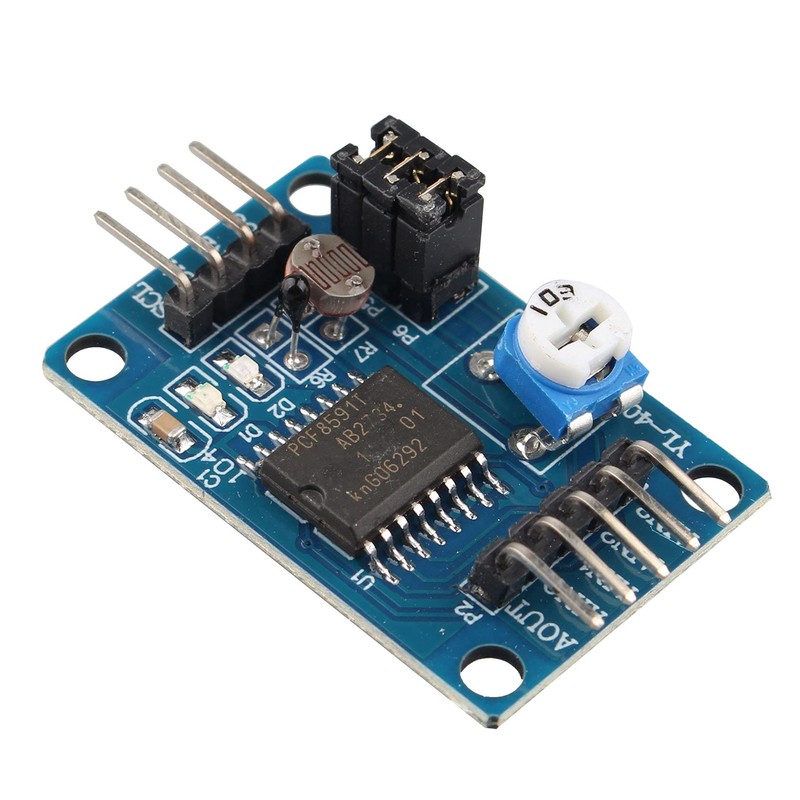

Jopto 5pcs PCF8591 AD/DA Converter Module Analog Digital Converter Module Digital Analog Converter for Arduino Raspberry Pi
Jopto 5pcs PCF8591 AD/DA Converter Module Analog Digital Converter Module Digital Analog Converter for Arduino Raspberry Pi
Jopto 5pcs PCF8591 AD/DA Converter Module Analog Digital Converter Module Digital Analog Converter for Arduino Raspberry Pi
- 8-bit A/D converter with successive approximation. by analog output DAC amplification. Module chip with PCF8951
- Low standby current via the serial input/output of the I2C bus.
- PCF8591 by 3 hardware address spins addressing. Sample rate PCF8591 I2C bus rate set.
- 4 analogue inputs programmable as single-ended or differential inputs. Automatic incremental channel selection.
- PCF8591 Analog voltage range from VSS to VDD PCF8591 Integrated Tracking and Hold Circuit
| Brand: | Jopto |
|---|---|
| Manufacturer: | Jopto |
| Part Number: | 3S6VLCN |
| Isin: | IO3XEODFPL9L |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1. The module chip uses PCF8951
2. The module supports external 4-channel voltage input detection (voltage input range 0-5V).
3. The module integrates the photoresistor, which can capture the ambient light intensity with AD
4. Module integrated thermistor, can detect accurate temperature values of the environment through AD
5. Module integrated 1 channel 0-5V voltage input detection (adjusts the input voltage via the blue potentiometer).
6. The module has a power indicator (the indicator lights up when the module is powered).
7. Module with DA output indicator: when the DA output interface voltage of the module reaches a certain value, the DA output indicator on the board will light up. The higher the voltage, the brighter the display.
Specification:
1 x single power supply.
2. Operating voltage range of PCF8591 2.5V-6V
3. Low standby current.
4. Serial input/output via the I2C bus.
5. PCF8591 addresses via 3 hardware address pins.
6. The sampling rate of the PCF8591 is determined by the I2C bus speed
7.4 analogue inputs, programmable to single end or differential inputs
8. Automatic incremental channel selection
9. Analog voltage range of PCF8591 from VSS to VDD
10. PCF8591 built-in tracking and hold circuit.
11.8-bit successive approximation of the A/D converter.
12. DAC gain is achieved via an analogue output
13. Plate size: 35.5 x 23.5 mm.
14. Weight: 7.3 g
Package includes:
5 x PCF8591 Module AD DA Converter Module
