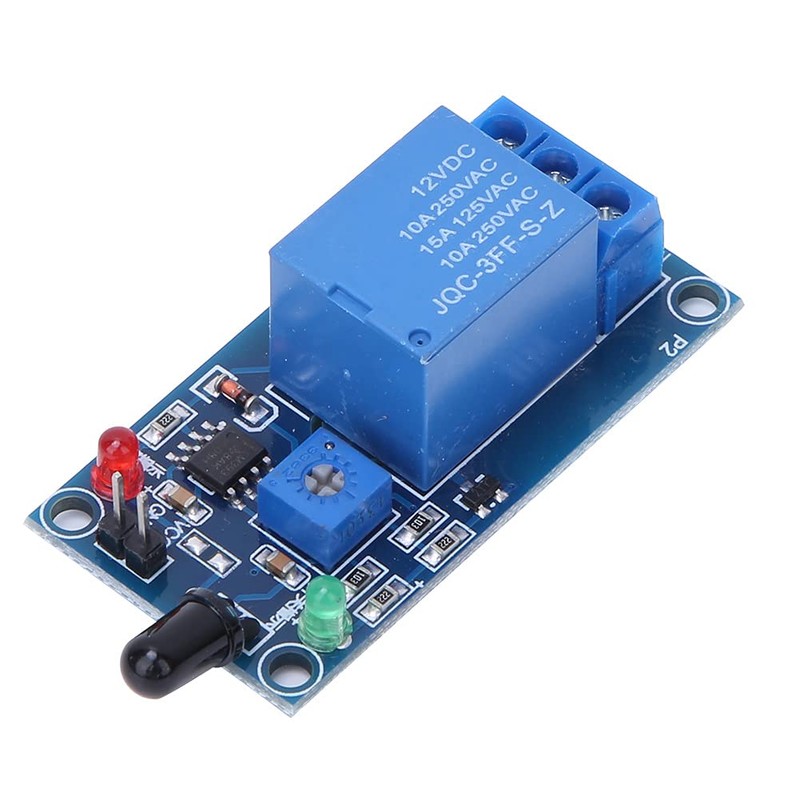

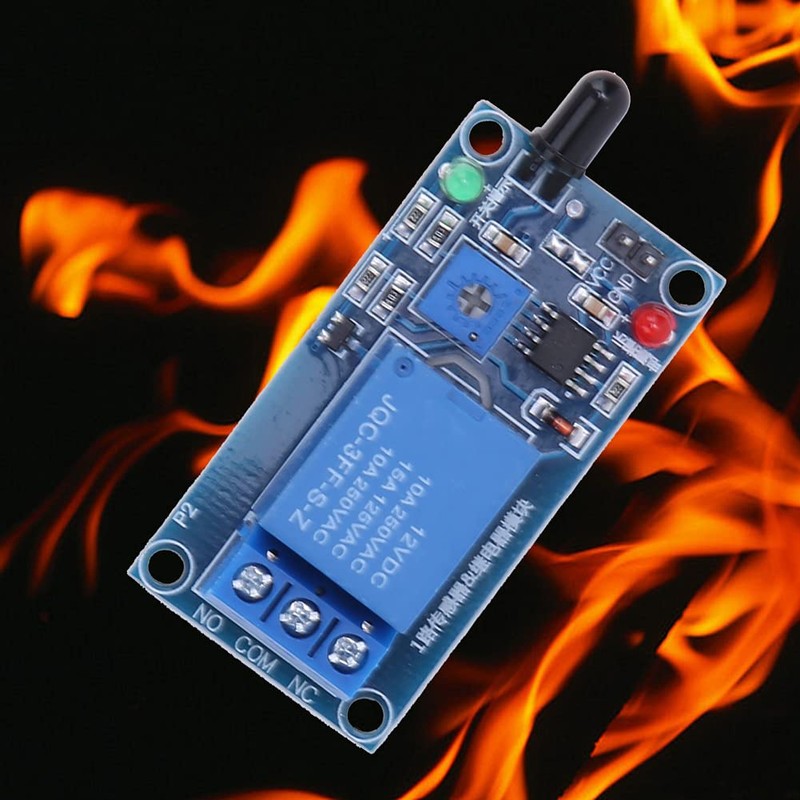

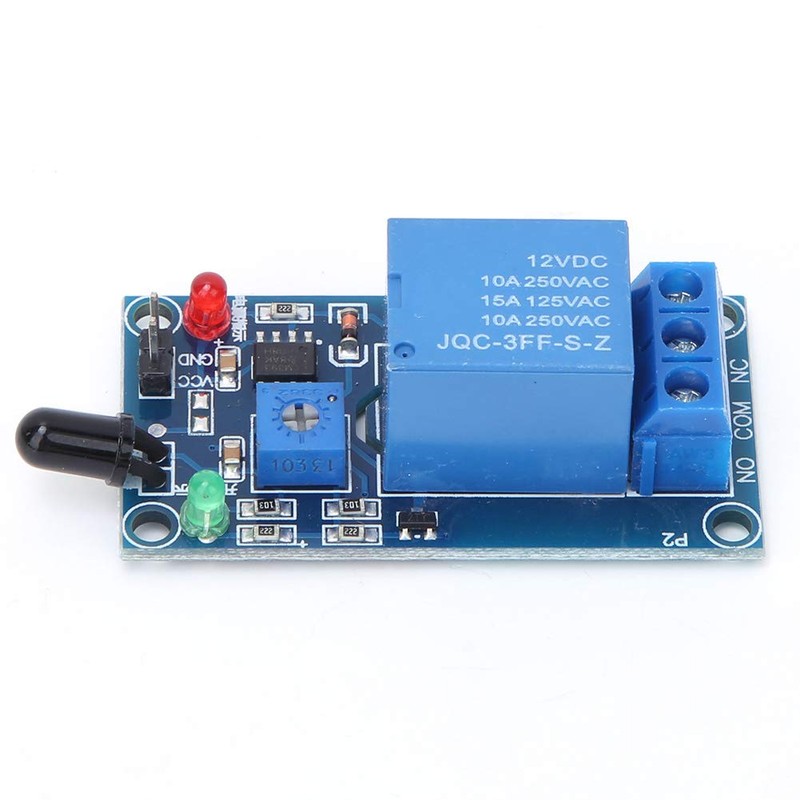

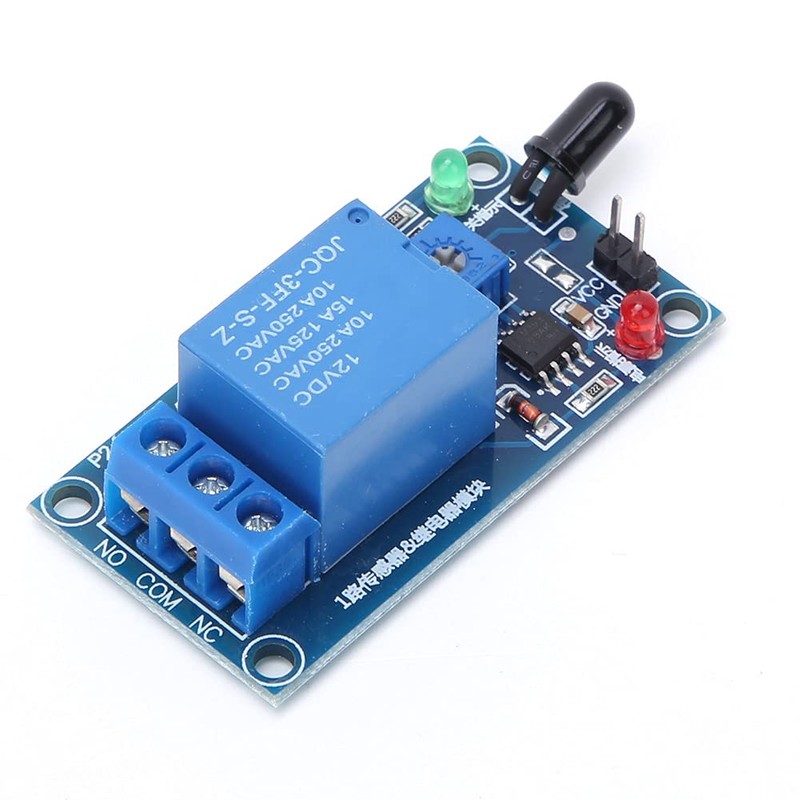

Jeanoko Infrared 760~1100nm Fire Detector Flame Sensor 12VDC Easy Wiring Fire Detection Sensor for Fire Alarm
Jeanoko Infrared 760~1100nm Fire Detector Flame Sensor 12VDC Easy Wiring Fire Detection Sensor for Fire Alarm
Jeanoko Infrared 760~1100nm Fire Detector Flame Sensor 12VDC Easy Wiring Fire Detection Sensor for Fire Alarm
- The module can detect flames or light sources with wavelengths in the range of 760nm to 1100nm. The lighter test flame distance is 80 cm. The larger the flame, the further the test distance.
- Output with blue terminal block for easy wiring.
- The detection angle is approx. 60 degrees, which is particularly sensitive to the flame spectrum.
- The comparator output directly triggers the relay.
- The sensitivity is adjustable and is adjusted with the blue digital potentiometer.
| Brand: | Jeanoko |
|---|---|
| Color: | Default |
| Manufacturer: | Jeanoko |
| Part Number: | PBQWCC4 |
| Isin: | IYQYGS4RCQRX |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Feature: 1. The module can detect flames or light sources with wavelengths in the range of 760nm to 1100nm. The lighter test flame distance is 80 cm. The larger the flame, the further the test distance.
2. The detection angle is approx. 60 degrees, which is particularly sensitive to the flame spectrum.
3. The sensitivity is adjustable and is adjusted with the blue digital potentiometer.
4. The comparator output directly triggers the relay.
5. Output with blue terminal block for easy wiring.
2. The detection angle is approx. 60 degrees, which is particularly sensitive to the flame spectrum.
3. The sensitivity is adjustable and is adjusted with the blue digital potentiometer.
4. The comparator output directly triggers the relay.
5. Output with blue terminal block for easy wiring.
Specification:
Element type: fire alarm sensor.
Size: 50 x 26 mm/1.97 x 1.02 inches.
Thickness: 19mm/0.75"
Supply voltage: 12 VDC (input).
Current: > 150 mA.
Load: 250 VAC 10 A or 30 VDC 10 A.
User manual:
1. The flame sensor is most sensitive to the flame and also reacts to sunlight. It is generally used for fire alarms and other purposes.
2. By adjusting the potentiometer, the intensity of the flame induced by the sensor can be adjusted. When the flame exceeds the set threshold, the relay retracts, the common end is connected to the normally open end, and when the flame is below the set threshold, the relay is disconnected. The common end is connected to the normally closed end;
3. The common end, usually open, normally closed, three correspond to a double control switch. When the relay coil is powered, the common end is open for the normally open end end, if there is no power, the common end and the normally closed end are switched on;
4. The sensor and flame should be kept at a certain distance to prevent damage to the sensor at high temperature
