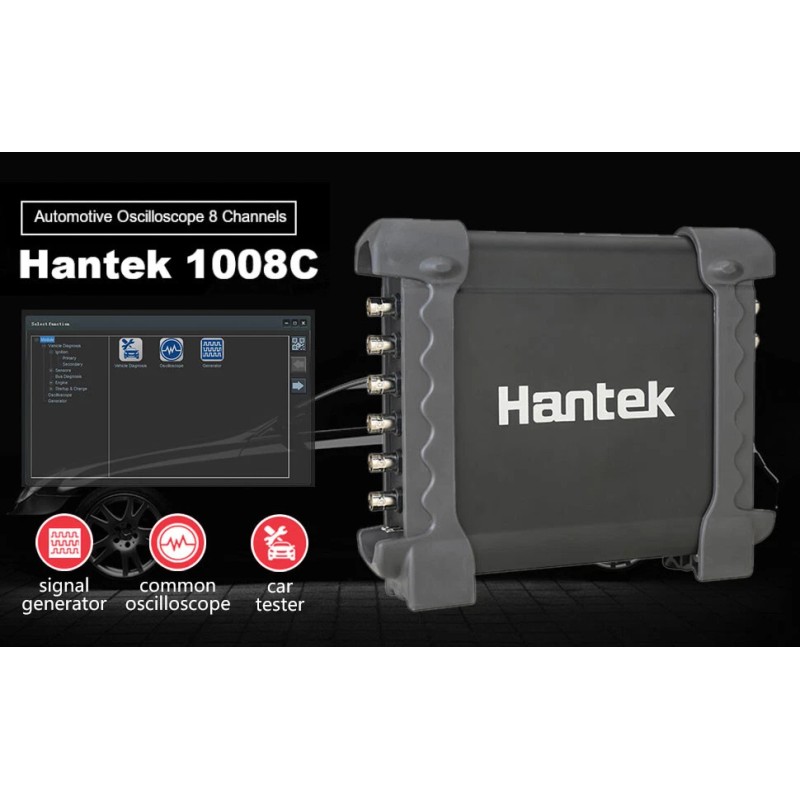

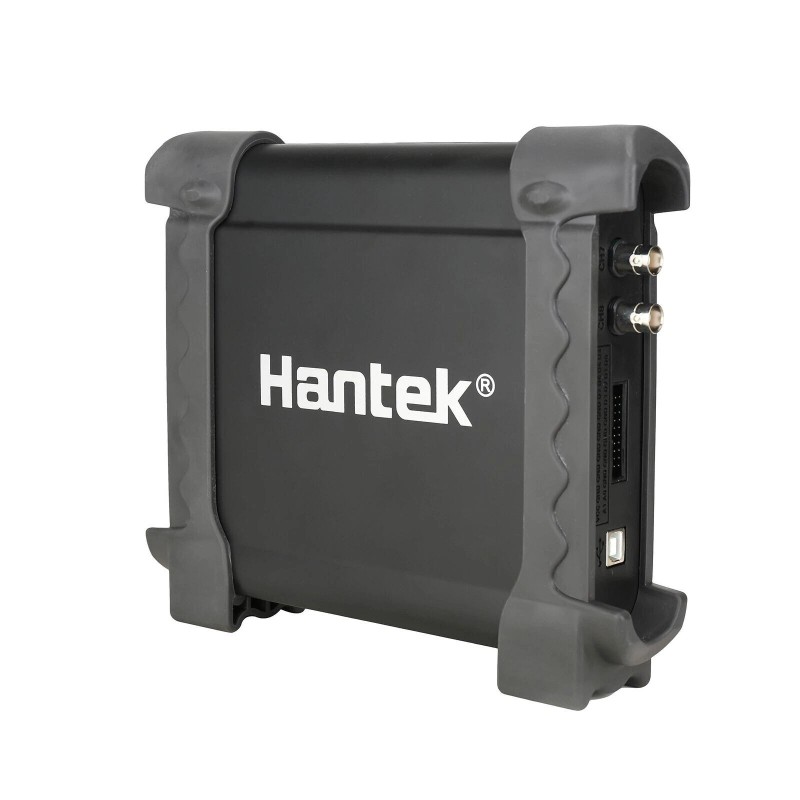

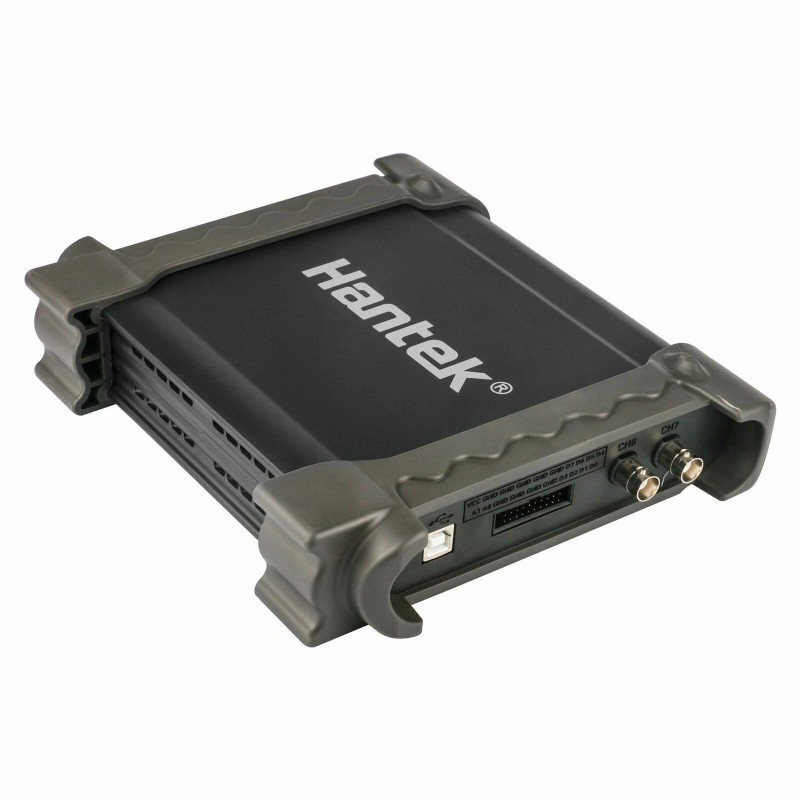

Hantek 1008C 8CH Automotive DAQ Diagnostic Generator Handheld Oscilloscope USB

Brand: Hantek

Hantek 1008C Automotive Diagnostic PC Oscilloscope USB2.0 Program Generator 8CH



Software support: Windows 7, Windows 8Windows 10



   Cost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

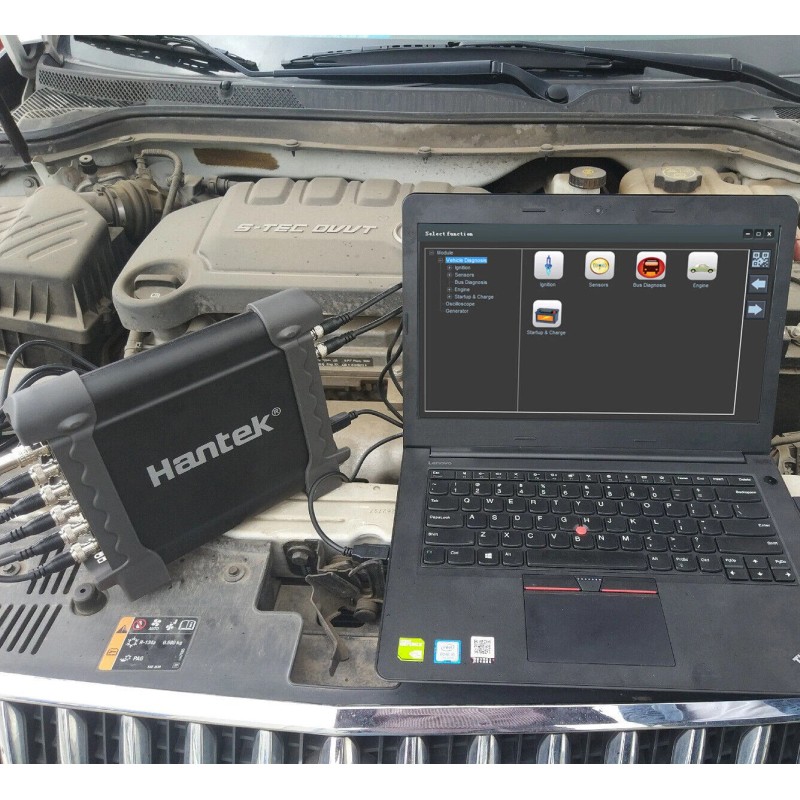

Vehicle Testing:

  • First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition.
  • Ignition: primary and secondary.
  • Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position.
  • Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus.
  • Performer: Petrol/Diesel.
  • Starter and charging circuits.


Oscilloscope:

  • 8 channels oscilloscope, 2.4MSa/s real time sampling rate.
  • 12 bits vertical resolution, spectrum analysis function.


Programmable Generator:

  • 8 channels programmable generator.
  • Can analog signals of crankshaft, camshaft etc.


Others:

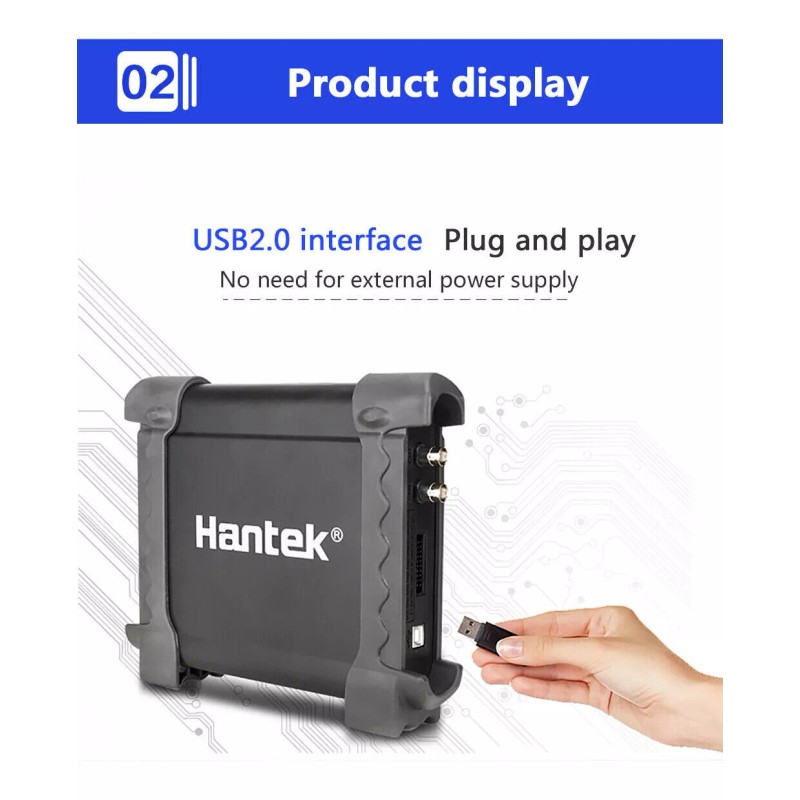

  • USB 2.0 interface plug and play, and no need extra power supply;
  • More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
  • Software support: Windows 7, Windows 8Windows 10


Specifications:

Oscilloscope Mode

Vertical System

Analog Channel

8

Input Impedance

Resistance: 1MΩ

Input Sensitivity

10mV/div to 5V/div

Input Coupling

DC

Resolution

12 bits

Horizontal System

Memory Depth

4K

Max. Input

400V (DC+AC Peak)

Real-Time Sampling Rate

2.4MSa/s

Time Base Range

1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision

±50ppm

Trigger System

Time Base Range

1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision

±50ppm

Trigger Source

CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8

Trigger Mode

Edge

X-Y Mode

X-Axis Input

CH1

Y-Axis Input

CH2

Cursors and Measurement

Voltage Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement

Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement

Horizontal ,Vertical, Track, Auto Measure Modes

Waveform Signal Process

+,- , x,÷, FFT, Invert

Voltage Range

10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1

Current Range

100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)

FFT

Rectangular, Hanning, Hamming, Blackman Window

Math

Addition, subtraction, multiplication, division

Programmable Generator

Channel

8

Output Level

LVTTL

Frequency Range

0-250kHz

Interface

USB 2.0

Power

No need extra power supply

General

Size

185 * 150 * 27mm / 7.3 * 5.9 * 1.06in

Weight

319g / 11.28oz

Package Size

23 * 17 * 7.5cm / 9.05 * 6.7 * 2.95in (L * W * H)

Package Weight

915g / 32.29oz

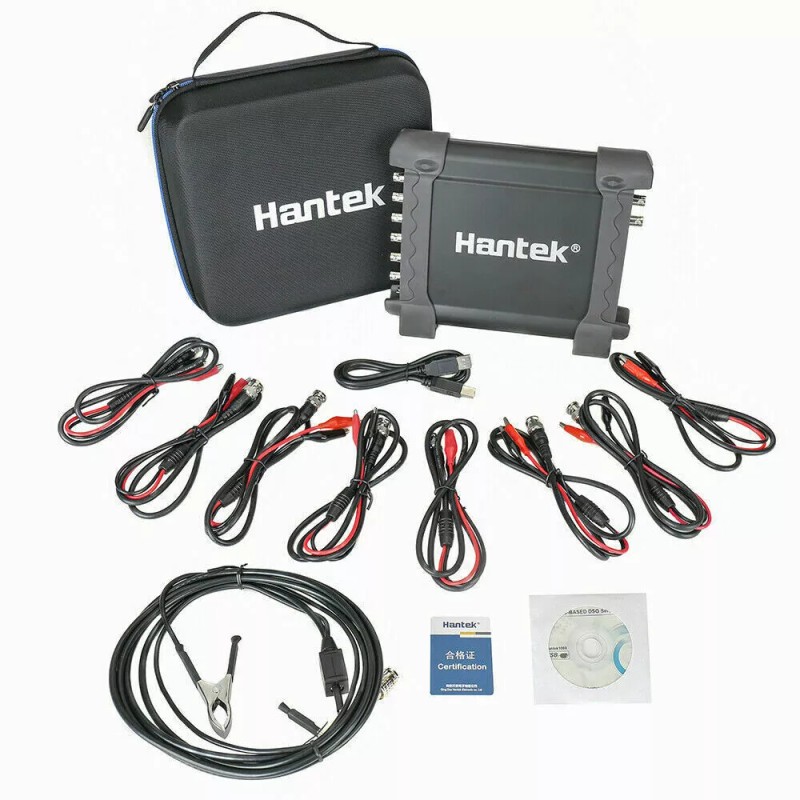

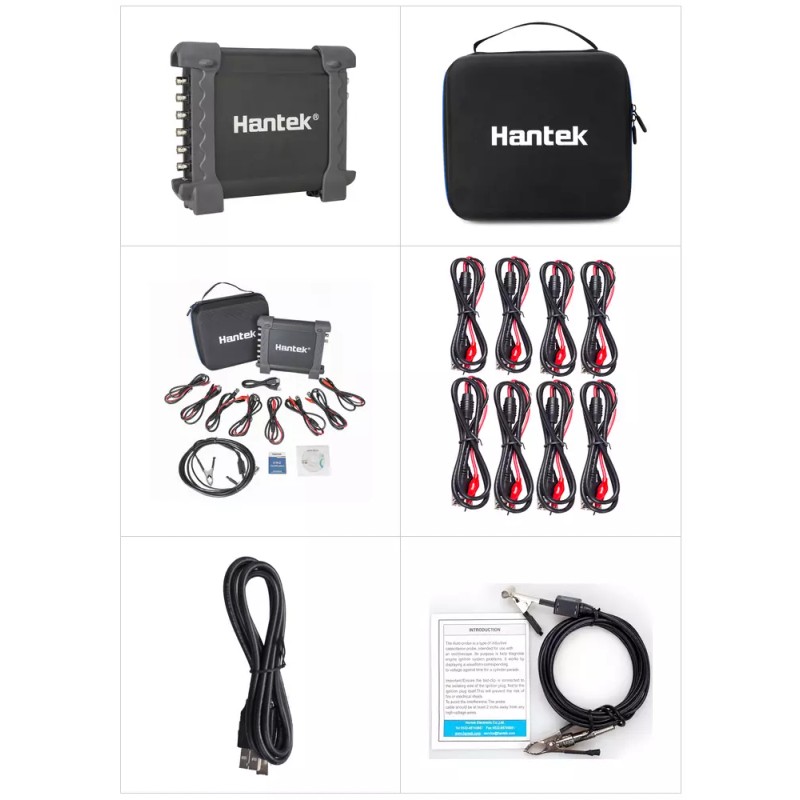

Package List:
1 * 1008C DAQ oscilloscope
8 * Crocodile probes/cable
1 * secondary ignition probe
1 * USB Cable
1 * CD
