GLENPARTS PZ20 Carburetor Set for Honda XR50R XR 50R 2000 2001 2004 CRF50F CRF 50F 2004-2022 XR80 XR80R XR 80R 1979-2004 50cc-125cc 5HP Engine Motorcycle
GLENPARTS PZ20 Carburetor Set for Honda XR50R XR 50R 2000 2001 2004 CRF50F CRF 50F 2004-2022 XR80 XR80R XR 80R 1979-2004 50cc-125cc 5HP Engine Motorcycle
GLENPARTS PZ20 Carburetor Set for Honda XR50R XR 50R 2000 2001 2004 CRF50F CRF 50F 2004-2022 XR80 XR80R XR 80R 1979-2004 50cc-125cc 5HP Engine Motorcycle
- Aftermarket PZ20 Carburetor with Air Filter, Fuel Filter and Gaskets for Honda SOHC Single Cylinder 4 and 2 Stroke Air Cooled Engine ATVs, Motorcycles, Dirt/Pit Bikes, 3 Wheelers, Quads, Enduro / Offroad
- Carburetor Intake Inner Diameter: 20mm / Air Filter Side Outer Diameter: 33mm / Inner Diameter: 28mm; Air filter Inside Diameter: 35-36mm; Overall Height: 80mm; Outside Diameter At Widest Point: 74mm
- Works with most Chinese 50cc 70cc 80cc 90cc 110cc 125cc 4-Stroke ATV Quads 4-Wheelers Go Karts Mopeds Scooters such as Kazuma Baja TaoTao 110B NST SunL Roketa Coolster Buyang Coolsport Lifan Aim-Ex Redcat
- Replacement for Honda XL75 A XR75 XR75R CR75 CR80R XR80 XR80R CRF80 CRF80F XR50R CRF80F SL70 Motosport 70 CRF50F XL70 XL80S, for Kawasaki ATV KLT110
Brand: | Glenparts |
---|---|
Manufacturer: | Glenparts |
Part Number: | NW3K3M7 |
Isin: | IEQBWCXGY193 |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Aftermarket PZ20 Carburetor with Air Filter, Fuel Filter and Gaskets for Honda 4 Stroke ATVs, Motorcycles, Dirt/Pit Bikes, 3 Wheelers, Quads, Enduro / Offroad

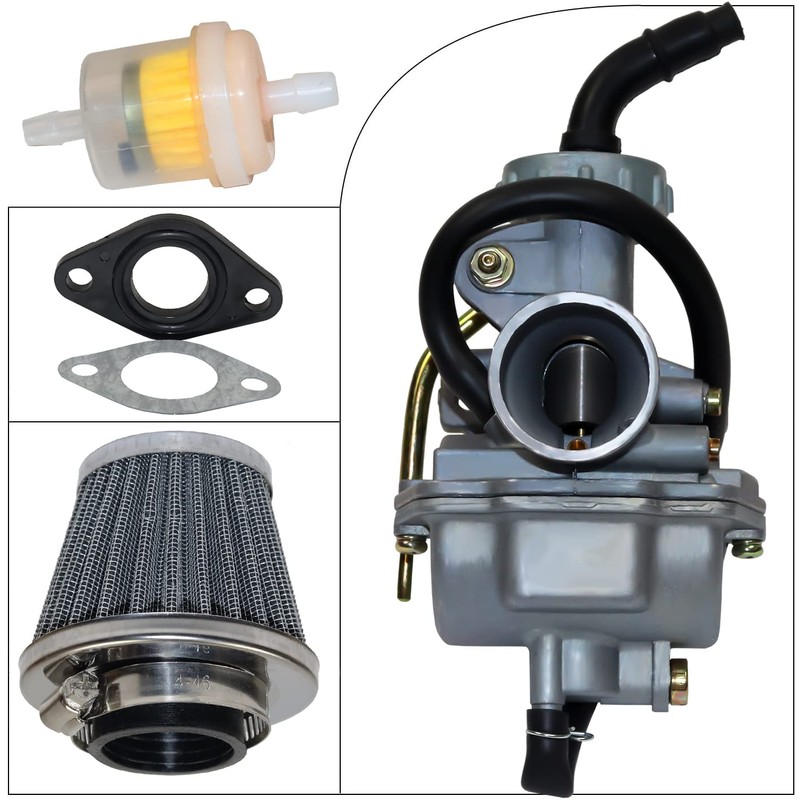

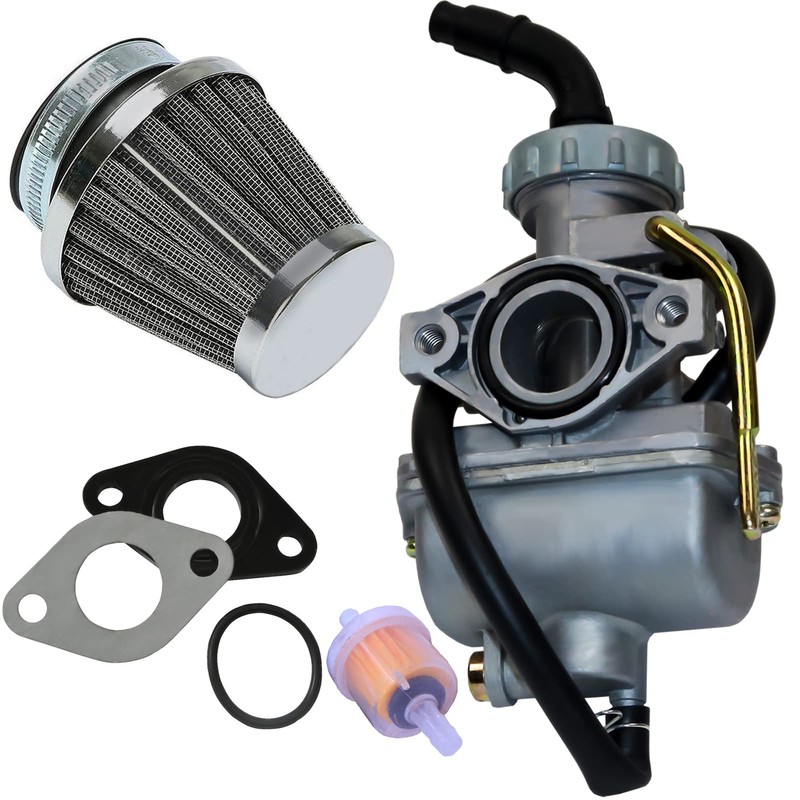

PACKAGE INCLUDES
1x Carburetor
2x Gasket
1x O-ring
1x Fuel Filter
1x Air Filter
SPECIFICATIONS
Engine Type SOHC Single Cylinder 4 and 2 Stroke Air Cooled
Engine Displacement 50cc 70cc 80cc 90cc 110cc 125cc
Horsepower 5hp
Main Jet 92
Slow Jet 35
-Complete Unit Ready to Install
-Depending on Location Some adjustment might be needed

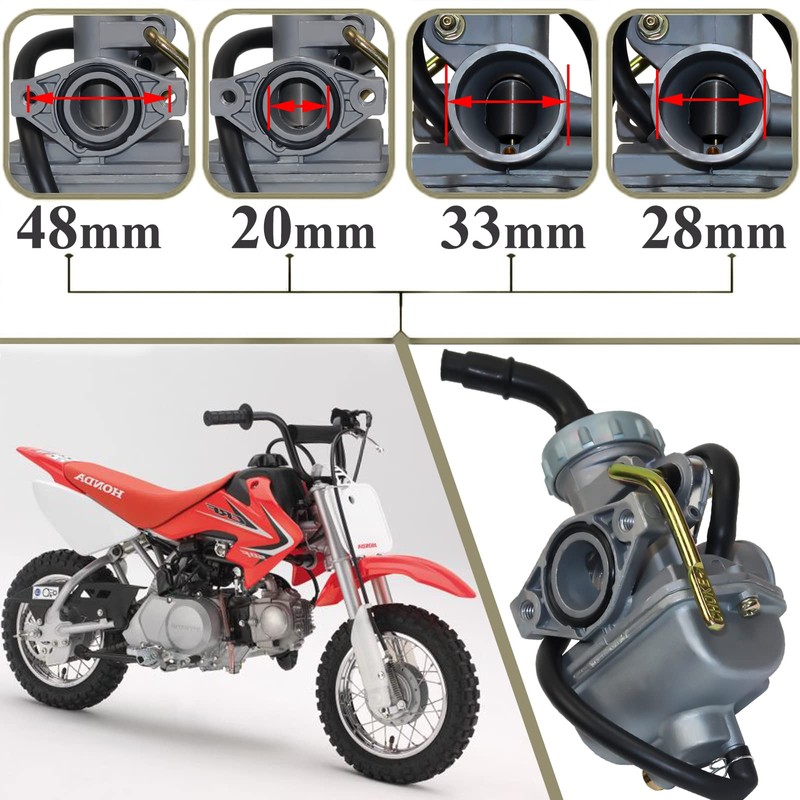

CARBURETOR DIMENSIONS
Mounting Diameter (Center to Center) 48mm
Intake Inner Diameter 20mm
Air Filter Side Outer Diameter 33mm
Air Filter Side Inner Diameter 28mm

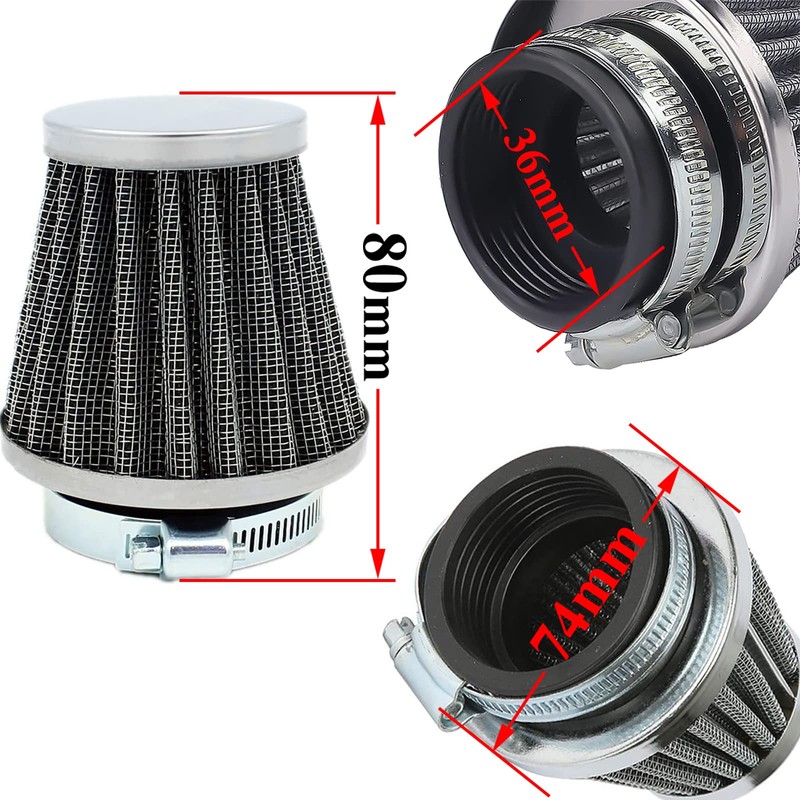

AIR FILTER DIMENSIONS
Inside Diameter 36mm
Overall Height 80mm
Outside Diameter At Widest Point 74mm

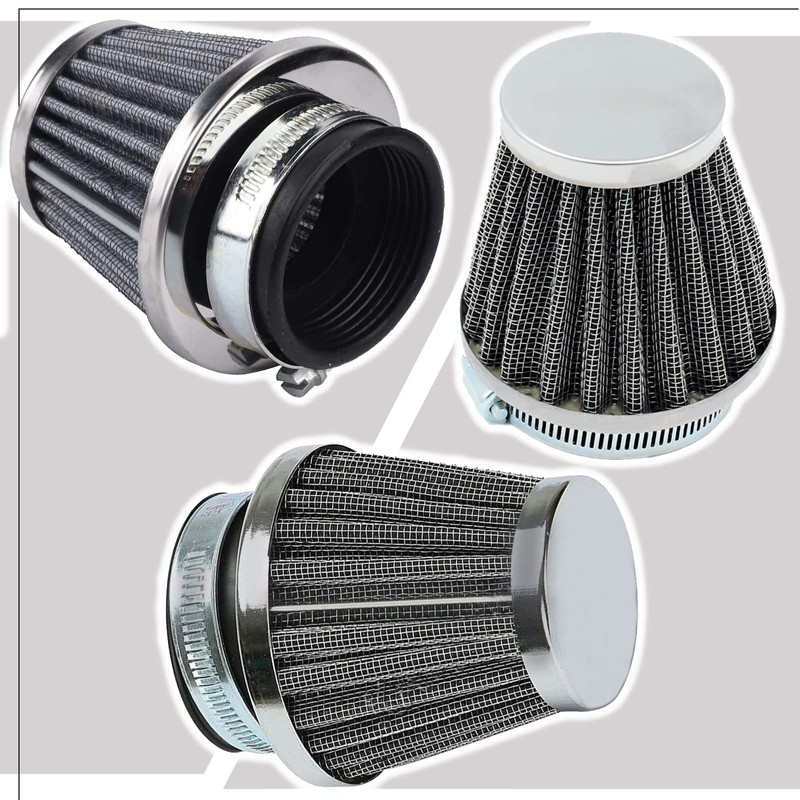

Conical, double steel mesh design
REPLACES OEM NUMBERS
16100-GN1-A83 16100-GFW-A21
16100-152-305 16100-152-871
16100-GBF-840 16100-176-671
16100-GFW-A02 16100-GN1-A41
16100-GN1-A51 16100-GN1-A81
16100-GN1-A82 16100-152-004
16100-153-014 16100-153-004
16100-GFW-A71 16100-GFW-A01
REPLACES FOR HONDA MODELS
XL75 A 1977-1979
XR75 XR75R 1973-1978
CR75 CR80R 1980-2002
XR80 XR80R 1979-2004
CRF80 CRF80F 2003-2013
XR50R 2000 2001 2004
CRF80F 2004-2013, 2014 2015 2016
SL70 Motosport 70 1971-1973
CRF50F 2004-2022
XL70 1974-1976
XL80S 1980-1985
KLT110 1984-1986
Works with most Chinese 4-Stroke ATV Quads 4-Wheelers Go Karts Mopeds Scooters such as Kazuma Baja TaoTao 110B NST SunL Roketa Coolster Buyang Coolsport Lifan Aim-Ex Redcat
