GELRHONR M.2 NVMe PCIe 4.0 Adapter with, Support M Key 2280, 2260, 2242, 2230 M.2 for 1U Case (Not Support NGFF)
GELRHONR M.2 NVMe PCIe 4.0 Adapter with, Support M Key 2280, 2260, 2242, 2230 M.2 for 1U Case (Not Support NGFF)
GELRHONR M.2 NVMe PCIe 4.0 Adapter with, Support M Key 2280, 2260, 2242, 2230 M.2 for 1U Case (Not Support NGFF)

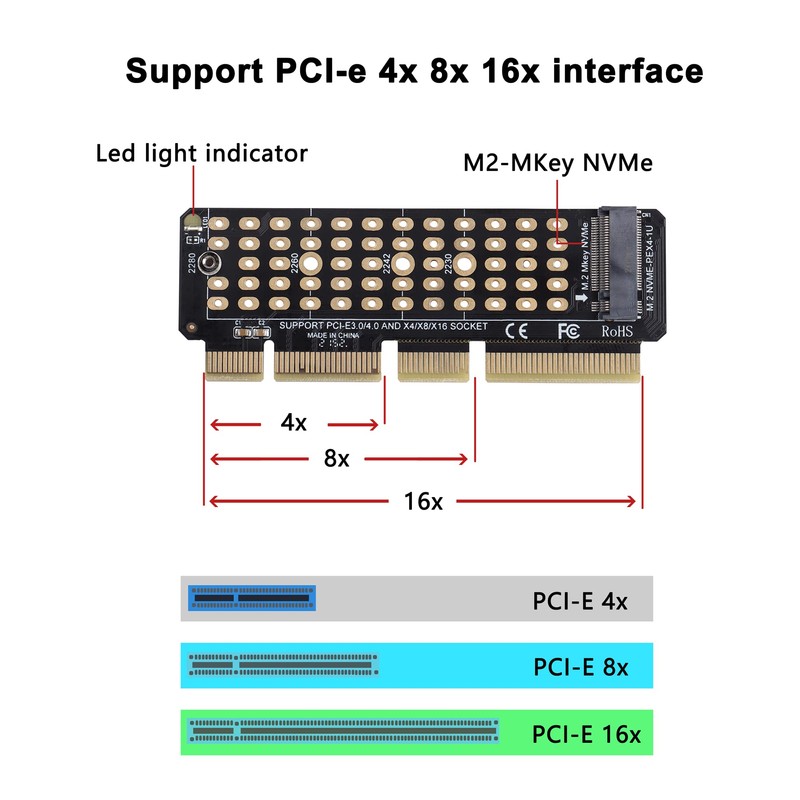

- ✪ The M.2 NVME to PCIe3.0/4.0 adapter only fits PCIe M.2 NVME based M key. Does not support B&M key. Supports PCI-e 4x 8x 16x interface. Ideal for 1U
- ✪ Help your computer work faster: M.2 NVME SSD to PCIe 3.0/4.0 adapter card for your computer, provides extremely fast read/write speeds, high speed file access and transfers, and fast boot times.

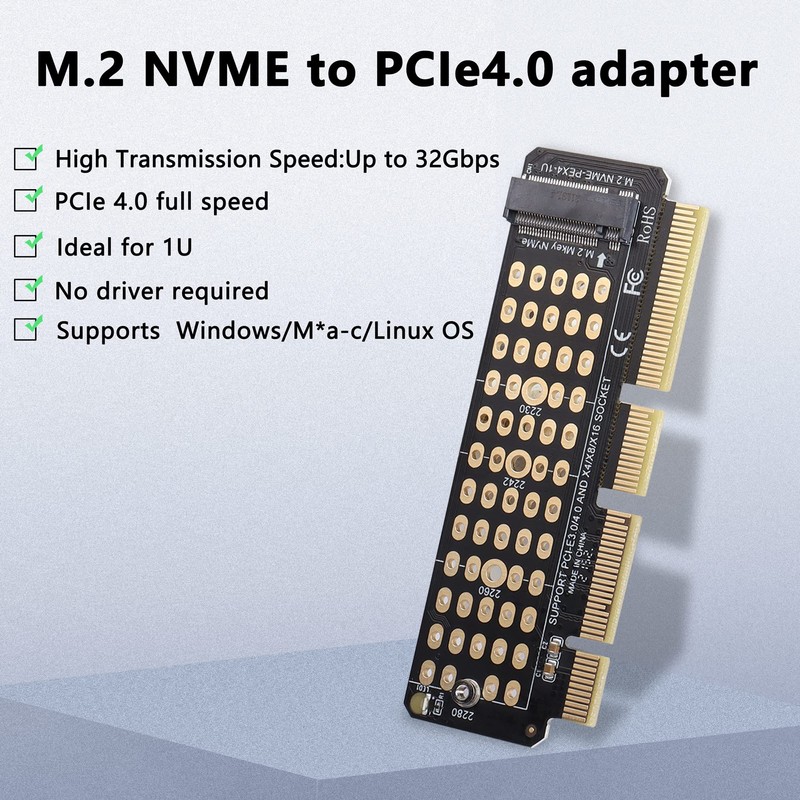

- ✪ High transfer speed: up to 32 Gbps The transfer mode is PCIe4.0x4 full speed. The SSD transmission speed of the PCI-E protocol is faster than that of SATA protocol and HDD. The LED lights up when the SSD is connected, and the read/write LED of the SSD can flash.

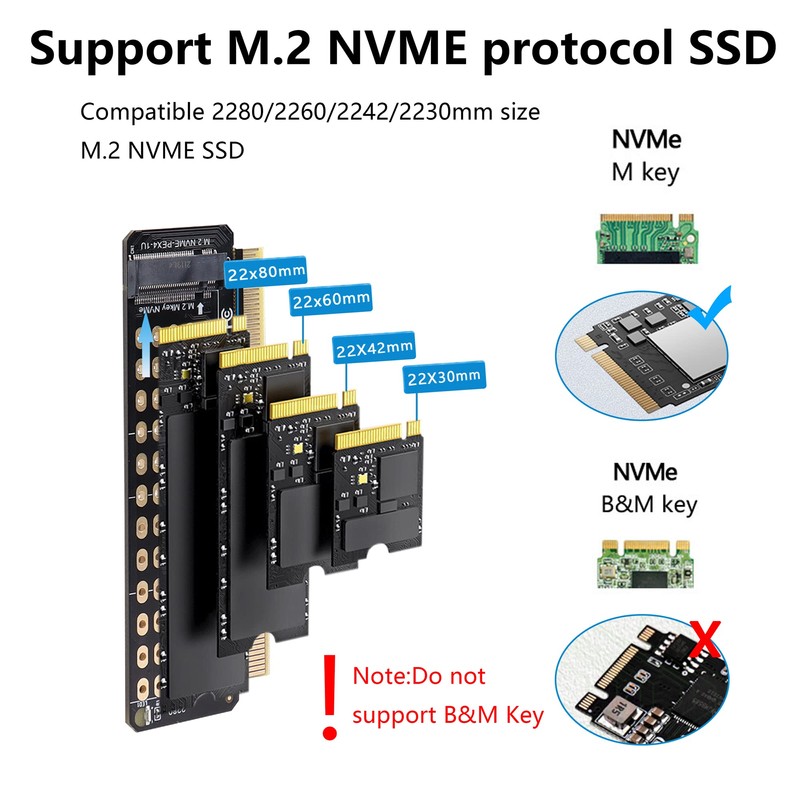

- ✪ The PCIe to M.2 NVMe adapter supports Windows/M-a-c/Linux OS. No driver required. Supports M.2 NVME protocol SSD. Compatible 2280/2260/2242/2230 mm size M.2 NVME SSD
- ✪Please note: Before you buy this adapter, you need to find out if your motherboard is NVME capable. Most old motherboards should have received BIOS updates in early 2015 that add NVME functionality. But you need to check this on the manufacturer's website!
| Brand: | GELRHONR |
|---|---|
| Manufacturer: | GELRHONR |
| Part Number: | 17FVQTP |
| Product Dimensions: | 0.59 x 3.15 x 4.76 inches; 8.48 ounces |
| Isin: | IIDPWDUK1L3U |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
M.2M KEY NVME SSD to PCIE x1 expansion card, support PCIe x4/x8/x16 slot.
Supports 2280/2260/2242/2230mm NVMe M.2 SSDs. Does not support SATA-based M.2 SSD. Note: It does not fit the PCIe x1 slot.
Compatible with Windows, M*ac and Linux OS and no driver required.

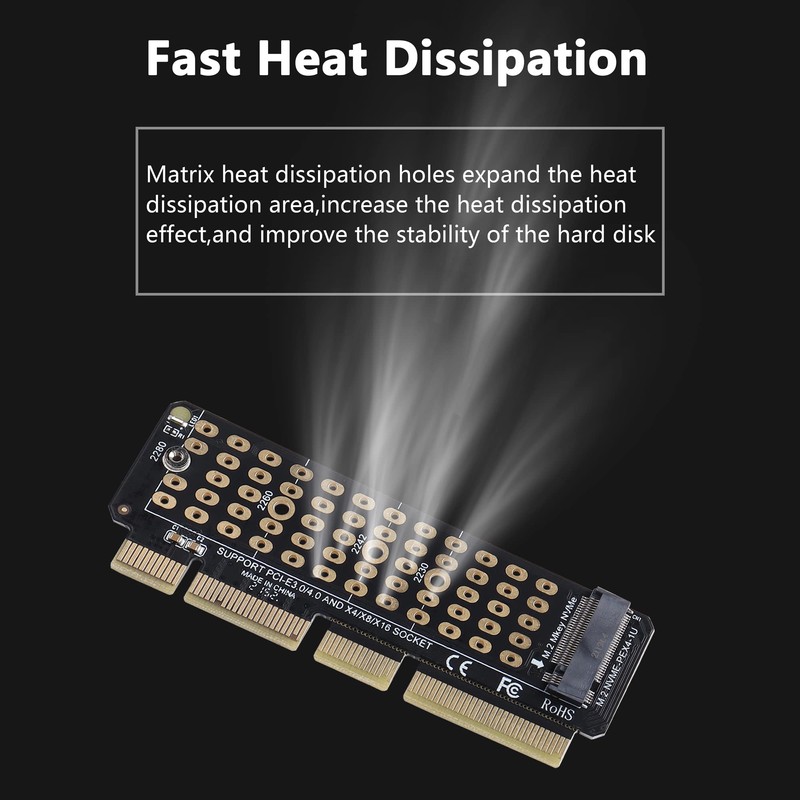

Using advanced heat dissipation solution, double-sided copper hole porous heat dissipation structure reduces high heat generation.
There are 4 mounting holes on the board, which are 22 x 32 mm, 22 x 42 mm, 22 x 60 mm and 22 x 80 mm.
Note: The adapter only works for M key sockets, can not be used for B key or B/M key sockets.
PCI-e 4.0 Down compatible with PCI-e 3.0
Display status: it is always on when it is on, and flashes when reading and writing.

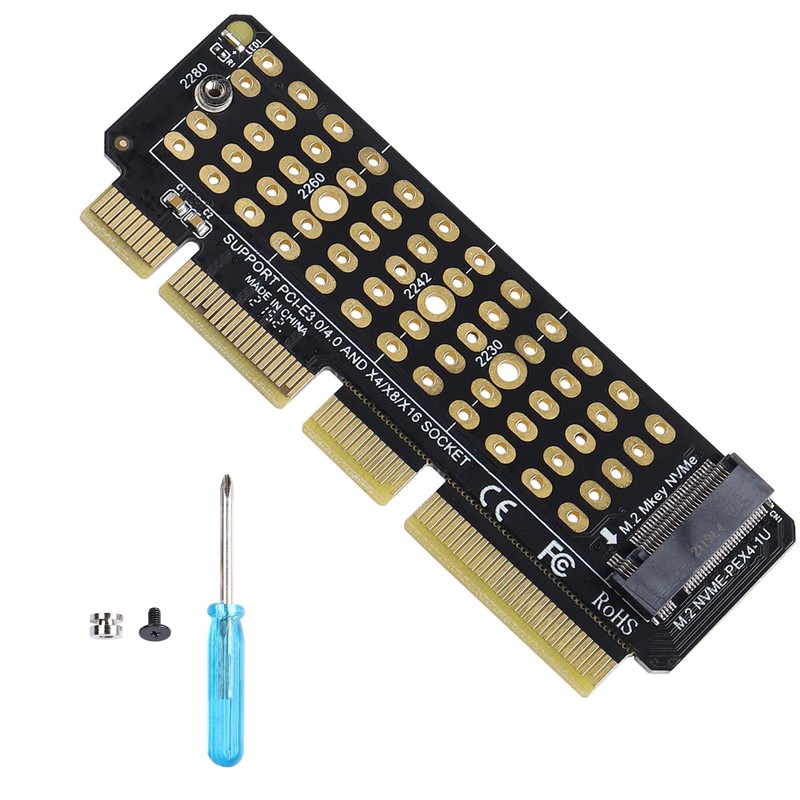

Package includes:
1 x M.2 M Key NVME to PCIE4.0 Adapter Card
1 x Screwdriver
2 x Screws
Attention:
1. You need to find out if your motherboard is NVME capable. Most old motherboards should have received BIOS updates in early 2015 that add NVME functionality. But you need to check this on the manufacturer's website!
2. If your slot is PCIe 2.0 16x, the data transfer rate is limited to 2,000 MB/s gross. So you need to be aware that your PCIe 4.0 16x slot is available, then you won't reach the full transfer rate.
Generally highest possible speeds for M.2 NVME SSDs:
PCIe 1.0: 1GB/s
PCIe 2.0: 2GB/s
PCIe 3.0: 4GB/s
PCIe 4.0: 8GB/s
PCIe 5.0: 16GB/s
PCIe 6.0: 32GB/s
3. Initialization on older boards:
Once the NVME PCIe adapter is plugged into the board, nothing happens! The SSD is not recognized as a boot device, nor does it appear under PCI devices under Linux, for example. But don't worry, neither the SSD nor the adapter are defective, because the SSD is only detected on Windows once you have the hard drive management
Supports 2280/2260/2242/2230mm NVMe M.2 SSDs. Does not support SATA-based M.2 SSD. Note: It does not fit the PCIe x1 slot.
Compatible with Windows, M*ac and Linux OS and no driver required.
Using advanced heat dissipation solution, double-sided copper hole porous heat dissipation structure reduces high heat generation.
There are 4 mounting holes on the board, which are 22 x 32 mm, 22 x 42 mm, 22 x 60 mm and 22 x 80 mm.
Note: The adapter only works for M key sockets, can not be used for B key or B/M key sockets.
PCI-e 4.0 Down compatible with PCI-e 3.0
Display status: it is always on when it is on, and flashes when reading and writing.
Package includes:
1 x M.2 M Key NVME to PCIE4.0 Adapter Card
1 x Screwdriver
2 x Screws
Attention:
1. You need to find out if your motherboard is NVME capable. Most old motherboards should have received BIOS updates in early 2015 that add NVME functionality. But you need to check this on the manufacturer's website!
2. If your slot is PCIe 2.0 16x, the data transfer rate is limited to 2,000 MB/s gross. So you need to be aware that your PCIe 4.0 16x slot is available, then you won't reach the full transfer rate.
Generally highest possible speeds for M.2 NVME SSDs:
PCIe 1.0: 1GB/s
PCIe 2.0: 2GB/s
PCIe 3.0: 4GB/s
PCIe 4.0: 8GB/s
PCIe 5.0: 16GB/s
PCIe 6.0: 32GB/s
3. Initialization on older boards:
Once the NVME PCIe adapter is plugged into the board, nothing happens! The SSD is not recognized as a boot device, nor does it appear under PCI devices under Linux, for example. But don't worry, neither the SSD nor the adapter are defective, because the SSD is only detected on Windows once you have the hard drive management
