Fowler 52-229-213-0 Outside Micrometer Set with 0-3" Range (Set of 3)
Fowler 52-229-213-0 Outside Micrometer Set with 0-3" Range (Set of 3)
Fowler 52-229-213-0 Outside Micrometer Set with 0-3" Range (Set of 3)
- Micrometer Set: With flat anvil/spindle for general purpose measuring; microfine graduations and carbide-tipped measuring faces; 0.0001" graduations
- Accurate Measuring: Anvil and spindle hardened and precision ground with microlap finish on carbide tips; 0.256" diameter of measuring faces, 0.00003" flatness, and 0.00005" parallelism on 0" to 1" micrometers for accurate measurements
- Easy to Use: Quick, easy zero adjustment on the sleeve and positive locking nut on spindle; ratchet stop thimble applies constant measuring force for repeatability between users
- Satin Chrome Finish: On the thimble and sleeve to help reduce rust and glare; lapped spindle thread provides smooth movement and extends product life; heat insulated frames

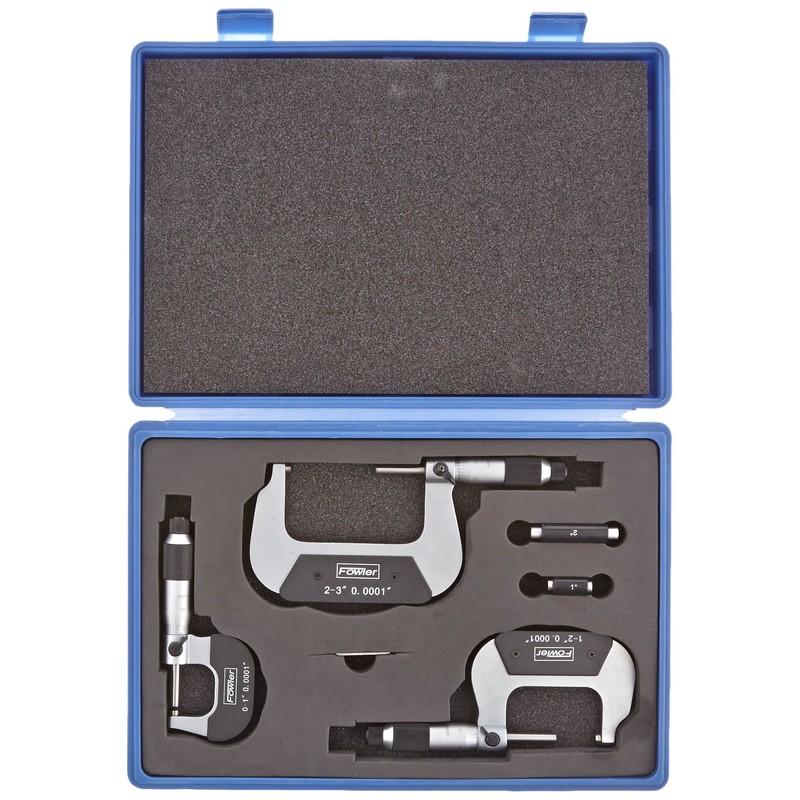

- Set Includes: Three micrometers ranging from 0" to 1", 1" to 2", and 2" to 3" with 1" and 2" standards, a wrench, and a fitted case
| Brand: | FOWLER HIGH PRECISION |
|---|---|
| Manufacturer: | Fred V. Fowler Company, Inc. |
| Part Number: | 52-229-213-0 |
| Model: | 52-229-213-0 |
| Product Dimensions: | 12.5 x 8.4 x 2.4 inches; 3.55 pounds |
| Isin: | IAX1MOSPZWWF |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Fowler 52-229 series outside Vernier-scale micrometers have a choice of measuring range and a flat anvil/spindle pair for general purpose measuring. The Vernier scale has 0.0001" microfine graduation intervals on a satin chrome finish for precise readings. The positive locking nut on the spindle locks measurements in place for accurate readings and the zero adjustment on the sleeve ensures accurate measurements. The anvil/spindle pair have 0.256" diameter hardened, precision-ground, and micro-lapped carbide measuring faces with 0.00003" flatness and 0.00005" parallelism on 0 to 1" micrometers to provide accurate measurements. Friction thimble with ratchet stop applies constant force for repeatability between users. Friction-style thimbles are suitable for one-handed operation and stop turning when the spindle comes into contact with the workpiece, providing constant force for consistent measurements between operators. The ratchet-stop thimble can be used independent of the friction thimble. It provides an audible sound and stops the spindle from turning when the spindle comes into contact with the workpiece, providing constant force for consistent measurements between operators. The heat-insulated frame helps reduce temperature-related expansion or contraction, providing accurate measurements, and protects the operator's hands from heat. The set includes 0 to 1", 1 to 2", and 2 to 3" micrometers, 1" and 2" standards, a wrench, and a fitted case.
**Specifications** --- Display type | Vernier scale Anvil/spindle style | Flat Measuring range | 0 to 3" Graduation interval | 0.0001" Thimble style | Friction with ratchet stop Anvil/spindle diameter | 0.256" Flatness | 0.00003" Parallelism | 0.00005" on 0 to 1" micrometers
Micrometers are precision measuring instruments that use a calibrated screw to measure distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.
The Fred V. Fowler Company manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.
##### What’s in the Box?

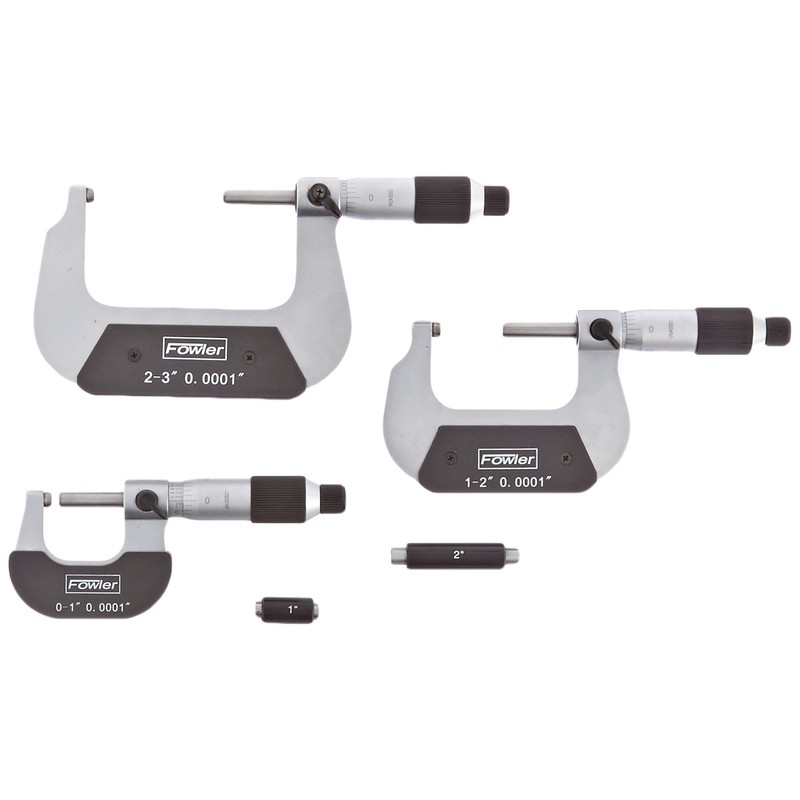

* Fowler 52-229-201 0 to 1" outside inch micrometer * Fowler 52-229-202 1 to 2" outside inch micrometer and standard * Fowler 52-229-203 2 to 3" outside inch micrometer and standard * Wrench * Fitted case
**Specifications** --- Display type | Vernier scale Anvil/spindle style | Flat Measuring range | 0 to 3" Graduation interval | 0.0001" Thimble style | Friction with ratchet stop Anvil/spindle diameter | 0.256" Flatness | 0.00003" Parallelism | 0.00005" on 0 to 1" micrometers
Micrometers are precision measuring instruments that use a calibrated screw to measure distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.
The Fred V. Fowler Company manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.
##### What’s in the Box?
* Fowler 52-229-201 0 to 1" outside inch micrometer * Fowler 52-229-202 1 to 2" outside inch micrometer and standard * Fowler 52-229-203 2 to 3" outside inch micrometer and standard * Wrench * Fitted case
