FainWan Si5351A I2C 25MHZ I2C High Frequency Signal Generator Breakout Board Square Wave Frequency Generator Signal Generator 8KHz to 160MHz 3-5VDC Compatible with Ard-uino

Brand: FainWan
  • This chip has a precision 25MHz crystal reference and internal PLL and dividers.
  • It can generate just about any frequency, from <8KHz up to 150+ MHz.
  • The Si5351 is an I2C configurable clock generator that is ideally suited for replacing crystals, crystal oscillators, VCXOs, phase-locked loops (PLLs), and fanout buffers in cost-sensitive applications.
  • It uses the onboard precision clock to drive multiple PLL's and clock dividers using I2C instructions.

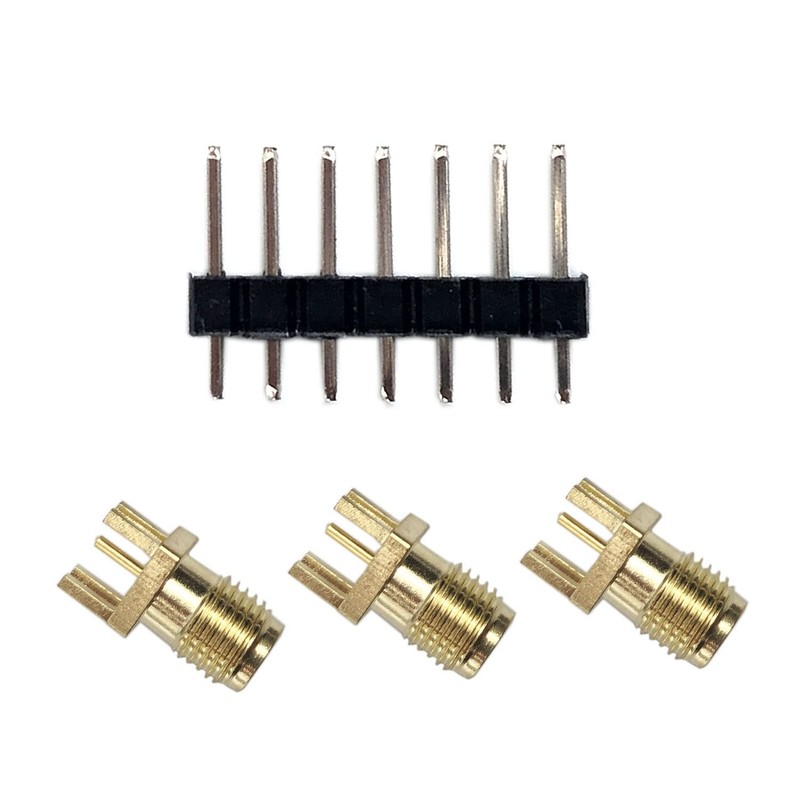

  • Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.
Brand: FainWan
Manufacturer: FainWan
Part Number: V3BD2ZS
Isin: IUSOCUSI4KJ5

$35.64

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
FainWan Si5351A I2C 25MHZ I2C High Frequency Signal Generator Breakout Board Square Wave Frequency Generator Signal Generator 8KHz to 160MHz 3-5VDC Compatible with Ard-uino

FainWan Si5351A I2C 25MHZ I2C High Frequency Signal Generator Breakout Board ...

$35.64


This chip has a precision 25MHz crystal reference and internal PLL and dividers so it can generate just about any frequency, from <8KHz up to 150+ MHz.
The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLL's and clock dividers using I2C instructions.
By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency.

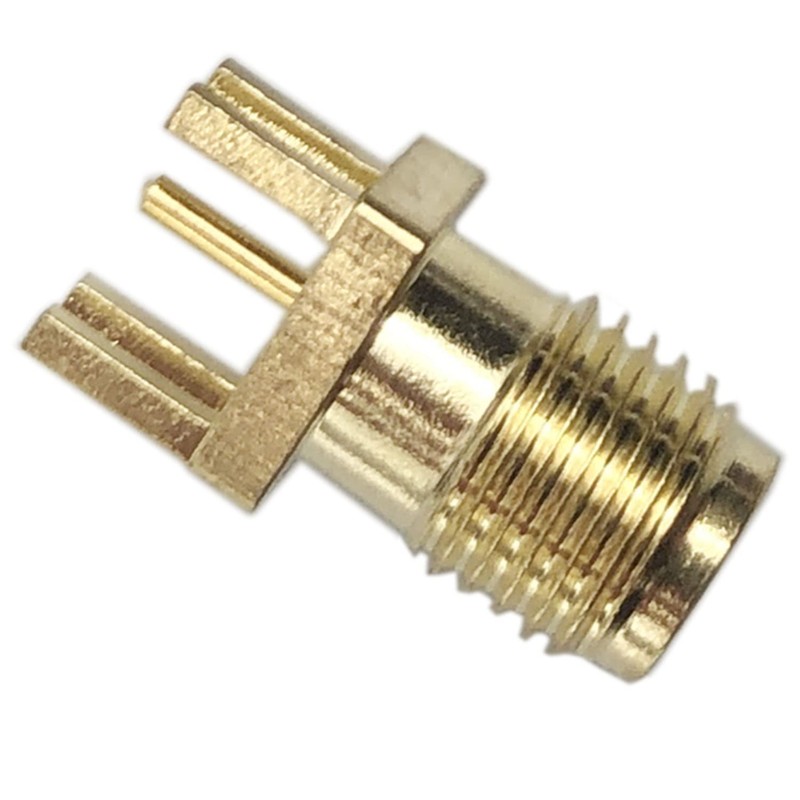

Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.

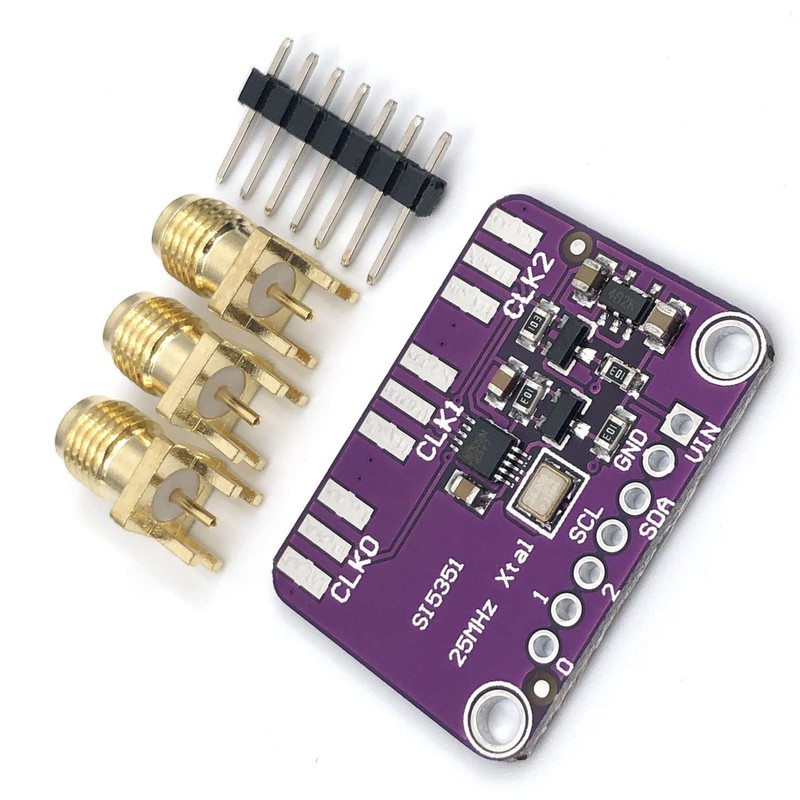

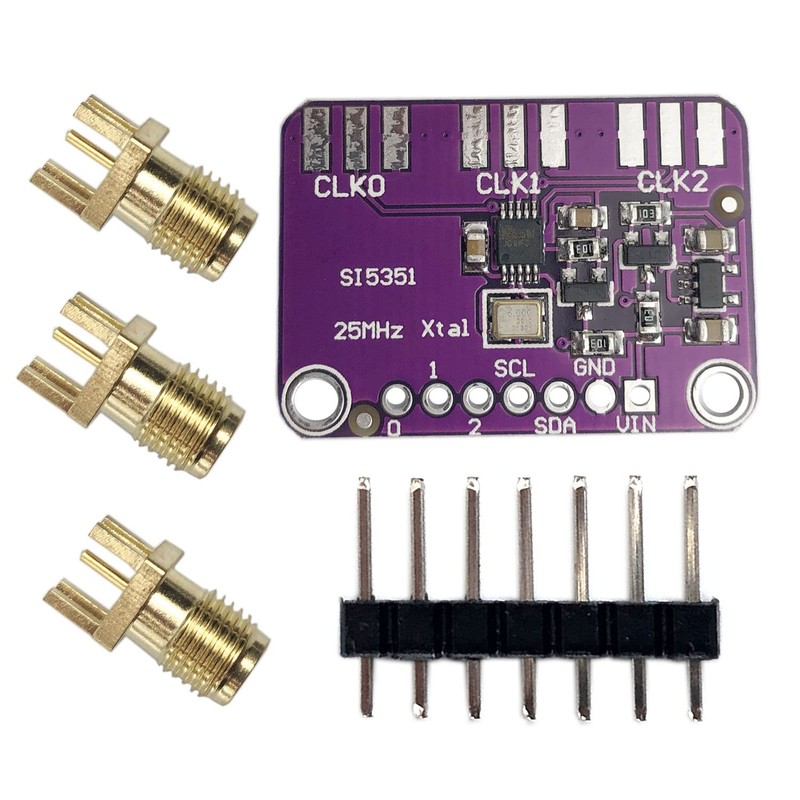

We put this handy little chip onto it's own breakout board PCB, with a 3.3V LDO regulator so it can be powered from 3-5VDC.
We also put level shifting circuitry on the I2C lines so you can use this chip safely with 3V or 5V logic.
Best of all, we even have a great tutorial and library to get you started!
Our code is designed for use with the Ard-uino microcontroller and IDE but is easily ported to your favorite platform with I2C support

Package Included:
1 x SSi5351A I2C Generator Clock Breakout Board
