Evinrude Diagnostic USB tool KIT with chip FT232RL for Evinrude E-tec Ficht outboard boat

Brand: Evinrude
This kit allows full Diagnostics for your Evinrude Engine.  This package contains everything you need to communicate to your Evinrude, as a dealer would in a workshop but allow you to do it using your own laptop and saving you on expensive dealer diagnostic fees.  Everything you need to get up and running is included (Cable, Easy Install software and the latest data files).  This Cable uses the latest quality chip-set and comes with the latest drivers.  It plugs into your computers USB port for simplicity and ease of use.  This Diagnostic kit works on Evinrude engines from 1999 - 2020.  This same type of software is used by dealers and Evinrude specialists to diagnose faults, programming, coding etc.  The preconfigured cable allows the auto detection of the engines ECU and allows the full diagnostics of the engines functions as well as other functions.  This kit also includes workshop manuals in PDF format.  Note:  This kit also includes a 6 FT USB extension cable so you can work at a comfortable distance from the engine.


Software includes:

- Evinrude 5.9.0.0 -  used to read all of your engine diagnostic codes and records, engine hours, activate low and high pressure fuel pumps, test individual injectors and ignition coils, set tilt-limit, deactivate most engine sensors for testing, view all sensor readings (TPS, IAC, battery voltage, charging voltage, rpm, oil pressure, MAP), stationary and static diagnostic tests, and much more.  All data can be saved to your computer.


Features:

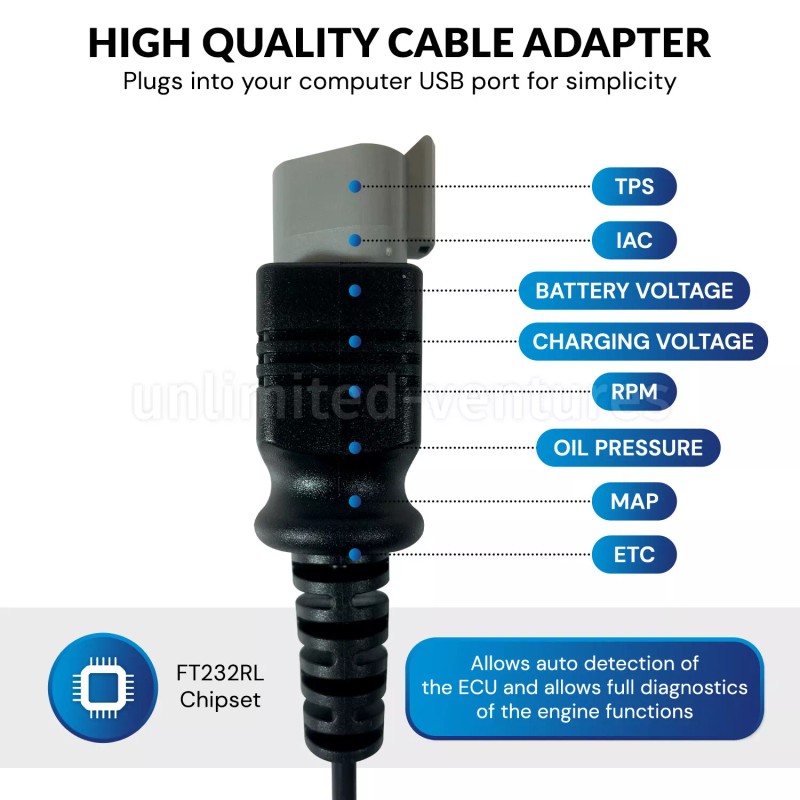

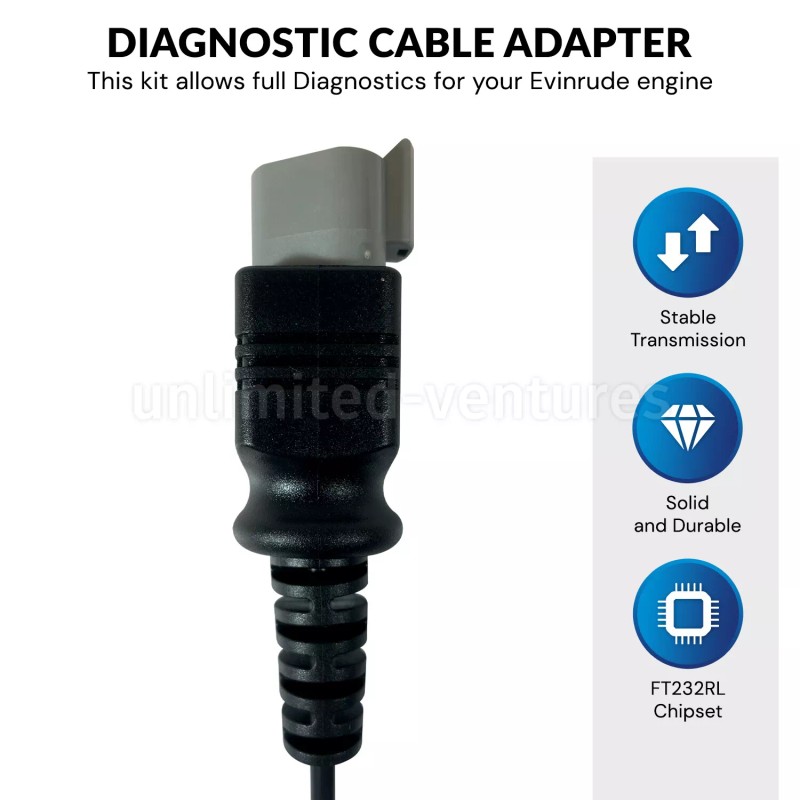

  • High Quality cable with 3 pin molded connector for long time use
  • FTDI FT232RL Chip set  (The chip is installed inside the USB adapter)
  • Includes Workshop Manuals in PDF
  • Easy installation package with included drivers

PC Requirements:
  • Works on all windows based operating systems XP, VISTA, 7, 8, 10, 11 (32 or 64 bit)
  • Only 1 GB of free HDD space
  • USB port

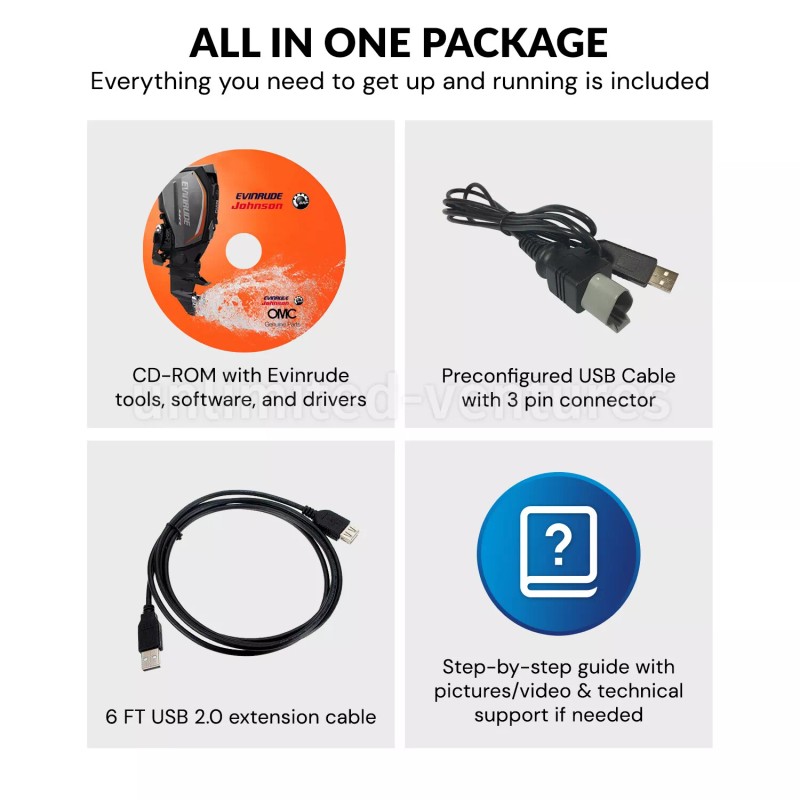

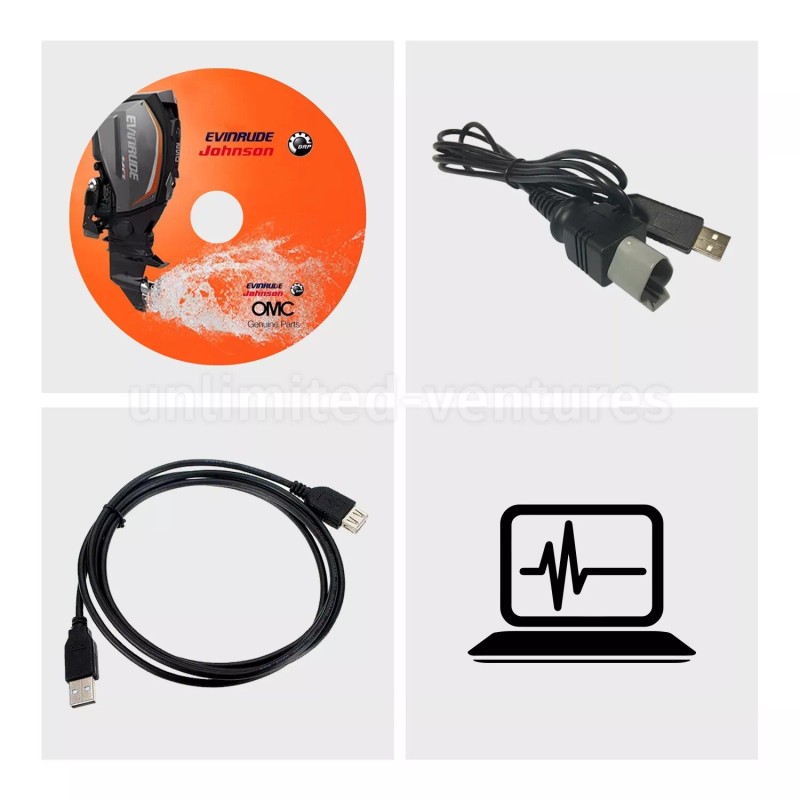

Your package will include:
  • CD-ROM with tools, software and drivers

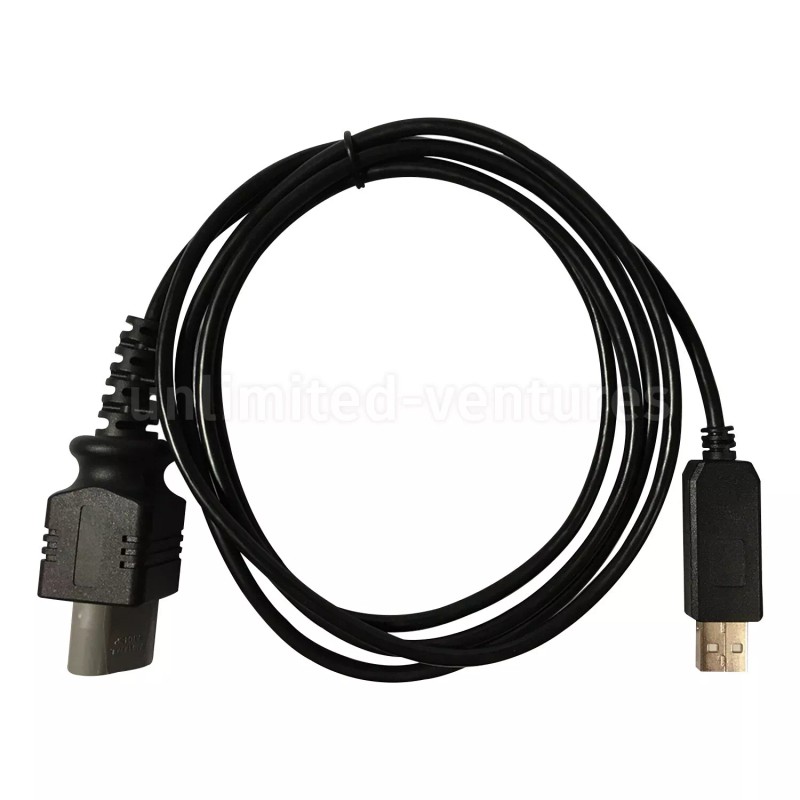

  • Preconfigured USB cable with 3 pin connector
  • 6 FT USB 2.0 extension cable
  • Step-by-step guide with pictures + technical support if needed
  • Video guide

Why buy from US?

1.   - You get easy Install Software
2.   - You get compatible with all windows operating systems (32 & 64 bit)
3.   - You get the most up to date versions of diagnostic software
4.   - You get the highest quality cable
5.   - You get the latest Daten/Data files

Models covered:

Compatible with all models E-TEC, FICHT, DI, 1999-2020 (G2-only basic feature)



  • E-TEC: 25HP, 30HP, 40HP, 50HP, 55HP, 60HP, 65HP, 75HP, 90HP, 115HP, 130HP, 150HP, 175HP, 200HP, 225HP, 250HP, 300HP.

  • FICHT: 75HP, 90HP, 115HP, 135HP, 150HP, 175HP, 200HP, 225HP, 250HP.

  • DI: 100HP, 115HP, 135HP, 150HP, 175HP, 200HP, 225HP, 250HP.

  • G2 all
