Product Overview

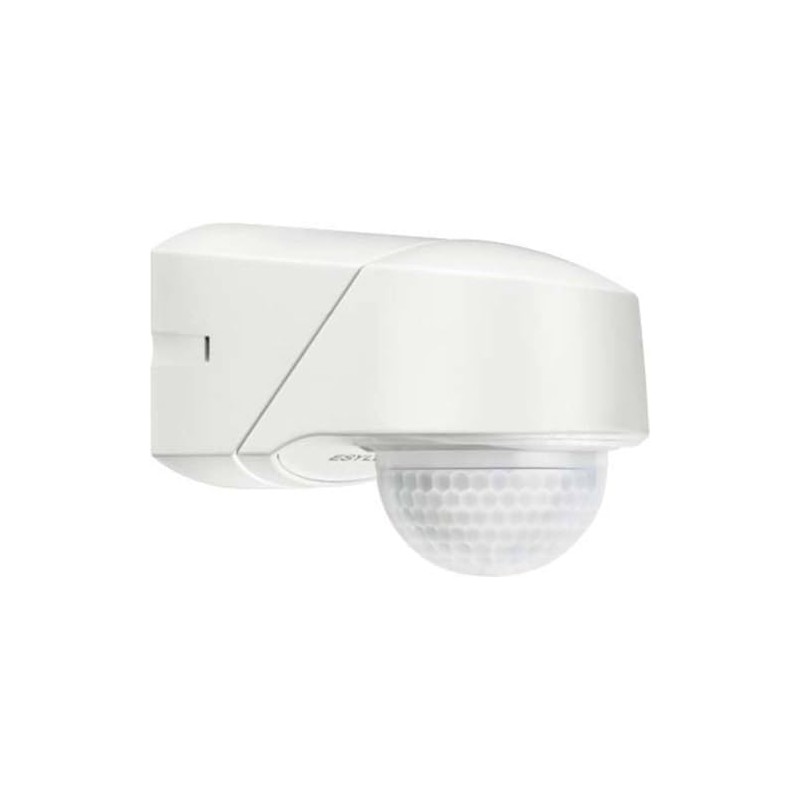

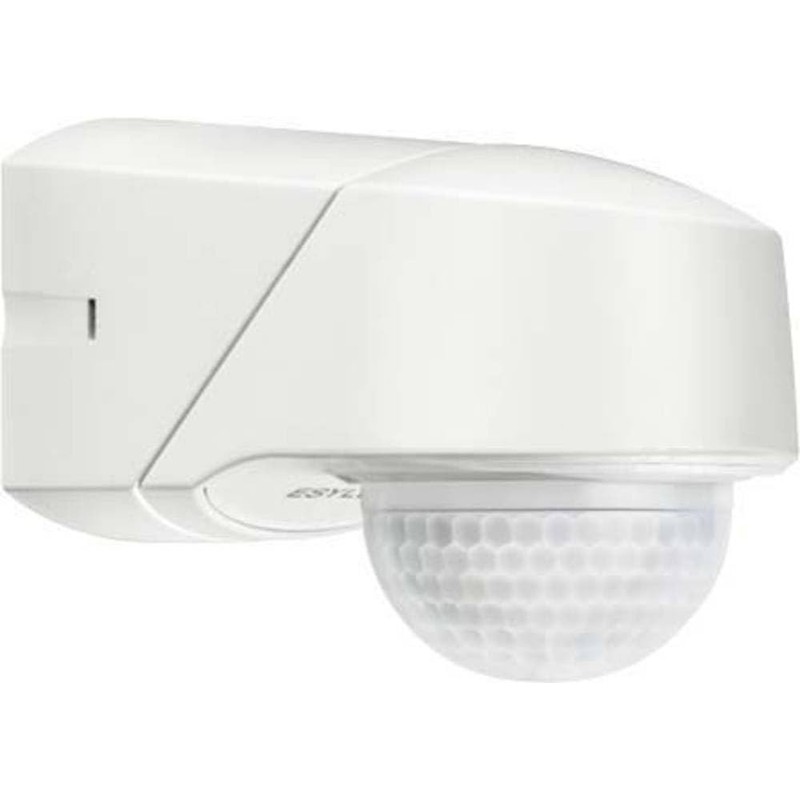

- Motion sensor with 230° detection range and long range. One-handed plug-in socket. Anti-creep protection. Easy parameterising. Remote control and documentation with ESY-Pen and ESY-App360° anti-creep protection for complete detection. Can be switched off via remote control. Programmable via remote control
- B
- Continuous light on/off and automatic reading function of the current light value. Fixed factory program ensures immediate operational readiness. Easy programming via remote control with "blue mode" technology
- Avoidance of incorrect operation thanks to integrated selector switch for test function/remote control/pot settingTechnical data: mountingMounting type: installation location: ceiling/wall; conformity: EAC RoHS WEEEE; casing; dimensions: length 135 mm x width 78 mm x height/depth 105 mm; weight: 314 g; material: UV-stabilised polycarbonate; protection class: IP54; permissible ambient temperature. 25°C
| Brand: | ESYLUX |
|---|---|
| Color: | White |
| Manufacturer: | Esylux |
| Part Number: | F9SUFPS |
| Isin: | I5CEVJ8Y2QNT |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Bewegungsmelder mit 230° Erfassungsbereich und großer Reichweite
- Einhand-Stecksockel
- Unterkriechschutz
- Einfaches Parametrieren, Fernsteuern und Dokumentieren mit ESY-Pen und ESY-App
- 360° Unterkriechschutz für eine lückenlose Erfassung, abschaltbar per Fernbedienung
- Programmierbar per Fernbedienung, z. B. Dauerlicht EIN/AUS und automatische Einlesefunktion des aktuellen Lichtwertes
- Fest hinterlegtes Werksprogramm sorgt für eine sofortige Betriebsbereitschaft
- Einfache Programmierung per Fernbedienung mit "blue mode" Technologie.
- Vermeidung von Fehlbedienung durch integrierten Wahlschalter für Testfunktion/ fernbedienbar/Potieinstellung
Technische Daten:
Befestigung
- Montageart: Aufbau
- Montageort:Decke / Wand
- Konformität: EAC, RoHS, WEEE
Gehäuse
- Abmessungen: Länge 135 mm x Breite 78 mm x Höhe/Tiefe 105 mm
- Gewicht: 314 g
- Werkstoff: UV-stabilisiertes Polycarbonat
- Schutzart: IP54
- Zulässige Umgebungstemperatur-25 °C...+55 °C
- Farbe: weiß, ähnlich RAL 9010
Elektrische Ausführung
- Steuerungssystem: 12 ? 36 V UC
- Schutzklasse: III
- Nennspannung: 12 ? 24 V AC/DC
- Leistungsaufnahme: 0,3W
Sensorik
- Erfassungswinkel: 230° (2 x 115° separat einstellbar) und 360° Unterkriechschutz
- Erfassungsreichweite quer: Ø 40 m
- Erfassungsreichweite frontal: Ø 16 m
- Erfassungsreichweite Unterkriechschutz: Ø 6 m
- Erfassungsbereich:bis zu 804 m²
- Empf. Montagehöhe: 2,5 m
- Max. Montagehöhe: 4 m
- Helligkeitswert:2 ? 2500 lx
Steuerung
- Anzahl Lichtkanäle: 1
- Anzahl der parallel schaltbaren Melder: 8
- Schaltverzögerung von "dunkel zu hell": 5 s
- Schaltverzögerung von "hell zu dunkel": 0 s
Kanäle
