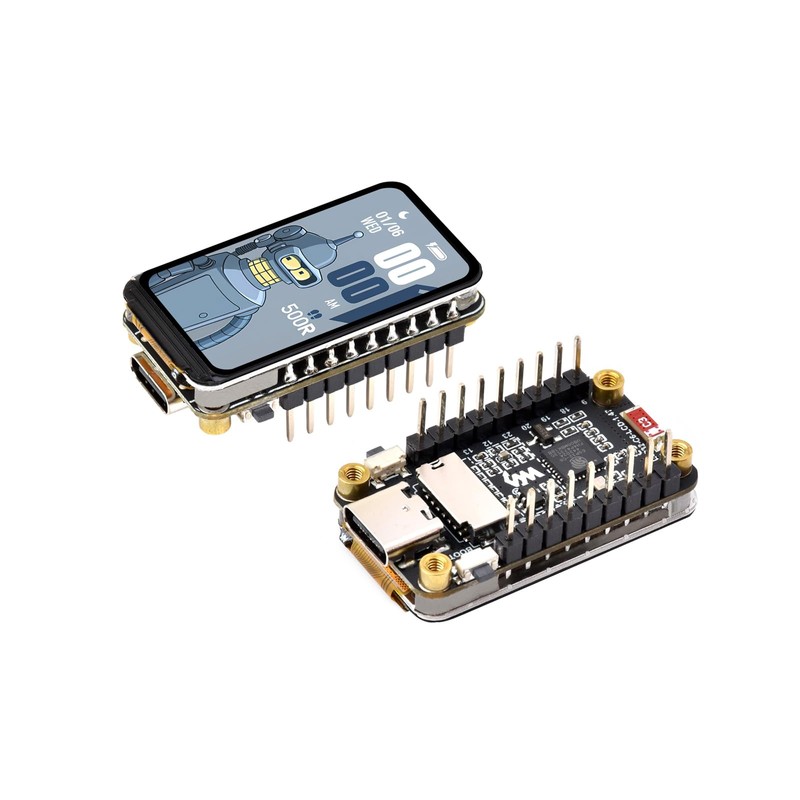

ESP32-C6 1.47 Inch LCD Display Development Board, ESP32 with 1.47 Inch Screen, 172 x 320 Pixels, 262K Colour Display, with RGB LED, Support 2.4GHz Wi-Fi 6 & Bluetooth 5 (with Pinheader)

Brand: Waveshare
  • ESP32-C6 1.47inch LCD Display Development Board with pre-soldered header, Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications
  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
  • Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna, Built in 320KB ROM, 512KB of HP Static Random-Access Memory, 16KB LP Static Random-Access Memory and 4MB Flash memory
  • Onboard 1.47inch LCD display, 172×320 resolution, 262K color. Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect
  • Adapting multiple IO interfaces, integrates full-speed USB port. Onboard TF card slot for external TF card storage of pictures or files. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Brand: Waveshare
Manufacturer: Waveshare
Part Number: 6V8J5G5
Isin: IXZWOLIXSG1Q

$53.39

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
ESP32-C6 1.47 Inch LCD Display Development Board, ESP32 with 1.47 Inch Screen, 172 x 320 Pixels, 262K Colour Display, with RGB LED, Support 2.4GHz Wi-Fi 6 & Bluetooth 5 (with Pinheader)

ESP32-C6 1.47 Inch LCD Display Development Board, ESP32 with 1.47 Inch Screen...

$53.39

Overview
ESP32-C6-LCD-1.47 is a microcontroller development board with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications

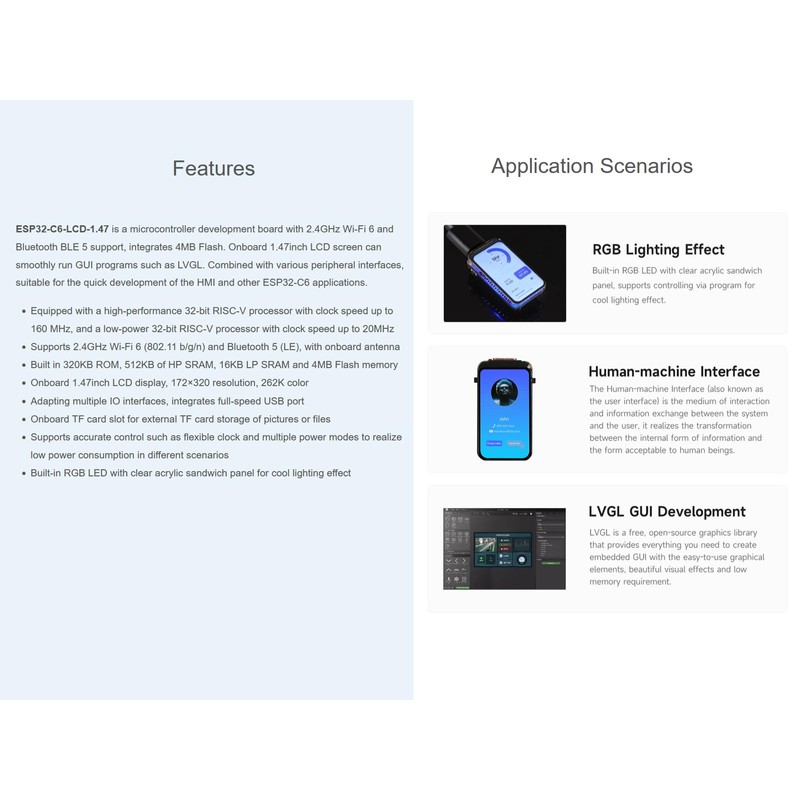

Features:
Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 320KB ROM, 512KB of HP Static Random-Access Memory, 16KB LP Static Random-Access Memory and 4MB Flash memory
Onboard 1.47 inch LCD display, 172 x 320 resolution, 262 K colour.

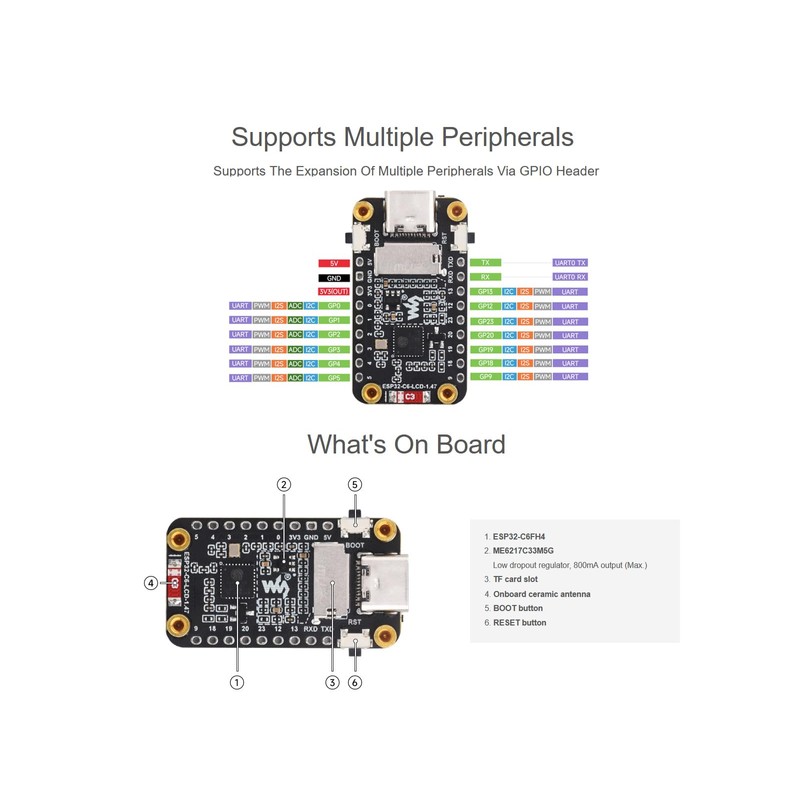

Adapting multiple IO interfaces, integrates full-speed USB port
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect

Package contents:
ESP32-C6-LCD-1.47 with pre-soldered header x1

Development Resources
https://www.waveshare.com/wiki/ESP32-C6-LCD-1.47
