ELP 1080P Dual Lens USB Camera Module 3D Stereo PC Camera for Computer Mini UVC USB2.0 Webcam Board M9 90Degree Lightburn Camera AR0330 Binocular Camera Video Industrial USB Surveillance Camera
ELP 1080P Dual Lens USB Camera Module 3D Stereo PC Camera for Computer Mini UVC USB2.0 Webcam Board M9 90Degree Lightburn Camera AR0330 Binocular Camera Video Industrial USB Surveillance Camera
ELP 1080P Dual Lens USB Camera Module 3D Stereo PC Camera for Computer Mini UVC USB2.0 Webcam Board M9 90Degree Lightburn Camera AR0330 Binocular Camera Video Industrial USB Surveillance Camera
- Model:ELP-1080P2CAM-V90 ELP 2Megapixel Dual Lens USB Camera Module,Max Resolution:(Left)1920(H)X1080(V),(Right)1920(H)X1080(V),Together 3840(H)X1080(V),high definition embedded dual lens web camera board can meet most capturing requirements,ELP 1080P usb camera module equipped with 2pcs 1M usb cable.
- ELP 2mp Dual Lens Webcam Board Module with 1/3inch AR0330 Image Sensor for sharp image monitoring,double fixed focus M9 90degree no distortion wide angle lens.ELP dual lens usb camera board can be installed in most hidden and narrow position for a home surveillance system,wildlife photography,dash cam,baby camera, etc.
- Micro Mini Industrial USB 2.0 Camera Module Driverless for 3D VR Application,High Frame Rates MJPG 30fps@1080p; High speed USB2.0 interface.FHD 1080P video dual lens USB camera for clear surveillance: ELP 2.0 megapixel 1080p FHD dual lens USB camera module,High Speed 1080p 30fps usb camera module for smooth video recording.

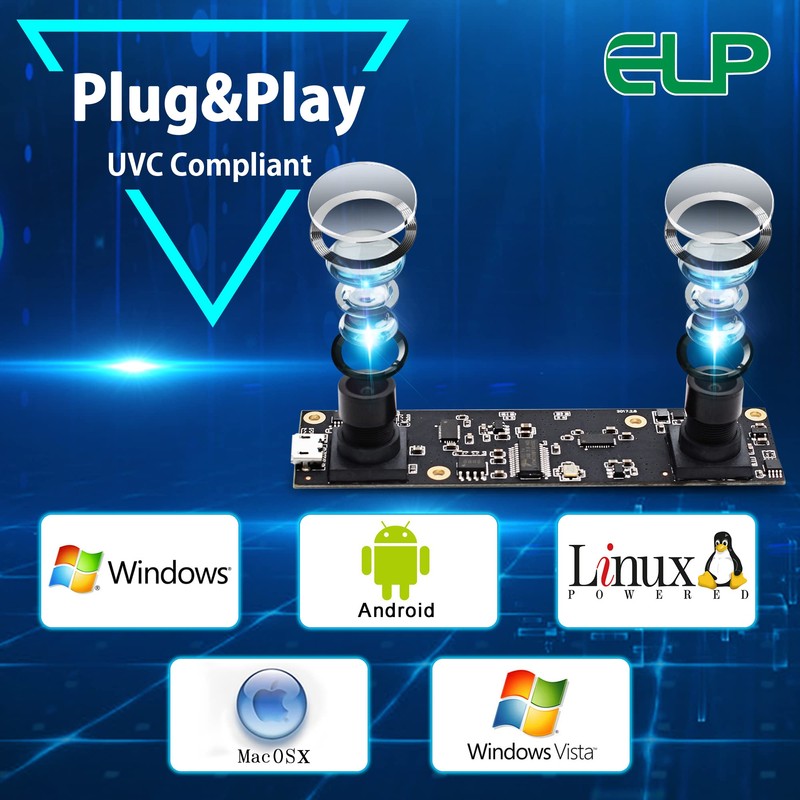

- ELP Dual Lens USB Camera with UVC for all kinds of system,Plug&Play,UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- YUY2 and MJPEG compression format optional:ELP 2.0 megapixel high speed 30fps dual lens usb camera module with MJPEG/YUY2 compression format optional help to save more storage space,streaming with less demand on your computer provides faster and smoother video uploading.
- ELP Plug&Play Free Driver 2 million pixels USB2.0 Camera Module: Support UVC compliant,plug in and go,just connect the camera to PC,laptop,Android device or Raspberry Pi with the USB cable without extra drivers to be installed.USB Protocol USB2.0 HS/FS security camera.ELP 2megapixel usb cameras with high resolution can be used in any video system for personal or industrial.

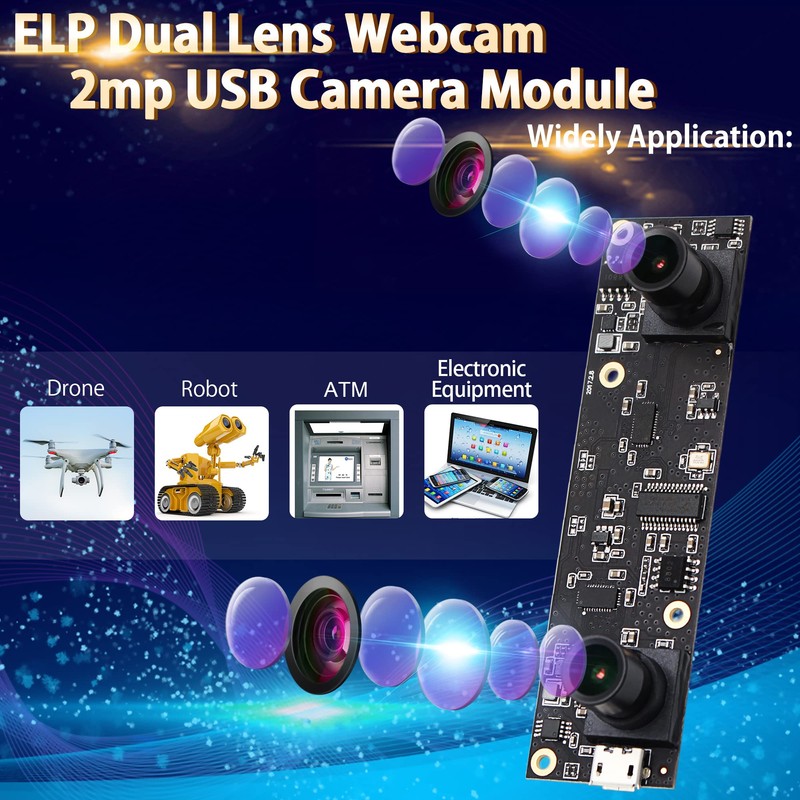

- Widely Application: ELP super small and mini size dual lens usb camera module for your embedded applications.Compact camera module for all kinds of machine vision,video conference,home video surveillance system,security camera system,dash cam,monitoring 3D printer,baby pet camera,robot machine vision,bank security,ATM,robot.ELP 2 million pixel camera module.
- Support OS"WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above" for machine vision camera,machine vision development in Linux,Work with Raspberry Pi,Opencv camera module,Amcap usb camera module.ELP 2mp usb webcam widely works with most operation system and Apps.
- 2Megapixel HD 1080P Stereo USB2.0 Camera Module,High quality 90degree M9 lens ,1920X1080 MJPEG AR0330 Dual Lens Stereo Camera,UVC compliance for use in OS Windows, Linux, Android, Mac

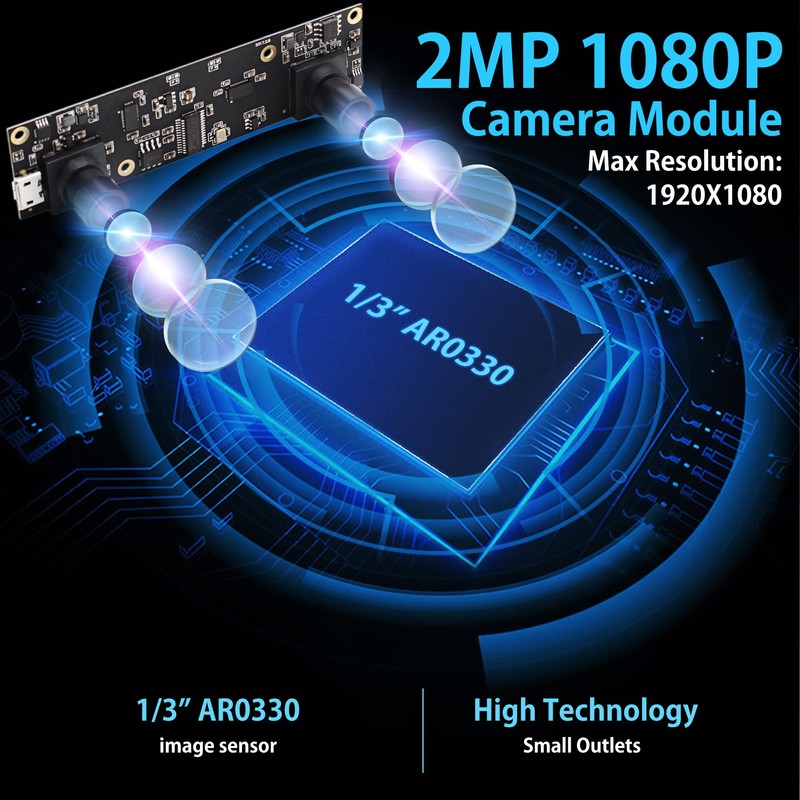

- Adopt high quality 1/3" cmos AR0330 image sensor:ELP high frame rate 30fps dual lens usb camera module adopt premium 1/3" ar0330 image sensor for high quality image effect.
| Brand: | ELP |
|---|---|
| Size: | mini size |
| Color: | Black |
| Manufacturer: | Ailipu Technology Co., Ltd |
| Part Number: | 8TGFZ22 |
| Isin: | IEFBF3U1PAUJ |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

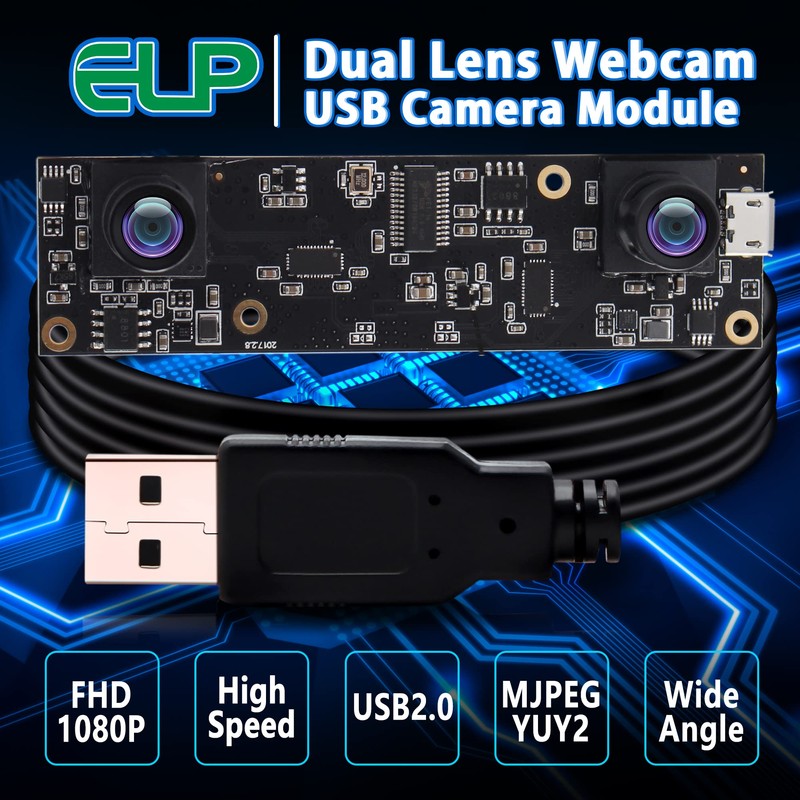

Package includes:
1) 1PC 2mp dual lens usb camera module with 90 degree M7 lens
2) 1PC 1m usb cable
Feature:
2Megapixel HD 1080P Stereo USB2.0 Camera Module
*High quality 90degree M9 lens
*High speed USB 2.0 interface
*High quality Full HD image
*Low power consumption
*Small outline for embedded application
*UVC compliance for use in OS Windows, Linux, Android, Mac
*OTG support
*High frame rate 1920 X 1080 MJPEG@ 30fps
Description:
ModelELP-1080P2CAM-V90
SensorAR0330
Lens Size1/3 inch
Pixel Size5.07um X 3.38um
Max. Resolution(left)1920(H)X1080(V) (right)1920(H)X1080(V) together3840(H)X1080(V)
Compression formatMJPEG / YUV2(YUYV)
Resolution & frame1920X1080 MJPEG@ 30fps
1904X1080 MJPEG@ 30fps
1280X720 MJPEG@ 30fps
640X480 MJPEG@ 30fps YUY2@10fps
320X240MJPEG@ 30fps YUY2@30fps
S/N Ratio39dB
Dynamic Range72.4dB
Sensitivity2.0V/lux-sec@550nm
Mini illumination0. 1lux
Shutter TypeElectronic rolling shutter / Frame exposure
Connecting Port typeUSB2.0 High Speed
Free Drive ProtocolUSB Video Class(UVC)
Support OTG ProtocolUSB2.0 OTG
AECSupport
AEBSupport
Adjustable parametersBrightness, Contrast,
Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens ParameterM9 Lens HOV 90 degree
Power supplyUSB BUS POWER Micro USB
Operating Voltage220mA~280mA
Working current-20~70℃
Working temperature-20~85℃
Board size /Weight86X23
CableStandard 1M
Operating system requestWin XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
