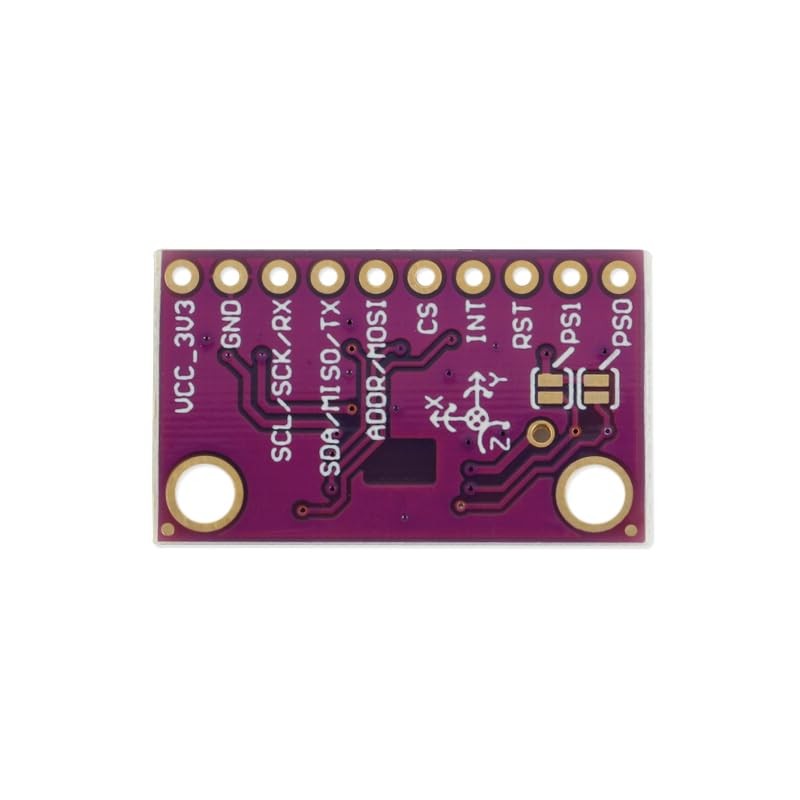

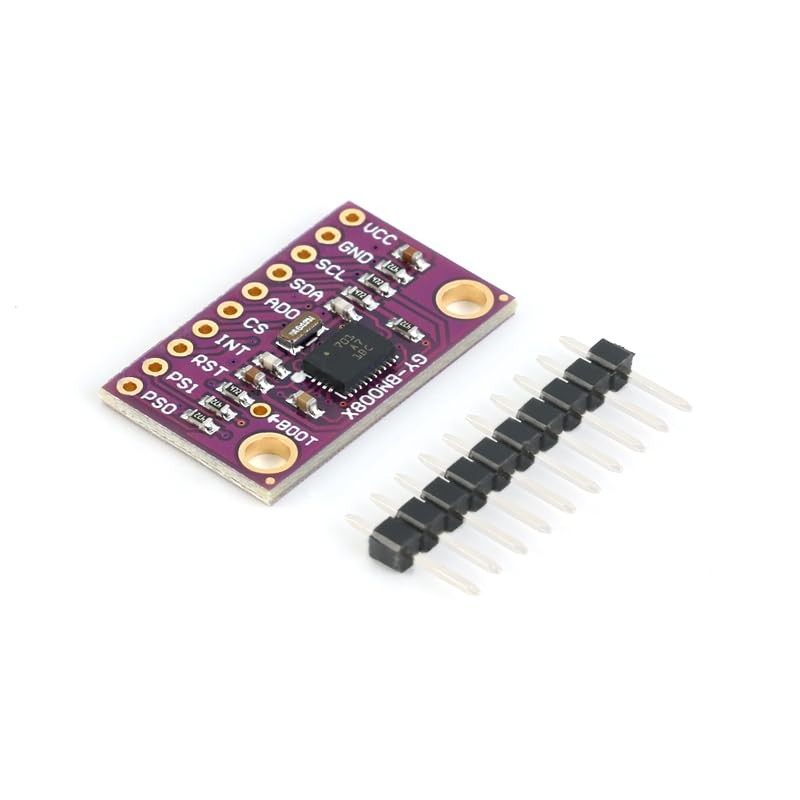

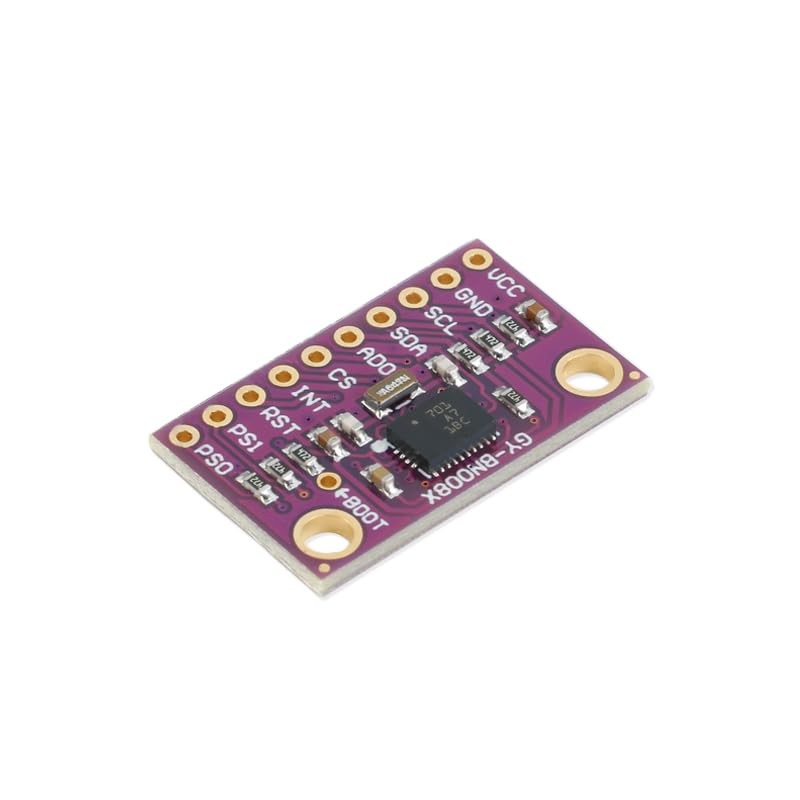

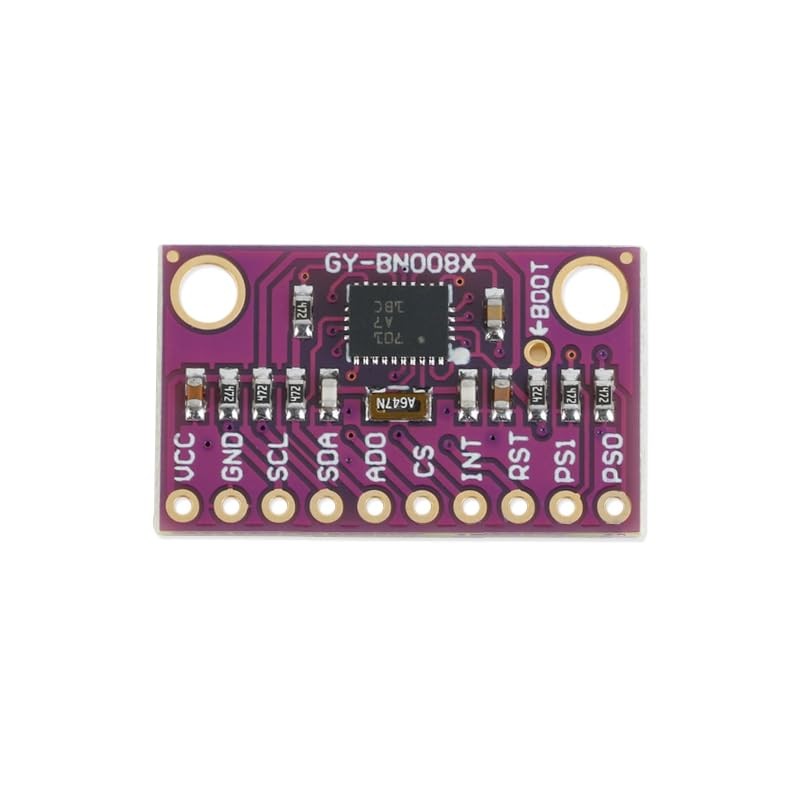

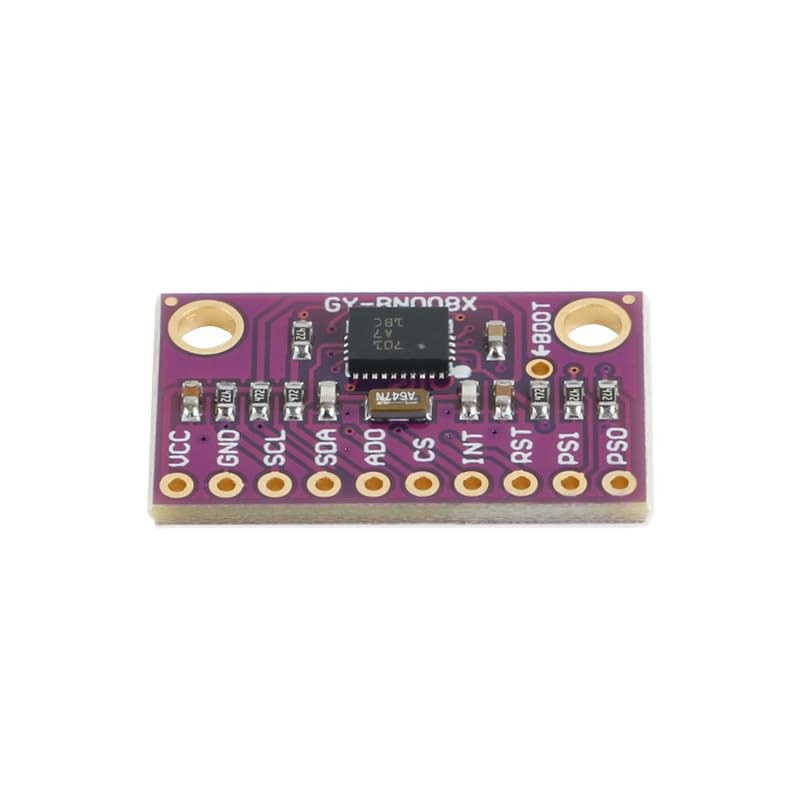

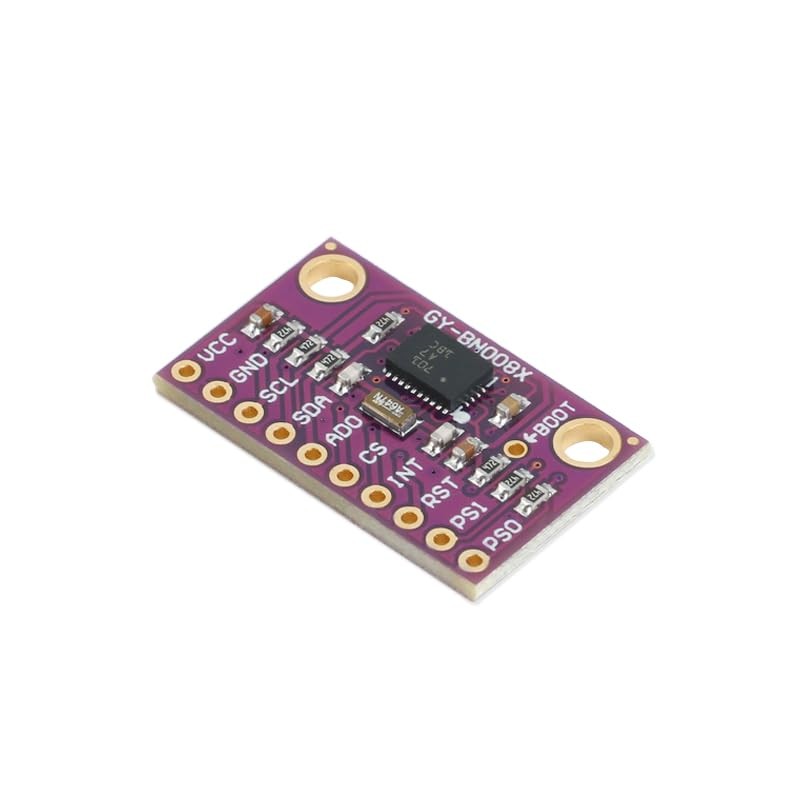

EC Buying BNO080 Nine Axis Sensor Module BNO085 AR VR High Accuracy Accelerometer Gyroscope Magnetometer 9DOF AHRS IMU

Brand: EC Buying
  • BNO080 is a 9-axis system level package (SiP) that can quickly develop augmented reality (AR), virtual reality (VR), robots, and IoT devices that support sensors.
  • It features high-performance accelerometers, magnetometers, and gyroscopes, using a low-power 32-bit ARM Cortex M0+MCU in a small package.
  • This IC features a combination of a 3-axis accelerometer/gyroscope/magnetometer, running with ARM Cortex M0+ and powerful algorithms
  • The BNO080 Inertial Measurement Unit (IMU) can generate accurate rotation vector titles, making it very suitable for VR and other heading applications, with a static rotation error of 2 degrees or less
  • The sensor has very powerful functions, providing an I2C-based library that provides rotation vectors and acceleration, gyroscope and magnetometer readings, steps, activity classifiers, and calibration
Brand: EC Buying
Manufacturer: EC Buying
Part Number: DGZMLPP
Isin: IJBRVMYVMMGU

$43.05

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
EC Buying BNO080 Nine Axis Sensor Module BNO085 AR VR High Accuracy Accelerometer Gyroscope Magnetometer 9DOF AHRS IMU

EC Buying BNO080 Nine Axis Sensor Module BNO085 AR VR High Accuracy Accelerom...

$43.05

Features
Interfaces:
The BNO080 can communicate through a variety of interfaces. The Qwiic VR IMU has two jumpers that allow the user to select their interface of choice.
I2C (Default): Up to 400kHz
SPI: Up to 3MHz
UART: 3Mbps
UART-RVC (Robot Vacuum Cleaners): 115200kbps

Performance Characteristics:
Rotation Vector
Dynamic Error: 3.5°
Static Error: 2.0°
Gaming Rotation Vector
Dynamic Error: 2.5°
Static Error: 1.5°
Heading Drift: 0.5° / min
Geomagnetic Rotation Vector
Dynamic Rotation Error: 4.5°
Static Rotation Error: 3.0°
Gravity Angle Error: 1.5°
Linear Acceleration Accuracy: 0.35m/s2
Accelerometer Accuracy: 0.3m/s2
Gyroscope Accuracy: 3.1° / sec
Magnetometer Accuracy: 1.4μT

If I2C is not your first communication choice, the sensor can also communicate through SPI and UART. If you are using UART, we recommend that you easily connect using Serial Basic.
The use of onboard 32kHz crystals can improve accuracy and provide more accurate timestamps.
