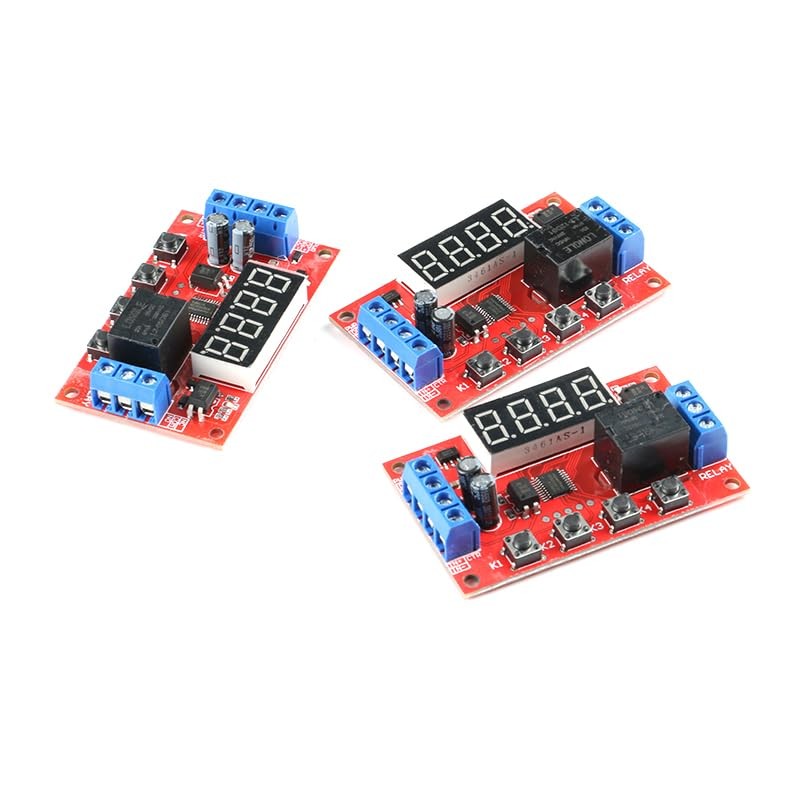

EC Buying 2Pcs 12V Time Delay Relay Module Multifunction Time Delay Relay Module Multi Mode Relay Module with Segment LEDs Display Programmable for Smart Home Automatic Control
EC Buying 2Pcs 12V Time Delay Relay Module Multifunction Time Delay Relay Module Multi Mode Relay Module with Segment LEDs Display Programmable for Smart Home Automatic Control
EC Buying 2Pcs 12V Time Delay Relay Module Multifunction Time Delay Relay Module Multi Mode Relay Module with Segment LEDs Display Programmable for Smart Home Automatic Control
Product Overview
- Multi functional relay control module, designed for users with various needs, using a microcontroller as the main control unit, with 32 preset functions, and users can use specific functions according to their actual needs.
- Input voltage: DC12V power supply; Output load: within 30V DC, maximum 10A. Communication within 250V, maximum 5A; Trigger signal: high level: 5-12V

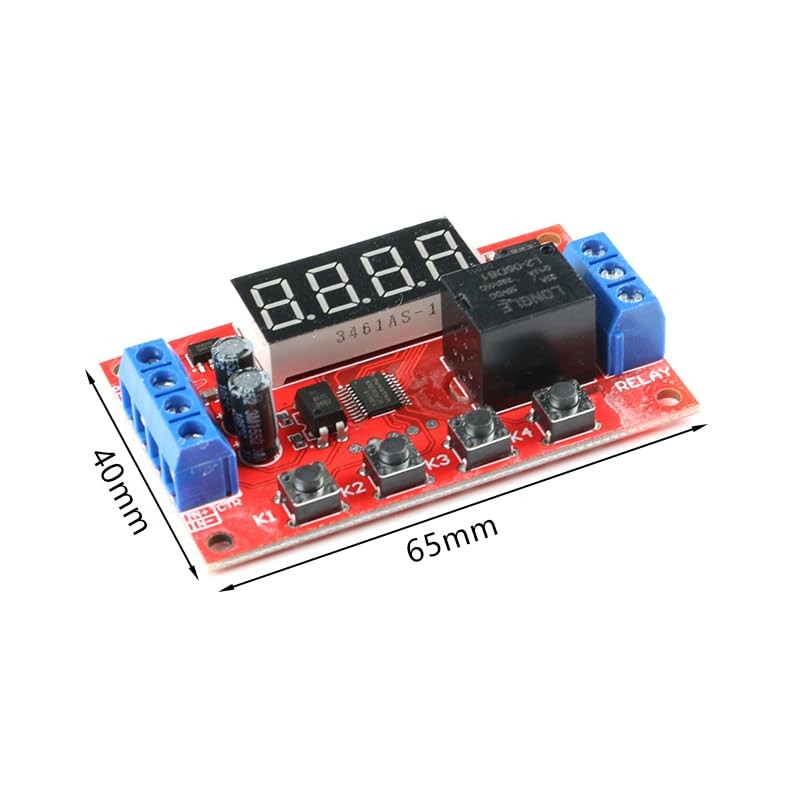

- Power off memory: Yes; Product size: Length 65, Width 34.3, Height 17.5 (MM)
- Static current: 20mA; Working current: 60mA; Working temperature:- 25°C-85°C
- Can be applied to water pump control, motor control, light strip control, solenoid valve control, and so on.
| Brand: | EC Buying |
|---|---|
| Manufacturer: | EC Buying |
| Part Number: | XFBYCB8 |
| Isin: | IG096BAIRZNR |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Multi functional relay control module, designed for users with various needs, using a microcontroller as the main control unit, with 32 preset functions, and users can use specific functions according to their actual needs.
- Input voltage: DC12V power supply; Output load: within 30V DC, maximum 10A. Communication within 250V, maximum 5A; Trigger signal: high level: 5-12V
- Power off memory: Yes; Product size: Length 65, Width 34.3, Height 17.5 (MM)
- Static current: 20mA; Working current: 60mA; Working temperature:- 25°C-85°C
- Can be applied to water pump control, motor control, light strip control, solenoid valve control, and so on.
| Brand: | EC Buying |
|---|---|
| Manufacturer: | EC Buying |
| Part Number: | XFBYCB8 |
| Isin: | IG096BAIRZNR |
Parameter setting instructions:
Press and hold the K1 key, and after 2 seconds, the display screen will show P-x. Press K2 and K3 to change the working mode. After selecting the working mode, press the K1 key briefly to enter the A time setting, and the screen will display Axx. At this time, press the K2 and K3 keys to modify the A time parameter. Short press the K2 and K3 keys to add or subtract 1, long press to quickly add or subtract 10, and press the K4 key to set the position of the decimal point. After setting the A time, press the K1 key to set the B time, and the screen will display bxx. At this time, press the K2 and K3 keys to modify the B time parameter. Short press the K2 and K3 keys to add or subtract 1, long press to quickly add or subtract 10, and press the K4 key to set the position of the decimal point. After setting the B time, (mode) If there is a parameter for the number of C cycles, press the K1 key again to set the number of C cycles. The screen will display Cxxx. At this time, press the K2 and K3 keys to modify the number of C cycles parameter. Short press the K2 and K3 keys to add or subtract 1, and long press to quickly add or subtract 10. After setting, press the K1 key once to exit the setting state and save all parameters.
Explanation of the decimal point position and the time unit it represents:
X.XX decimal point in hundreds, time range 0.01~9.99 seconds
XX.x decimal point to ten places, time range 0.1~99.9 seconds
XXX has no decimal point, time range 1~999 seconds
XXX. The decimal point is in units, and the time range is 1 to 999 minutes
Turn off display: When not in the set state, press the K4 key to turn off the display screen, and then press it again to turn it back on.
Press and hold the K1 key, and after 2 seconds, the display screen will show P-x. Press K2 and K3 to change the working mode. After selecting the working mode, press the K1 key briefly to enter the A time setting, and the screen will display Axx. At this time, press the K2 and K3 keys to modify the A time parameter. Short press the K2 and K3 keys to add or subtract 1, long press to quickly add or subtract 10, and press the K4 key to set the position of the decimal point. After setting the A time, press the K1 key to set the B time, and the screen will display bxx. At this time, press the K2 and K3 keys to modify the B time parameter. Short press the K2 and K3 keys to add or subtract 1, long press to quickly add or subtract 10, and press the K4 key to set the position of the decimal point. After setting the B time, (mode) If there is a parameter for the number of C cycles, press the K1 key again to set the number of C cycles. The screen will display Cxxx. At this time, press the K2 and K3 keys to modify the number of C cycles parameter. Short press the K2 and K3 keys to add or subtract 1, and long press to quickly add or subtract 10. After setting, press the K1 key once to exit the setting state and save all parameters.
Explanation of the decimal point position and the time unit it represents:
X.XX decimal point in hundreds, time range 0.01~9.99 seconds
XX.x decimal point to ten places, time range 0.1~99.9 seconds
XXX has no decimal point, time range 1~999 seconds
XXX. The decimal point is in units, and the time range is 1 to 999 minutes
Turn off display: When not in the set state, press the K4 key to turn off the display screen, and then press it again to turn it back on.
