Draw-Tite DrawTite 7-Way Trailer Wiring Harness Kit + Brake Control For 94-96 Ford Bronco

Brand: Draw-Tite

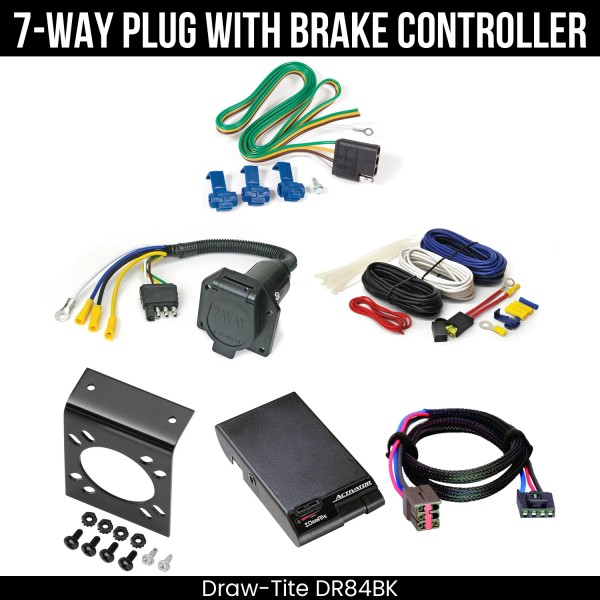

Includes Everything Pictured:
Wiring Connector, 4-Way Flat Vehicle End, 48 Inch Length Wire
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End
Trailer Brake Controller Installation Kit, Wire and Hardware
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts
Activator® Trailer Brake Controller, Timed, 1 to 2 Axles
Trailer Brake Controller Custom Harness, Vehicle & Brake Control Ends
Installation Hardware (if required)
Installation Instructions (if required)
Installation Schematics & Diagrams (if required)

This Trailer Wiring Harness Fits The Following Vehicles:

  • 1994 - 1996 Ford Bronco All Models

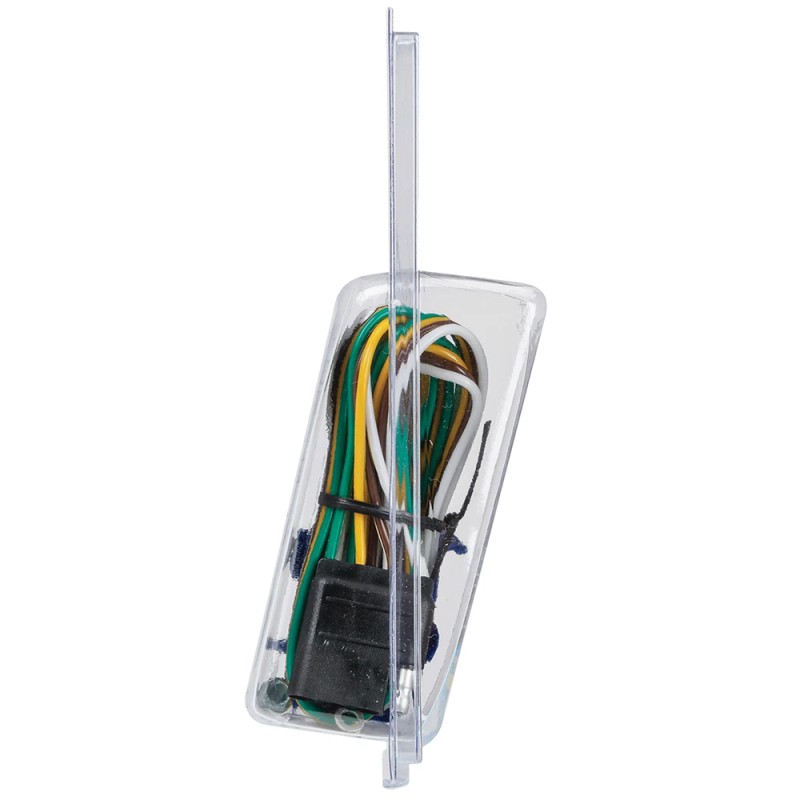

REESE TOWPOWER 78058 Wiring Connector, 4-Way Flat Vehicle End, 48 Inch Length Wire (QTY 1)

Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end, and includes 48 In of wire with splice connectors The included splices connectors make adding a 4-flat connector easy for most vehicle wiring systems..

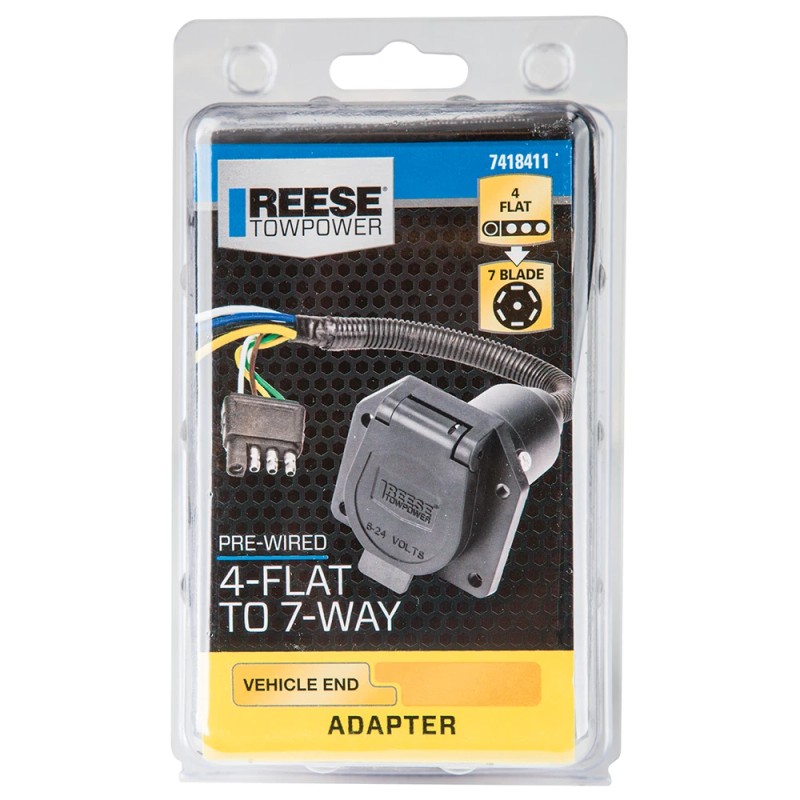

REESE TOWPOWER 7418411 Wiring Adapter, 4-Way Flat to 7-Way, Round Car End (QTY 1)

Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector, provides versatility in going from a 4-way flat to a 7-way standard plug The 7-way connectors include electric brake, auxiliary, and backup circuits..

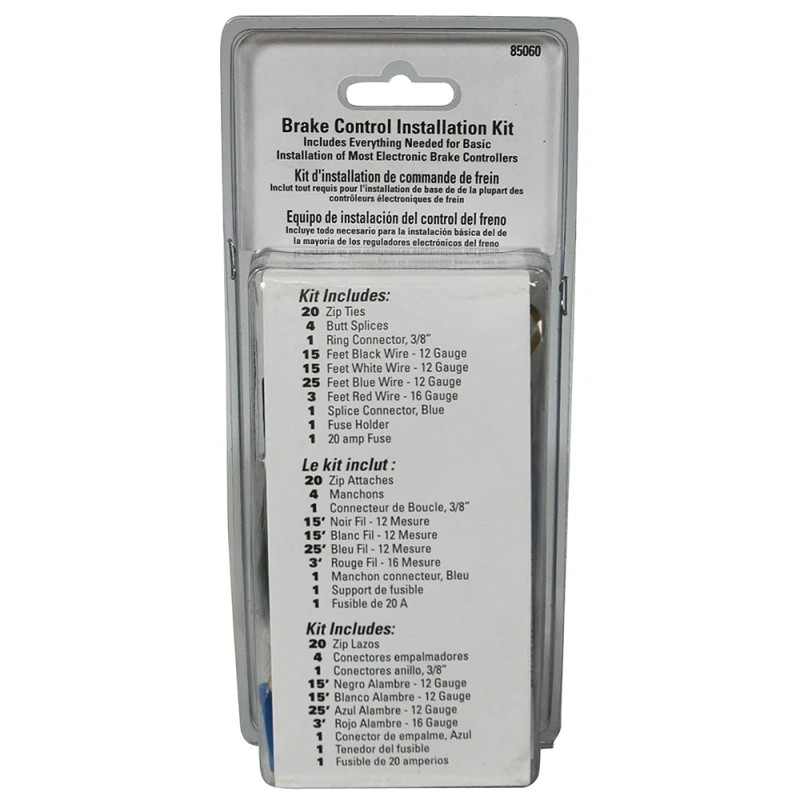

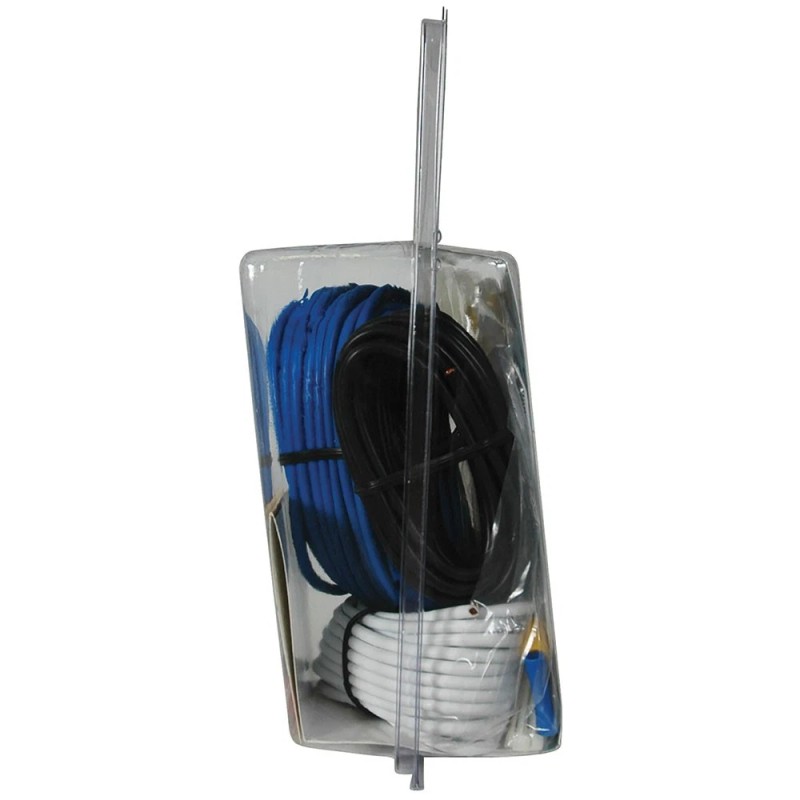

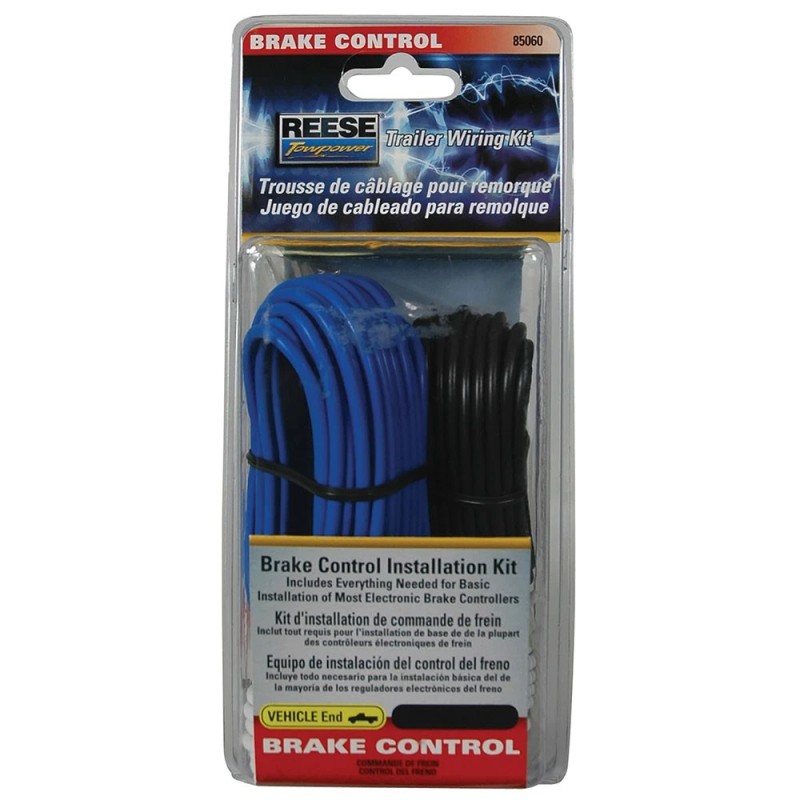

The REESE Towpower Trailer Brake Wiring Kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. The trailer brake control kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle. The kit includes everything necessary to completely install all brake controls: (20) Zip Ties; (4) Butt Splices; (1) Ring Connector 3/8-inch; (1) 12 Gauge Black Wire 15 Feet; (1) 12 Gauge White Wire 15 Feet; (1) 12 Gauge Blue Wire 25 Feet; (1) 16 Gauge Red Wire 3 Feet; (1) Blue Splice Connector; (1) Fuse Holder; (1) 20 Amp Fuse. The REESE Trailer Brake Controller Wiring Kit comes with a limited 1-year warranty. Pioneering performance since 1952, REESE is the industry-leading designer and manufacturer of innovative towing solutions. (QTY 1)

Manufactured by: Reese Towpower

This complete REESE Towpower brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle..

Features:

  • Complete trailer brake controller installation kit with wiring harness
  • UPC: 042899850601

• Mounts electrical connector to attachment bracket• Includes screws and nuts• Attractive point-of-purchase packaging(QTY 1)

Manufactured by: Tow Ready

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts.

Features:

  • Mounts electrical connector to attachment bracket
  • Attractive point-of-purchase packaging
  • Finish: Black Powder Coat
  • Clamshell packaging

Activator Electronic Brake Control for 1 to 2 Axle Trailers; Timed ActuatedSlide adjustment output control and "Up- front" manual over-ride controlIlluminated LED output indicator and front display; view at almost any angleSmooth and simple installation, Plug & Play feature allows quick and easy connectionMounting hardware included (QTY 1)

Manufactured by: Draw-Tite

Activator® Trailer Brake Controller, Timed, 1 to 2 Axles.

Features:

  • 1 to 2 axle trailers
  • Illuminated LED output indicator
  • Slide adjustment output control
  • Up-front manual override control
  • Smooth, simple installation via plug & play quick connection
  • Attractive point-of-purchase display packaging
  • Finish: Black plastic
  • Package type: Clamshell
  • Trailer brake wheel capacity: Up to four wheels
  • Electric brake type
  • LED display output
  • No hydraulic connections required
  • Circuit breaker protection not included
  • Housing color: Black

TEKONSHA 303500 Trailer Brake Controller Custom Harness, Vehicle & Brake Control Ends (QTY 1)

Manufactured by: Tekonsha

Tekonsha trailer brake controller harnesses exist to make connecting your brake controller to your vehicle as easy as possible These custom two-plug units are specifically designed to be used with any Tekonsha brake controller The Plug & Play feature on the Tekonsha wiring harnesses makes them easy to install.

Simply plug one end of the harness into the back of your desired Tekonsha brake controller and the other end into the port in your vehicle No cutting, splicing, or taping required.Each wiring harness is made up of four copper wires wrapped with a braided nylon thread to insulate the wires and protect them against nicks, punctures, and elevated temperatures The four-pin Plug & Play connectors on each end of the harness are uniquely designed, with one end to fit each vehicle based on make and model year specifications, while the other end plugs easily into any Tekonsha brake controller.Tekonsha trailer brake controller harnesses are custom designed, giving you plenty of wire to reach between where it is connected to the vehicle and where it connects to the brake controller without stretching or straining the wires.

And because Tekonsha is the leader in wiring and electrical, you can relax knowing your connections will be safe and secure, so you can hit the road with confidence! With Tekonsha, Life’s a Journey Stop Often..


List of Fitment Years:

1996, 1995, 1994
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or message us for more information

Brand: Draw-Tite
Isin: IWXPQ9YIU6YE

$375.86

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Draw-Tite DrawTite 7-Way Trailer Wiring Harness Kit + Brake Control For 94-96 Ford Bronco

Draw-Tite DrawTite 7-Way Trailer Wiring Harness Kit + Brake Control For 94-96...

$375.86

Includes Everything Pictured:
Wiring Connector, 4-Way Flat Vehicle End, 48 Inch Length Wire
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End
Trailer Brake Controller Installation Kit, Wire and Hardware
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts
Activator® Trailer Brake Controller, Timed, 1 to 2 Axles
Trailer Brake Controller Custom Harness, Vehicle & Brake Control Ends
Installation Hardware (if required)
Installation Instructions (if required)
Installation Schematics & Diagrams (if required)

This Trailer Wiring Harness Fits The Following Vehicles:

  • 1994 - 1996 Ford Bronco All Models

REESE TOWPOWER 78058 Wiring Connector, 4-Way Flat Vehicle End, 48 Inch Length Wire (QTY 1)

Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end, and includes 48 In of wire with splice connectors The included splices connectors make adding a 4-flat connector easy for most vehicle wiring systems..

REESE TOWPOWER 7418411 Wiring Adapter, 4-Way Flat to 7-Way, Round Car End (QTY 1)

Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector, provides versatility in going from a 4-way flat to a 7-way standard plug The 7-way connectors include electric brake, auxiliary, and backup circuits..

The REESE Towpower Trailer Brake Wiring Kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. The trailer brake control kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle. The kit includes everything necessary to completely install all brake controls: (20) Zip Ties; (4) Butt Splices; (1) Ring Connector 3/8-inch; (1) 12 Gauge Black Wire 15 Feet; (1) 12 Gauge White Wire 15 Feet; (1) 12 Gauge Blue Wire 25 Feet; (1) 16 Gauge Red Wire 3 Feet; (1) Blue Splice Connector; (1) Fuse Holder; (1) 20 Amp Fuse. The REESE Trailer Brake Controller Wiring Kit comes with a limited 1-year warranty. Pioneering performance since 1952, REESE is the industry-leading designer and manufacturer of innovative towing solutions. (QTY 1)

Manufactured by: Reese Towpower

This complete REESE Towpower brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle..

Features:

  • Complete trailer brake controller installation kit with wiring harness
  • UPC: 042899850601

• Mounts electrical connector to attachment bracket• Includes screws and nuts• Attractive point-of-purchase packaging(QTY 1)

Manufactured by: Tow Ready

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts.

Features:

  • Mounts electrical connector to attachment bracket
  • Attractive point-of-purchase packaging
  • Finish: Black Powder Coat
  • Clamshell packaging

Activator Electronic Brake Control for 1 to 2 Axle Trailers; Timed ActuatedSlide adjustment output control and "Up- front" manual over-ride controlIlluminated LED output indicator and front display; view at almost any angleSmooth and simple installation, Plug & Play feature allows quick and easy connectionMounting hardware included (QTY 1)

Manufactured by: Draw-Tite

Activator® Trailer Brake Controller, Timed, 1 to 2 Axles.

Features:

  • 1 to 2 axle trailers
  • Illuminated LED output indicator
  • Slide adjustment output control
  • Up-front manual override control
  • Smooth, simple installation via plug & play quick connection
  • Attractive point-of-purchase display packaging
  • Finish: Black plastic
  • Package type: Clamshell
  • Trailer brake wheel capacity: Up to four wheels
  • Electric brake type
  • LED display output
  • No hydraulic connections required
  • Circuit breaker protection not included
  • Housing color: Black

TEKONSHA 303500 Trailer Brake Controller Custom Harness, Vehicle & Brake Control Ends (QTY 1)

Manufactured by: Tekonsha

Tekonsha trailer brake controller harnesses exist to make connecting your brake controller to your vehicle as easy as possible These custom two-plug units are specifically designed to be used with any Tekonsha brake controller The Plug & Play feature on the Tekonsha wiring harnesses makes them easy to install.

Simply plug one end of the harness into the back of your desired Tekonsha brake controller and the other end into the port in your vehicle No cutting, splicing, or taping required.Each wiring harness is made up of four copper wires wrapped with a braided nylon thread to insulate the wires and protect them against nicks, punctures, and elevated temperatures The four-pin Plug & Play connectors on each end of the harness are uniquely designed, with one end to fit each vehicle based on make and model year specifications, while the other end plugs easily into any Tekonsha brake controller.Tekonsha trailer brake controller harnesses are custom designed, giving you plenty of wire to reach between where it is connected to the vehicle and where it connects to the brake controller without stretching or straining the wires.

And because Tekonsha is the leader in wiring and electrical, you can relax knowing your connections will be safe and secure, so you can hit the road with confidence! With Tekonsha, Life’s a Journey Stop Often..


List of Fitment Years:

1996, 1995, 1994
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or message us for more information

  • Brand: Draw-Tite
  • MPN: DR84BK
  • Type: 7-Way Plug with Brake Controller Trailer Wiring Harness
  • Year: 1996, 1995, 1994
  • Make: Ford
  • Fit Model: Bronco
  • Compatible Year: 1994 - 1996
  • NOTE: Molded 4-Flat vehicle connector
  • Feature 1: Features 18 gauge bonded wire
  • Feature 2: Ground wire runs full length of assembly
  • Feature 3: Tin plated terminals
  • Feature 4: Bolded wire for a clean neat appearance.
  • Feature 5: Rated for 7.5 amps per circuit
  • Feature 6: Conforms to SAE spec. J1128 standard
  • Feature 7: Provide versatility in going from 4 way flat to 7 way...
  • Feature 8: Per wired with 4 flat and wired with butt connects and ring
  • Feature 9: Easy wiring featuring prewired with 4 flat and wired with butt
  • Feature 10: Features non corroding brass terminals
  • Manufacturer Warranty: Brake Control 5 Year, Wiring 1 Year
  • Manufacturer Part Number: DR84BK
  • Custom Bundle: Yes
  • Department: Towing
  • Bundle Listing: Yes
  • Universal Fitment: No
