DIY Welcomer Sound Recording Board MP3 Playback Music USB Download Voice Recording Module with PIR Infrared Sensor and Speaker
DIY Welcomer Sound Recording Board MP3 Playback Music USB Download Voice Recording Module with PIR Infrared Sensor and Speaker
DIY Welcomer Sound Recording Board MP3 Playback Music USB Download Voice Recording Module with PIR Infrared Sensor and Speaker
- 5 buttons to control music play / pause, adjust volume. With loop, jog play, single-pass playback
- 2 storage methods: TF card and USB download. Can be connected to the computer through the Micro-USB interface, as a U disk, download MP3 songs directly from the computer. Sound recording board built-in storage space of 4MB, and supports up to 8GB TF card. TF card doesn't included
- Onboard SPI Flash can realize related functions, high quality and low-cost. SPI Flash and TF are used to store MP3 songs, choose one of the two. When both exist, the TF card will play first
- With 3W external power amplifier. If you require higher sound quality for singing, it is recommended to use a better and bigger speaker
- Audio will be played whenever the human body sensing is triggered. If the sensor does not work, please adjust the sensing distance by rotating the potentiometer on the PIR sensor first. The sensing distance is about 1-5 meters. Suitable for public places such as shops, safety experience halls, construction sites, shopping malls, elevators, banks, ATM teller machines, display areas, etc.
- What you will get: 1 X Sounds Recording Module + 1 X Empty Battery Case (need 3PCS AA battery, not included) + 1 X PIR Sensor Module + 1 X Speaker + 1 X Micro-USB Cable
| Brand: | DIYmall |
|---|---|
| Manufacturer: | DIYmall |
| Part Number: | LCR3XNM |
| Isin: | IMXSXYAJIMW1 |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

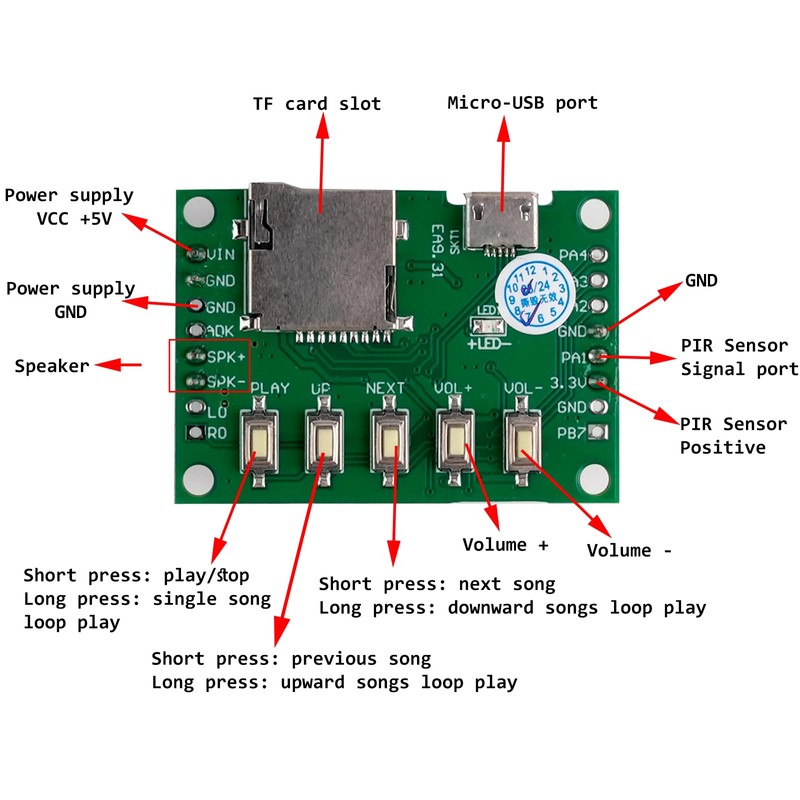

The basic functions are as follows:
- 5 buttons to control music play / pause, adjust volume. With loop, jog play, single-pass playback
- Can be connected to the computer through the MINI-USB interface, as a U disk, download MP3 songs directly from the computer.
- SPI Flash and TF are used to store MP3 songs, choose one of the two. When both exist, the TF card will play first.
- Onboard SPI Flash can realize related functions, high quality and low cost.
- With 3W external power amplifier.
There are two ways to download songs or record:
If the song is less than 4MB, you can copy MP3 songs to the board via Micro USB cable directly:
You connected the micro-USB port of mp3 Voice recorder with your PC or laptop's USB interface, then there will be a disk called" no name" show , open it and copy the mp3 songs to this disk.
If the song is more than 4MB, you need copy the MP3 songs to TF card, then insert the TF card into the card slot of the board
Note:
The songs or record format must be MP3.
TF card is not included.
The supporting speaker is used as a prompt sound effect speaker.
If you want to play singing with higher sound quality, you can change a better speaker.
Package included
1 X Sounds Recording Module
1 X Empty Battery Case (need 3PCS AA battery, not included)
1 X PIR Sensor Module
1 X Speaker
1 X Micro-USB Cable
