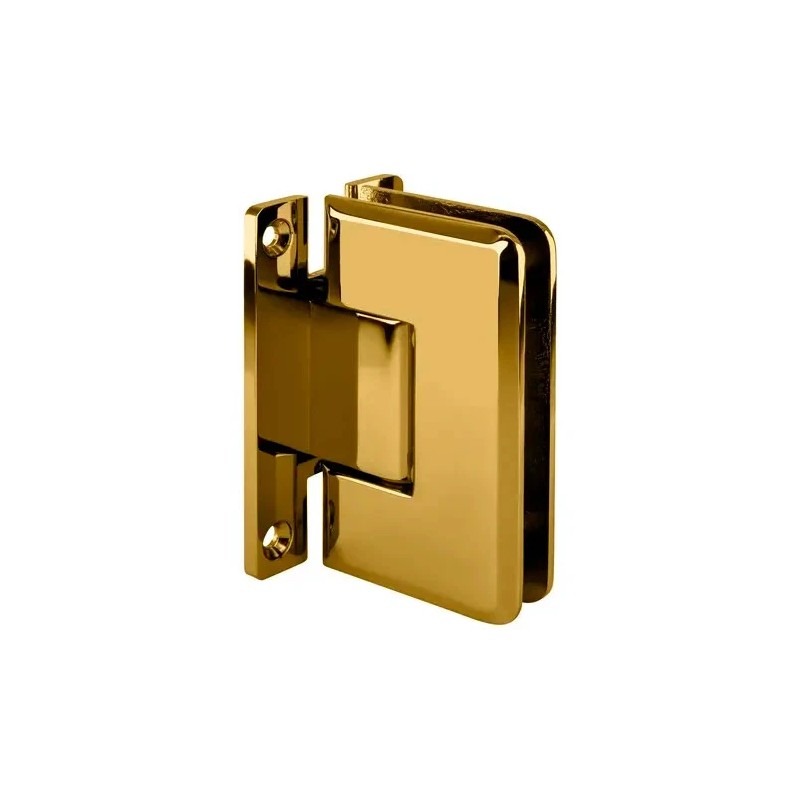

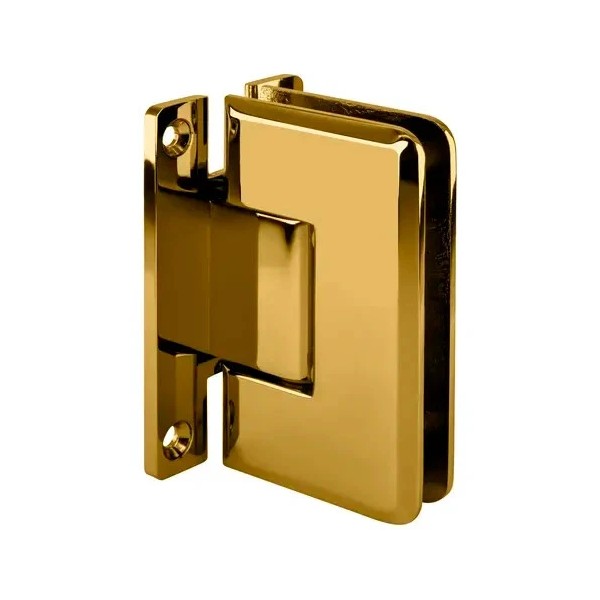

CRL Unlacquered Brass 037 Wall Mount 'H' Back Plate Hinge C0L037ULBR

Brand: CRL
next product image
previous product image

CRL Unlacquered Brass 037 Wall Mount 'H' Back Plate Hinge C0L037ULBR

Brand: CRL
Product Details
  • 5 Degree Pre-Set
    No
    •
  • Adjustable
    No
    •
  • Back Plate
    'H'
    •
  • Design Style
    Beveled
    •
  • Edge Profile
    Beveled
    •
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
    •
  • Finish/Color:
    Unlacquered Brass
    •
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
    •
  • Height
    3-15/16 in. (100 mm)
    •
  • Material
    Brass
    •
  • Maximum Clamping Screw Torque
    60 lbf.in (677.9 cN.m)
    •
  • Maximum Door Weight - 2 Hinges
    110 lbs. (49.9 kg)
    •
  • Maximum Door Weight - 3 Hinges
    140 lbs. (63.5 kg)
    •
  • Maximum Door Width
    36 in. (914 mm)
    •
  • Mounting Type
    Wall Mount
    •
  • Opening Style
    Swing(side)
    •
  • Positive Close
    No
    •
  • Self-Centering
    Yes
    •
  • Series
    Cologne
    •
  • Width
    2-1/4 in. (57 mm)
Product Overview
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Wall Mount 'H' Back Plate Standard Model
  • Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.



Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

 Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brand: CRL
Isin: IWUFXUTYTG0X

$216.30

$216.43
0% off
  • Free shipping in US

  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers

  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
CRL Unlacquered Brass 037 Wall Mount 'H' Back Plate Hinge C0L037ULBR

CRL Unlacquered Brass 037 Wall Mount 'H' Back Plate Hinge C0L037ULBR

$216.30 $216.43 (0% off)

Product Details
  • 5 Degree Pre-Set
    No
    •
  • Adjustable
    No
    •
  • Back Plate
    'H'
    •
  • Design Style
    Beveled
    •
  • Edge Profile
    Beveled
    •
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
    •
  • Finish/Color:
    Unlacquered Brass
    •
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
    •
  • Height
    3-15/16 in. (100 mm)
    •
  • Material
    Brass
    •
  • Maximum Clamping Screw Torque
    60 lbf.in (677.9 cN.m)
    •
  • Maximum Door Weight - 2 Hinges
    110 lbs. (49.9 kg)
    •
  • Maximum Door Weight - 3 Hinges
    140 lbs. (63.5 kg)
    •
  • Maximum Door Width
    36 in. (914 mm)
    •
  • Mounting Type
    Wall Mount
    •
  • Opening Style
    Swing(side)
    •
  • Positive Close
    No
    •
  • Self-Centering
    Yes
    •
  • Series
    Cologne
    •
  • Width
    2-1/4 in. (57 mm)
Product Overview
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Wall Mount 'H' Back Plate Standard Model
  • Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.



Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

 Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Color: Brass
  • Items Included: Hinge
  • Material: Brass
  • MPN: C0L037ULBR
  • Item Depth: 2-1/4"
  • Suitable For: Glass Door
  • Brand: CRL
  • Type: Frameless Shower Door
  • Item Height: 3-15/16 in. (100 mm)
  • Number in Pack: 1
  • Hinge Length: 3-15/16"
  • Model: C0L037ULBR
  • Features: Self Centering
  • Finish: Polished
  • Item Width: 2-1/4 in. (57 mm)
  • Item Weight: 1.95 lbs
  • UPC: Does Not Apply
