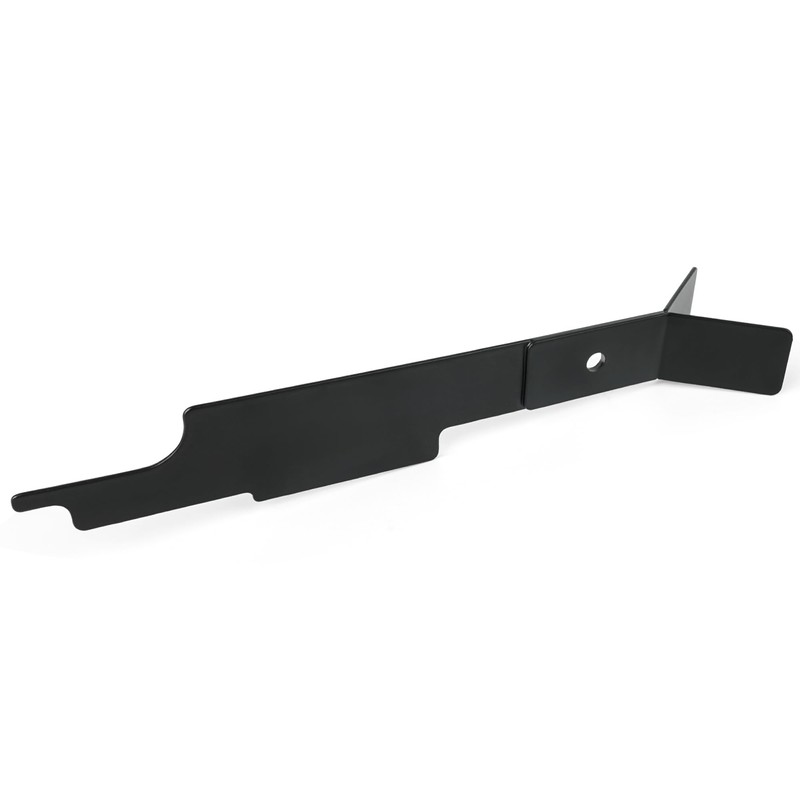

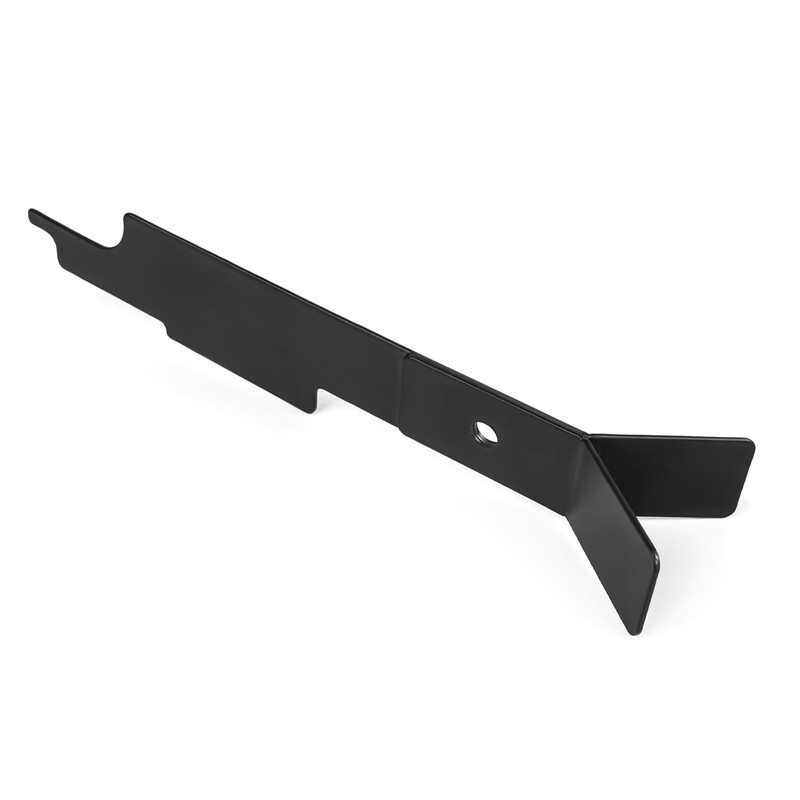

Camotokiit Fuel Injection Pump Upper Lower Drive Gear Train Timing Special Tool Camshaft Alignment Assist for John Deere 3029 4039 4045 6059 6068 Engines Alternative JD254A JD-254A
Camotokiit Fuel Injection Pump Upper Lower Drive Gear Train Timing Special Tool Camshaft Alignment Assist for John Deere 3029 4039 4045 6059 6068 Engines Alternative JD254A JD-254A
Camotokiit Fuel Injection Pump Upper Lower Drive Gear Train Timing Special Tool Camshaft Alignment Assist for John Deere 3029 4039 4045 6059 6068 Engines Alternative JD254A JD-254A
- Drive gear train timing special tool for upper and lower timing gear train installation assist

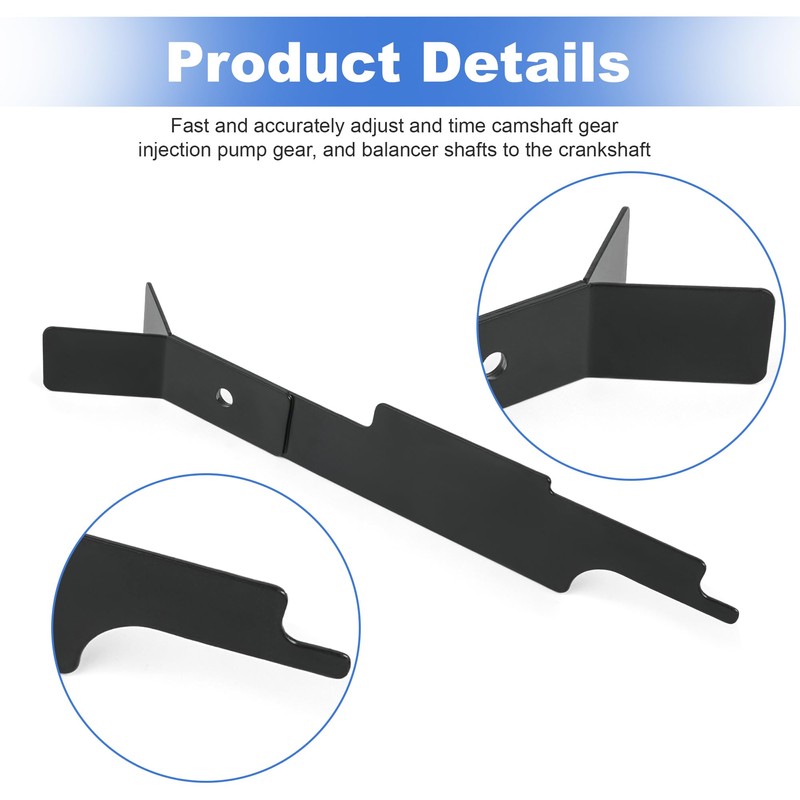

- Fast and accurately adjust and time camshaft gear, injection pump gear, and balancer shafts to the crankshaft·
- Used on John deere 3029 4039 4045 6059 6068 series engines
- For John Deere 3000 series tractors: 3100, 3110, 3200, 3200X, 3210, 3210X, 3300, 3300X, 3310, 3310X, 3400, 3400X, 3410, 3410X
- For John Deere 5000 series tractors: 5300, 5300N, 5400, 5400N, 5103, 5203, 5210, 5303, 5310, 5403, 5500, 5500N
- For John Deere 6000 series tractors: 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900
| Brand: | Camotokiit |
|---|---|
| Manufacturer: | Camotokiit |
| Part Number: | KMF8WM8 |
| Isin: | ITA34ZGBVYVE |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

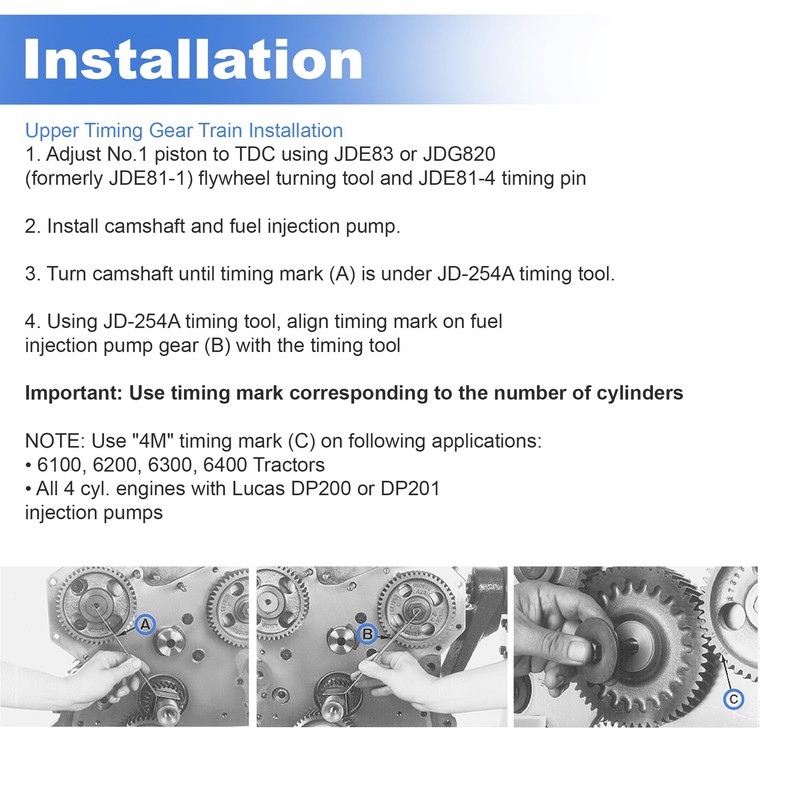

Item Specifics Part Type: Gear Train Timing Tool Fitment Type: Direct Replacement Part Number: JD254A, JD-254A Upper Timing Gear Train Installation 1. Adjust No.1 piston to TDC using JDE83 or JDG820(formerly JDE81-1) flywheel turning tool and JDE81-4 timing pin 2. Install camshaft and fuel injection pump. 3. Turn camshaft until timing mark (A) is under JD-254A timing tool. 4. Using JD-254A timing tool, align timing mark on fuel injection pump gear (B) with the timing tool Important: Use timing mark corresponding to the number of cylinders NOTE: Use "4M" timing mark (C) on following applications: 6100, 6200, 6300, 6400 Tractors All 4 cyl. engines with Lucas DP200 or DP201 injection pumps Lower Timing Gear Train Installation 1. Adjust No. 1 piston to TDC using JDE83 or JDG820(formerly JDE81-1) flywheel turning tool and JDE81-4 timing pin. 2. Install oil pump and balancer shafts(if equipped). 3. On 4-cylinder engines with balancer shafts, turn the right-hand shaft so that timing mark (A) is under JD-254A timing tool. 4. Install lower idler gear without turning balancer shaft. 5. Install new bolt with washer (B) from oil pump side and new nut on front plate gear side. Tighten nut to 110 N·m (80 lb-ft). 6. Turn left-hand balancer shaft until timing mark (C) is under JD-254A timing tool. 7. Install oil pump gear on pump shaft, tighten hex. nut to 75 N·m (55 lb-ft) and secure with three center punch marks. 8. Recheck gear timing for both balancer shafts. Important: Keyway in each balancer shaft must be in the 12 o' clock position and timing marks must be directed toward crankshaft when shafts are correctly timed. Fitment: For John Deere 3000-Series Tractors: 3100, 3110, 3200, 3200X, 3210, 3210X, 3300, 3300X, 3310, 3310X, 3400, 3400X, 3410, 3410X For John Deere 4000-Series Telescopic Handlers: 4400, 4500 For John Deere 5000-Series Tractors: 5300, 5300N, 5400, 5400N, 5103, 5203, 5210, 5303, 5310, 5403, 5500, 5500N For John Deere 5010-Series Tractors: 5310, 5310N, 5310S, 5410, 5410N For John Deere 5000 Advantage Series Tractors: 5105, 5205 For John Deere 5015-Series Tractors: 5215, 5315 For John Deere 5020-Series Tractors: 5220, 5320, 5320N For John Deere 6000-Series Tractors: 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900 For John Deere Waterloo Tractors: 7600 For John Deere Skid Steer Loader: 240, 250, 260 For John Deere Combining Harvesters: 2054, 2254
