60W DC12V Automotive Brushless Water Pump Circulating Pump &PWM Signal Generator
60W DC12V Automotive Brushless Water Pump Circulating Pump &PWM Signal Generator
Here for sale is DC12V 60W brushless water pump W/ LCD PWM Signal Generator, we will send 2PCS connectors and 1PCS connecting wire together with the pump.
There are two types of these pumps, the specification and function are totally the same, the main difference is the outlet direction.

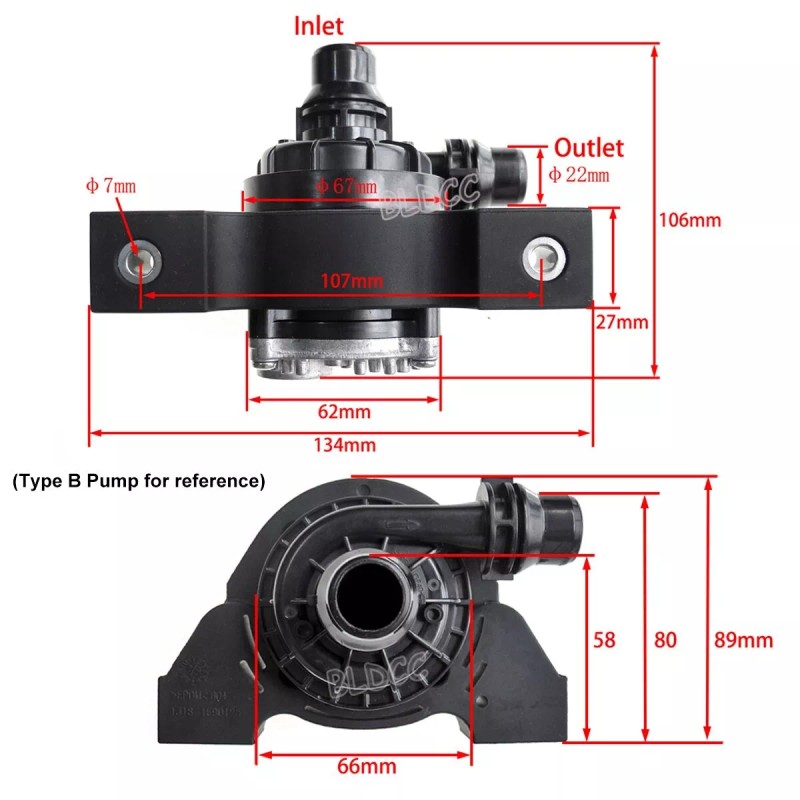

Type A Pump is with right outlet, Type B Pump is with left outlet, this listing is for Type A Pump with right outlet, iif you want Type B Pump with left outlet, Pls Click Here
Buyers pls pay attention that the pump is not self-priming and must work with enough water. Do not test the pump without water, or it will detect the lack of water and stop working!
The pump can work normally without PWM signal, if you donot need PWM speed control, ple connect the orange wire to power positive pole, and you need to connect the black wire and green wire together to power negative pole to make the pump work, then the pump will work with full speed.

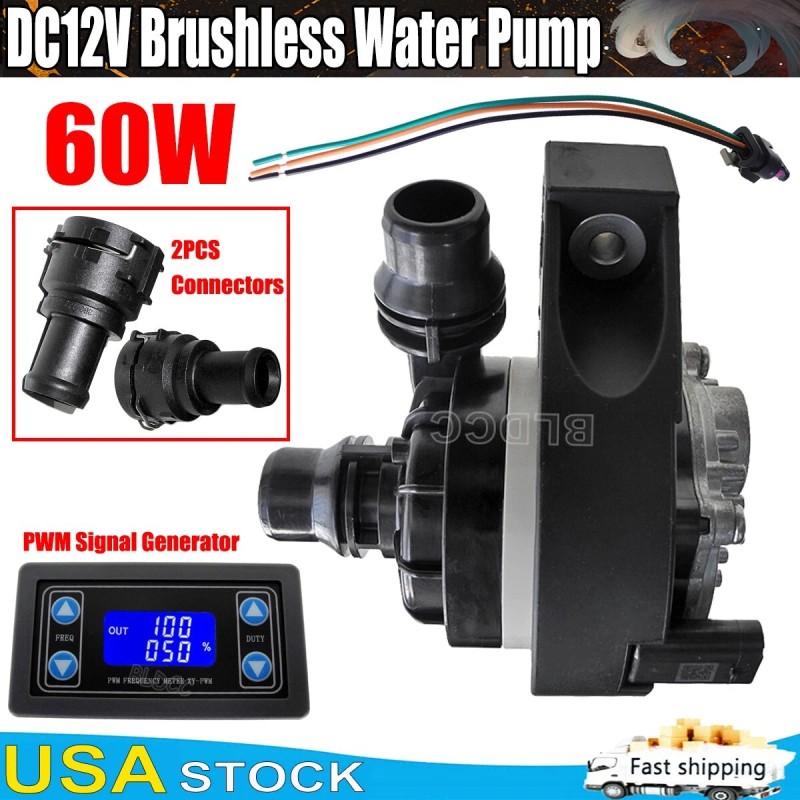

Package Included
* 1PCS DC 12V 60W Type A Pump.
* 2PCS Connectors.
* 1PCS Connecting Wire.
* 1PCS PWM signal generator.
Wiring Diagram
DC12V 60W Brushless Water Pump
This versatile water pump is designed specifically for electric vehicle cooling systems, ensuring excellent quality and reliability. The pumpis equipped with rubber damping brackets for easy installation and fixation.
Its exceptional design allows for operation in extreme environments, ranging from minus 40 degrees Celsius to plus 120 degrees Celsius, ensuring lasting and stable performance. Utilizing a brushless DC motor and controlled through PWM, it effortlessly adjusts its speed, showcasing remarkable efficiency, low noise, and high flow rates. Its unique physical isolation design ensures that the pump rotor, motor stator, and drive circuit are separated from the water, ensuring safety and dependability.

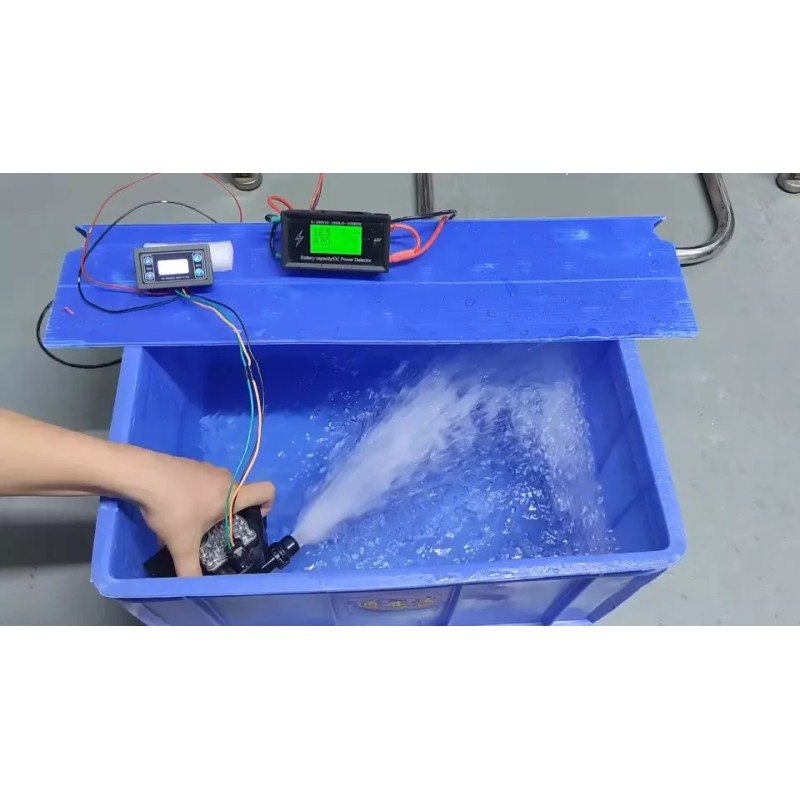

With outstanding waterproof performance, it can also be used as a submersible pump, making it suitable for a wide range of applications, including automotive cooling systems, lithium battery cooling systems, server water cooling systems, hydroponics water circulation, fish tank water circulation, garden irrigation, RV water supply, solar water pumps, and much more.
Attention: For Type A pump, if you donot need PWM speed control, you need to connect the black wire and green wire together to power negative pole to make the pump working!

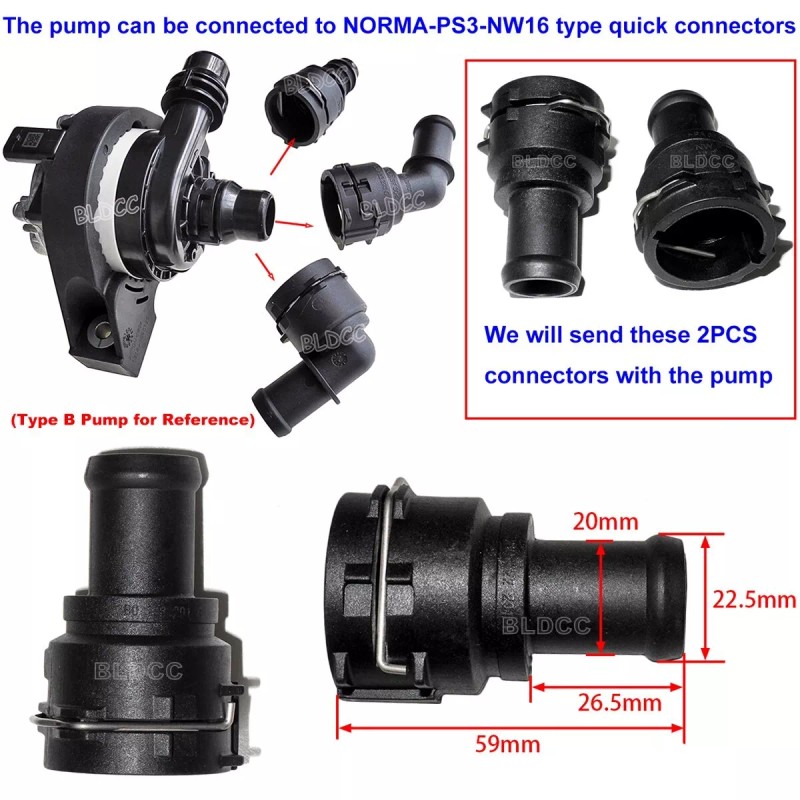

The water pump has quick-connect ports for both the inlet and outlet, which can be connected to fittings from the (Norma-PS3-NW16) series.
If PWM Speed Control *is* Used
If there is no PWM signal within 2 seconds of power-on, the default mode of full speed operation will be used.
If there is a valid PWM signal, a speed-proportional response to a commanded 15-90% duty cycle will be delivered.
+12V PWM controlled,
Recommended PWM frequency: 50Hz to 200Hz (nominal = 100Hz)
Recommended PWM Duty range: 15 - 90%
The water pump operates at its minimum speed when the PWM duty cycle is 15%, and it reaches its maximum speed when the PWM duty cycle is greater than 90%.
PWM Signal Generator
PWM signal generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels.
It is used as a signal source or excitation source for testing. Widely used in production practice and technology.
Features:
1>.With outer casing;
2>.LCD high definition display;
3>.Support UART;
4>.Support frequency adjustment;
5>.Support duty cycle adjustment;
6>.High precision detection;
7>.Support power-down memory function;
8>.1-Channel PWM output.
Parameters:
1>.Product name: PWM Signal Generator;
2>.Model: XY-PWM;
3>.Work voltage: DC 3.3V-30V;
4>.Frequency range:1Hz~150KHz;
5>.Frequency accuracy:2%;
6>.Duty cycle range:0.00%-100%;
7>.Output Current: About 5-30mA;
8>.Output amplitude: Same to input voltage;
9>.Size:79*43*27mm;
10>.Operating temperature:-20℃~70℃;
Frequency set range:
Enter the settings interface when short press any button ‘FREQ+’ or ‘FREQ-’ in the normal running status to select frequency range. Automatically switch frequency range.
Pay attention to the position where the decimal point moves when the button is pressed.
Display ‘XXX’. No decimal point, The minimum frequency is 1Hz. The frequency range is 1Hz ~ 999Hz.
Display ‘X.XX’. The decimal point is the penultimate, The minimum frequency is 0.01KHz.The frequency range is 1.00KHz ~ 9.99KHz.
Display ‘XX.X’. The decimal point is the third last, The minimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz.
Display ‘X.X.X’. The decimal point is fully lit, The minimum frequency is 1KHz.The frequency range is 1KHz ~ 150KHz.
For example:
Display ‘100’ means PWM output frequency is 100Hz;
Display ‘1.01’ means PWM output frequency is 1.01KHz;
Display ‘54.1’ means PWM output frequency is 54.1KHz;
Display ‘1.2.4’ means PWM output frequency is 124KHz;
Duty cycle set range:
Enter the settings interface when short press any button ‘DUTY+’ or ‘DUTY-’ in the normal running status to select duty cycle. Automatically switch frequency range.
Duty cycle range is 0.00%-100%.
Use steps:
1>.Connect to power supply;
2>.Short or long press button ‘FREQ+’ or ‘FREQ-’ to set frequency;
3>.Short or long press button ‘DUTY+’ or ‘DUTY-’ to set duty cycle;
4>.Connect to load.
UART communication and parameter settings
The system supports UART data upload and parameter setting functions (TTL level);
UART: 9600, 8, 1
1>.Set PWM frequency:
‘F101’:Set frequency is 101Hz.‘101’ can by replace by 001~999;
‘F1.05’:Set frequency is 1.05KHz.‘1.05’ can by replace by 1.00~9.99;
‘F10.5’:Set frequency is 10.5KHz.‘10.5’ can by replace by 10.0~99.9;
‘F1.0.5’:Set frequency is 105KHz.‘1.0.5’ can by replace by 1.0.0~1.5.0;
2>.Set PWM duty cycle:
‘DXXX’: Set duty cycle is XXX. ‘XXX’ can be 000-100.
E.g:‘D051’ means PWN duty cycle is be set as 51%.
3>.Read set parameter:
Send ‘read’ and then get parameter.
4>.Return value:
Return ‘DOWN’: Set success.
Return ‘FALL’: Set fail.
Application:
1>.Square wave signal generator, generating square wave signal for experimental development;
2>.Used to generate a square wave signal that controls the motor driver;
3>.Generate adjustable pulses for use by the MCU;
4>.Dimmer;
5>.Speed governor;
Note: It's 1-channel PWM output signals are the same. They can not adjust independently.
About Shipping
- 1. Goods are in stock in USA Warehouses, buyer can get the parcel around 3-7 business days.
- 2. We ship to USA address ONLY, items are generally shipped out within 1-3 business days after receiving confirmed payment, we provide tracking number freely for all buyers.
- 3. Please confirm your shipping address is correct, we are not responsible for undeliverable address. We reserve the right to charge shipping fee for returned items due to wrong address.
- 4. This listing only includes the item price and shipping charges, Import custom duty tax fee are not included.
- Any potential custom duty tax fee are buyer's responsibility, buyers please make clearly of this point before order.
| Brand: | BLDCC |
|---|---|
| Isin: | IY46COE8KIS2 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
60W DC12V Automotive Brushless Water Pump Circulating Pump &PWM Signal Generator
60W DC12V Automotive Brushless Water Pump Circulating Pump &PWM Signal Generator
Here for sale is DC12V 60W brushless water pump W/ LCD PWM Signal Generator, we will send 2PCS connectors and 1PCS connecting wire together with the pump.
There are two types of these pumps, the specification and function are totally the same, the main difference is the outlet direction.
Type A Pump is with right outlet, Type B Pump is with left outlet, this listing is for Type A Pump with right outlet, iif you want Type B Pump with left outlet, Pls Click Here
Buyers pls pay attention that the pump is not self-priming and must work with enough water. Do not test the pump without water, or it will detect the lack of water and stop working!
The pump can work normally without PWM signal, if you donot need PWM speed control, ple connect the orange wire to power positive pole, and you need to connect the black wire and green wire together to power negative pole to make the pump work, then the pump will work with full speed.
Package Included
* 1PCS DC 12V 60W Type A Pump.
* 2PCS Connectors.
* 1PCS Connecting Wire.
* 1PCS PWM signal generator.
Wiring Diagram
DC12V 60W Brushless Water Pump
This versatile water pump is designed specifically for electric vehicle cooling systems, ensuring excellent quality and reliability. The pumpis equipped with rubber damping brackets for easy installation and fixation.
Its exceptional design allows for operation in extreme environments, ranging from minus 40 degrees Celsius to plus 120 degrees Celsius, ensuring lasting and stable performance. Utilizing a brushless DC motor and controlled through PWM, it effortlessly adjusts its speed, showcasing remarkable efficiency, low noise, and high flow rates. Its unique physical isolation design ensures that the pump rotor, motor stator, and drive circuit are separated from the water, ensuring safety and dependability.
With outstanding waterproof performance, it can also be used as a submersible pump, making it suitable for a wide range of applications, including automotive cooling systems, lithium battery cooling systems, server water cooling systems, hydroponics water circulation, fish tank water circulation, garden irrigation, RV water supply, solar water pumps, and much more.
Attention: For Type A pump, if you donot need PWM speed control, you need to connect the black wire and green wire together to power negative pole to make the pump working!
The water pump has quick-connect ports for both the inlet and outlet, which can be connected to fittings from the (Norma-PS3-NW16) series.
If PWM Speed Control *is* Used
If there is no PWM signal within 2 seconds of power-on, the default mode of full speed operation will be used.
If there is a valid PWM signal, a speed-proportional response to a commanded 15-90% duty cycle will be delivered.
+12V PWM controlled,
Recommended PWM frequency: 50Hz to 200Hz (nominal = 100Hz)
Recommended PWM Duty range: 15 - 90%
The water pump operates at its minimum speed when the PWM duty cycle is 15%, and it reaches its maximum speed when the PWM duty cycle is greater than 90%.
PWM Signal Generator
PWM signal generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels.
It is used as a signal source or excitation source for testing. Widely used in production practice and technology.
Features:
1>.With outer casing;
2>.LCD high definition display;
3>.Support UART;
4>.Support frequency adjustment;
5>.Support duty cycle adjustment;
6>.High precision detection;
7>.Support power-down memory function;
8>.1-Channel PWM output.
Parameters:
1>.Product name: PWM Signal Generator;
2>.Model: XY-PWM;
3>.Work voltage: DC 3.3V-30V;
4>.Frequency range:1Hz~150KHz;
5>.Frequency accuracy:2%;
6>.Duty cycle range:0.00%-100%;
7>.Output Current: About 5-30mA;
8>.Output amplitude: Same to input voltage;
9>.Size:79*43*27mm;
10>.Operating temperature:-20℃~70℃;
Frequency set range:
Enter the settings interface when short press any button ‘FREQ+’ or ‘FREQ-’ in the normal running status to select frequency range. Automatically switch frequency range.
Pay attention to the position where the decimal point moves when the button is pressed.
Display ‘XXX’. No decimal point, The minimum frequency is 1Hz. The frequency range is 1Hz ~ 999Hz.
Display ‘X.XX’. The decimal point is the penultimate, The minimum frequency is 0.01KHz.The frequency range is 1.00KHz ~ 9.99KHz.
Display ‘XX.X’. The decimal point is the third last, The minimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz.
Display ‘X.X.X’. The decimal point is fully lit, The minimum frequency is 1KHz.The frequency range is 1KHz ~ 150KHz.
For example:
Display ‘100’ means PWM output frequency is 100Hz;
Display ‘1.01’ means PWM output frequency is 1.01KHz;
Display ‘54.1’ means PWM output frequency is 54.1KHz;
Display ‘1.2.4’ means PWM output frequency is 124KHz;
Duty cycle set range:
Enter the settings interface when short press any button ‘DUTY+’ or ‘DUTY-’ in the normal running status to select duty cycle. Automatically switch frequency range.
Duty cycle range is 0.00%-100%.
Use steps:
1>.Connect to power supply;
2>.Short or long press button ‘FREQ+’ or ‘FREQ-’ to set frequency;
3>.Short or long press button ‘DUTY+’ or ‘DUTY-’ to set duty cycle;
4>.Connect to load.
UART communication and parameter settings
The system supports UART data upload and parameter setting functions (TTL level);
UART: 9600, 8, 1
1>.Set PWM frequency:
‘F101’:Set frequency is 101Hz.‘101’ can by replace by 001~999;
‘F1.05’:Set frequency is 1.05KHz.‘1.05’ can by replace by 1.00~9.99;
‘F10.5’:Set frequency is 10.5KHz.‘10.5’ can by replace by 10.0~99.9;
‘F1.0.5’:Set frequency is 105KHz.‘1.0.5’ can by replace by 1.0.0~1.5.0;
2>.Set PWM duty cycle:
‘DXXX’: Set duty cycle is XXX. ‘XXX’ can be 000-100.
E.g:‘D051’ means PWN duty cycle is be set as 51%.
3>.Read set parameter:
Send ‘read’ and then get parameter.
4>.Return value:
Return ‘DOWN’: Set success.
Return ‘FALL’: Set fail.
Application:
1>.Square wave signal generator, generating square wave signal for experimental development;
2>.Used to generate a square wave signal that controls the motor driver;
3>.Generate adjustable pulses for use by the MCU;
4>.Dimmer;
5>.Speed governor;
Note: It's 1-channel PWM output signals are the same. They can not adjust independently.
About Shipping
- 1. Goods are in stock in USA Warehouses, buyer can get the parcel around 3-7 business days.
- 2. We ship to USA address ONLY, items are generally shipped out within 1-3 business days after receiving confirmed payment, we provide tracking number freely for all buyers.
- 3. Please confirm your shipping address is correct, we are not responsible for undeliverable address. We reserve the right to charge shipping fee for returned items due to wrong address.
- 4. This listing only includes the item price and shipping charges, Import custom duty tax fee are not included.
- Any potential custom duty tax fee are buyer's responsibility, buyers please make clearly of this point before order.
- Housing Material: Does Not Apply
- Items Included: 1PCS 60W Pump, 1PCS Connecting Wire, 1PCS PWM Signal Generator, 2PCS Connectors
- Liquid Temperature: -40°-120°C
- Max Flow: 35L/Min9.25 GPM): No-load flow, open flow in water.
- Item Length: Does Not Apply
- OD of Inlet: 22 mm(NW16)
- Ideal Life Time: 30,000 Hours
- Remarks: Not Self-priming
- Manufacturer Warranty: 1 Year
- Operating Voltage: DC 8.5V~16V
- Item Height: Does Not Apply
- Motor Type: Brushless DC motor
- Features: Built-in Brushless Drive Circuit, High Efficiency, High Flow, No-noise, PWM Speed Adjustable, W/ Rubber Damping Brackets
- Item Width: Does Not Apply
- Mounting Style: Does Not Apply
- Noise Class form 1M: ≤45dB
- Max Lift: 7M
- Manufacturer Part Number: Does Not Apply
- Waterproof Class: IPX7
- Drive Type: Electric
- OD of Outlet: 22 mm(NW16)
- Superseded Part Number: Does Not Apply
- Impeller Material: Does Not Apply
- Ambient Temperature: -40°-120°C
- Rated Voltage: DC 12V
- Brand: BLDCC
- Type: Brushless Water Pump
- Interchange Part Number: Does Not Apply
- OE/OEM Part Number: Does Not Apply
- Rated Current: 5A
- Country/Region of Manufacture: China
- Universal Fitment: Yes
- Power: 60W
- UPC: Does Not Apply
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
| Shipping Method | Estimated Delivery | Cost |
|---|---|---|
| Free Shipping (US) | 5–10 business days | Free, available on eligible items |
| Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
| Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
| Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
- Email: support@ibspot.com
- Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
- The item must be unused, in the same condition as received, and in its original packaging.
- A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
- Perishable goods (for example, food, flowers, newspapers, magazines)
- Intimate or sanitary goods
- Hazardous materials or flammable liquids/gases
- Gift cards
- Downloadable software
- Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
- Books with obvious signs of use
- Opened CDs, DVDs, software, or vinyl records
- Items not in their original condition, damaged, or missing parts not due to our error
- Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
- In-store returns are refunded to the original form of payment or issued as a gift card.
- Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
- 5–7 business days for the return to reach our Returns Center.
- An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
