BIGTREETECH Manta M8P V1.1 Control Board 32Bit Built-in Motherboard Support Clipper/Marlin/RRF Firmware Compatible with TMC2209 Stepper Motor Driver 3D Printer Control Board

Brand: BIGTREETECH
  • The BIGTREETECH Manta M8P control board uses the 32-bit main control chip of the ARM Cortex-M0+ series STM32G0B1VET6 with a core frequency of 64 MHz. High performance MOSFETs are used to reduce heat generation
  • The power chip of the integrated main control board of Manta M8P uses TPS5450-5A, which supports DC12/24V power supply; the output current of this chip is up to 5A and the peak value can reach 6A, which perfectly supports the power supply of Raspberry Pi

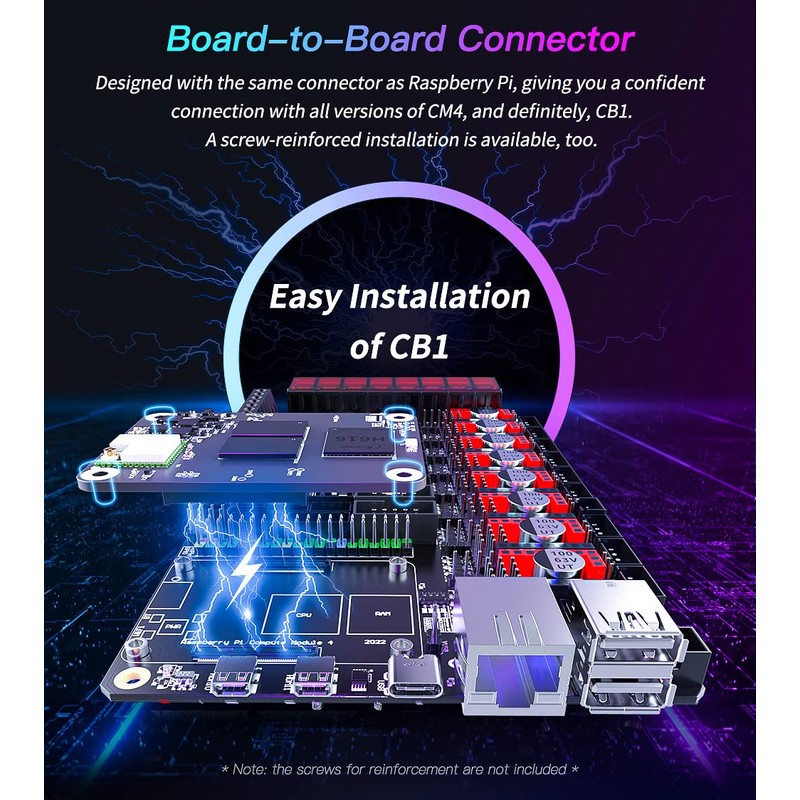

  • The control board and core board use the BTB connection method, so that other core board solutions can be selected as CM4, e.g. B. BIGTREETECH CB1. The motherboard reserves the SPI expansion interface
  • The thermistor can select the pull-up resistance value via the jumper that supports PT1000 without external modules, which is convenient for the DIY enthusiast; the control board reserves a three-way four-wire fan interface that can be used to connect a water cooling system
  • The MCU firmware can be updated via an SD card or via DFU with Klipper make flash command; the motherboard reserves the proximity switch interface and supports NPN and PNP type selection, (24 V, 12 V, 5 V) voltage optional, together with VFAN6 voltage selection
Brand: BIGTREETECH
Color: Schwarz
Manufacturer: BIGTREETECH
Part Number: 81SHMV1
Isin: INUW8M0CQUGP

$222.45

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

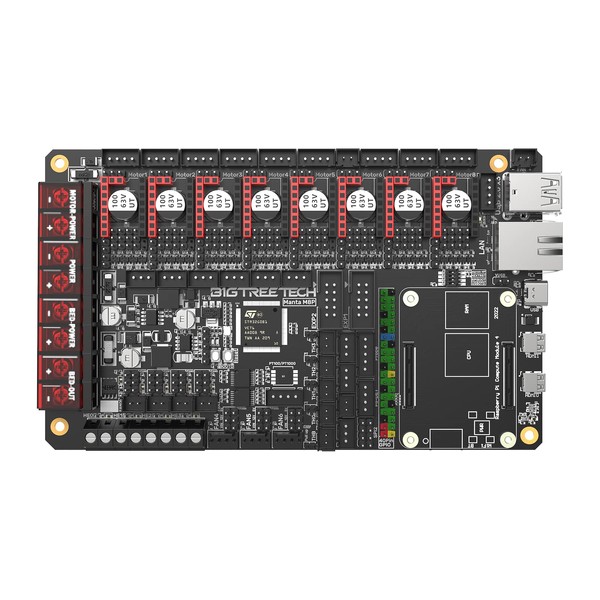

BIGTREETECH Manta M8P V1.1 Control Board 32Bit Built-in Motherboard Support Clipper/Marlin/RRF Firmware Compatible with TMC2209 Stepper Motor Driver 3D Printer Control Board

BIGTREETECH Manta M8P V1.1 Control Board 32Bit Built-in Motherboard Support C...

$222.45

The BIGTREETECH MANTA M8P motherboard is a 32-bit printer motherboard. 3D printing team for clipper firmware. Connect the motherboard to perform the clipper firmware, which greatly simplifies the connection between the motherboard and the Raspberry Pi and saves a lot of money. In the installation space in the chassis, the BTB seat is reserved on the motherboard, allowing customers to choose whether to use CM4 or other solutions to solve the current expensive problem of CM4.

1. Adopt the main control chip of the ARM Cortex-M0 series STM32G0B1VET6 with 32-bit main frequency and 64 MHz.
2. The power supply chip uses TPS5450-5A, which supports DC12/24V power supply. The output current of the chip is up to 5A and the peak value up to 6A, which perfectly supports the power supply of the Raspberry Pi
3. The motherboard reserves the BOOT button, and users can update the boot program of the motherboard via DFU;
4. The 24V, 12V and 5V voltages of the CNC fans are optional, so the customer does not need to operate an external transformer module, reducing the likelihood of damage to the motherboard.
5. The thermistor can select the pull-up resistance value via the jumper. In this way, it supports PT1000 without external module, which is convenient for customers to use it themselves.
6. The MCU firmware can be updated via an SD card, or the MCU firmware can be updated via DFU via Klipper make flash command. 7. The motherboard and core board use the BTB connection method, so that other core board solutions can be selected as CM4;
8. Support material breakage detection, shutdown, BLTouch, RGB lights and other functions
