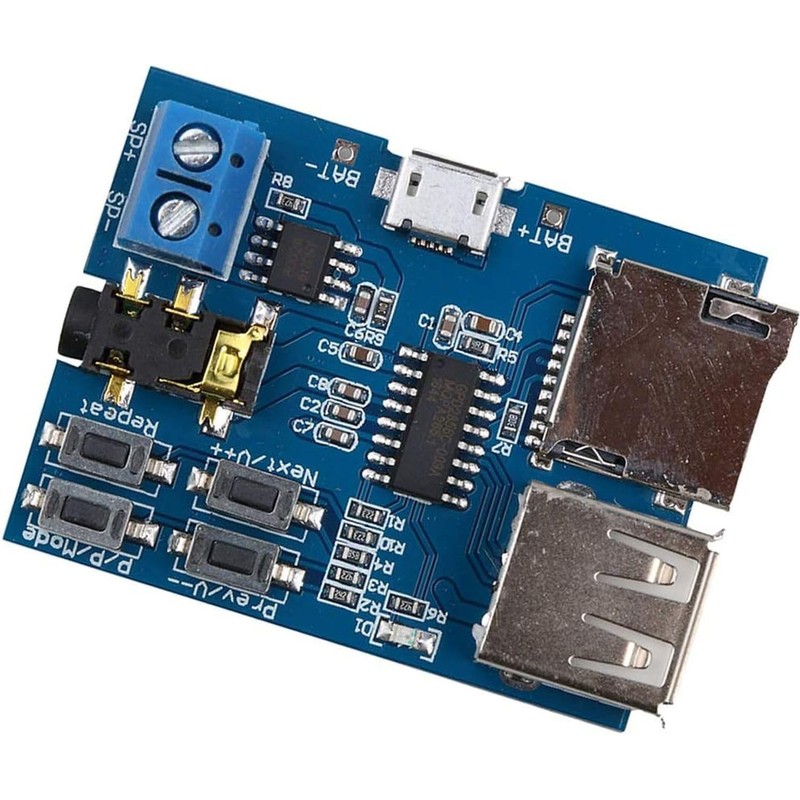

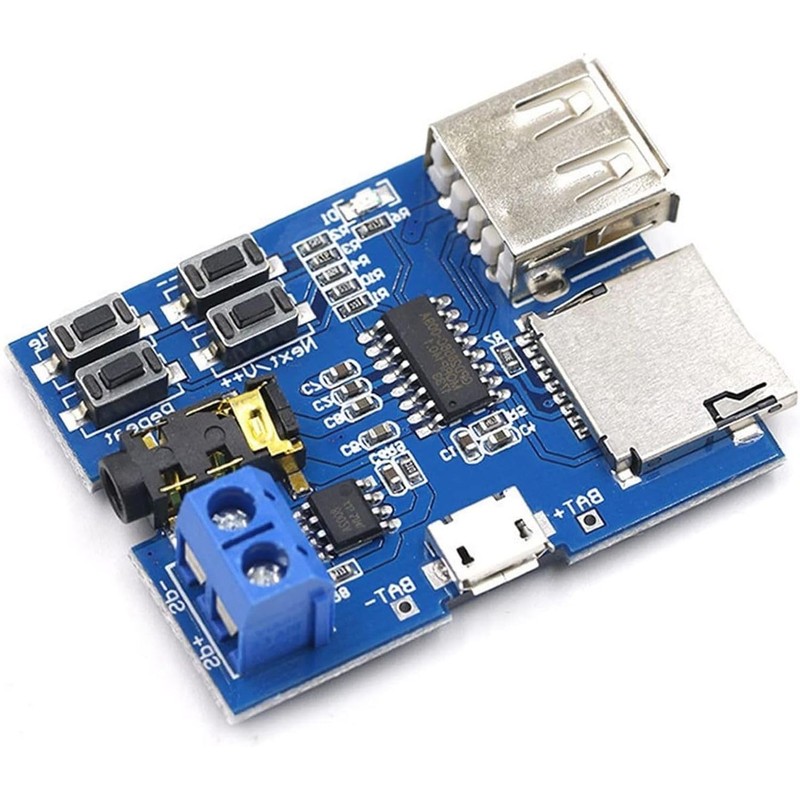

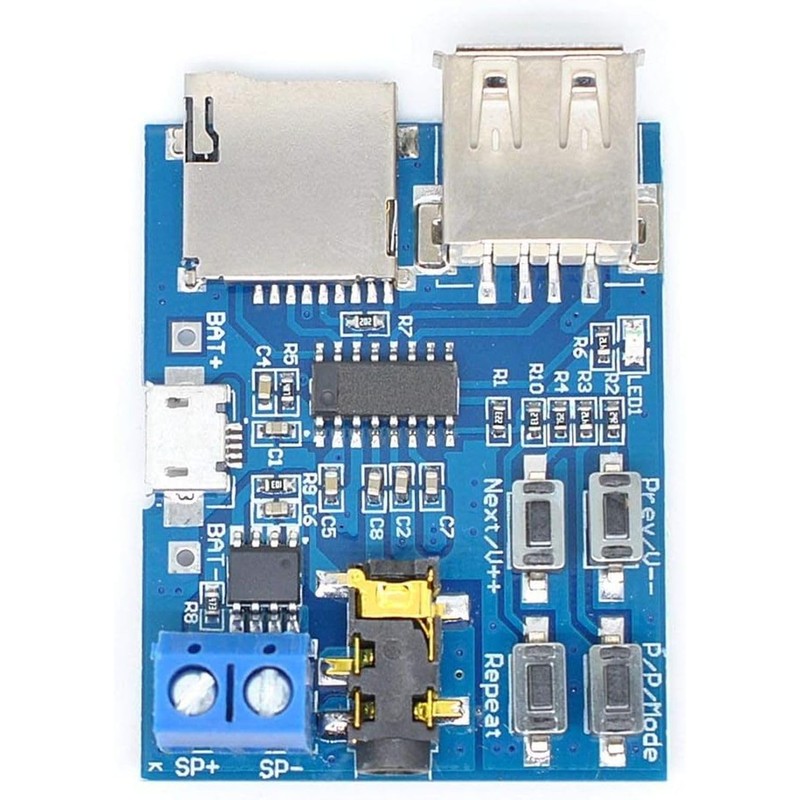

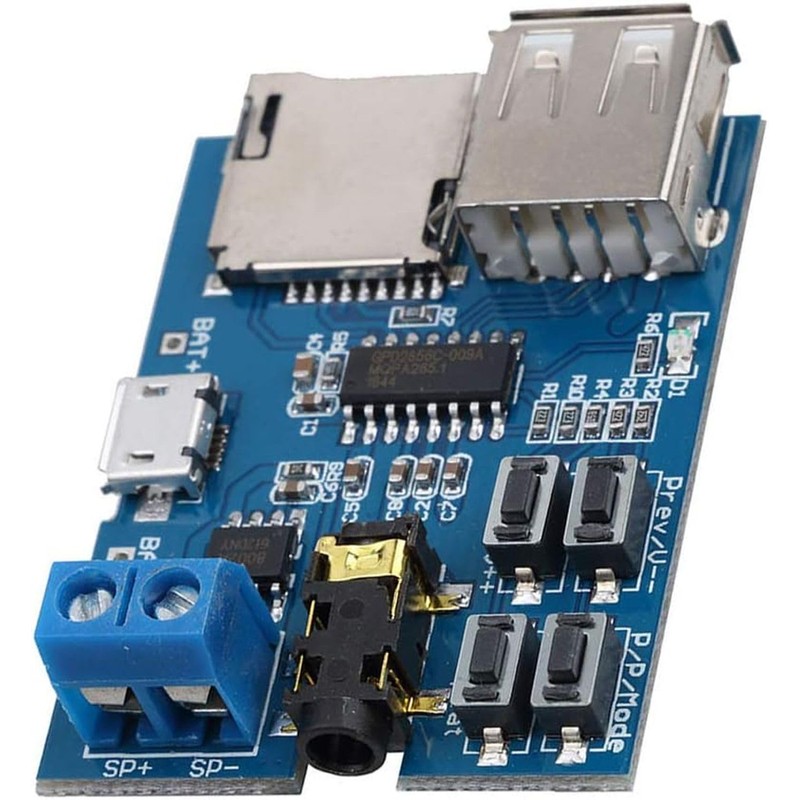

AYMBH MP3 Decoder Board with Lossless Audio, Onboard 2W Power Amplifier, TF Card & USB Support, Auto Playback, Compact MP3 Player Module for DIY Audio Projects
AYMBH MP3 Decoder Board with Lossless Audio, Onboard 2W Power Amplifier, TF Card & USB Support, Auto Playback, Compact MP3 Player Module for DIY Audio Projects
AYMBH MP3 Decoder Board with Lossless Audio, Onboard 2W Power Amplifier, TF Card & USB Support, Auto Playback, Compact MP3 Player Module for DIY Audio Projects
- 📌👉【VERSATILE PLAYBACK】 Supports MP3 format with automatic power-on playback, compatible with TF cards (16GB max) and USB drives (32GB max).
- 📌👉【HIGH-QUALITY SOUND】 Features an onboard 2W mono-channel amplifier and a 3.5mm gold-plated headphone jack for superior audio performance.
- 📌👉【MULTIPLE POWER OPTIONS】 Operates via 3.7V lithium battery, USB 5V power supply, or mobile power sources for added flexibility.
- 📌👉【USER-FRIENDLY DESIGN】 Includes four buttons for easy track selection, volume control, playback mode, and loop settings.
- 📌👉【EASY INSTALLATION】 Solder-free speaker terminals simplify the connection process, making it perfect for DIY projects.
- 📌👉【COMPACT & PORTABLE】 Small size (46mm x 36mm) and lightweight (9.5g), suitable for retrofitting and custom audio projects.
- 📌👉【RELIABLE PERFORMANCE】 Red LED indicator shows playback status; supports long-press functions for enhanced control.
| Brand: | AYMBH |
|---|---|
| Manufacturer: | AYMBH |
| Part Number: | PTKK256 |
| Isin: | IAY2TFDDAO83 |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
𝕬𝖞𝖒𝖇𝖍
📜 𝕯𝖊𝖘𝖈𝖗𝖎𝖕𝖙𝖎𝖔𝖓
⪻⭐⪼ Enhance your audio projects with the MP3 Decoder Board, a versatile and high-performance module designed to deliver exceptional sound quality in a compact form factor. This decoder board features an onboard 2W mono-channel amplifier, capable of reaching 3W output with a 5V power supply, making it ideal for direct connection to 4Ω 3W speakers. For private listening, the 3.5mm gold-plated headphone jack ensures a seamless connection to headphones or external sound systems.
⪻⭐⪼ Equipped with multiple power supply options, including a Micro USB interface and compatibility with 3.7V lithium batteries, this module offers unmatched flexibility. The board supports both TF cards (up to 16GB) and USB drives (up to 32GB), providing diverse playback options to suit your needs. Upon powering up, the device automatically begins playback, with a red LED indicator showing its active status.
⪻⭐⪼ Four onboard buttons allow easy navigation between tracks, volume adjustment, playback control, and mode switching. Additionally, users can set playback modes, including single-track or full-song loop. With terminals that require no soldering, the MP3 Decoder Board is user-friendly and ideal for DIY enthusiasts.
⪻⭐⪼ Its compact design, measuring just 46mm x 36mm and weighing 9.5g, makes it perfect for retrofitting and customizing audio solutions. Whether you're building a portable speaker, upgrading your sound system, or creating a unique project, this decoder board is a reliable and efficient choice.
🧮 𝕱𝖊𝖆𝖙𝖚𝖗𝖊𝖘
⪻⭐⪼ MP3 Format Support: Plays MP3 files seamlessly, with automatic playback upon power-on.
⪻⭐⪼ Onboard Amplifier: Features a 2W mono-channel amplifier (up to 3W with 5V power supply) for direct speaker connection.
⪻⭐⪼ Flexible Playback Options: Compatible with TF cards (up to 16GB) and USB drives (up to 32GB).
⪻⭐⪼ Multiple Power Supply Modes: Operates using a 3.7V lithium battery, USB 5V power source, or mobile charger via Micro USB.
⪻⭐⪼ User-Friendly Buttons: Equipped with four buttons for track selection, volume adjustment, playback mode, and looping options.
⪻⭐⪼ Gold-Plated Headphone Jack: Includes a 3.5mm headphone socket for headphones or external sound systems.

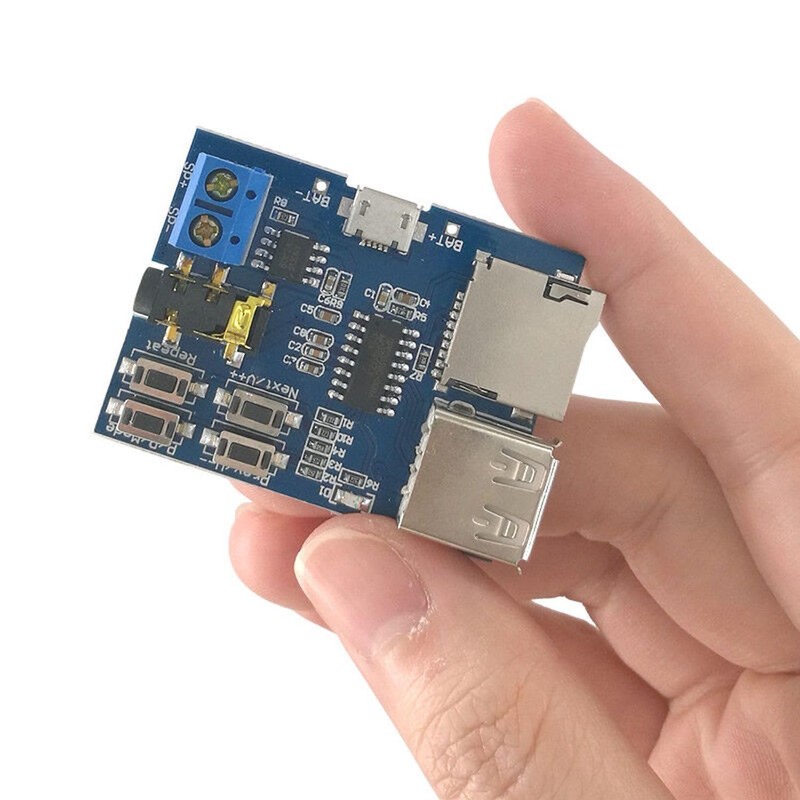

⪻⭐⪼ Compact Design: Lightweight and portable, measuring just 46mm x 36mm and weighing 9.5g.
⪻⭐⪼ Red LED Indicator: Displays playback status for easy monitoring.
⪻⭐⪼ Solder-Free Connections: Speaker terminals require no soldering, simplifying the installation process.
⪻⭐⪼ Customizable Playback Modes: Supports single-track and full-song loop playback with manual control.
🛠 𝕾𝖕𝖊𝖈𝖎𝖋𝖎𝖈𝖆𝖙𝖎𝖔𝖓
⪻⭐⪼ Power Range: 3.7V to 5.5V
⪻⭐⪼ Amplifier Output: 2W mono-channel (up to 3W with 5V)
⪻⭐⪼ Supported Storage:
⪻⪼ TF Card: Maximum 16GB
⪻⪼ USB Drive: Maximum 32GB
⪻⭐⪼ Interface:
⪻⪼ 3.5mm gold-plated headphone jack
⪻⪼ Micro USB power input

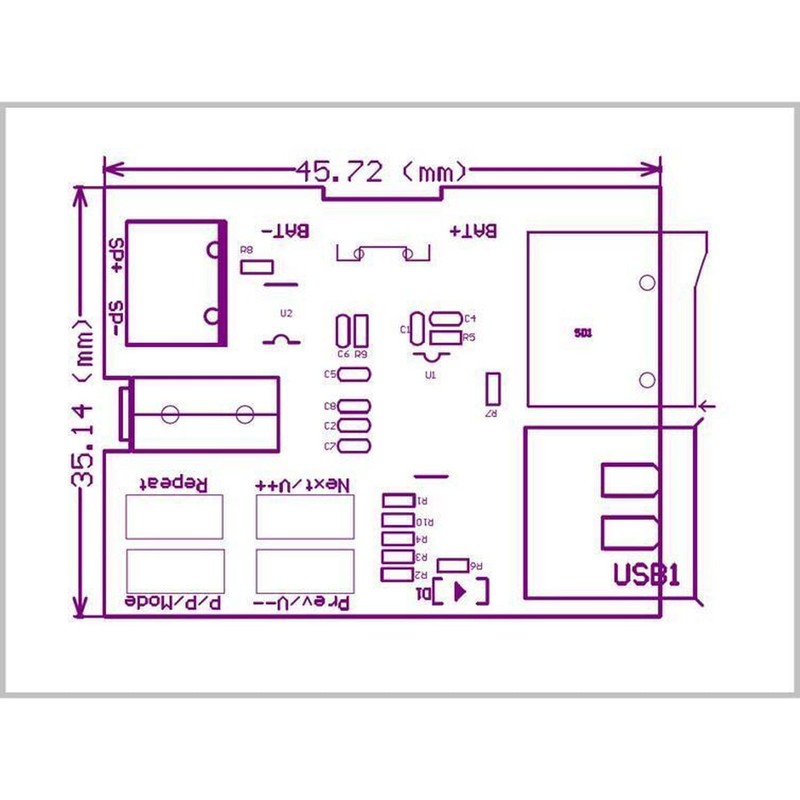

⪻⭐⪼ Dimensions: 46mm x 36mm
⪻⭐⪼ Weight: 9.5g
⪻⭐⪼ Supported Formats: MP3
⪻⭐⪼ LED Indicator: Red light for active playback

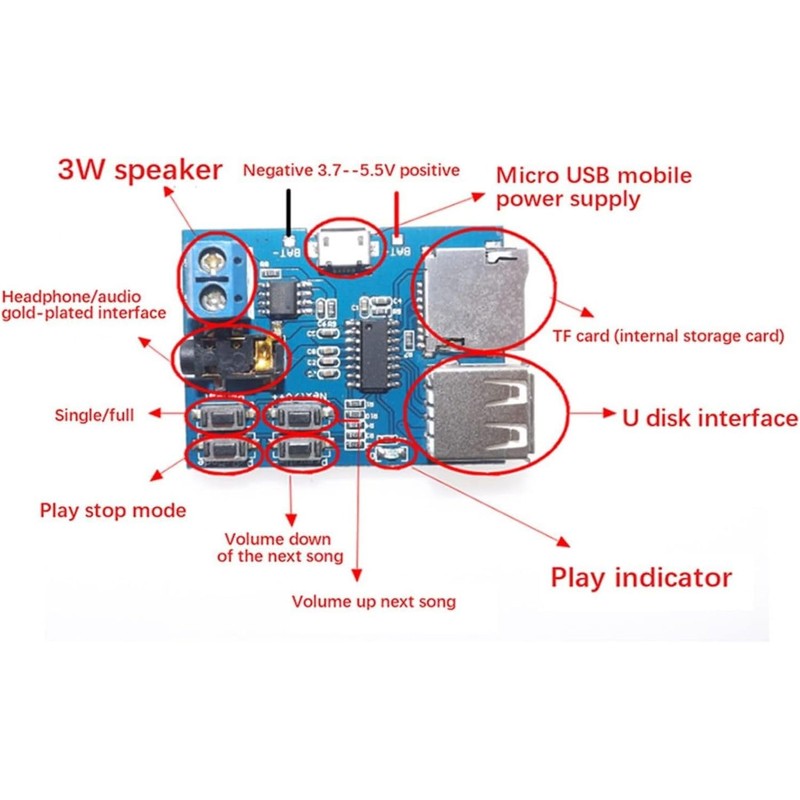

⪻⭐⪼ Button Functions:
⪻⪼ Prev/V--: Short press for previous track, long press for volume down
⪻⪼ Next++: Short press for next track, long press for volume up
⪻⪼ P/P/Mode: Short press for play/pause, long press to switch between USB and TF Card mode
⪻⪼ Repeat: Short press to toggle between single-track and full-song loop
🛒 𝕭𝖔𝖝 𝕴𝖓𝖈𝖑𝖚𝖉𝖊𝖘
⪻⭐⪼ 1 x Mp3 Lossless Decoders Decoding Power Amplifier
📝 𝕹𝖔𝖙𝖊𝖘
⪻⭐⪼ Power Supply Requirements: For U disk mode, it is recommended to use a 5V power supply, as some USB drives may not work with a 3.7V power source.
⪻⭐⪼ Long-Press Duration: Long-press actions require holding the button for approximately 2 seconds.
⪻⭐⪼ Automatic Mode Switching: If a TF card is not detected, the module automatically switches to USB mode. Both devices can be installed simultaneously, with manual mode selection available.
⪻⭐⪼ Speaker Compatibility: Works best with 4Ω 3W speakers for optimal sound quality.
⪻⭐⪼ Version Variability: There may be slight differences between module versions due to random delivery.
⪻⭐⪼ No Additional Welding Needed: Speaker terminals are designed for easy and convenient connection without soldering.
⪻⭐⪼ Playback Priority: TF card mode is the default upon power-on. If both the TF card and USB drive are connected, manual mode selection is recommended for customization.
