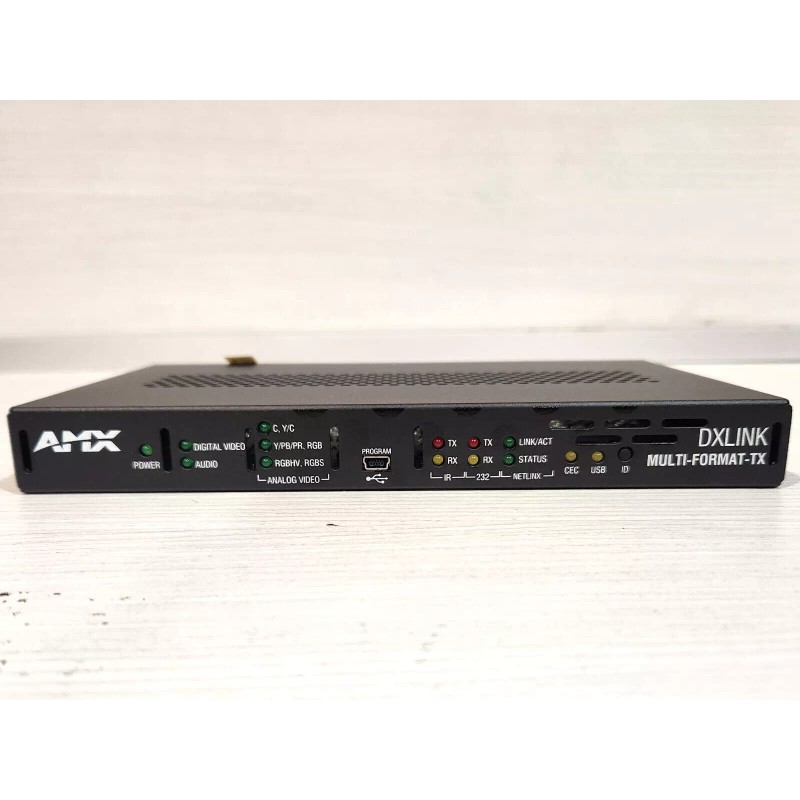

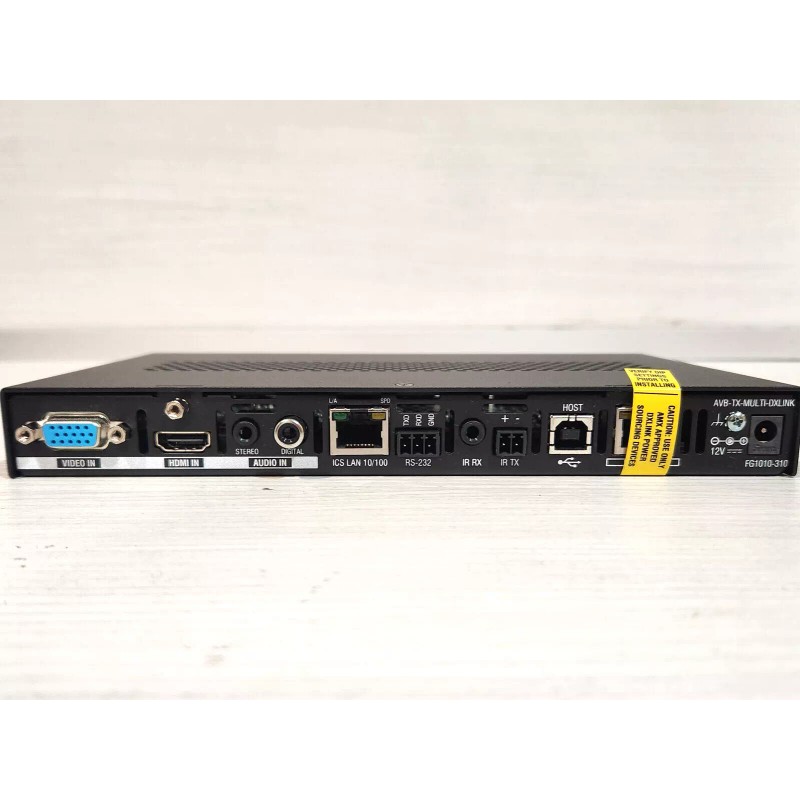

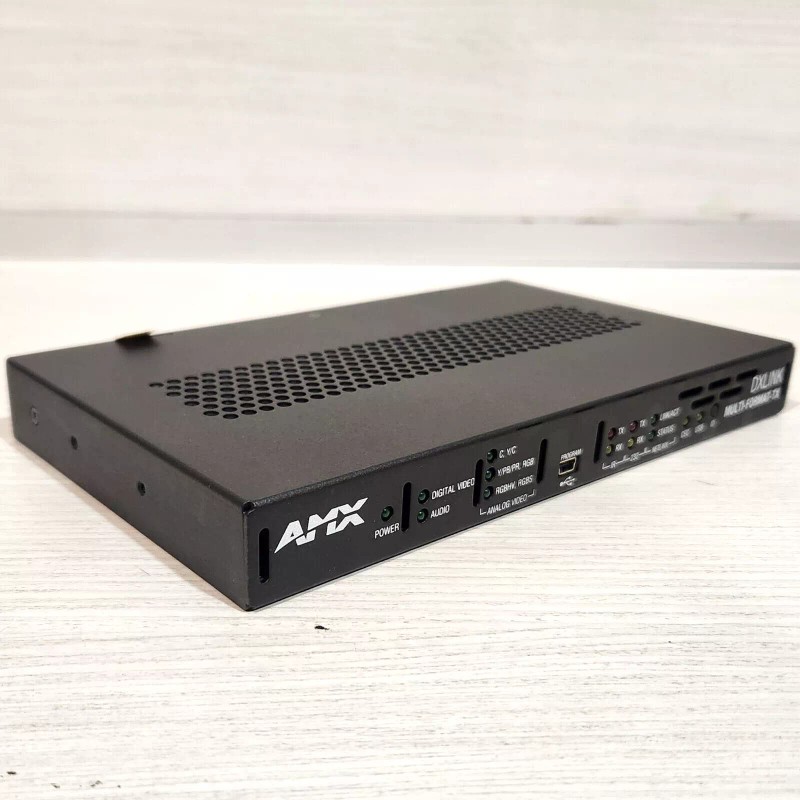

AMX Harmon DXLINK MULTI FORMAT-TX FG1010-310-B DX TX Made In USA

Brand: AMX

Condition:

Brand New, Never Been Used. Original Packaging.

Open Box - Only to check quality of inventory

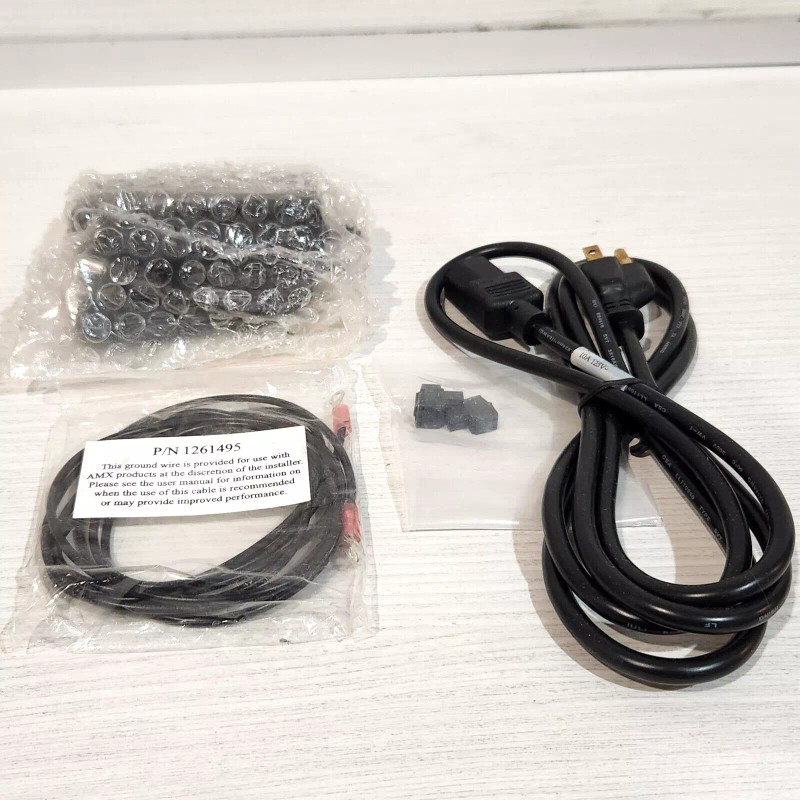

Included:

1X DXLINK MULTI FORMAT-TX FG1010-310-B DX TX



Specs:

Overview
The DXLink Multi-Format Transmitter sends analog and digital audio and video
signals including HDMI with HDCP, control, and Ethernet up to 100 meters over one
standard twisted pair cable. Use the DXLink Transmitter with the Enova DGX DXLink
Twisted Pair Input Boards or compatible Enova DVX All-In-One Presentation
Switchers. The DXLink Transmitter can also be used as a point-to-point solution
with a DXLink HDMI Receiver. The DXLink Transmitter can be powered from any
DXLink power source such as the Enova DGX DXLink Twisted Pair Input Board,
Enova DVX-3155HD, DVX-3156HD, DVX-2155HD, PS-POE-AT-TC or PDXL-2. It also
includes a local power supply. The transmitter features both a multi-format analog
port to support legacy devices and an HDMI port to support newer digital devices.
COMMON APPLICATIONS
The DXLink Multi-Format Transmitter sends analog or digital video, audio and control to a remote display across
the room, on the other side of the house or to a classroom down the hall. The transmitter's built-in control ports
can be used to control a source and the ICSLan port provides an IP access point.
FEATURES
 Only One Cable – Send audio and video while passing control, Ethernet, USB signals and power
 Native NetLinx Control Everywhere – Control connected source and display devices using the built-in IR and
RS-232 ports
 Send HDMI signals up to 100 meters – Extend the reach of the HDMI signals far beyond the capabilities of
typical HDMI cabling
 Multi-Format Analog Port and HDMI Port – Supports legacy analog signals - RGBHV, Component, S-video,
and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
 Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective
twisted pair cable, see the Cabling for Success with DXLink white paper for more details

GENERAL
Dimensions (HWD) 1” x 8 3/4” x 5 1/5” (2.54 x 22.12 cm x 13.08 cm)
Weight Approx. 1.1 lb (0.50 kg)
Shipping Weight: Approx. 2.20 lb (1.00 kg)
Mounting Options Compatible with all V Style versatile mounting options
including rack, surface or pole
Transport Layer Throughput (Max) 10.2 Gbps
Compatible AMX Products •Enova DGX 8/16/32/64 Digital Media Switchers
•Enova DVX-3155HD, DVX-3156HD and 2155HD All-In-
One Presentation Switchers
•DXLink HDMI RX as a point-to-point solution
•PS-POE-AT-TC High Power PoE Injector
•PDXL-2 Power over DXLink Controller
Twisted Pair Cable Type Shielded Cat6, Cat6A and Cat7
DXLink twisted pair cable runs for DXLink equipment
shall only be run within a common building where a
common building is defined as: the walls of the
structure(s) are physically connected and the
structure(s) share a single ground reference
For more details and helpful cabling information,
reference the white paper titled Cabling for Success
with DXLink, or contact your AMX representative
Twisted Pair Cable Length Up to 328 ft (100 m)
MTBF 381,000 hours
Airflow Convection (openings on top of case)
Regulatory Compliance FCC
CE EN 55022
CE EN 55024
CE EN 60950-1
IEC 60950-1
UL 60950-1
cUL
RoHS / WEEE Compliant
3
Included Accessories Each HDMI RX ships with a desktop power supply
(ENERGY STAR qualified) with power cord
Optional Accessories •AVB-VSTYLE-SURFACE-MNT, V Style Module Surface
Mount (FG1010-722)
•AVB-VSTYLE-RMK-1U, V Style Module Tray (FG1010-
720)
•AVB-VSTYLE-RMK-FILL-1U, V Style Module Tray w/fill
Plates (FG1010-721)
•AVB-VSTYLE-POLE-MNT, V Style Module Pole Mount
(FG1010-723)
•CC-NIRC, NetLinx IR Emitter Cable (FG10-000-11)
•IR03, External IR Receiver Module (FG-IR03)
•PS-POE-AT-TC High Power PoE Injector (FG423-84)
•PDXL-2 Power over DXLink Controller (FG1090-170)
ACTIVE POWER REQUIREMENTS
AC Power 100-240 VAC single phase, 50-60 Hz
0.6 A @ 115 VAC max
Power Consumption (Max) Local 12V supplied: 9 W
Power over DXLink supplied: 10 W
DXLink Power Power can also be supplied by a DXLink Power
sourcing device such as:
•Enova DGX 8/16/32/64 Digital Media Switcher (with a
DXLink Twisted Pair Input Board installed)
•Compatible Enova DVX All-In-One Presentation
Switcher (3155HD, 3156HD or 2155HD)
•PS-POE-AT-TC High Power PoE Injector
•PDXL-2 Power over DXLink Controller
When installed in conjunction with an Enova DGX use
the Enova DGX Configuration Tool located at
AMX.com/enova to determine the power
requirements of the configuration
AMX only supports the use of these approved Power
over DXLink solutions. Other third party
power supplies or non-compatible standard PoE
solutions may damage the DXLink equipment.
Power Connector 2.1 mm DC Power Jack (for optional local DC power)
DXLink Power connector is included on DXLink
connection
POWER SUPPLY
External, Included Each Multi-Format TX ships with a desktop power
supply (ENERGY STAR qualified) with power cord
External, Optional Power can also be supplied by a DXLink Power
sourcing device such as:
•Enova DGX 8/16/32/64 Digital Media Switcher (with a
DXLink Twisted Pair Input Board installed)
•Compatible Enova DVX All-In-One Presentation
Switcher (3155HD, 3156HD or 2155HD)
•PS-POE-AT-TC High Power PoE Injector
•PDXL-2 Power over DXLink Controller
When installed in conjunction with an Enova DGX use
the Enova DGX Configuration Tool located at
AMX.com/enova to determine the power
4
requirements of the configuration
AMX only supports the use of these approved Power
over DXLink solutions. Other third party
power supplies or non-compatible standard PoE
solutions may damage the DXLink equipment.
