Aihasd 7.0 Inch Nextion Enhanced HMI USART UART Serial TFT LCD Module Display Resistive Touch Panel Touch Display Panel Module with Enclosure
Aihasd 7.0 Inch Nextion Enhanced HMI USART UART Serial TFT LCD Module Display Resistive Touch Panel Touch Display Panel Module with Enclosure
Aihasd 7.0 Inch Nextion Enhanced HMI USART UART Serial TFT LCD Module Display Resistive Touch Panel Touch Display Panel Module with Enclosure

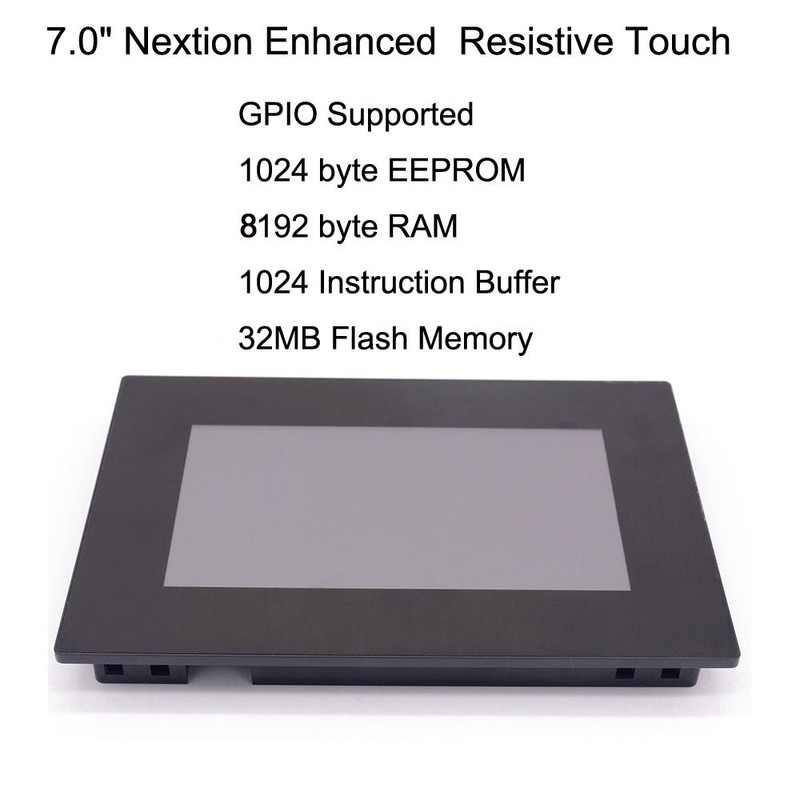

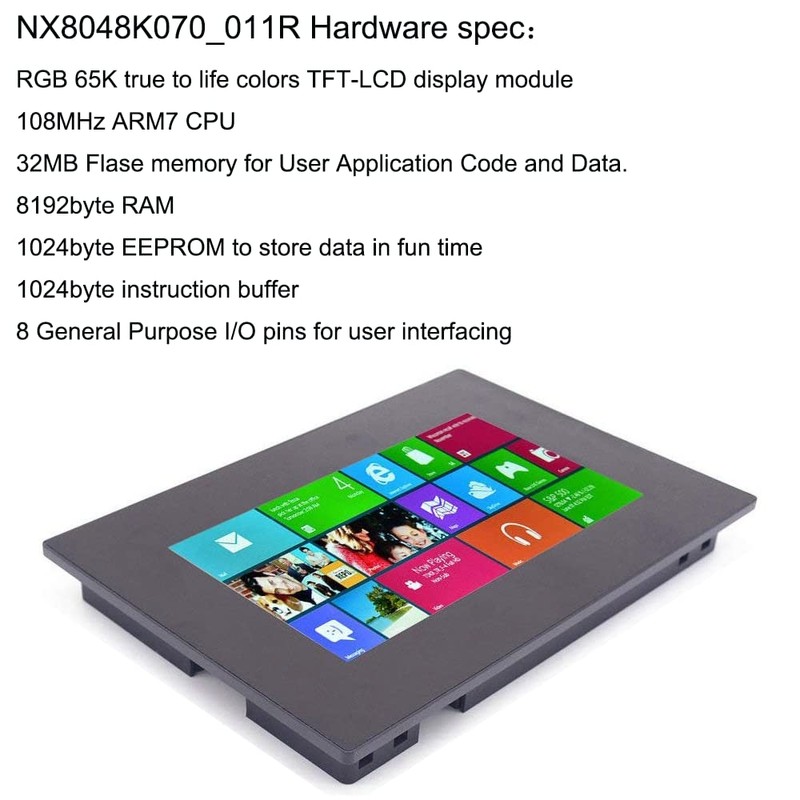

- Nextion Enhanced NX8048K070_011R is a powerful 7.0 inch HMI TFT resistive touch display with a beautiful housing, with 32MB flash data storage, the Nextion screen is an improved LCD panel with more powerful features. 1024 byte EEPROM, 8192 bytes RAM and GPIO support.
- What can Nextion do? During the design process of embedded systems, the design of the human-machine interface is one of the most annoying and time-consuming tasks. You need an elegant chart or a sleek chart, fast page designs, you need resources stored for fast processing. The answer can be found in the amazing Nextion product line.
- Nextion is optimized to meet your specific requirements for human-machine interfaces by using open and standardized interfaces in hardware and software that allow efficient integration into your automation systems human-machine systems, visualization, interaction between people, cognition, visual perception, machine intelligence, cybernetics, even robotics.
- Compared to the basic Nextion displays, the advanced ones have added some new features, such as: support built-in RTC, support for storing data in flash, support for GPIO, larger capacitive flash and larger CPU clock.
| Brand: | Aihasd |
|---|---|
| Color: | Resistive Touch Nx8048k070_011r |
| Manufacturer: | AX Electronic |
| Part Number: | 7MTRWHD |
| Isin: | I88HLYFAS6RY |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Screen type: touch screen.
Supports built-in real-time clock
Supports GPIO
SD card interface: supports max. 32G Micro TF/SD card (FAT32 file format).
Flash data storage space: 32 MB
EEPROM: 1024 bytes.
RAM: 8192 bytes
Command Buffer: 1024 bytes
Colour: 65K (65536) colours.
Resolution: 800 x 480 pixels.
Adjustable brightness: 0~230 nit - the adjustment interval is 1%.

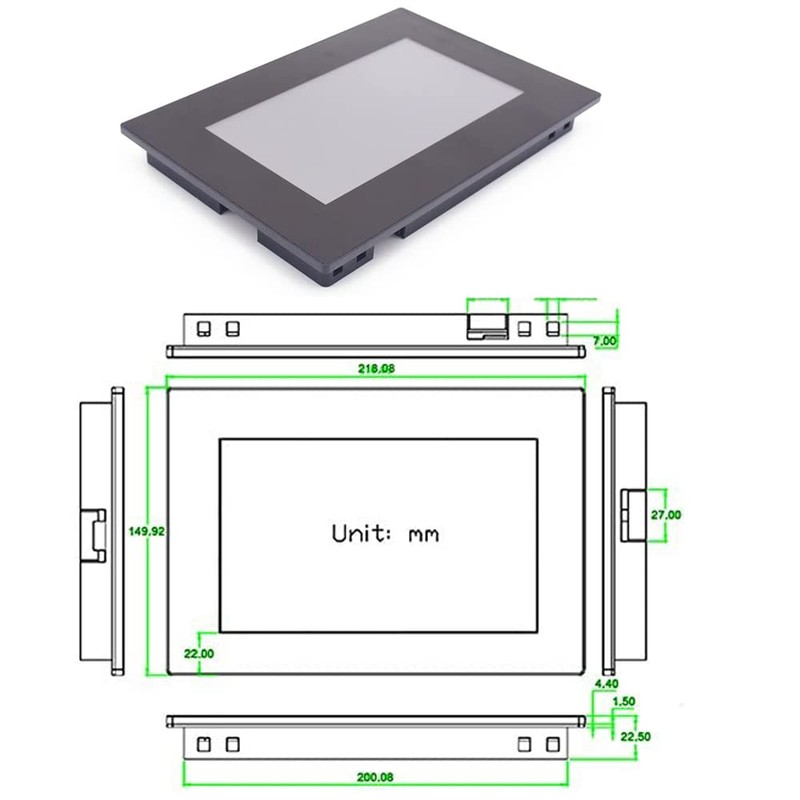

Plate size: 218 mm x 150 mm.
Layout Size: 181mm × 108mm × 9.3mm
Viewing area (VA): 154.08 mm x 85.92 mm.

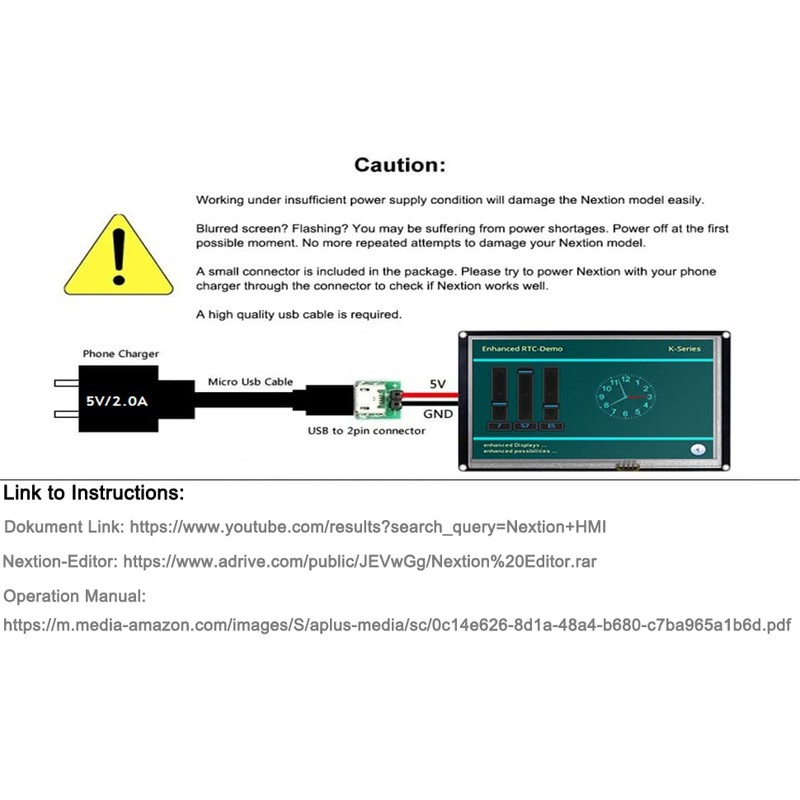

Power supply: 5V, 2.0A, DC
Extended: SD card slot;
Weight: 598 g.
Nextion is designed to work with minimal design effort as all data and control signals are provided by the device to connect directly to the display. This provides the designer with tremendous advantages in terms of development time and cost savings, and takes the entire load of the low-level design.
Nextion helps you quickly design visually in hours instead of weeks and convert long coding work into simple drag-and-drop operations at a reasonable price. All you need is to connect a serial port to Nextion display hardware.
Demo says more than words, here comes another video that shows you how quickly and easily an application can be designed by dragging and dropping objections onto the virtual screen of a WYSIWYG Design IDE - Nextion Editor.
Document Link:https://www.youtube.com/results?search_query=Nextion+HMI
Nextion-Editor:https://www.adrive.com/public/JEVwGg/Nextion%20Editor.rar
User manual:https://m.media-amazon.com/images/S/aplus-media/sc/0c14e626-8d1a-48a4-b680-c7ba965a1b6d.pdf

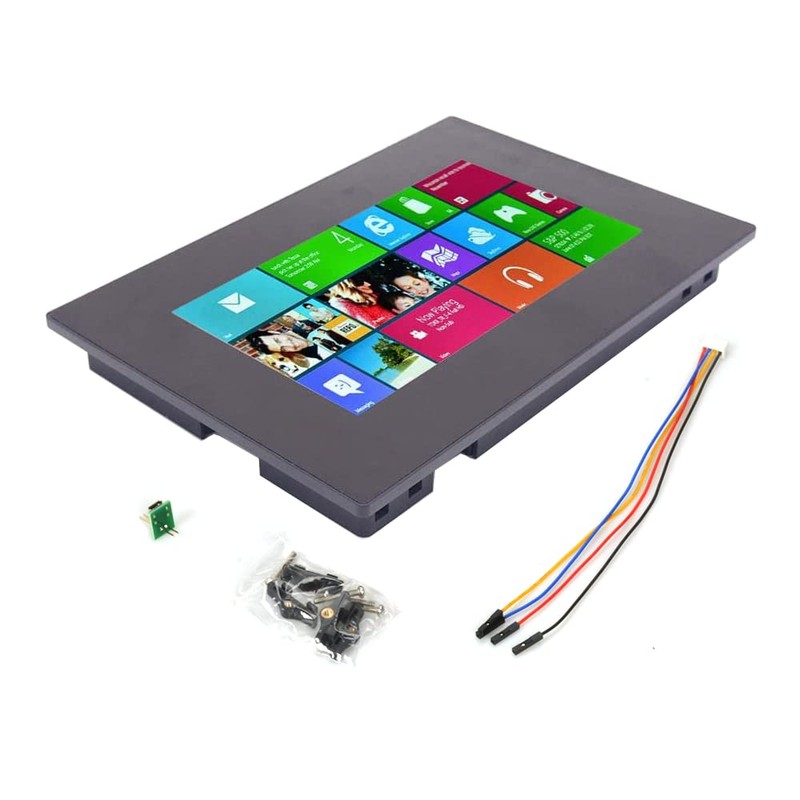

Package includes:
1 x 7.0 inch nextion resistive touch panel.
1 x XH2.54 4P wire.
1 x power supply test board.
4 x mounting buckle and screw
