Aideepen Motor Speed Controller 12 V, PWM DC 7-80 V 30 A DC Motor Speed Controller 12 V 24 V 36 V 48 V 60 V 70 V Continuous Regulator Motor with Rotary Knob
Aideepen Motor Speed Controller 12 V, PWM DC 7-80 V 30 A DC Motor Speed Controller 12 V 24 V 36 V 48 V 60 V 70 V Continuous Regulator Motor with Rotary Knob
Aideepen Motor Speed Controller 12 V, PWM DC 7-80 V 30 A DC Motor Speed Controller 12 V 24 V 36 V 48 V 60 V 70 V Continuous Regulator Motor with Rotary Knob
- High Performance The motor speed controller supports a maximum output current of 30A, which can provide sufficient power for high-performance motors and ensure efficient and smooth operation. (If the operating voltage is high, the current should be relatively reduced).
- Easy to regulate: PWM motor speed controller, duty cycle adjustment range is wide (duty cycle adjustable range: approx. 1%-100%), regulation of the motor smooth, no noise, no vibrations, with power indicator, stable circuit design.
- High-quality materials: motor speed controller selects high-quality high voltage MOS tubes, three high frequency capacitors with a voltage of 100V and low resistance, standard aluminum housing to protect the internal circuit and components for a long time.
- Wide range of applications: DC motor speed controllers support a wide voltage input of DC 7-70V, which is suitable for DC motors of different specifications and meets the requirements of applications with different voltage levels.
- Easy to use: on-board switch with running, stop, brake function, adjust the potentiometer soft line can be separated line length 15 cm.
| Brand: | Aideepen |
|---|---|
| Manufacturer: | Shenzhen Sihaixinzhou Techonology Co.,Ltd. |
| Part Number: | L6676JP |
| Isin: | IWQVB8GTHY7V |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product parameters:
Applicable voltage range: DC 7-80V (70V is the highest operating voltage, please leave enough room for manoeuvre)
Drive current: maximum 30 A (working voltage is high, the current should be relatively reduced to match the recommended power).
Control power: 12V recommended 300W, 24V recommended 400W, 48V recommended 450W, 60V recommended 500W.
Operating time adjustable range: approx. 1% - 100%.
PWM frequency: 12 kHz.

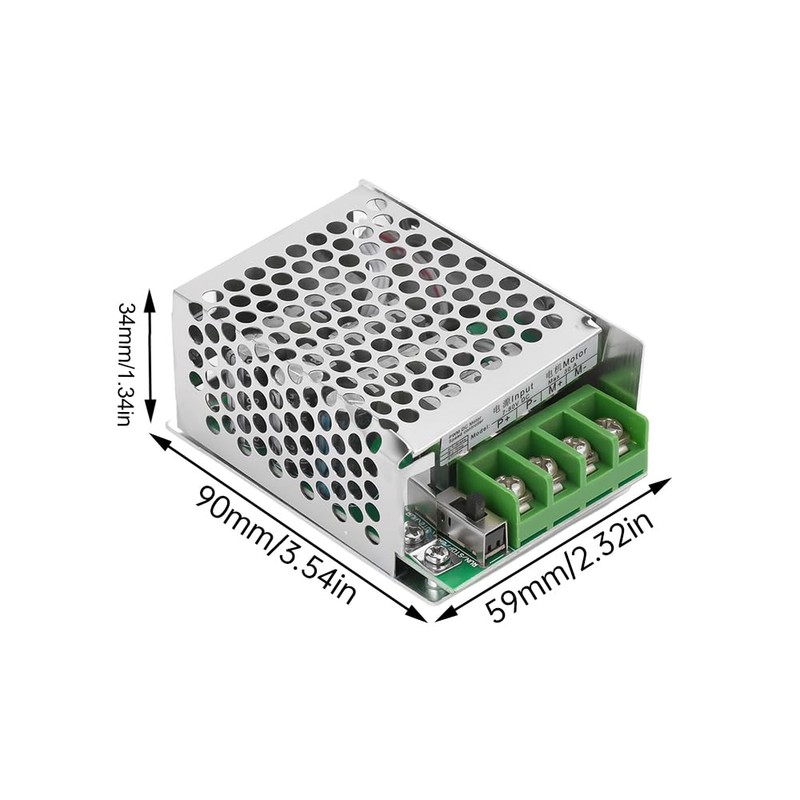

Case size: 85 mm x 59 mm x 34 mm.
Opening of the adjustment potentiometer 8 mm.
Outstanding height of the button: 16 mm.
Instructions for use and precautions:
1. Please understand the product parameters for the first time.
2. This product is a DC brush motor speed controller, must be equipped with a separate DC power supply to the regulator power supply cannot be connected to the AC power, can not drive brushless motors.

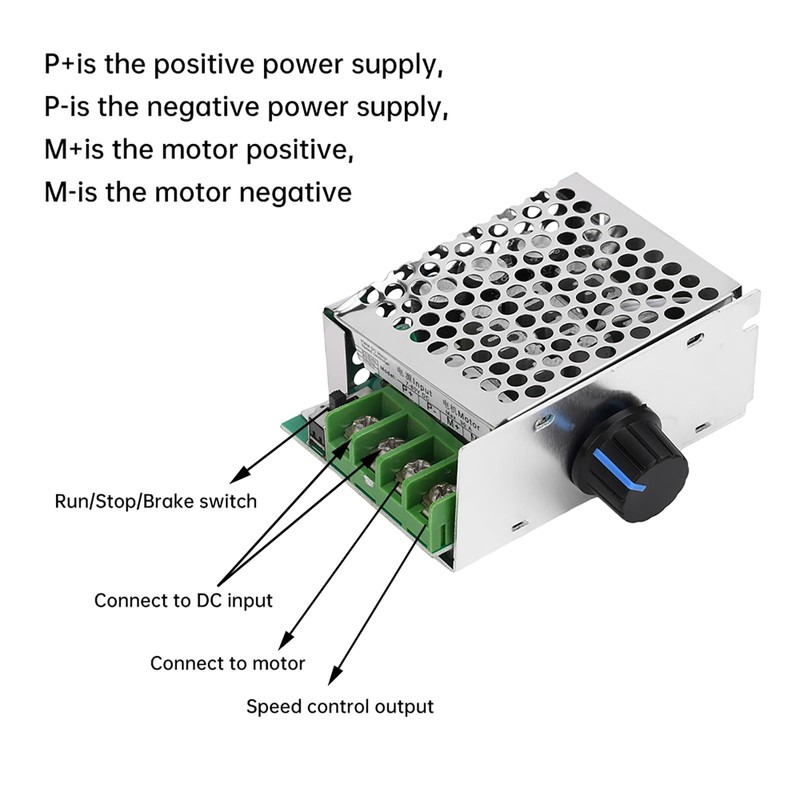

3. Before wiring power, please read the wiring label, the input is DC, positive and negative poles cannot remind of the wrong one. Output to the motor (motor) does not need to be divided into positive and negative, if the direction of operation is not correct, please switch the two wires of the motor.
Product Features:
1. Supports 7 to 70 V wide voltage input, suitable for a variety of specifications of DC motors to meet the application requirements of different voltage levels.
2. Maximum 30 A current output, can provide enough power for high-performance motors to ensure efficient and smooth operation.
3. Optimised circuit design. Wide duty cycle adjustment range, gentle motor adjustment without noise and vibrations, with power indicator, stable circuit design for long work.

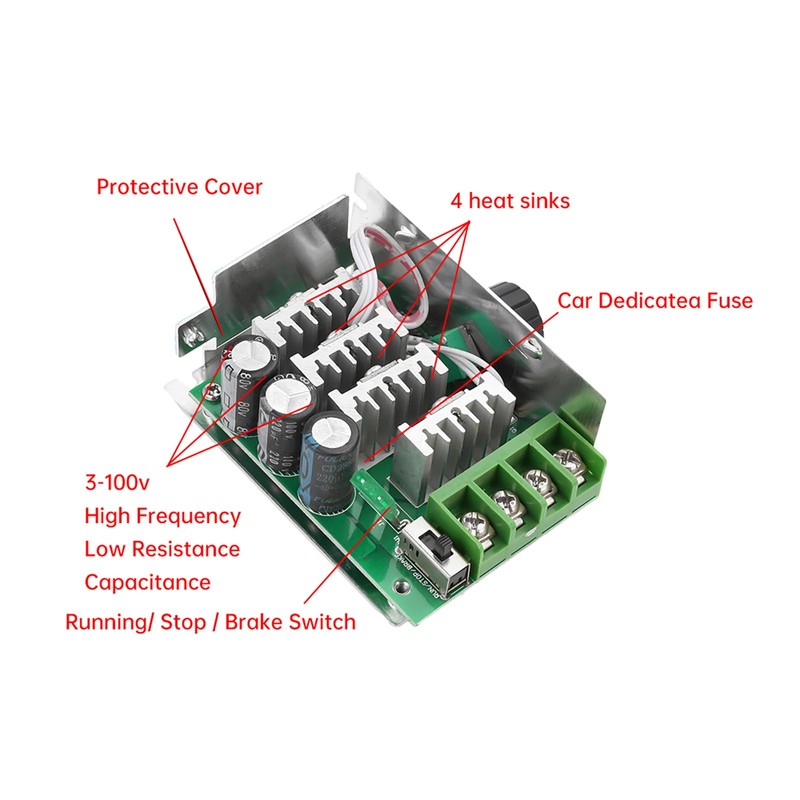

4. Selection of high quality high voltage MOS tubes, three high frequency capacitors with a voltage of 100V and low resistance, standard aluminum housing to protect the internal circuits and components for a long time.
5. On-board switch with run, stop, brake function, adjust the potentiometer soft line can be separated line length 15 cm.
Package list:
1 x DC motor controller.
