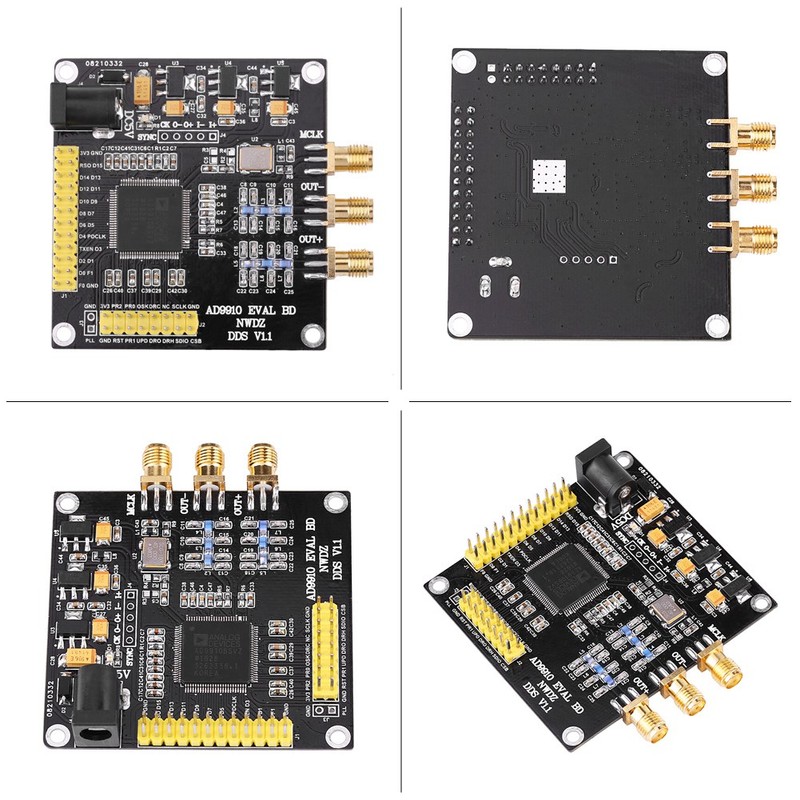

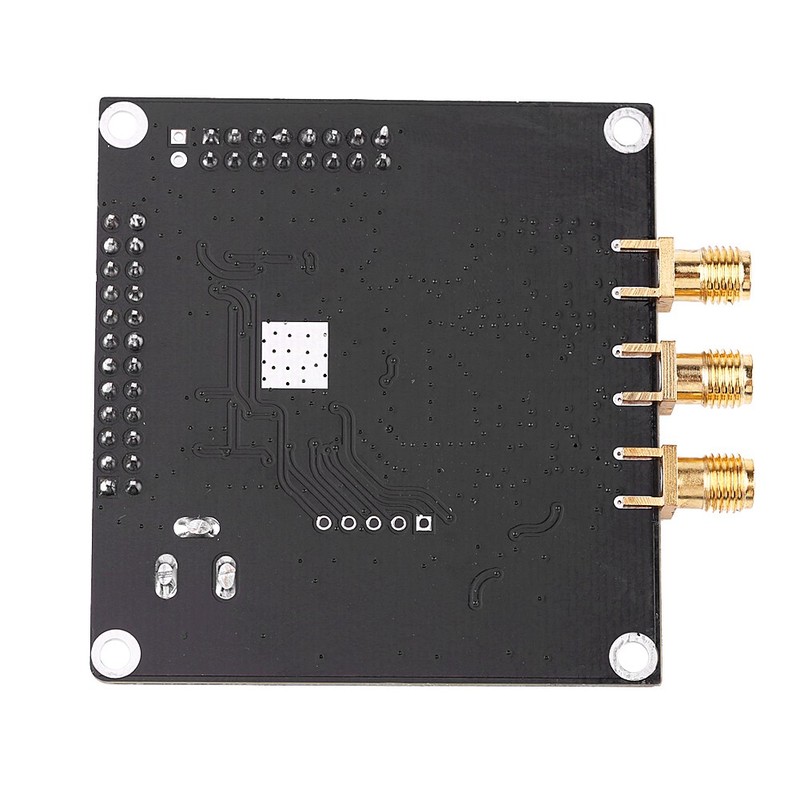

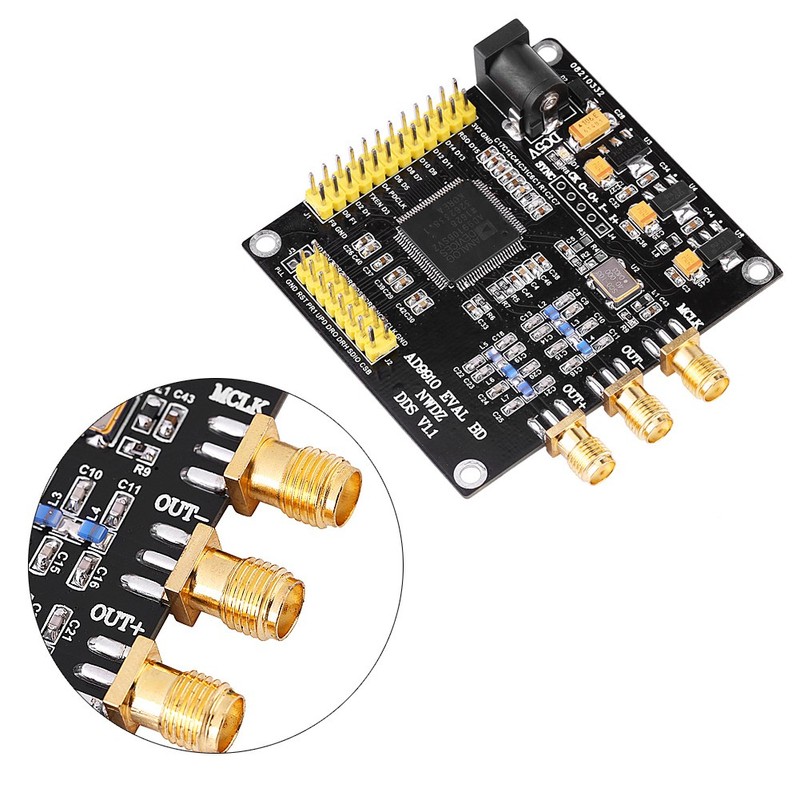

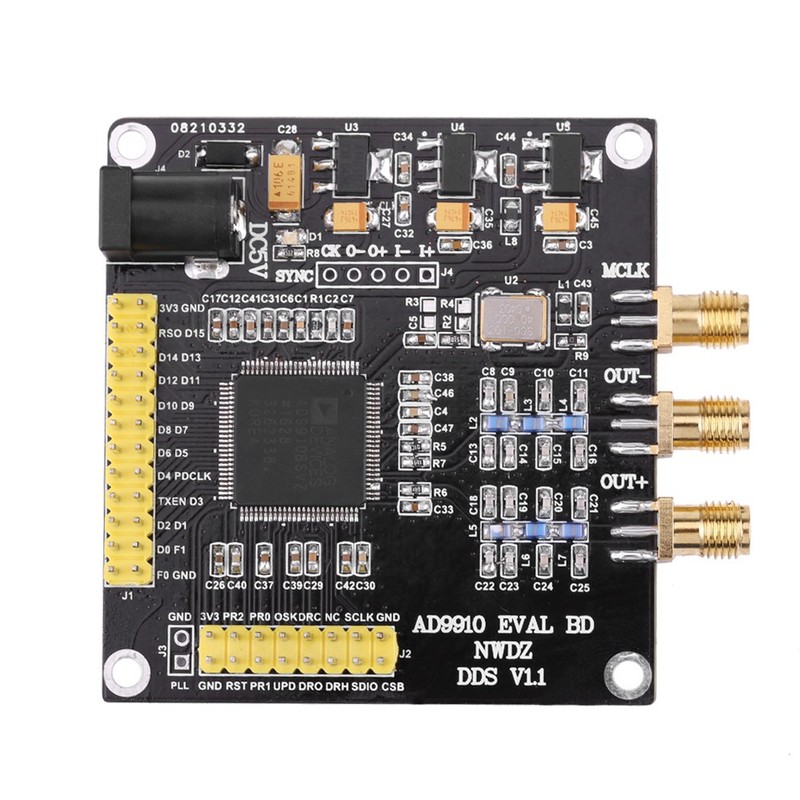

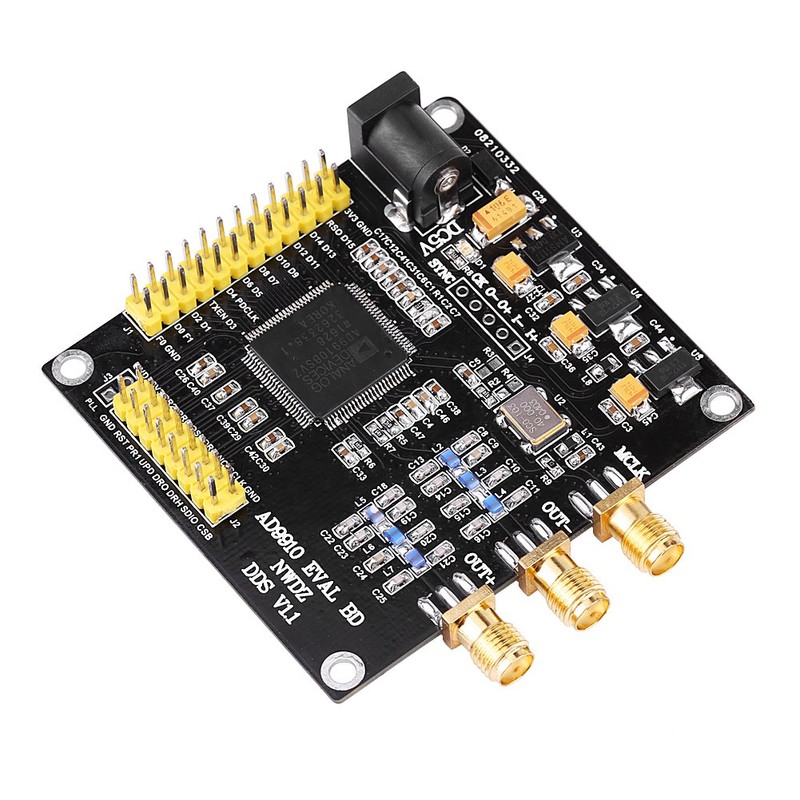

AD9910 DDS Module DAC 420M Output 1GSPS Sampling Rate Frequency Signal Generator

AD9910 DDS Module DAC 420M Output 1GSPS Sampling Rate Frequency Signal Generator

$90.43

Product Overview

1、Power supply 5V@0.08A DC005 power outlet 2、The AD9910 module completely controls IO external connection, which is suitable for customers who need full functions, which can be used for secondary development 3、AD9910Characteristics:The main functions include: A, automatic linear frequency/phase/amplitude scanning; B, 8 frequency, phase and amplitude modulation modes; C, single frequency mode, support frequency, phase, amplitude adjustable 4、Supply Demo program based on STM32 can be used to quickly complete the simple control of AD9910 5、The output of the module adopts official low pass filter, and the output level is smoother

Isin: IRNKMOKCOHKR

1、Power supply 5V@0.08A DC005 power outlet 2、The AD9910 module completely controls IO external connection, which is suitable for customers who need full functions, which can be used for secondary development 3、AD9910Characteristics:The main functions include: A, automatic linear frequency/phase/amplitude scanning; B, 8 frequency, phase and amplitude modulation modes; C, single frequency mode, support frequency, phase, amplitude adjustable 4、Supply Demo program based on STM32 can be used to quickly complete the simple control of AD9910 5、The output of the module adopts official low pass filter, and the output level is smoother

More Information

Features:

  • Power supply 5V@0.08A DC005 power outlet.
  • The AD9910 module completely controls IO external connection, which is suitable for customers who need full functions, which can be used for secondary development.
  • AD9910Characteristics:The main functions include: A, automatic linear frequency/phase/amplitude scanning; B, 8 frequency, phase and amplitude modulation modes; C, single frequency mode, support frequency, phase, amplitude adjustable.
  • Supply Demo program based on STM32 can be used to quickly complete the simple control of AD9910.

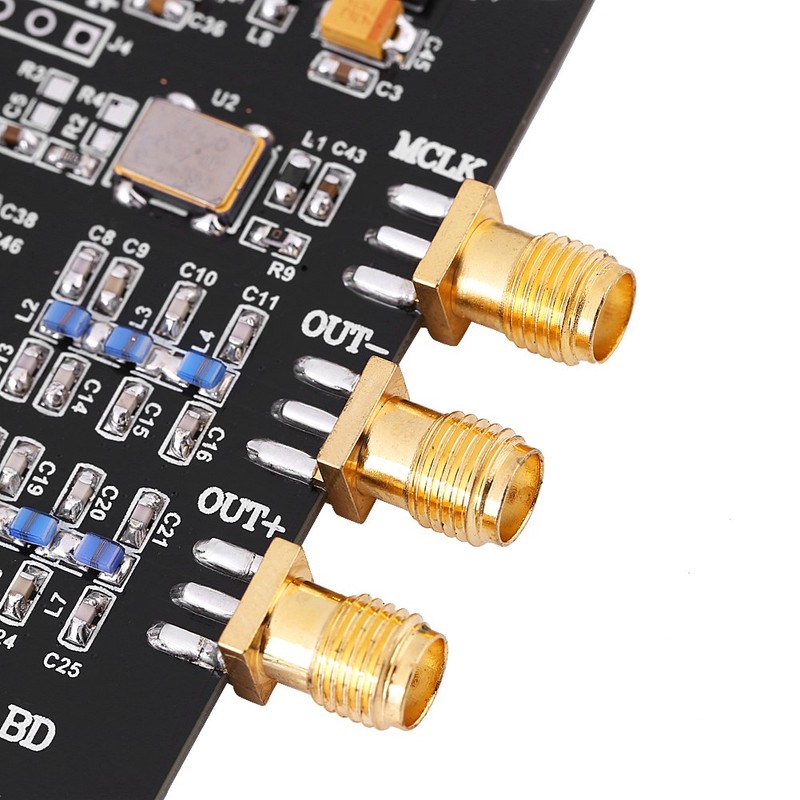

  • The output of the module adopts official low pass filter, and the output level is smoother.


Characteristic:

  • 1 GSPS internal clock speed (up to 400 MHz analog output)
  • Integrated 1 GSPS, 14-bit DAC
  • 32-bit tuning word
  • Phase noise ≤ -125 dBc/Hz @ 1 kHz offset (400 MHz carrier)
  • Excellent dynamic performance with >80 dB narrow-band SFDR
  • Serial input/output (I/O) control
  • Automatic linear or arbitrary frequency, phase, and amplitude sweep capability
  • 8 frequency and phase offset profiles
  • Software and hardware controlled power-down
  • 100-lead TQFP_EP package
  • Integrated 1024 word x 32-bit RAM
  • Phase locking loop REFCLK multiplier
  • Parallel datapath interface
  • Internal oscillator, can be driven by a single crystal
  • Phase modulation capability
  • Amplitude modulation capability
  • Multichip synchronization



Applications:

Agile local oscillator (LO) frequency synthesis
Programmable clock generator
FM chirp source for radar and scanning systems
Test and measurement equipment
Acoustic-optic device drivers

Polar modulator

Fast frequency hopping


Specifications:

Power supply: 5V@0.08A

Size: 62 x 58mm/2.44 x 2.28inch

Weight: 40g


Package Included:

1 x AD9910 DDS Module

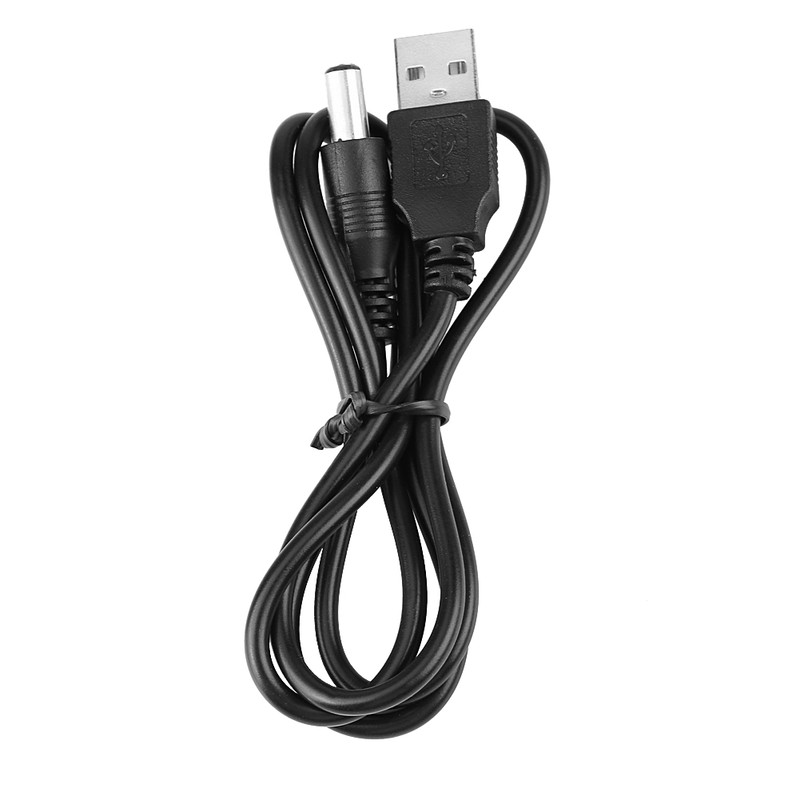

1 x USB cable
