3D Printer Control Board MKS DLC32 V2.1 32Bit Control Board with WIFI 2.4 Inch TS24 R V2.1 Touch Screen Laser Engraving Machine Motherboard
3D Printer Control Board MKS DLC32 V2.1 32Bit Control Board with WIFI 2.4 Inch TS24 R V2.1 Touch Screen Laser Engraving Machine Motherboard
3D Printer Control Board MKS DLC32 V2.1 32Bit Control Board with WIFI 2.4 Inch TS24 R V2.1 Touch Screen Laser Engraving Machine Motherboard
- 32 Bit Processor This motherboard has high performance and is equipped with a 32-bit STTM32 processor, supported memory card storage, an expandable WIFI module, a power failure relay module, switches for material breakage detection and an external card slot.
- 2.4 inch TS24 R V2.1 Touch Screen This touch screen provides a clear display that simplifies the user's operation process, with a clear user interface that intuitively displays the desired functions for easy operation. The control board of the 3D printer combines stylish appearance and excellent performance.
- Super Wide Compatibility This motherboard allows for fast engraving and web control, mobile app control, etc. The MKS DLC32 has mounting holes and a board size compatible with the MKS DLC and can also be used with PC software for GRBLaser and LightBurn.
- High Accuracy This 3D printer touch screen can work closely with the machine control, ensuring high-precision printing operation and printing excellent and stable products.
- Built in 8M Byte Flash Memory Chip This 3D printer motherboard adopts built-in 8M byte flash memory chip to improve product quality and provide effective protection for more application scenarios.
| Brand: | Hyuduo |
|---|---|
| Manufacturer: | Hyuduo |
| Part Number: | CWT4FB8 |
| Isin: | ICIM3FDOU4C6 |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Item Type:3D Printer Motherboard Kit
Material: PCB.

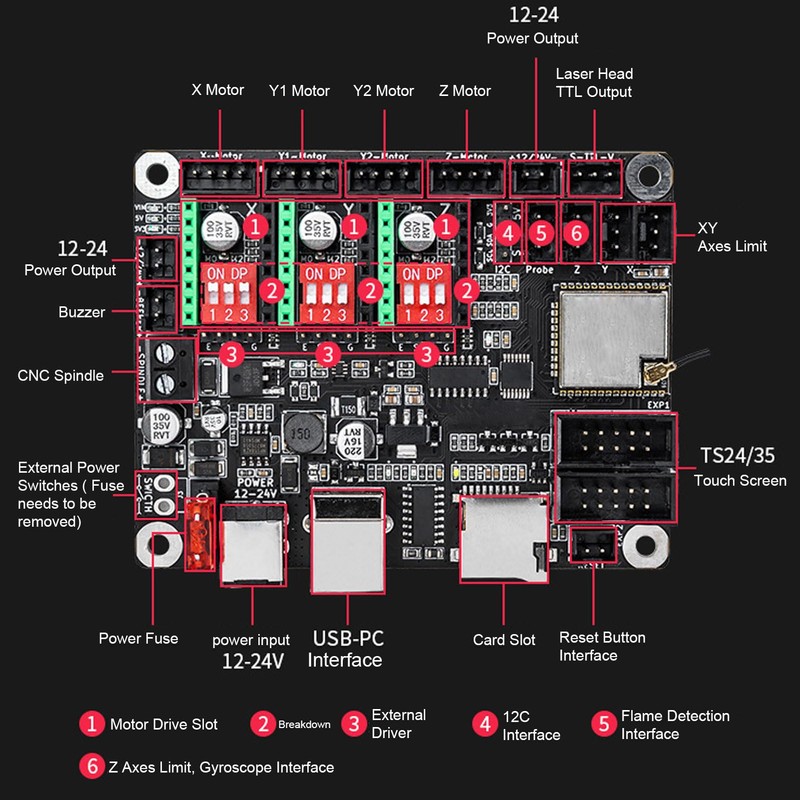

Motherboard parameters:
Model: for MKSDLC32.
Voltage: 12-24V DC (MCU: ESP32 WROOM 32U (32 bit)
MCU Frequency: 240MHz
Flash memory: 8192K bytes
Memory: 520K bytes
Speed: <8000 mm/min
Offline display: for MKS TS24 R, TS35 R.
Firmware: for GRBL
Serial port driver: USB
Axles WiFi onboard: 4 (X, Y1, Y2, Z).
Memory Card: Support
MKS Laser Tool: Support
Available machine: CNC laser engraving machine
Stepper motor driver: A4988, DRV 8825, TMC2208, 2209, 2225 (for Nema17 engine)
Additional driver: TB6600, TMC2160 (for Nema23 engine)
: Less than 20W (>20W, external power supply)
Compatible software: for LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn

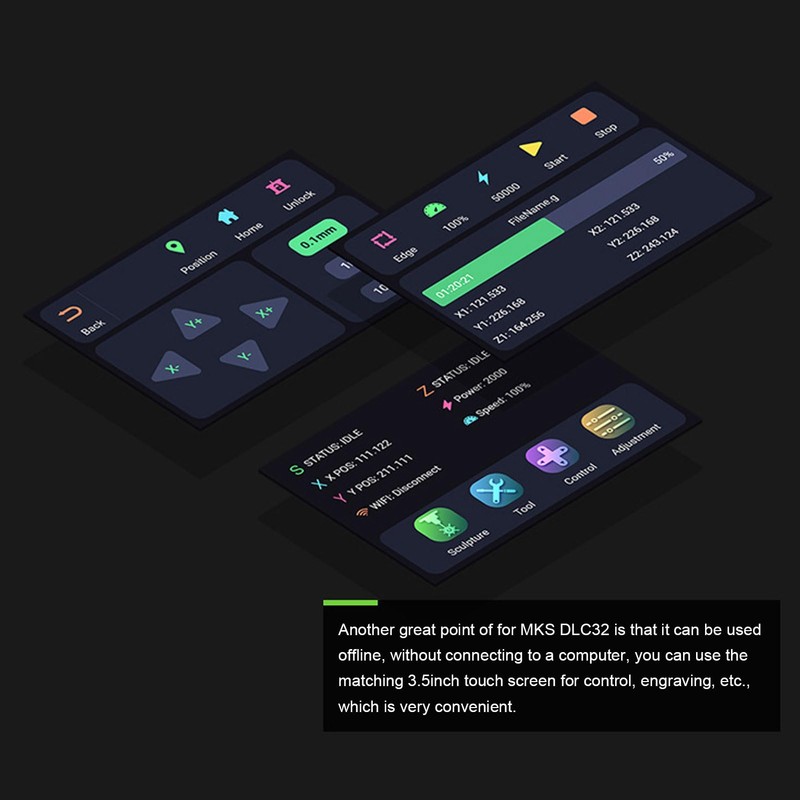

Display parameters:
Model: TS24 R V2.1.
Outer size: approx. 80 x 50 mm / 3.15 x 1.97 inches.
Colour touch screen: 2.4 inch touch screen.
Microprocessor: 32-bit STTM32 processor
Update method: SD file update
Support memory system: memory card
Supported file format: Gcode

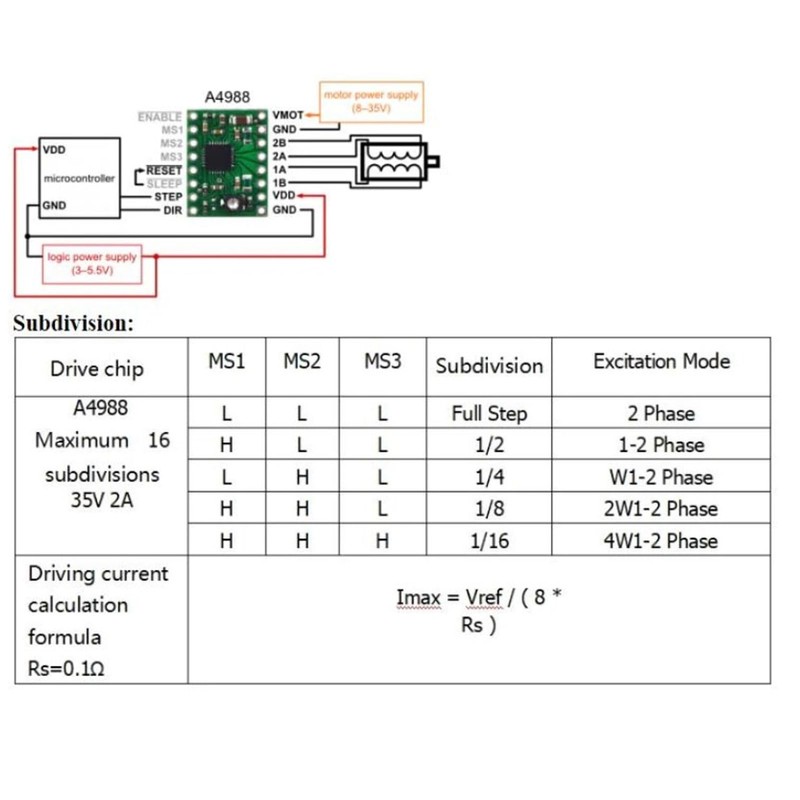

Expandable modules: WIFI module, power failure relay module, material breakage detection switch, external card slot. A4988 Driver Features & Benefits:
Low RDS Output (On)
Automatic detection or selection of power drop mode.
Mixed with slow power drop mode
Synchronous rectification for low power consumption
Internal low voltage lock.
Cross-current protection.
3.3 and 5 V compatible logic supplies
Thermal shut-off circuit.
Ground fault protection.
Load short circuit protection.
Five selectable step modes: full step, 1/2, 1/4, 1/8 and 1/16.
Use:
Depending on the introduction of use.

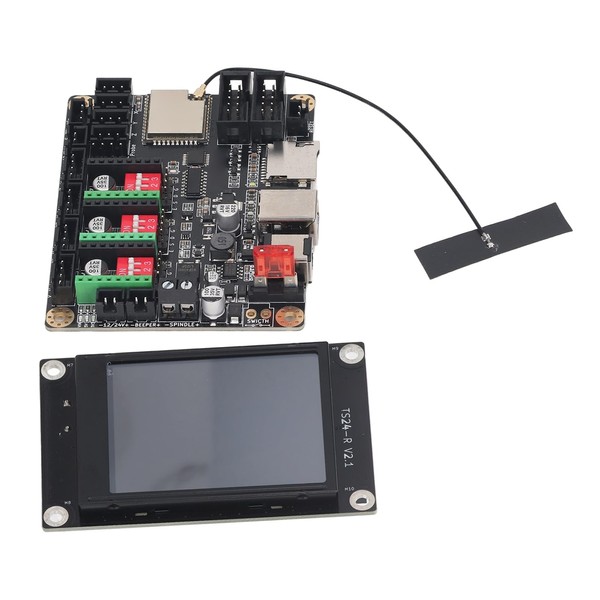

Package list:
1 x for MKS DLC32 V2.1 motherboard.
1 x Blue USB Data Cable
1 x TS24
