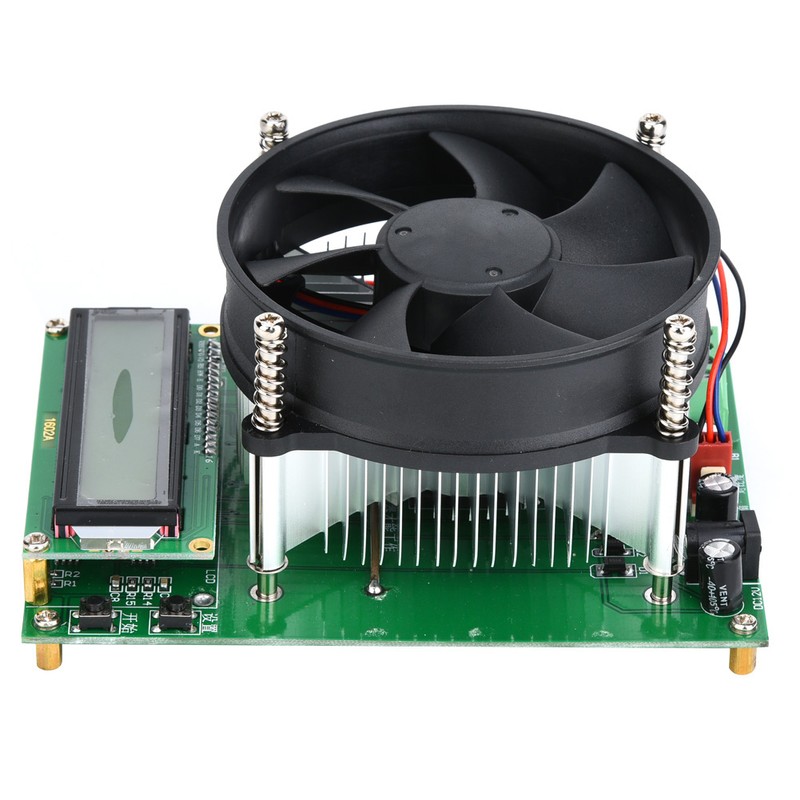

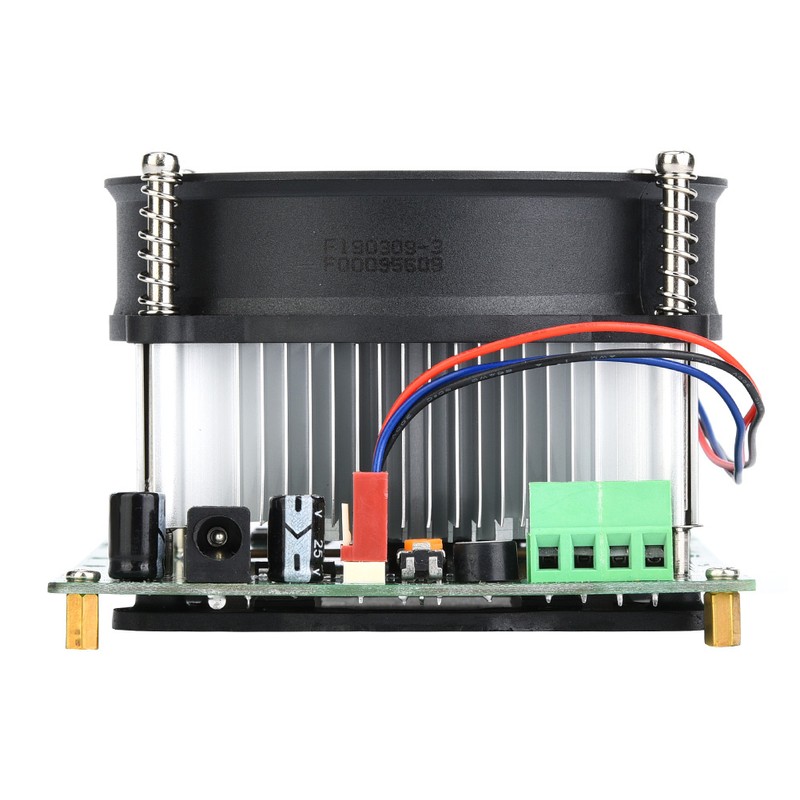

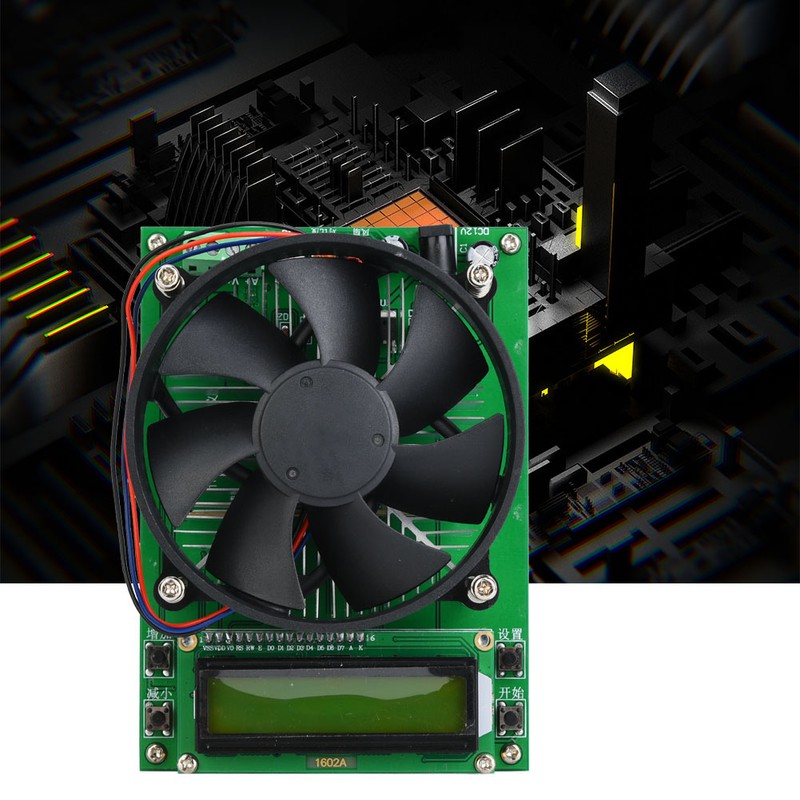

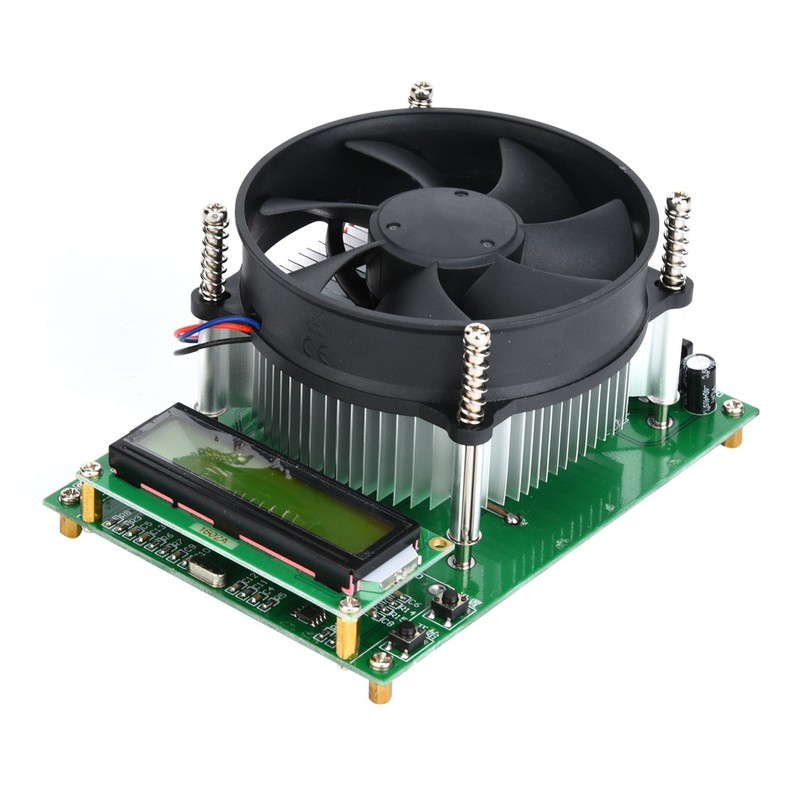

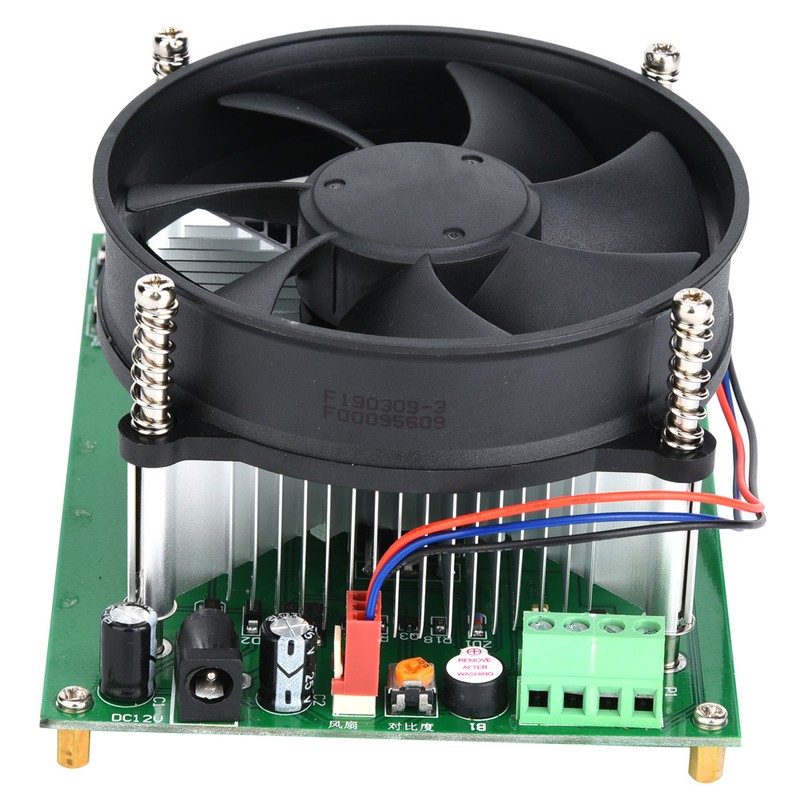

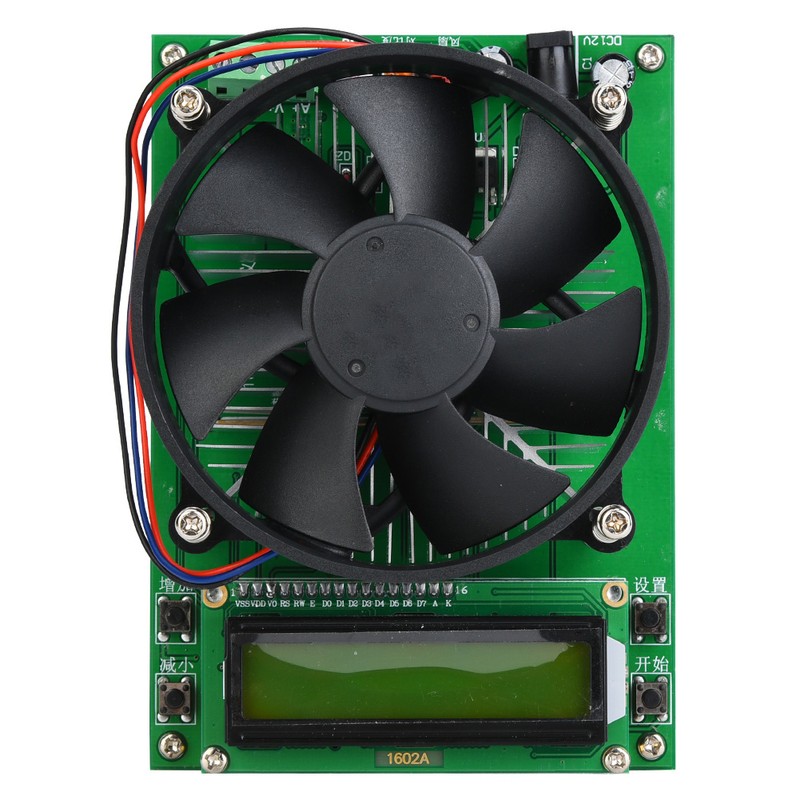

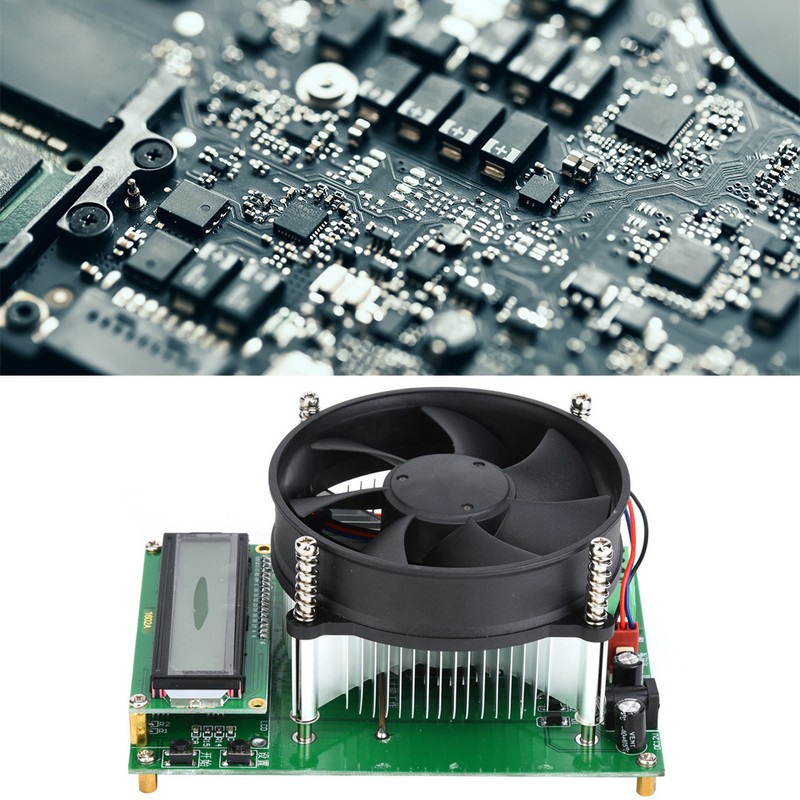

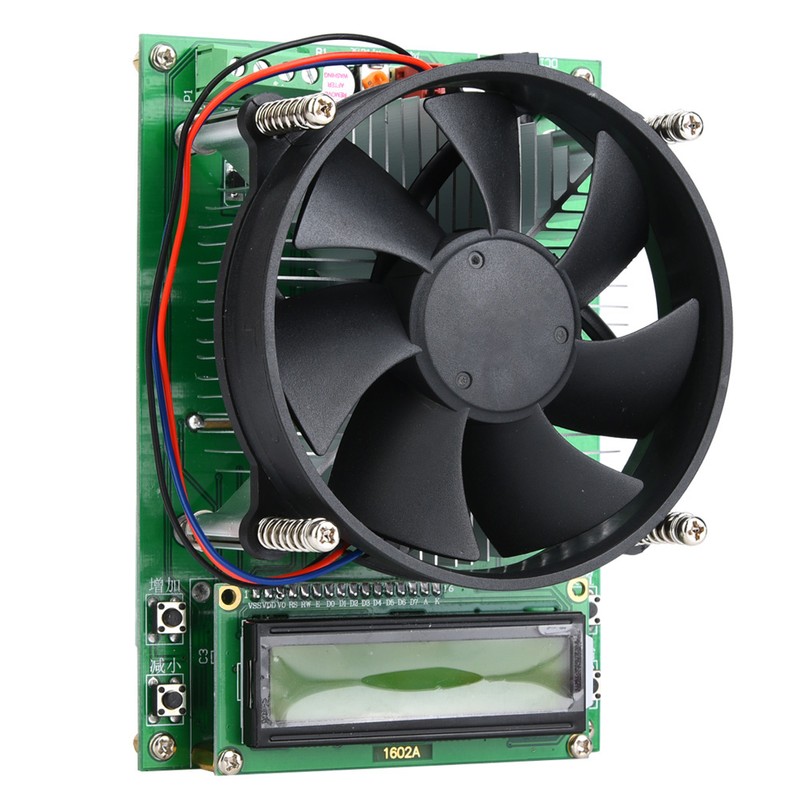

150W Constant Current Electronic Load 60V 10A LCD Battery Discharge Capacity Tester Meter
150W Constant Current Electronic Load 60V 10A LCD Battery Discharge Capacity Tester Meter
150W Constant Current Electronic Load 60V 10A LCD Battery Discharge Capacity Tester Meter
1、This is a very cost-effective electronic load, using 2 completely independent 18 bit ADC chip, 15ppm voltage reference, makes the electronic load has a very high accuracy. 2、With 1602 LCD display to display comprehensive information, spike any An IN AD sampling digital display with a single-chip display electronic load or battery capacity tester. 3、Equipped with a 9cm CPU cooling fan, very quiet. 4、Load maximum power reaches 150W, up to a maximum voltage of 60V, 10A. 5、With temperature display and support discharge, can be used as voltage setting of various voltage. 6、IC source load / aging and other tests can also be the best choice for various battery / battery discharge capacity tests and parameters to support user-corrected user DIY.
| Isin: | I0JHIFXB31VY |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、This is a very cost-effective electronic load, using 2 completely independent 18 bit ADC chip, 15ppm voltage reference, makes the electronic load has a very high accuracy. 2、With 1602 LCD display to display comprehensive information, spike any An IN AD sampling digital display with a single-chip display electronic load or battery capacity tester. 3、Equipped with a 9cm CPU cooling fan, very quiet. 4、Load maximum power reaches 150W, up to a maximum voltage of 60V, 10A. 5、With temperature display and support discharge, can be used as voltage setting of various voltage. 6、IC source load / aging and other tests can also be the best choice for various battery / battery discharge capacity tests and parameters to support user-corrected user DIY.
More Information
Item Type: Electronic Load
Charging Mode: Constant Current Load
Load Current: -10A
Maximum Power: 150W
Current Reading Accuracy: ±(0.2% + 0.1% FS)
Constant Current Accuracy: Current display accuracy + 1d
Noise Index: 25dD A
Basic Format: 10x14x7cm
Instructions:
1. Power adapter: DC12V, pay special attention to the load and power must be two independent power supplies.
2. The screen displays a welcome at startup indicating that the device is good.
4. To test the power of the connection, pay attention to positive and negative, try to avoid reverse gear.
The “Start” button is used to start/stop the electronic load while the screen displays “ON” or “DI”.
6. Normally press the "Start" button for 1 second or longer to eliminate the value of AH and time, and to stop the electronic load (if it is open).
7. In the default state, the information displayed in the lower left corner is power and temperature and automatic switching time, one switch for two seconds, press and hold the "Settings" button, then press "&Rdquo; You can manually switch the display, each from "&Rdquo ; Spend (always keep the "Create" button) to switch, fixed switching display information, no longer automatically change, need to automatically switch when you turn it on again, press and hold the "Create" button, and then press "Reduce" in the lower right corner of the screen to display "There is an automatic open switch.
8. All the above settings will be saved automatically after power off, and the power parameters will be powered off before the power is turned off, but the electronic load, regardless of whether the power is off or not, needs to be manually turned on.
9. After the maximum power continuous workload, the ambient temperature will be high and the user should reduce the operating power. If the temperature of the heat sink has reached 87°C, the load will automatically reduce the power; if the temperature continues to rise, it will continue to reduce power, when the internal temperature reaches 91°C, it will stop. It needs to be opened manually after cooling.
11. Need to count AH and time before, remember to clear the machine is the default settings have been accumulated, it will not be automatically deleted, it can only be manually deleted.
