150M/492FT LC to LC Armored Outdoor Fiber Optic Cable, Single Mode Duplex 9/125μm SMF Fiber Patch Cord, OS1/OS2 Compatible, Black LSZH Jacket, Uniboot Jumper for FTTH, Data Center, Long-Distance Use
150M/492FT LC to LC Armored Outdoor Fiber Optic Cable, Single Mode Duplex 9/125μm SMF Fiber Patch Cord, OS1/OS2 Compatible, Black LSZH Jacket, Uniboot Jumper for FTTH, Data Center, Long-Distance Use
150M/492FT LC to LC Armored Outdoor Fiber Optic Cable, Single Mode Duplex 9/125μm SMF Fiber Patch Cord, OS1/OS2 Compatible, Black LSZH Jacket, Uniboot Jumper for FTTH, Data Center, Long-Distance Use

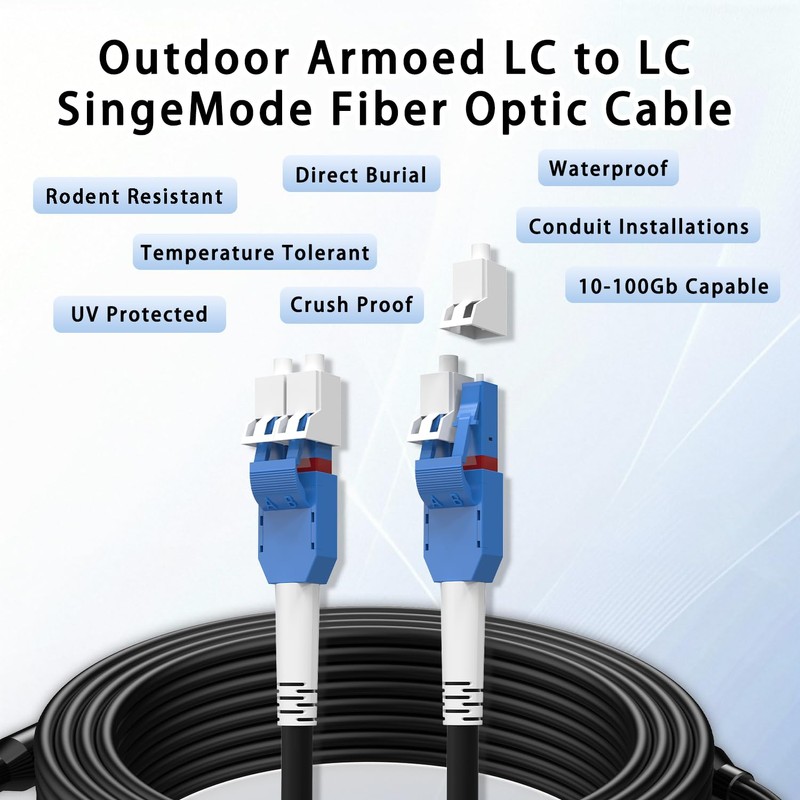

- 【Rugged Armored Outdoor Design】This 492ft (150M) single mode fiber optic cable features built-in stainless steel armor to resist crushing, moisture, rodent bites, and UV exposure. Perfect for harsh outdoor environments such as underground conduits, exterior building links, or industrial wiring.
- 【High-Performance SMF Fiber】Built with low-loss single-mode fiber (SMF), this OS1/OS2 compatible LC to LC duplex patch cord ensures stable long-distance transmission with minimal insertion loss and high return loss. Ideal for 1G/10G/40G Ethernet, telecom, and backbone networks.
- 【Uniboot Connectors for Dense Cabling】Equipped with Uniboot LC connectors—two fibers in a single housing—this cable reduces clutter, improves airflow, and simplifies cable routing. Ideal for high-density patch panels, data centers, telecom base stations, backbone links between buildings, and connections between enterprise core switches.
- 【Wide Compatibility, Versatile Use】This LC to LC SMF fiber cable works seamlessly with all major fiber optic brands, compatible with Cisco, Juniper, Arista, Ubiquiti UniFi, Mikrotik, TP-Link, Netgear, D-Link, Intel, HPE, Fortinet and more. Works perfectly with high-speed networking hardware such as 1G/10G/40G/100G SFP/SFP+/XFP/QSFP+ transceivers, as well as Ethernet switches, media converters, routers, firewalls, ONU/OLT ports and fiber access terminals. Ideal for FTTH, FTTX deployments, enterprise LANs, telecom backbones, data centers, security surveillance, and industrial communication systems.
- 【Low-Friction Jacket, Easy Installation】The black LSZH (Low Smoke Zero Halogen) outer jacket features an ultra-low friction coefficient (μ<0.2), making the fiber cable easy to push or pull through long or congested conduits. This design significantly improves wiring efficiency and saves both time and labor during installation. The flame-retardant jacket minimizes toxic gas emissions in the event of fire, enhancing safety in enclosed or high-density environments. Ideal for data centers, riser closets, and structured cabling projects requiring efficient and secure deployment.
| Brand: | ERSTICKT |
|---|---|
| Size: | 150m (492.1ft) |
| Color: | Black |
| Manufacturer: | ERSTICKT |
| Part Number: | SJ9XF9Z |
| Isin: | ICN2KKZFWYXJ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

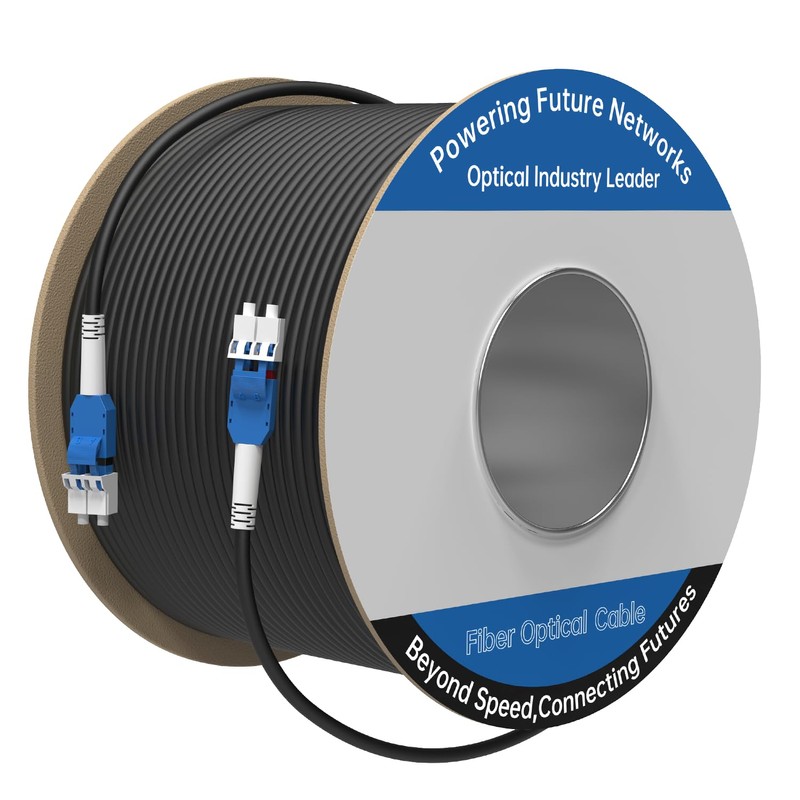

150M (492FT) LC to LC Outdoor Armored Single Mode Fiber Patch Cable – OS1/OS2 Compatible, Rugged, Flexible, Installer-Friendly
Built for Outdoor Durability
This 150-meter (492ft) LC/UPC to LC/UPC Single Mode Armored Fiber Patch Cable is engineered for outdoor and high-demand environments where both long-distance transmission and mechanical resilience are critical. Designed for compatibility with both OS1 and OS2 networks, it ensures excellent optical performance over long distances with minimal signal loss and high return loss.
Bend-Insensitive SMF Core
At its heart is high-quality G657.A2 bend-insensitive 9/125μm single-mode fiber, which allows for tight bending and compact routing without compromising signal integrity. Ideal for installations where frequent bends, tight spaces, or compact equipment dominate.

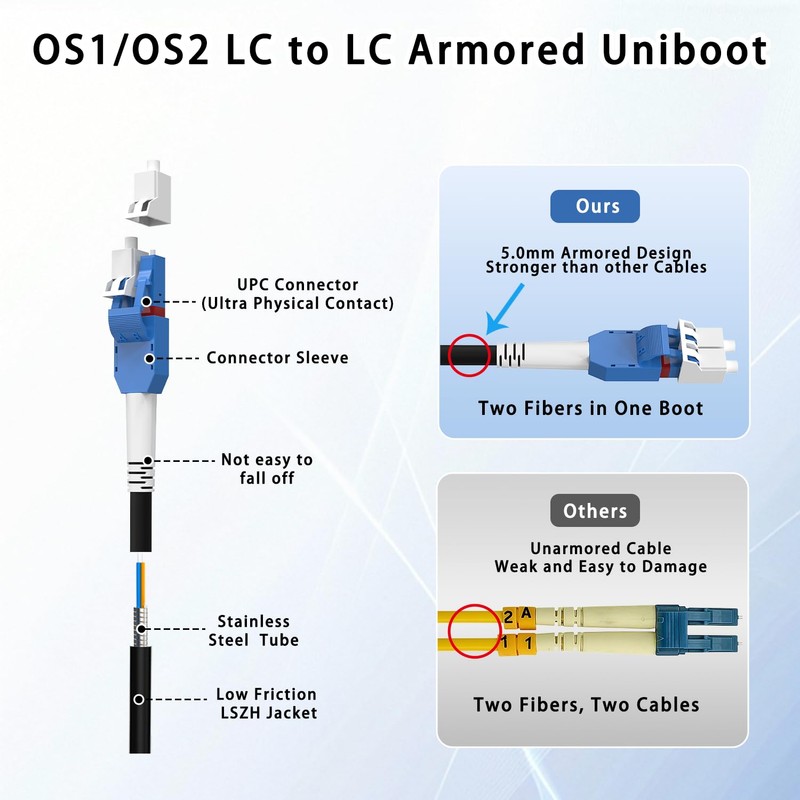

Armored for Protection, Not Bulk
A stainless steel armor layer protects the inner glass core from crushing, rodent bites, and mechanical stress, while retaining flexibility. The cable maintains the handling advantages of a standard patch cord, making it strong yet installer-friendly.

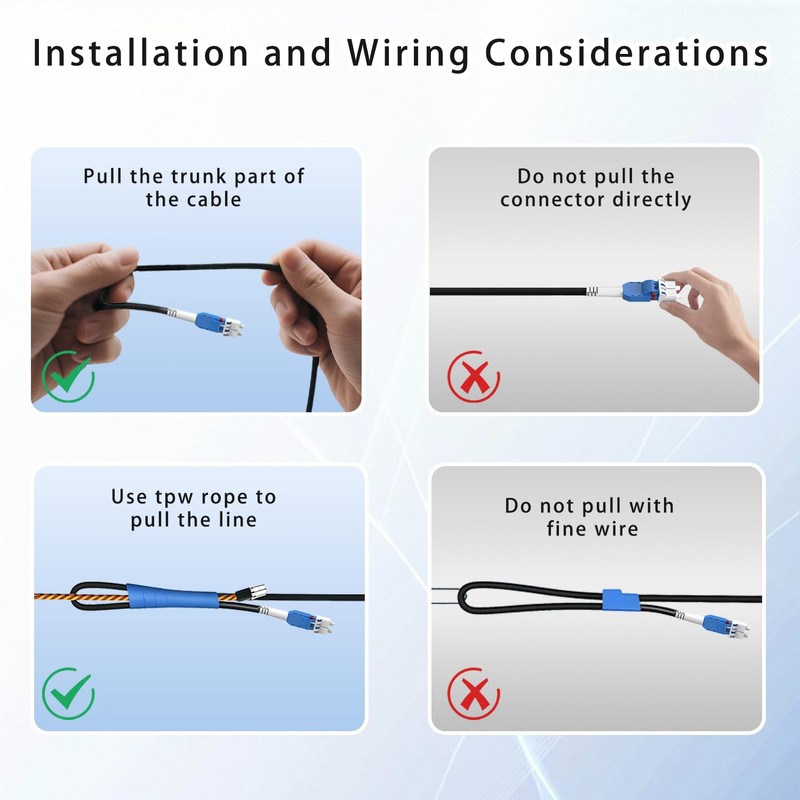

Flame-Retardant & Easy to Install
The black LSZH jacket is flame-retardant and low-smoke, with an ultra-low friction coefficient (μ<0.2), allowing the cable to easily glide through long or crowded conduits. With a compact 3.0mm diameter, it is easy to manage, route, and terminate in structured environments—saving time and labor during installation.
Moisture-Resistant Connector Technology
Both ends feature LC/UPC connectors treated with moisture-resistant end-face baking technology, helping maintain clean and dry contact surfaces even in humid or outdoor climates. This improves long-term signal quality and reduces maintenance needs.
Broad Compatibility Across Devices
Engineered to support all LC-based fiber optic interfaces. Works seamlessly with SFP/SFP+/XFP/QSFP modules, fiber media converters, ONU/OLT terminals, CWDM/DWDM mux/demux units, fiber NIC Cards, LC patch panels, splitters, industrial routers, firewalls, and NVRs. Widely compatible with Cisco, Ubiquiti, Mikrotik, Juniper, HPE, TP-Link, Fortinet, D-Link, Netgear, Intel, and other major vendors.
Key Features:
Length: 150M (492FT)
Fiber Type: 9/125μm Single Mode (G657.A2 bend-insensitive)
OS1 / OS2 Compatible
Connector: LC/UPC to LC/UPC Duplex
Insertion Loss: ≤ 0.3 dB
Return Loss: ≥ 50 dB
Wavelength: 1310nm to 1550nm
Armor: Stainless Steel Tube
Jacket: Black LSZH, 3.0mm OD, ultra-low friction
Temperature Range: -40°C to +85°C
End-face Tech: Moisture-resistant baked polish
Standards: RoHS, ISO/IEC 11801, IEC-61754
Application Scenarios:
FTTH / FTTX fiber access networks
Outdoor inter-building fiber links
Telecom base station cabinet to building connections
Data center patching, core-to-edge routing
Surveillance systems and ISP infrastructure
Industrial fiber optic communication and SCADA systems
Whether you're connecting outdoor cabinets, routing fiber through conduits, or deploying long-distance enterprise backbones, this LC to LC armored OS1/OS2 fiber cable combines mechanical strength, installation efficiency, and professional-grade performance.
Built for Outdoor Durability
This 150-meter (492ft) LC/UPC to LC/UPC Single Mode Armored Fiber Patch Cable is engineered for outdoor and high-demand environments where both long-distance transmission and mechanical resilience are critical. Designed for compatibility with both OS1 and OS2 networks, it ensures excellent optical performance over long distances with minimal signal loss and high return loss.
Bend-Insensitive SMF Core
At its heart is high-quality G657.A2 bend-insensitive 9/125μm single-mode fiber, which allows for tight bending and compact routing without compromising signal integrity. Ideal for installations where frequent bends, tight spaces, or compact equipment dominate.
Armored for Protection, Not Bulk
A stainless steel armor layer protects the inner glass core from crushing, rodent bites, and mechanical stress, while retaining flexibility. The cable maintains the handling advantages of a standard patch cord, making it strong yet installer-friendly.
Flame-Retardant & Easy to Install
The black LSZH jacket is flame-retardant and low-smoke, with an ultra-low friction coefficient (μ<0.2), allowing the cable to easily glide through long or crowded conduits. With a compact 3.0mm diameter, it is easy to manage, route, and terminate in structured environments—saving time and labor during installation.
Moisture-Resistant Connector Technology
Both ends feature LC/UPC connectors treated with moisture-resistant end-face baking technology, helping maintain clean and dry contact surfaces even in humid or outdoor climates. This improves long-term signal quality and reduces maintenance needs.
Broad Compatibility Across Devices
Engineered to support all LC-based fiber optic interfaces. Works seamlessly with SFP/SFP+/XFP/QSFP modules, fiber media converters, ONU/OLT terminals, CWDM/DWDM mux/demux units, fiber NIC Cards, LC patch panels, splitters, industrial routers, firewalls, and NVRs. Widely compatible with Cisco, Ubiquiti, Mikrotik, Juniper, HPE, TP-Link, Fortinet, D-Link, Netgear, Intel, and other major vendors.
Key Features:
Length: 150M (492FT)
Fiber Type: 9/125μm Single Mode (G657.A2 bend-insensitive)
OS1 / OS2 Compatible
Connector: LC/UPC to LC/UPC Duplex
Insertion Loss: ≤ 0.3 dB
Return Loss: ≥ 50 dB
Wavelength: 1310nm to 1550nm
Armor: Stainless Steel Tube
Jacket: Black LSZH, 3.0mm OD, ultra-low friction
Temperature Range: -40°C to +85°C
End-face Tech: Moisture-resistant baked polish
Standards: RoHS, ISO/IEC 11801, IEC-61754
Application Scenarios:
FTTH / FTTX fiber access networks
Outdoor inter-building fiber links
Telecom base station cabinet to building connections
Data center patching, core-to-edge routing
Surveillance systems and ISP infrastructure
Industrial fiber optic communication and SCADA systems
Whether you're connecting outdoor cabinets, routing fiber through conduits, or deploying long-distance enterprise backbones, this LC to LC armored OS1/OS2 fiber cable combines mechanical strength, installation efficiency, and professional-grade performance.
