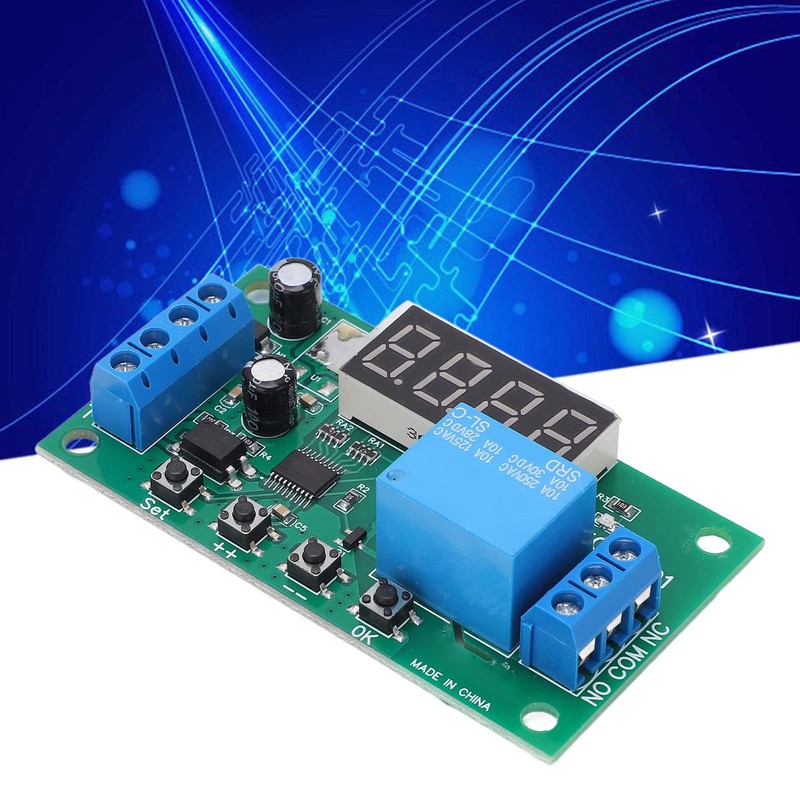

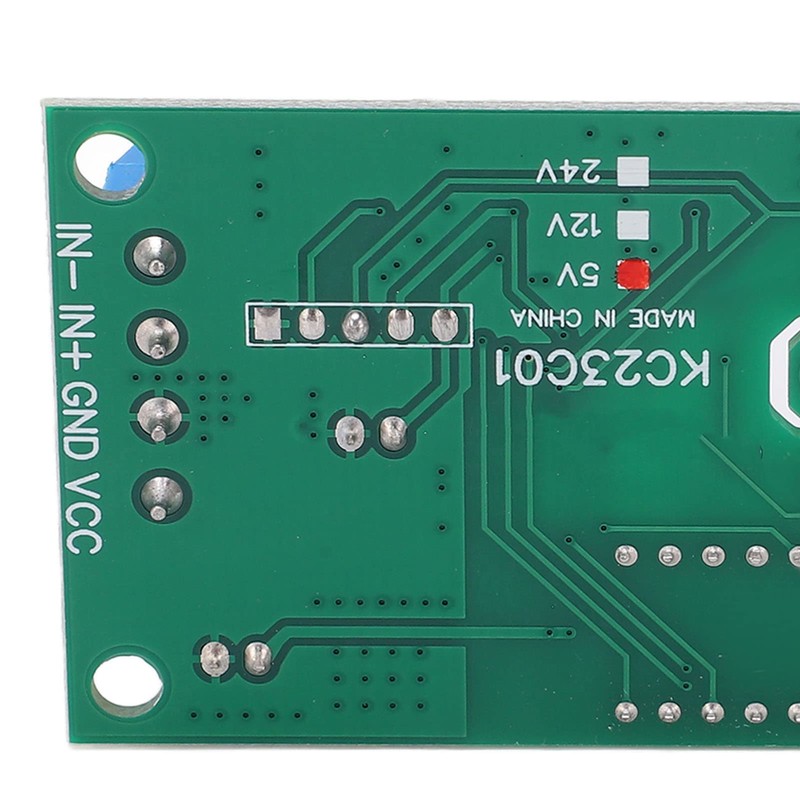

1 Channel Relay Module 0.1 S to 9999999.9 S Pulse Counter Relay Board for Smart Home (12V)
1 Channel Relay Module 0.1 S to 9999999.9 S Pulse Counter Relay Board for Smart Home (12V)
1 Channel Relay Module 0.1 S to 9999999.9 S Pulse Counter Relay Board for Smart Home (12V)
Product Overview

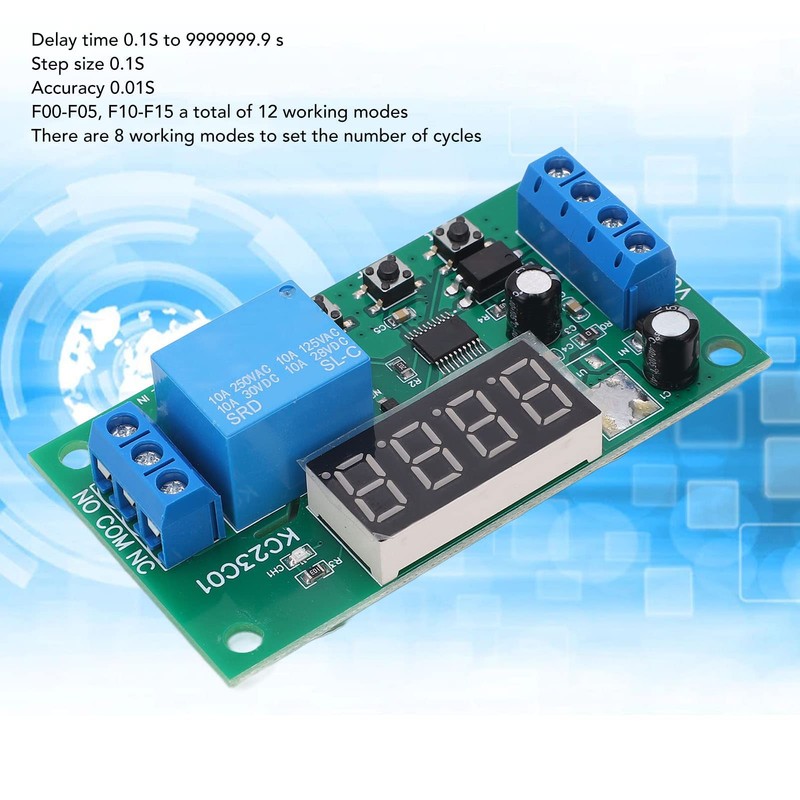

- Main function: this board can achieve a delay time from 0.1 s to 9999999.9 s, a step width of 0.1 s and an accuracy of 0.01 s. F00-F05, F10-F15 total 12 working modes, there are 8 working modes to adjust the number of cycles. For this board, 3 statuses can be set: working status, energy saving status, setting status.

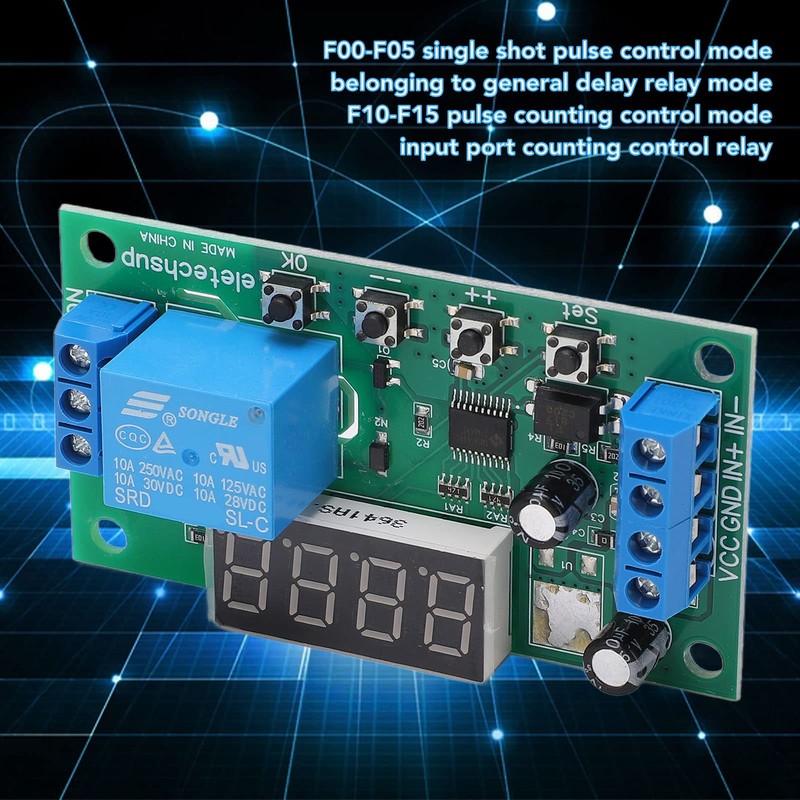

- Working status: Working status when switched on, the F00-F05 mode shows the remaining time, the F10-F15 mode shows the remaining time and pulse count. Note: If the remaining time is more than four digits, briefly press the "OK" button to scroll and display the remaining time once.
- Setting status: Short press the "SET" button to enter the setting status, then briefly press "SET" to change the parameters, press briefly ''++'', ''--'' to change the parameters. Short press the "OK" button to save the parameters and exit the setting state. Note: After setting the parameters, it must be turned on again.
- Energy saving mode: the working status of the digital tube is switched off. In this state, the digital tube is not displayed and other functions work normally. Press and hold the "OK" button for 5 seconds to enter power saving mode, and hold the "OK" button for 5 seconds to exit the power saving mode.
- Query status: Without changing the parameter setting status, briefly press the SET button to enter the query status, then press SET to change the parameters, and briefly press the OK button to exit the query status.
| Brand: | Marhynchus |
|---|---|
| Size: | 12V |
| Manufacturer: | Marhynchus |
| Part Number: | J2HHY78 |
| Isin: | IDQ3X88DCR8J |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product Overview
- Main function: this board can achieve a delay time from 0.1 s to 9999999.9 s, a step width of 0.1 s and an accuracy of 0.01 s. F00-F05, F10-F15 total 12 working modes, there are 8 working modes to adjust the number of cycles. For this board, 3 statuses can be set: working status, energy saving status, setting status.
- Working status: Working status when switched on, the F00-F05 mode shows the remaining time, the F10-F15 mode shows the remaining time and pulse count. Note: If the remaining time is more than four digits, briefly press the "OK" button to scroll and display the remaining time once.
- Setting status: Short press the "SET" button to enter the setting status, then briefly press "SET" to change the parameters, press briefly ''++'', ''--'' to change the parameters. Short press the "OK" button to save the parameters and exit the setting state. Note: After setting the parameters, it must be turned on again.
- Energy saving mode: the working status of the digital tube is switched off. In this state, the digital tube is not displayed and other functions work normally. Press and hold the "OK" button for 5 seconds to enter power saving mode, and hold the "OK" button for 5 seconds to exit the power saving mode.
- Query status: Without changing the parameter setting status, briefly press the SET button to enter the query status, then press SET to change the parameters, and briefly press the OK button to exit the query status.
| Brand: | Marhynchus |
|---|---|
| Size: | 12V |
| Manufacturer: | Marhynchus |
| Part Number: | J2HHY78 |
| Isin: | IDQ3X88DCR8J |
Specification:
Operating current:
Digital tube OFF (energy saving condition): relay OFF 6 mA, relay ON 35 MA.
Digital tube ON (working condition): relay OFF 29MA, relay ON 56MA.
Three states: working state, energy saving state, setting state.

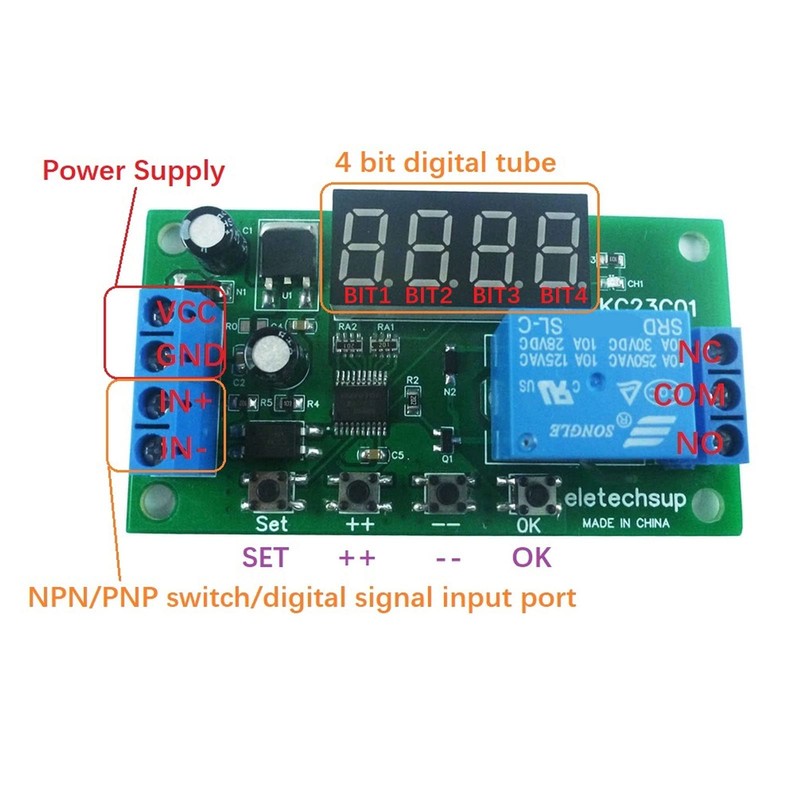

Input port: optocoupler isolation input, compatible with NPN, PNP input (5-24V switching signal)
Output port: 10A relay NO COM NC three ports

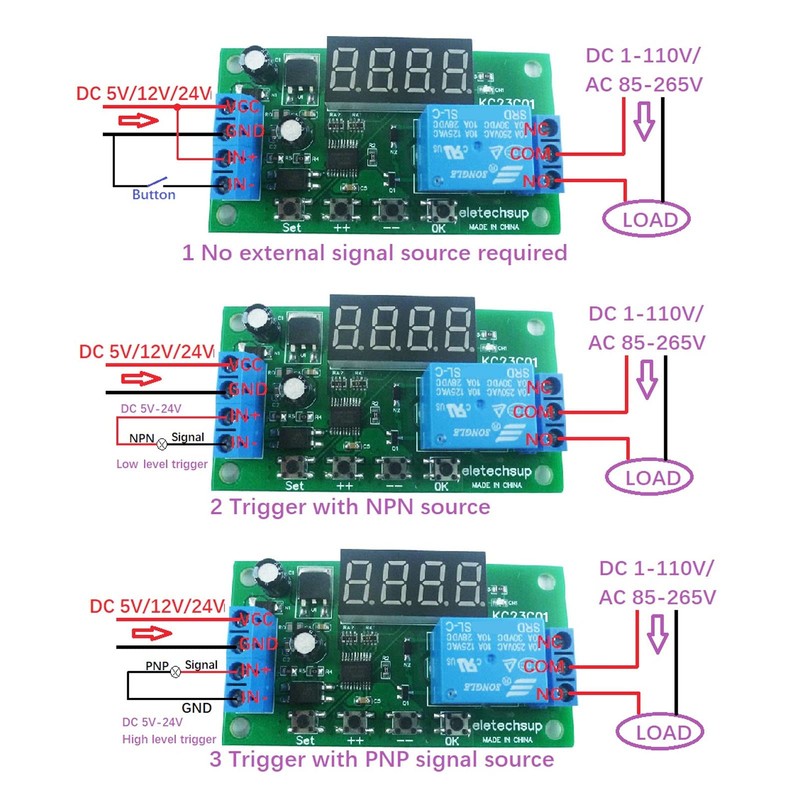

There are three wiring methods for the trigger signal input connection:
1 No external signal source required.
2 triggers with NPN signal source
3 triggers with PNP source
1 In power saving mode, you can still switch to setting and query states, and automatically switch to sleep mode after 20 seconds without pressing a button.
2. After switching on again, the digital tube will show how to turn off the digital tube for 20 seconds. Factory setting: press and hold the buttons ++ and -- simultaneously for 3 seconds to restore the factory settings and turn the display off the digital tube. Run with standard parameters after restart.
Note: After setting the parameters, it must be turned on again.
Exception handling:
1. If you encounter unexplained problems, please turn it on again (this is because there is no restart after setting the parameters).
2. If the problem still cannot be fixed after switching on again, please press the "++" and "--" buttons at the same time for 3 seconds to restore the factory settings. then restart
Package list:
1 x control board
Operating current:
Digital tube OFF (energy saving condition): relay OFF 6 mA, relay ON 35 MA.
Digital tube ON (working condition): relay OFF 29MA, relay ON 56MA.
Three states: working state, energy saving state, setting state.
Input port: optocoupler isolation input, compatible with NPN, PNP input (5-24V switching signal)
Output port: 10A relay NO COM NC three ports
There are three wiring methods for the trigger signal input connection:
1 No external signal source required.
2 triggers with NPN signal source
3 triggers with PNP source
1 In power saving mode, you can still switch to setting and query states, and automatically switch to sleep mode after 20 seconds without pressing a button.
2. After switching on again, the digital tube will show how to turn off the digital tube for 20 seconds. Factory setting: press and hold the buttons ++ and -- simultaneously for 3 seconds to restore the factory settings and turn the display off the digital tube. Run with standard parameters after restart.
Note: After setting the parameters, it must be turned on again.
Exception handling:
1. If you encounter unexplained problems, please turn it on again (this is because there is no restart after setting the parameters).
2. If the problem still cannot be fixed after switching on again, please press the "++" and "--" buttons at the same time for 3 seconds to restore the factory settings. then restart
Package list:
1 x control board
